Symptom Troubleshooting Chart - Powertrain Control Module (PCM)
-
SYMPTOM TROUBLESHOOTING CHART - POWERTRAIN CONTROL MODULE (PCM)

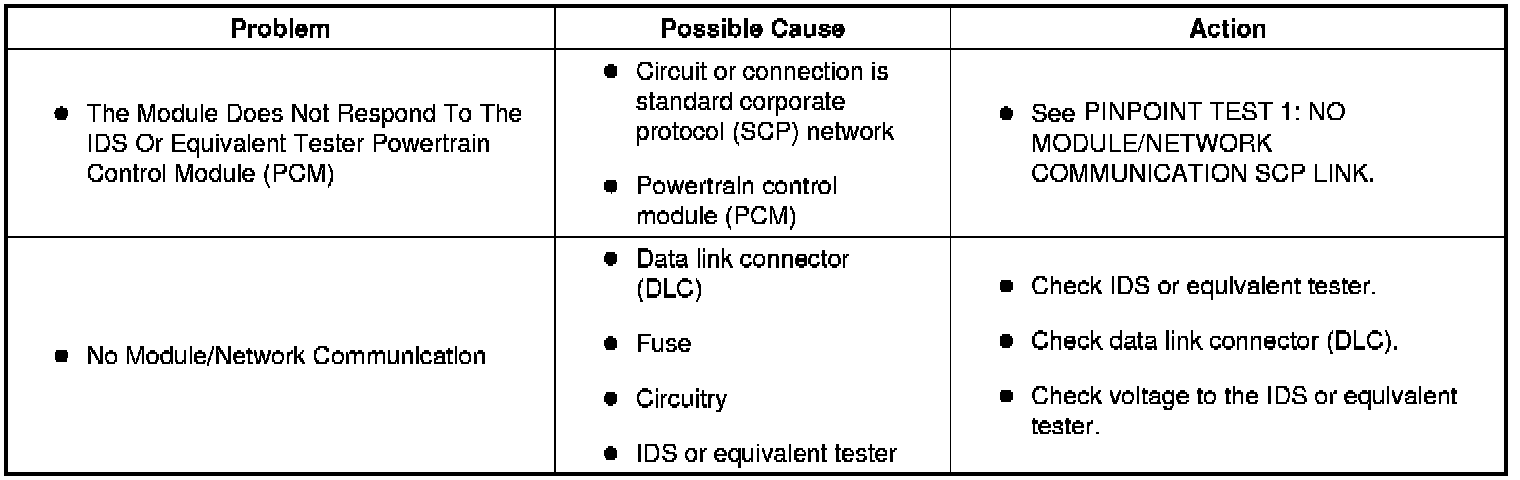

Symptom Troubleshooting Chart:
