Test 13: Ignition Scope Test

GENERAL PINPOINT TEST 13: IGNITION SCOPE PINPOINT TEST

CAUTION:Fouled plugs or a damaged ignition may cause high catalyst temperatures. Check components next to the catalyst and muffler for heat damage.

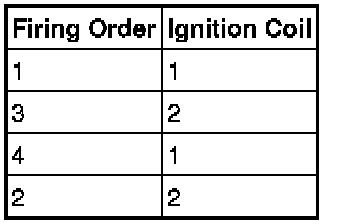

2.3L

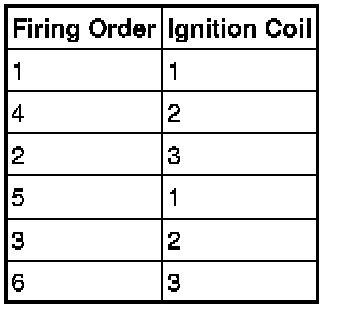

4.0L

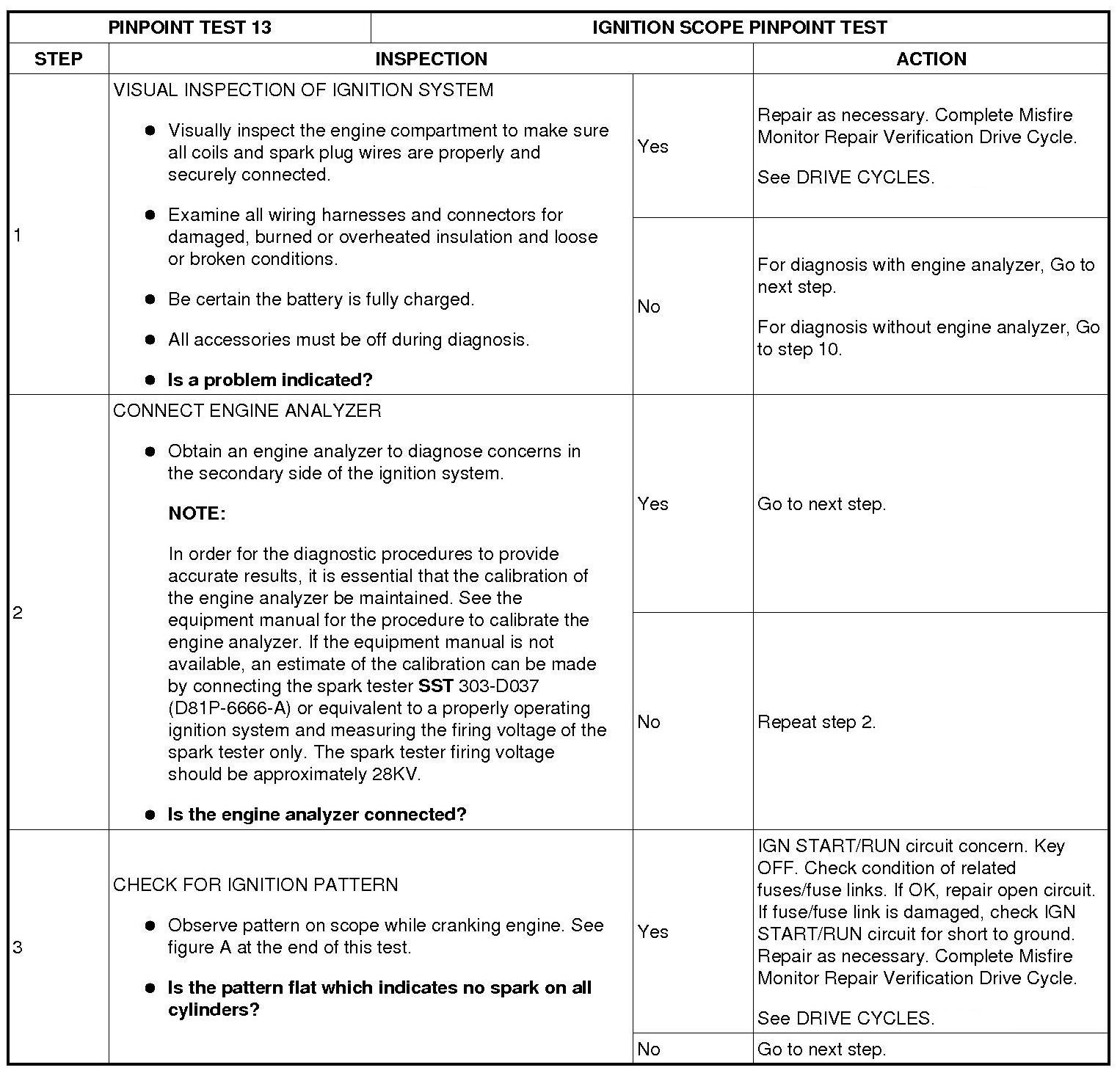

Step 1-Step 3:

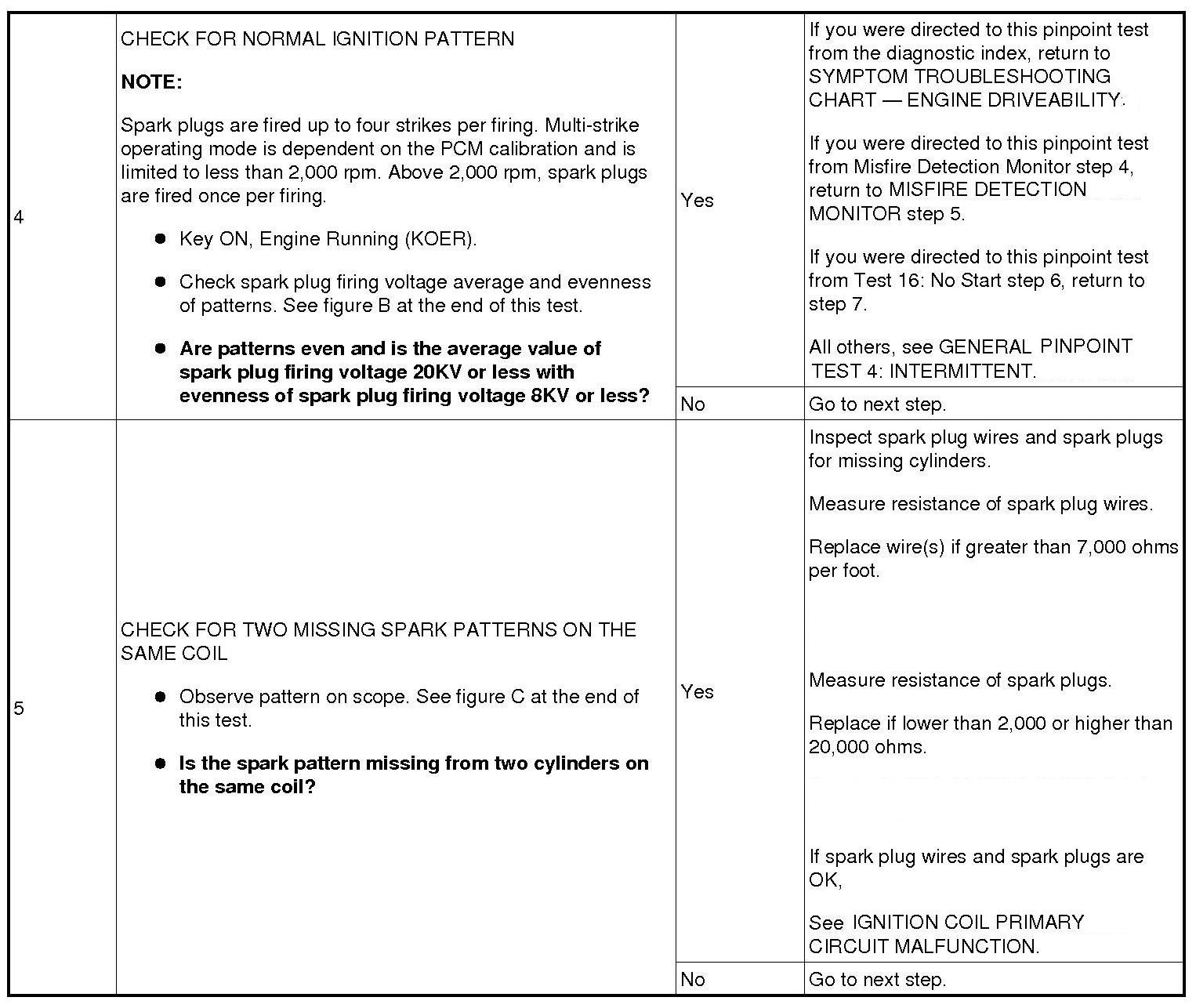

Step 4-Step 5:

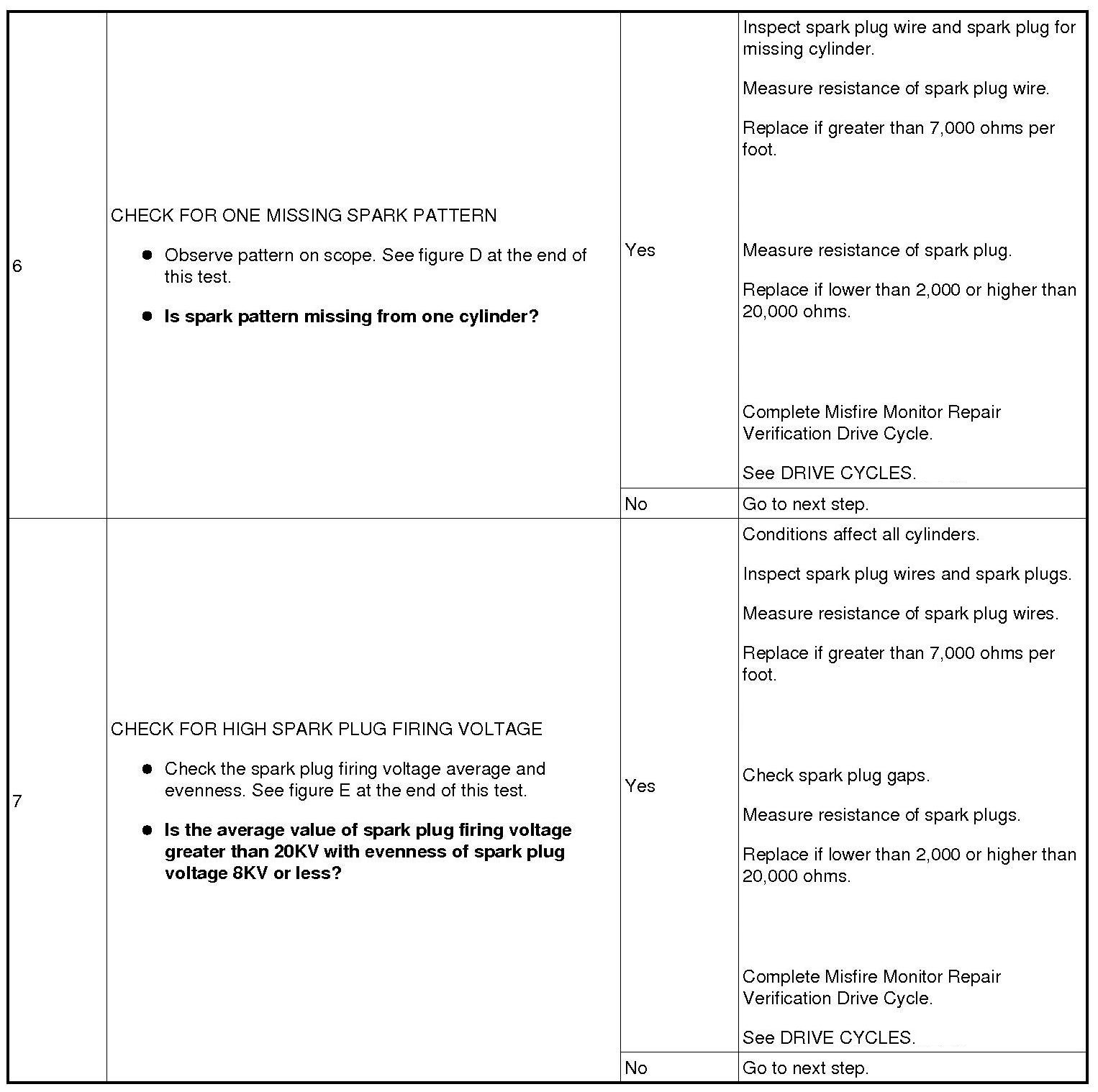

Step 6-Step 7:

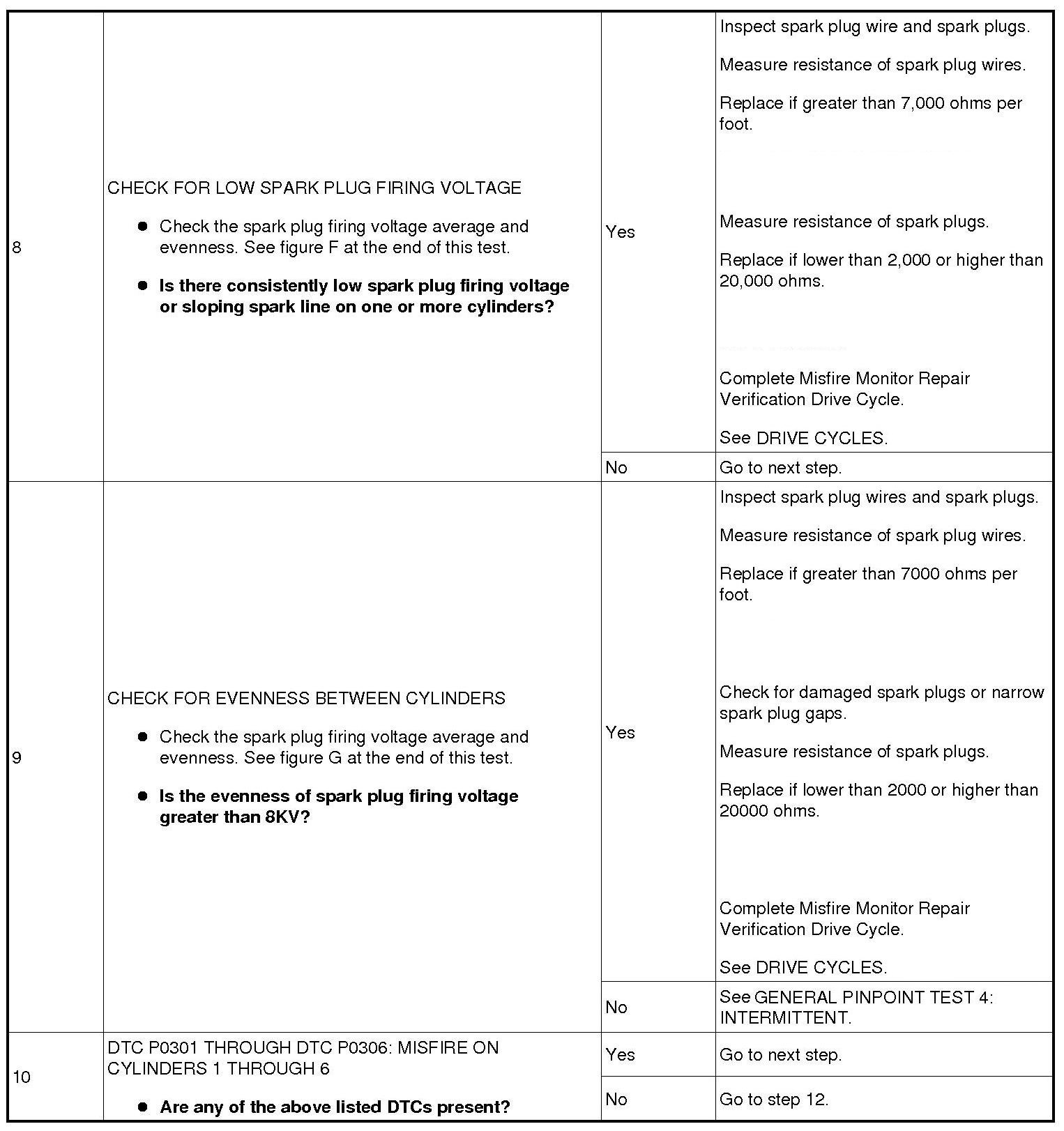

Step 8-Step 10:

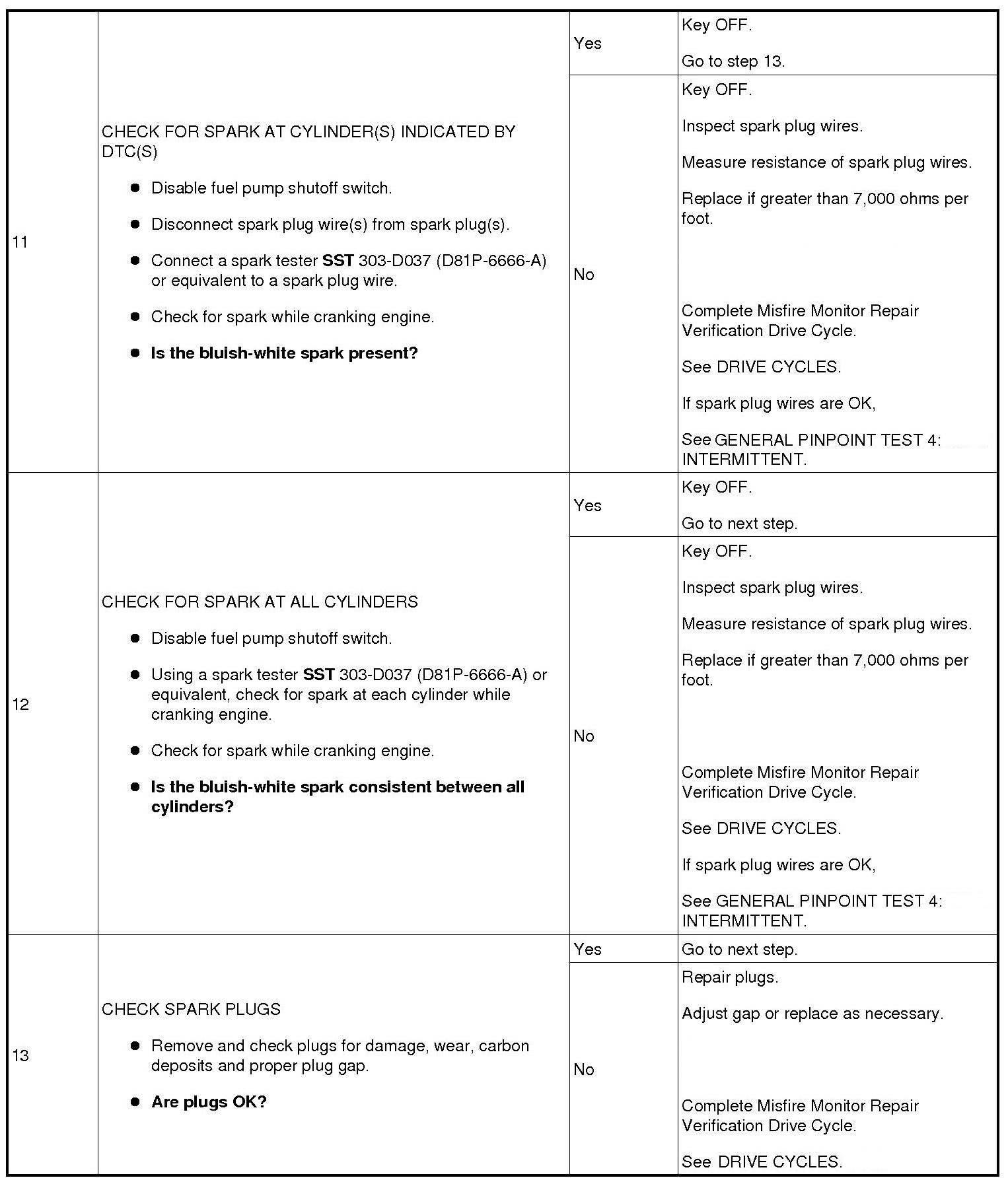

Step 11-Step 13:

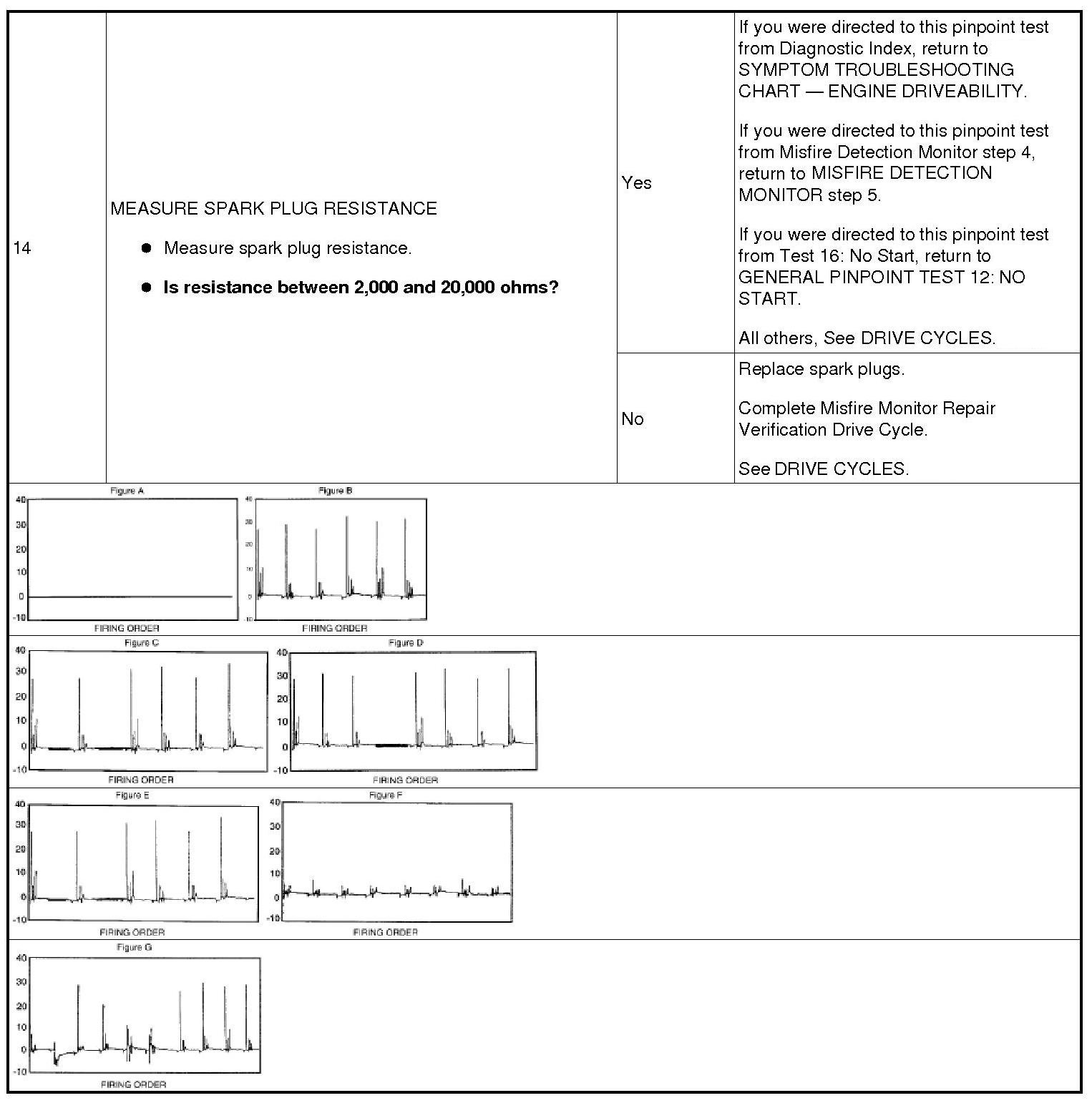

Step 14:
