Test 4: Intermittent




GENERAL PINPOINT TEST 4: INTERMITTENT

WARNING:When performing any of the test steps, always be aware of hands, clothing or tools near cooling fans or hot surfaces. Failure to follow these instructions may result in personal injury.

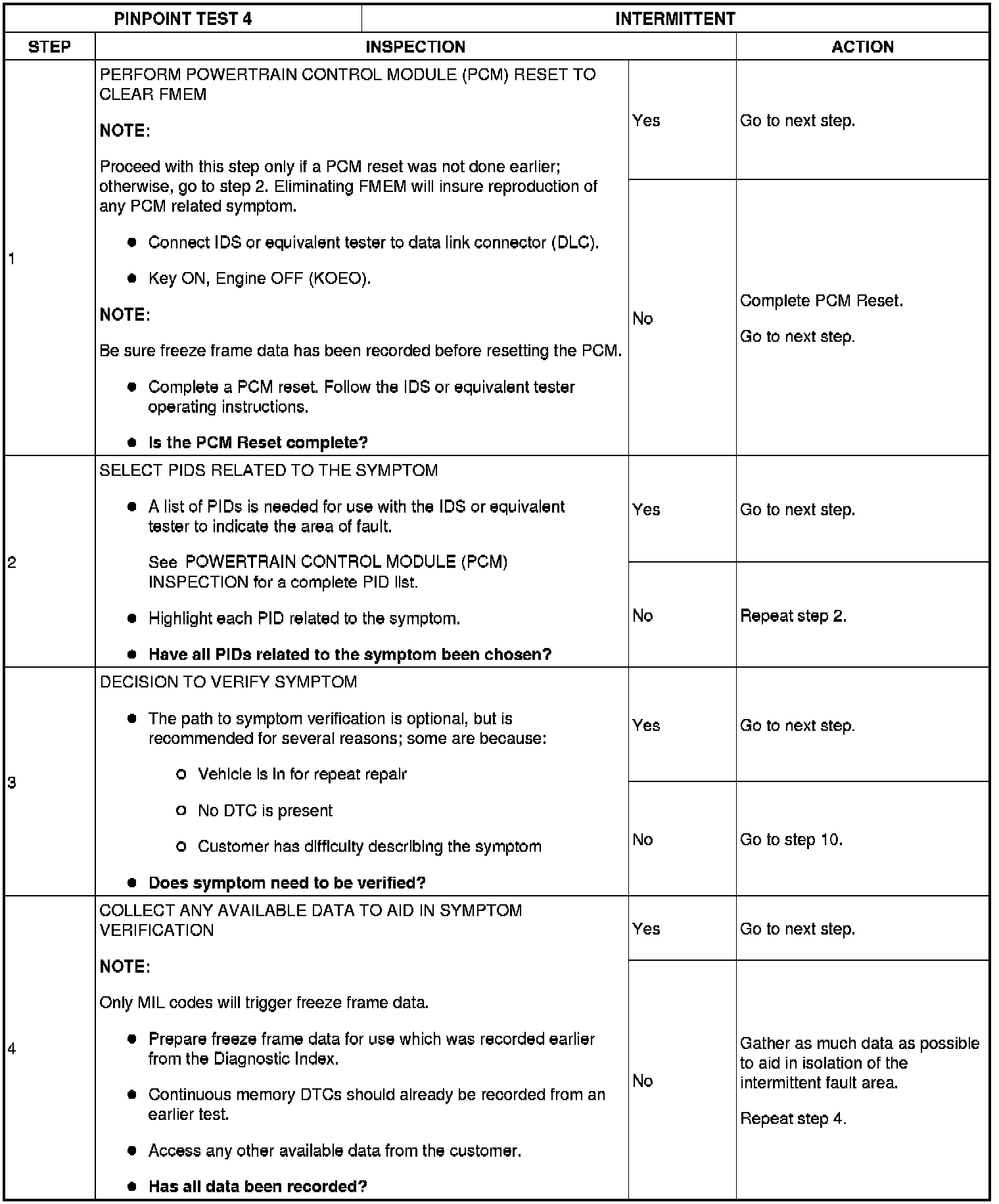

Step 1-Step 4:

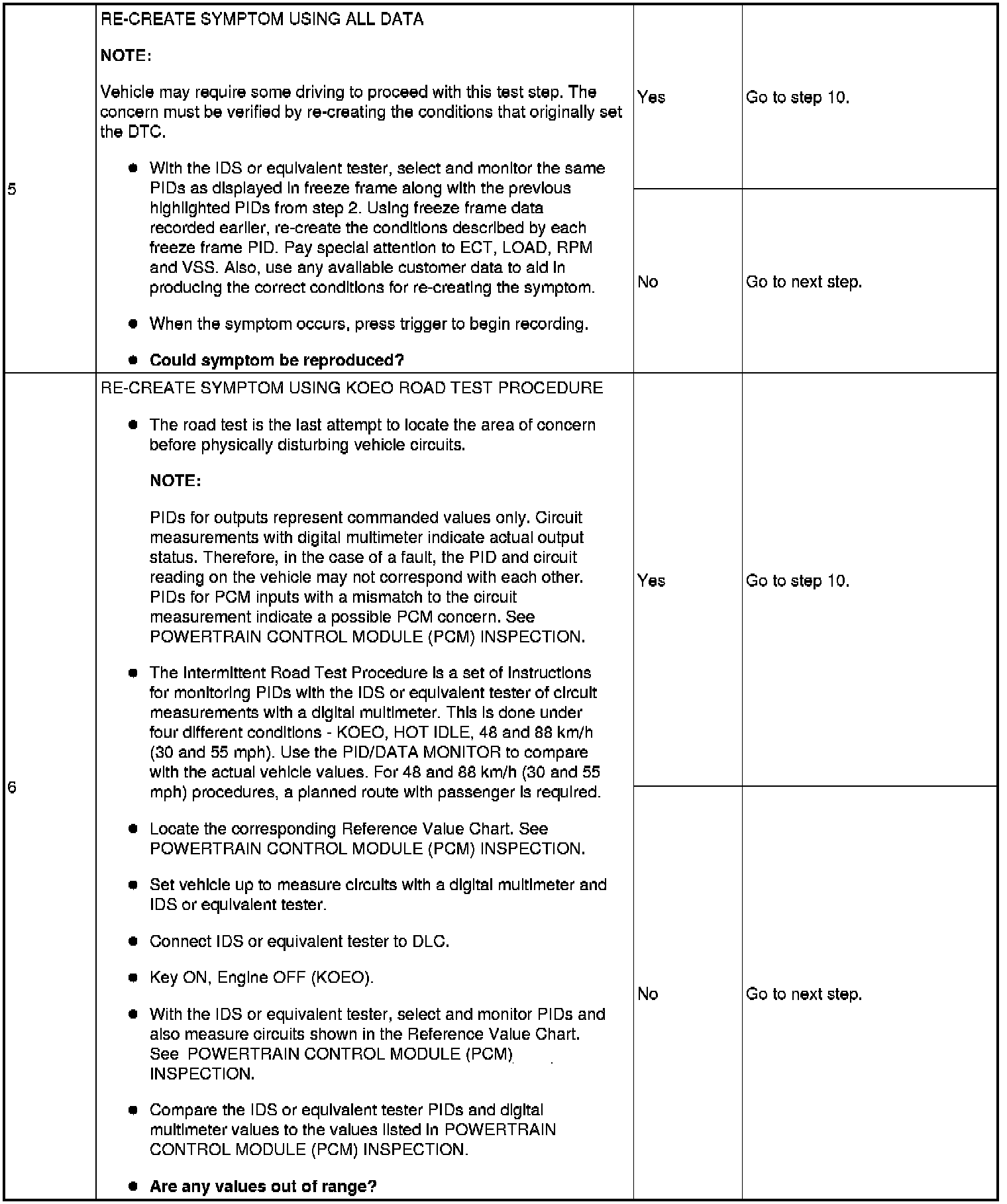

Step 5-Step 6:

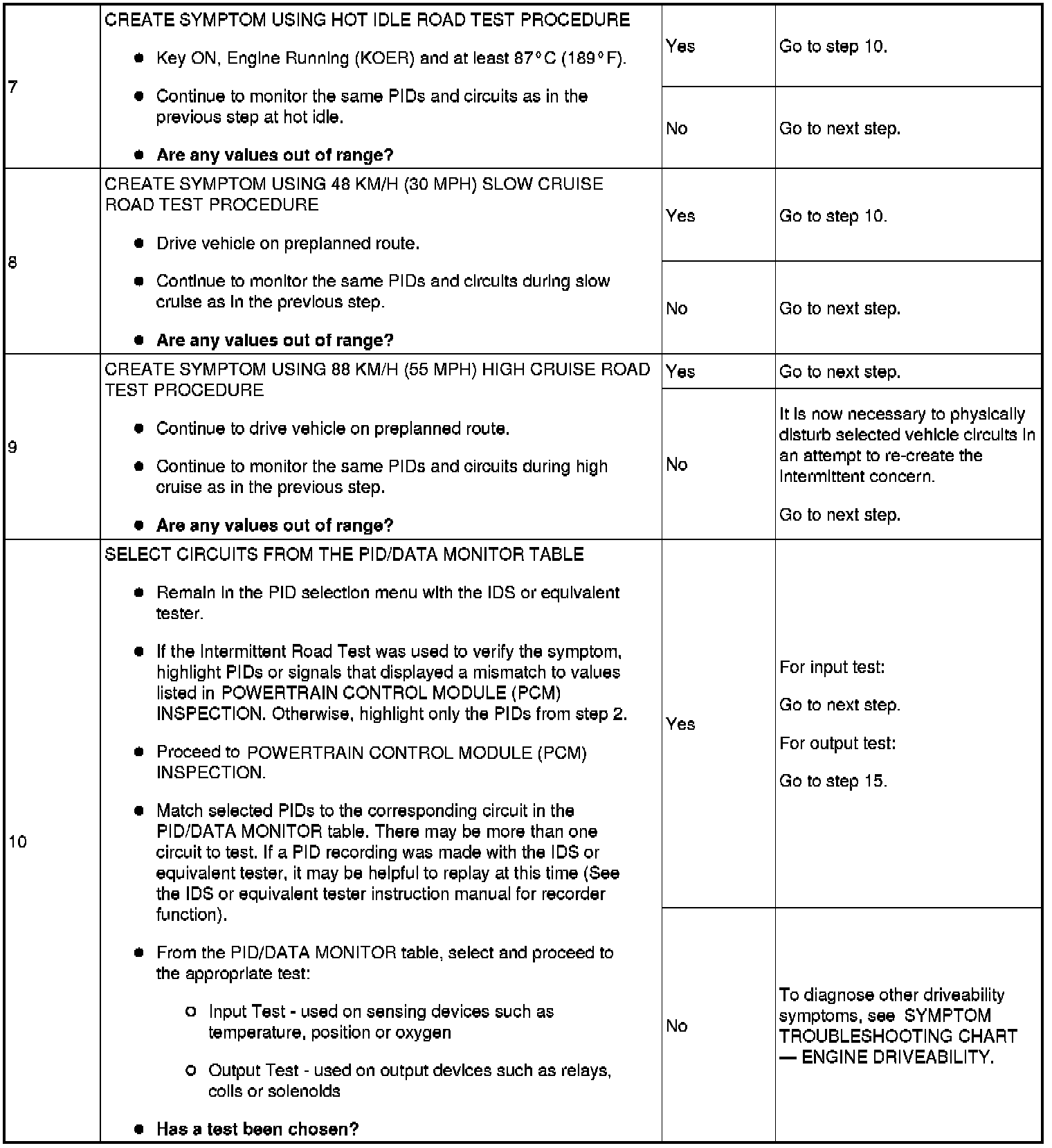

Step 7-Step 10:

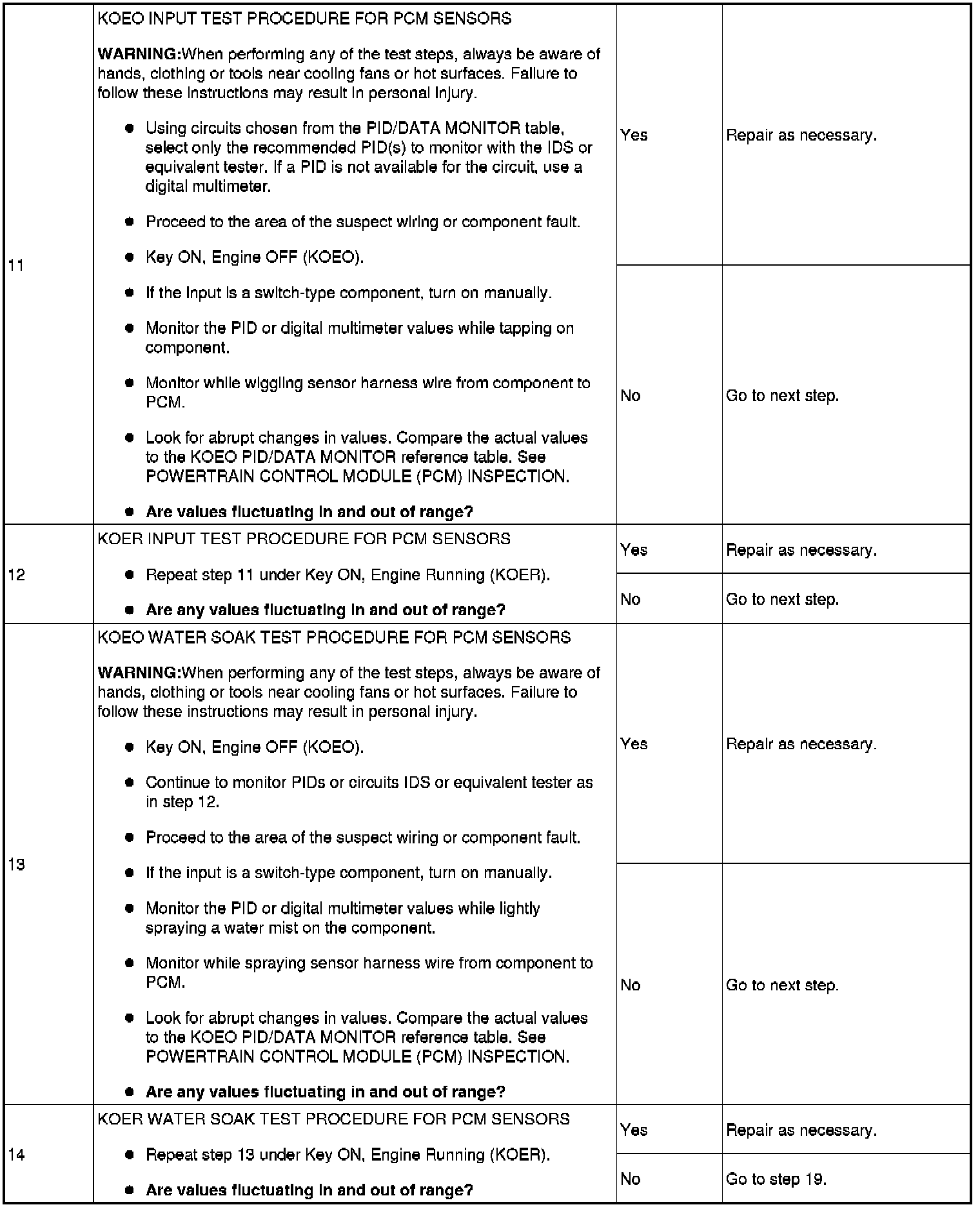

Step 11-Step 14:

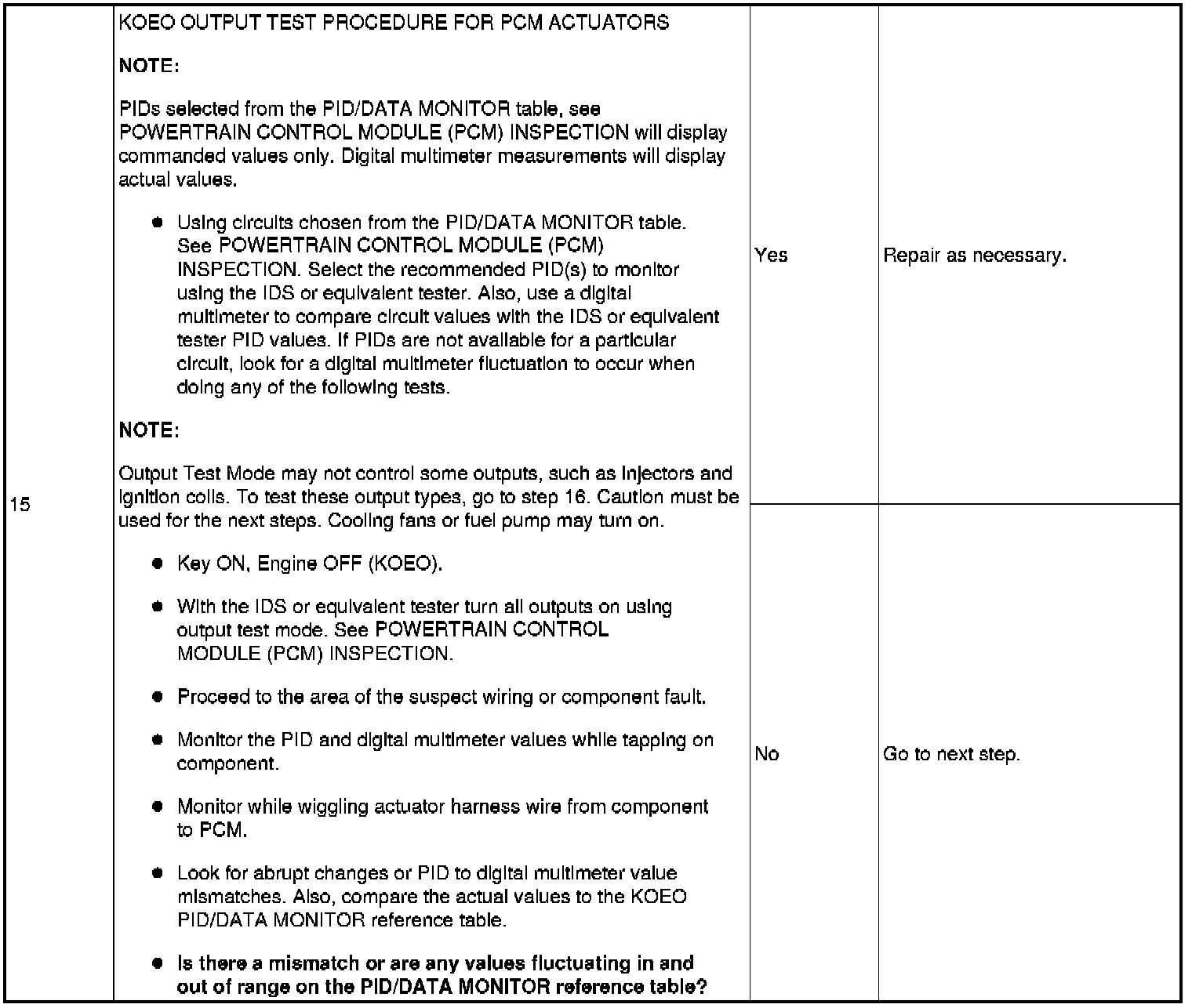

Step 14-Step 15:

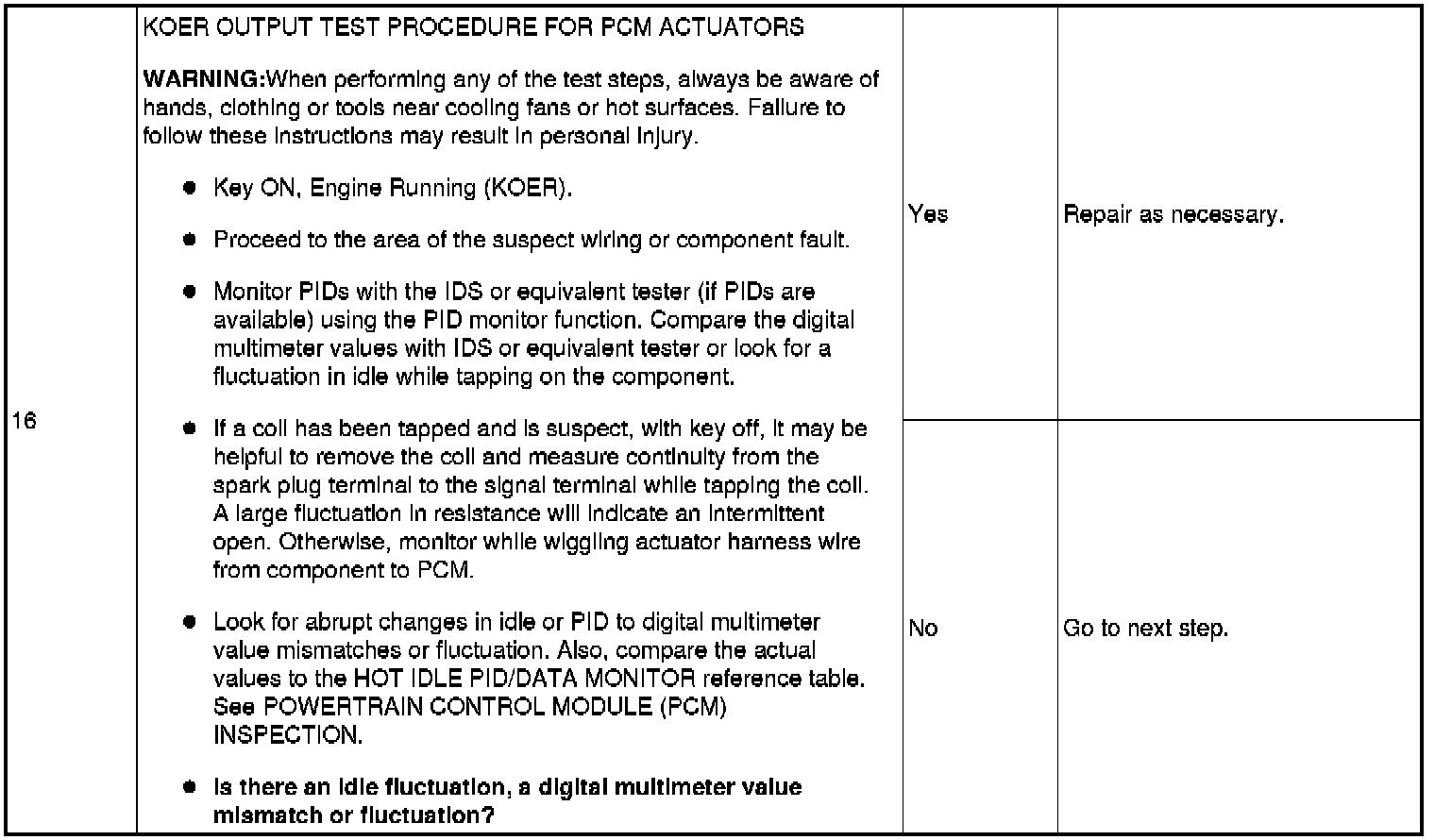

Step 16:

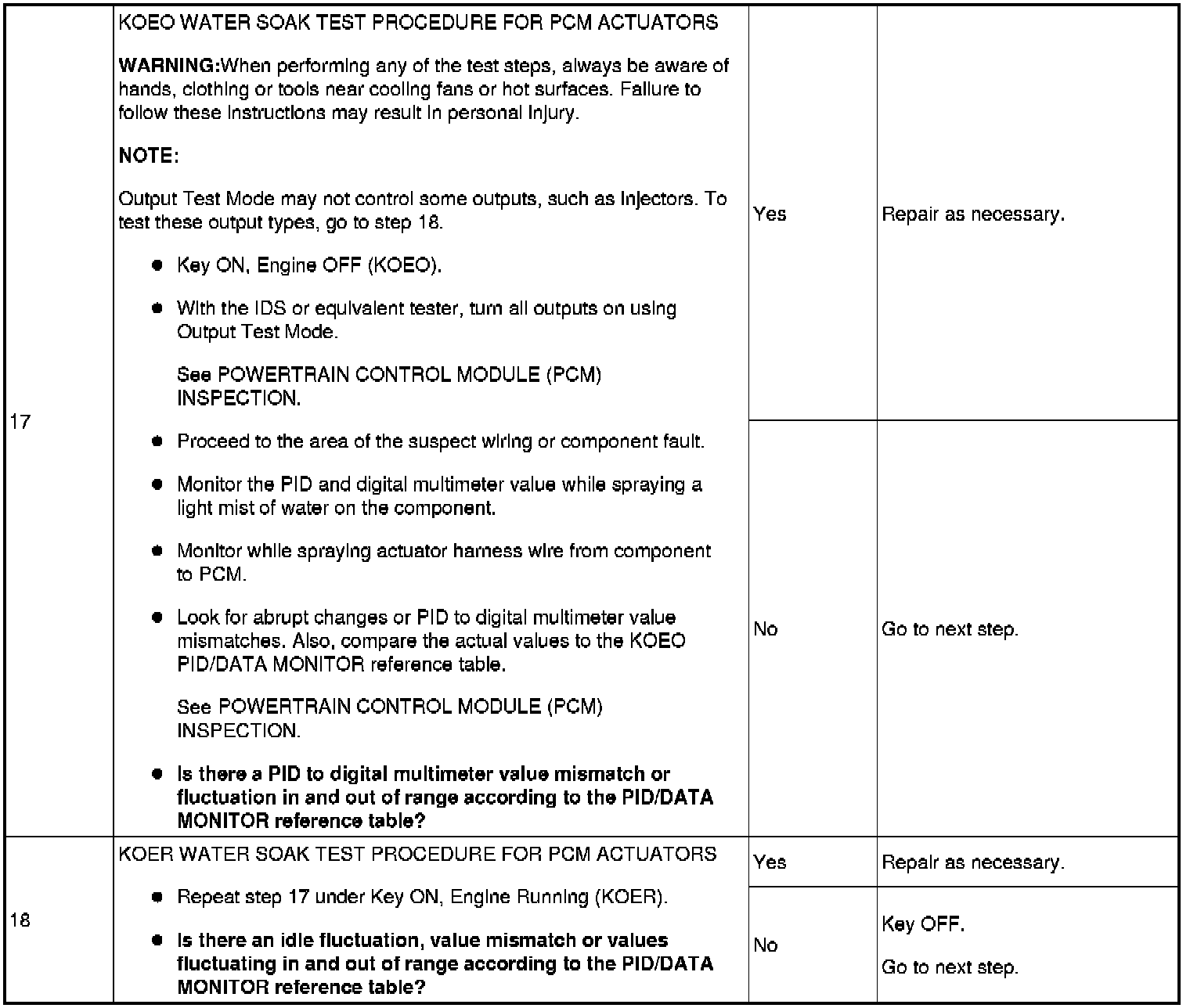

Step 17-Step 18:

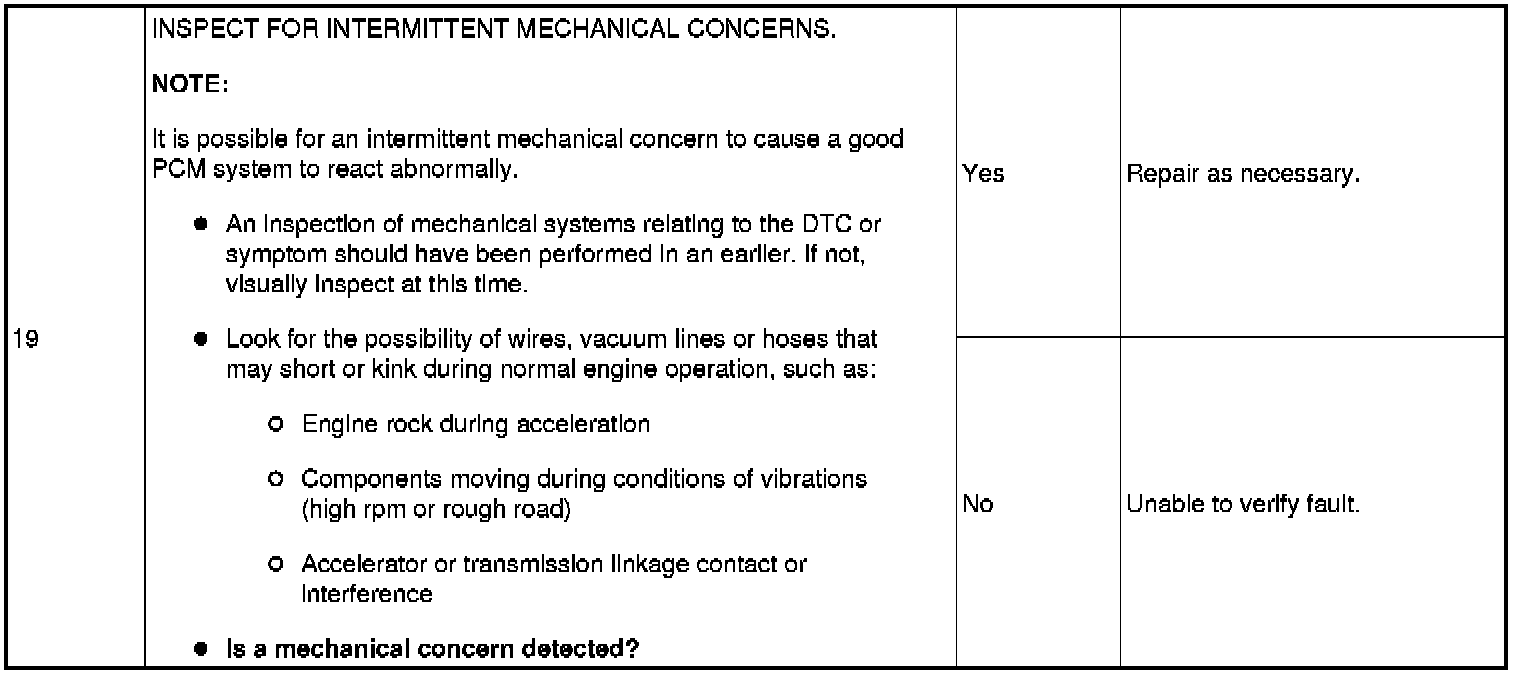

Step 19:
