Test 5: Fuel Delivery System
GENERAL PINPOINT TEST 5: FUEL DELIVERY SYSTEM

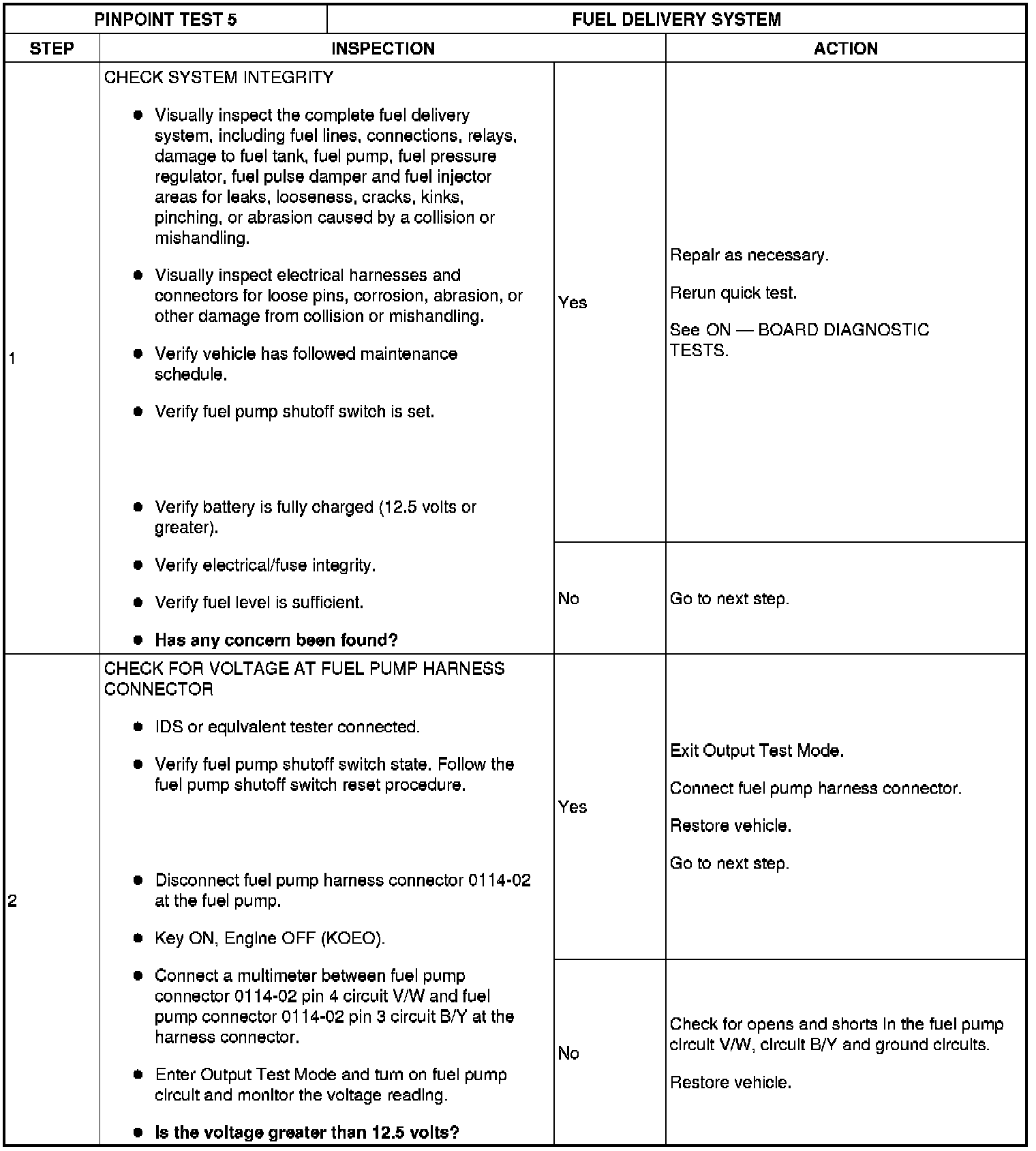

Step 1-Step 2:

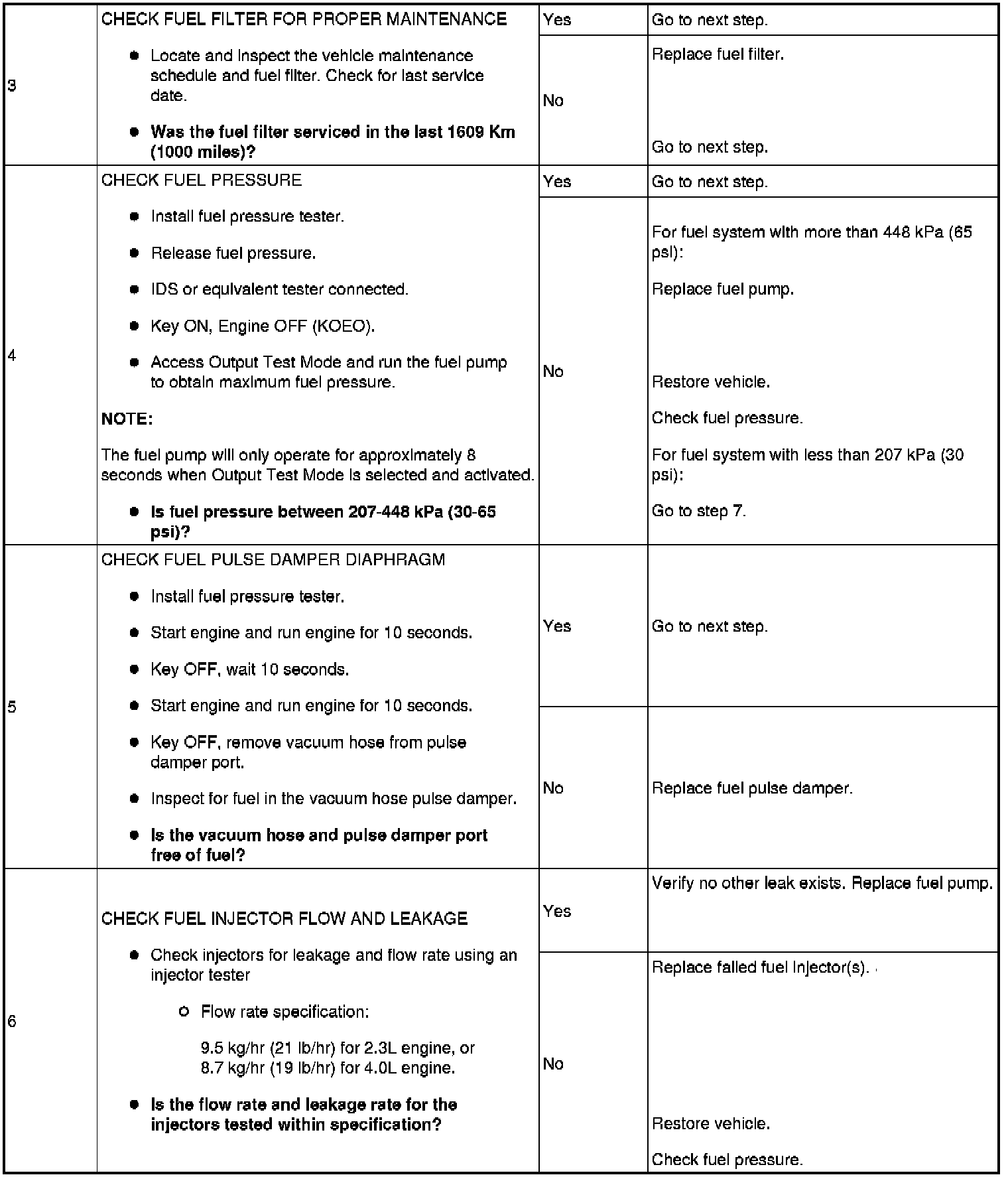

Step 3-Step 6:

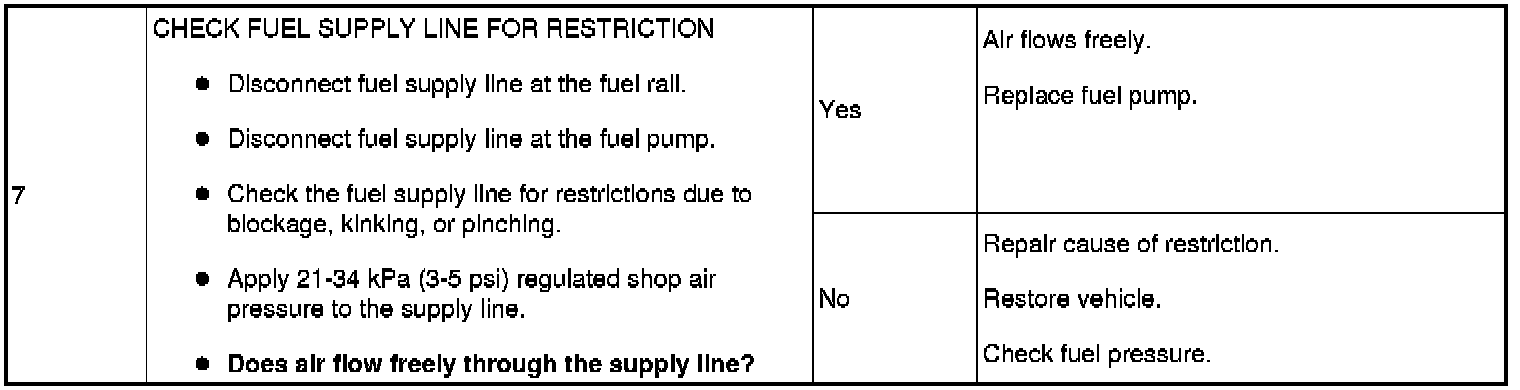

Step 7:
