Data Link Connector (DLC) Malfunction




DATA LINK CONNECTOR (DLC) MALFUNCTION

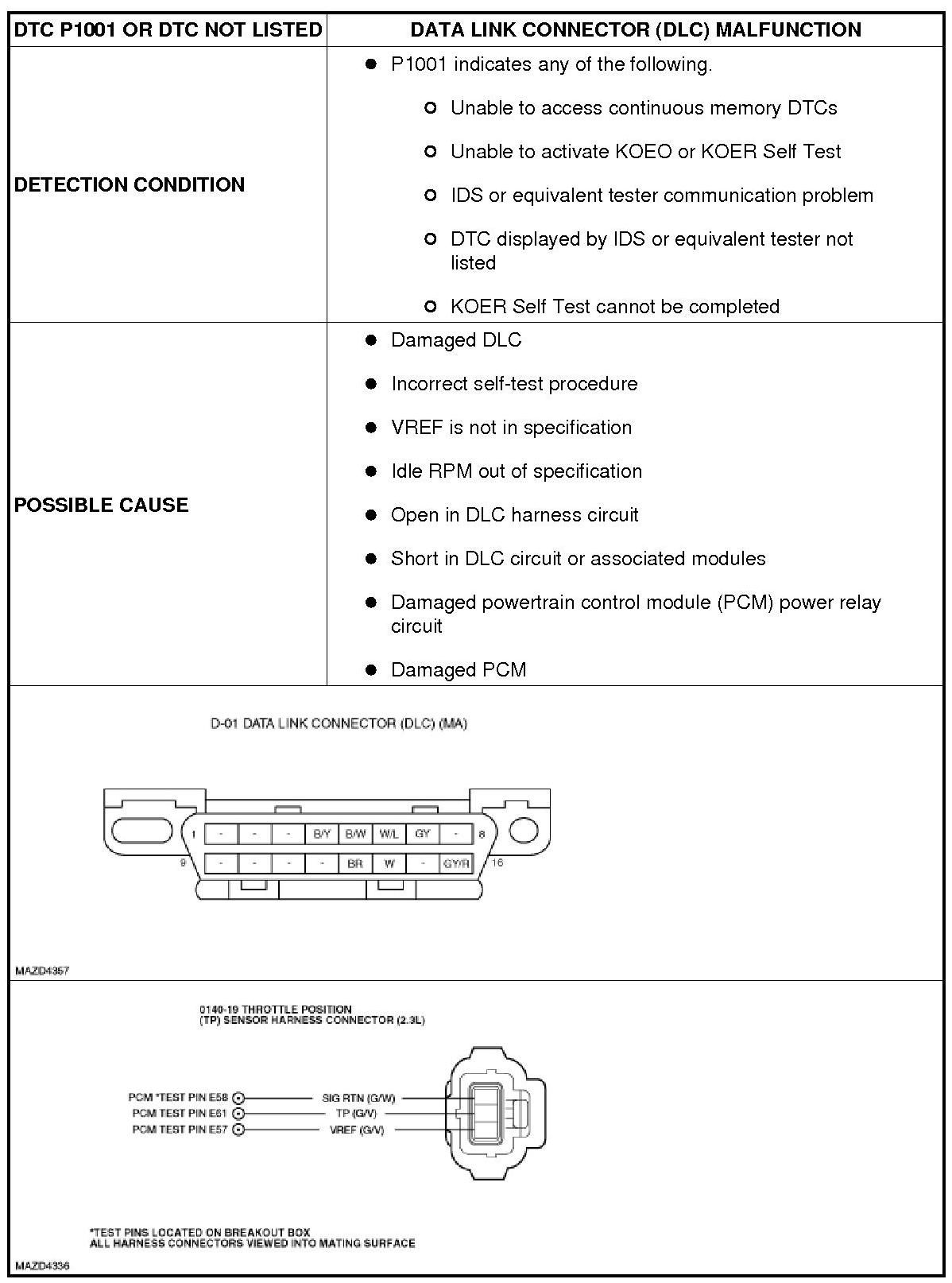

Detection Condition/Possible Cause (Part 1):

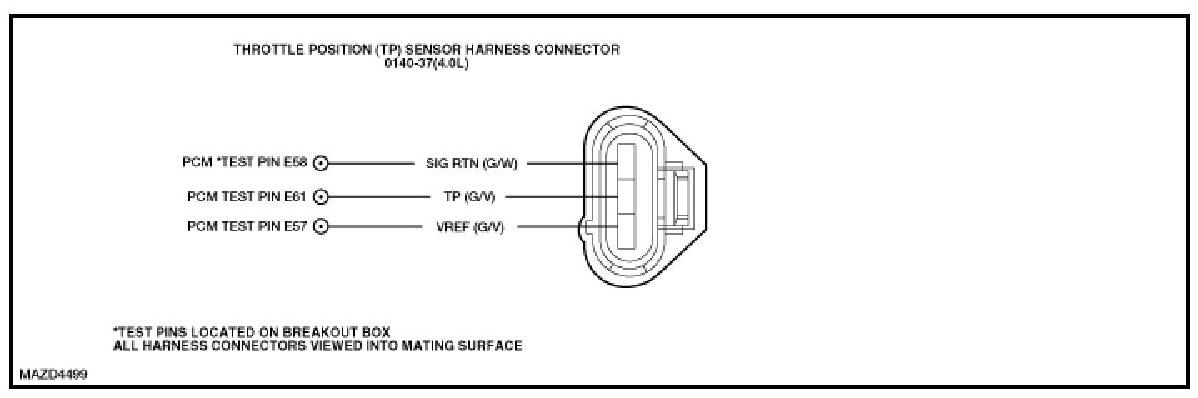

Detection Condition/Possible Cause (Part 2):

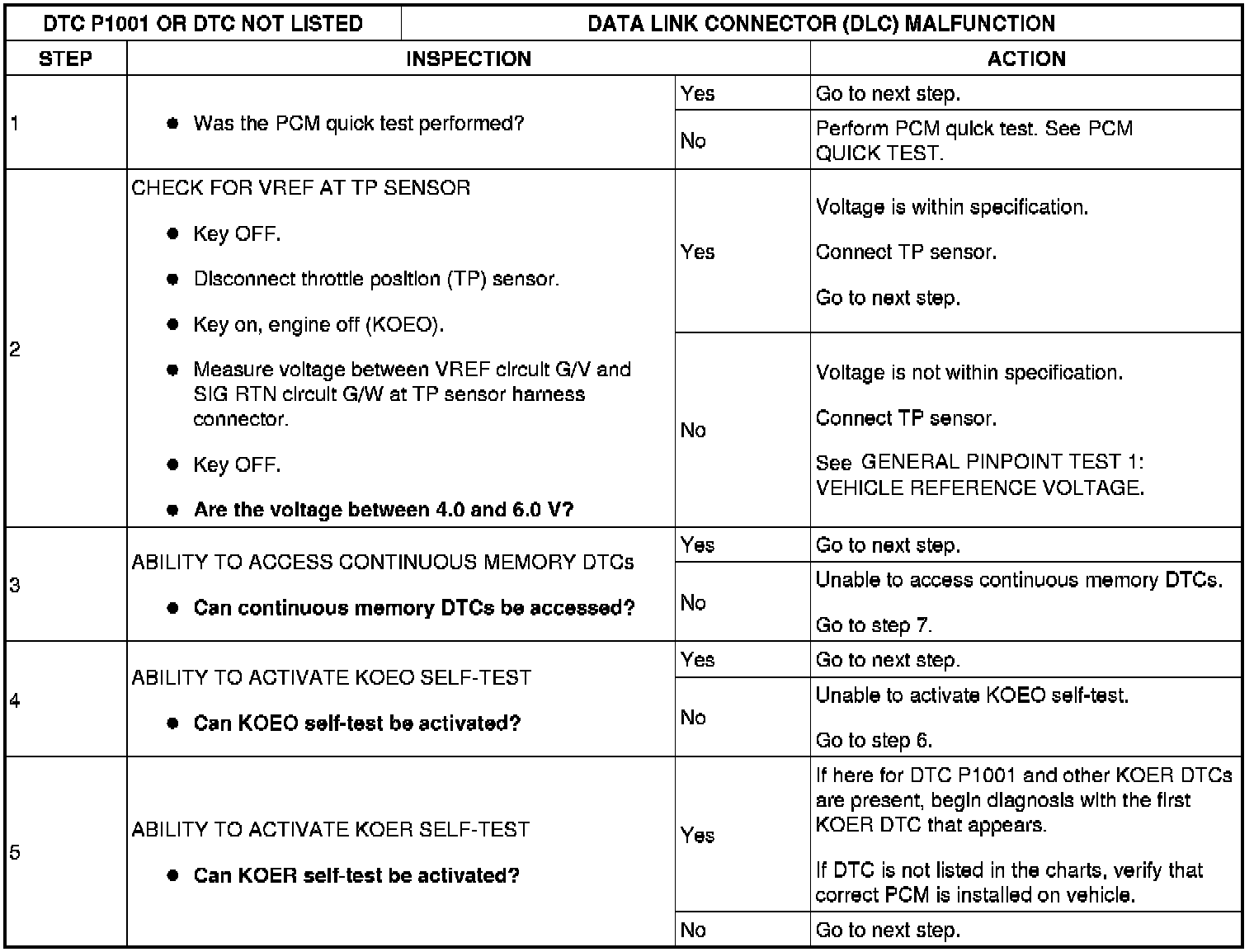

Step 1-Step 5:

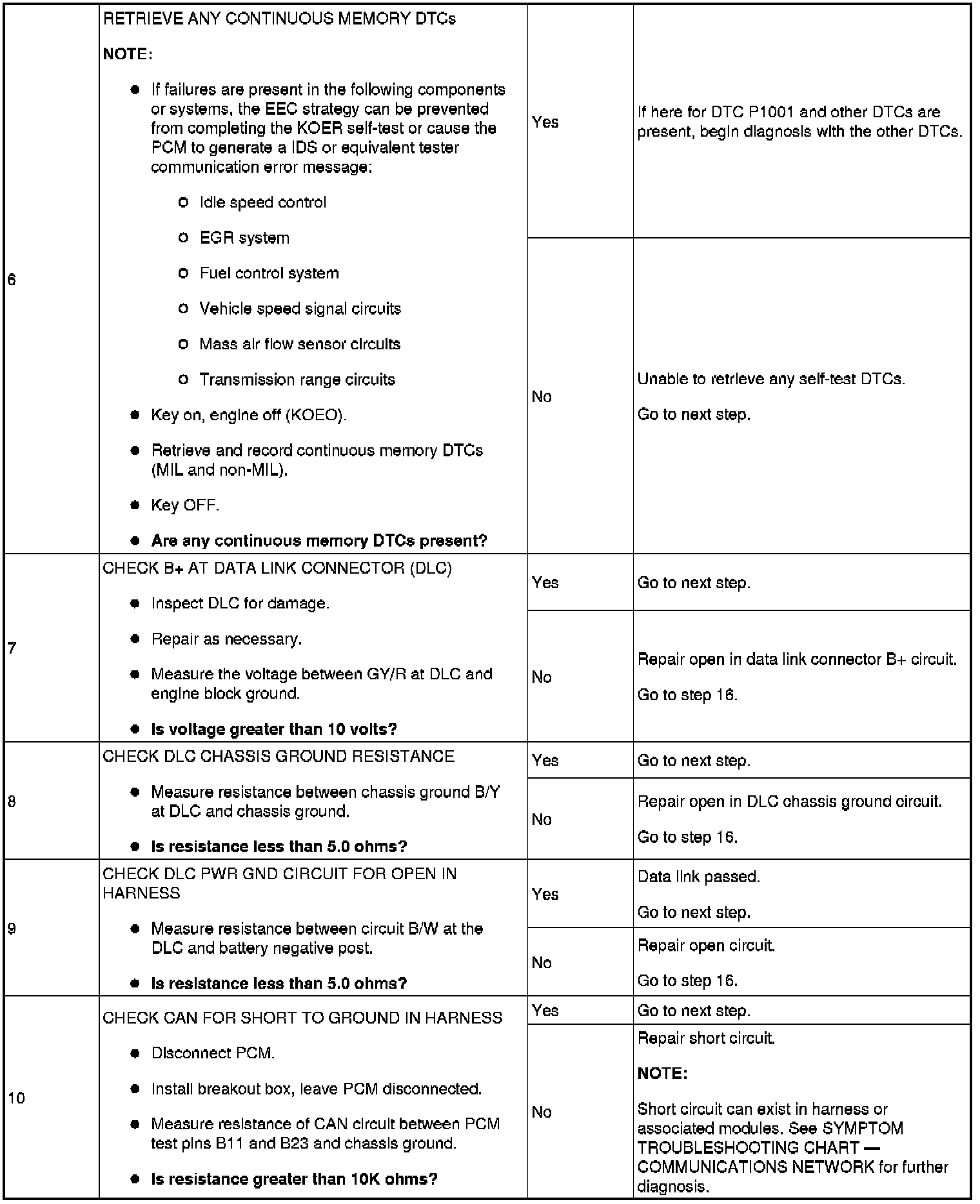

Step 6-Step 10:

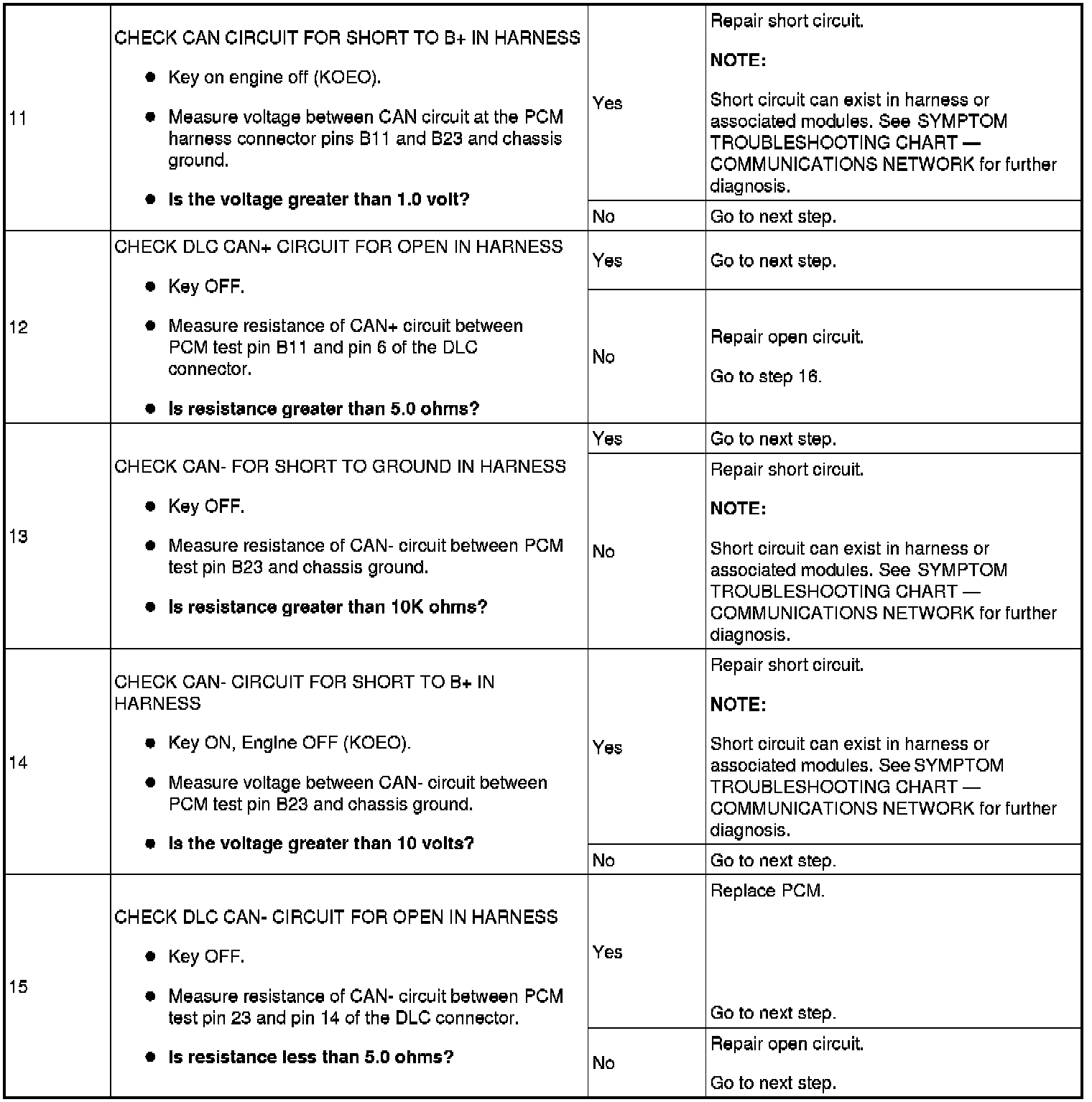

Step 11-Step 15:





Step 16:
