Throttle Position Sensor: Testing and Inspection
THROTTLE POSITION (TP) SENSOR CIRCUIT MALFUNCTION

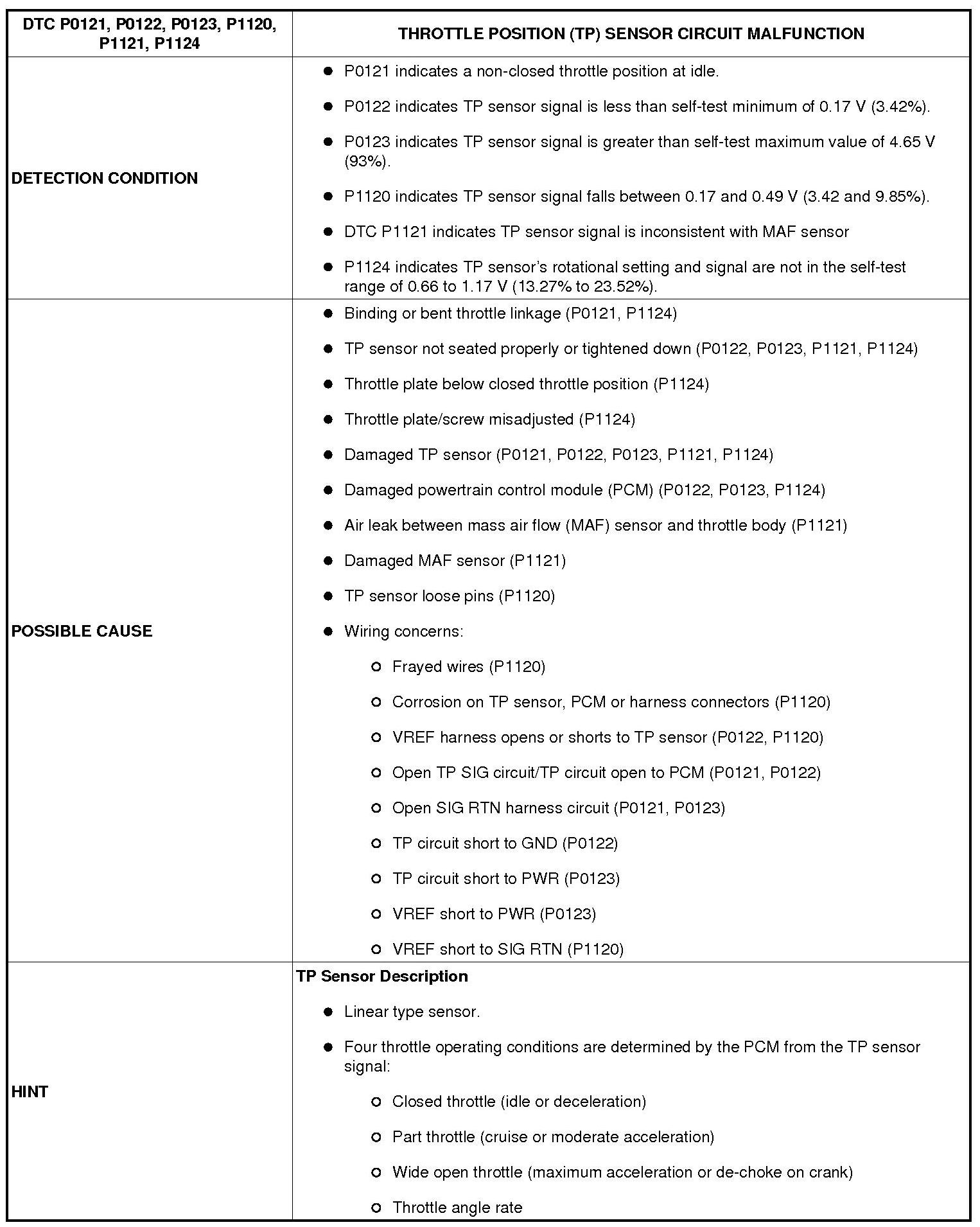

Detection Condition/Possible Cause (Part 1):
Detection Condition/Possible Cause (Part 2):

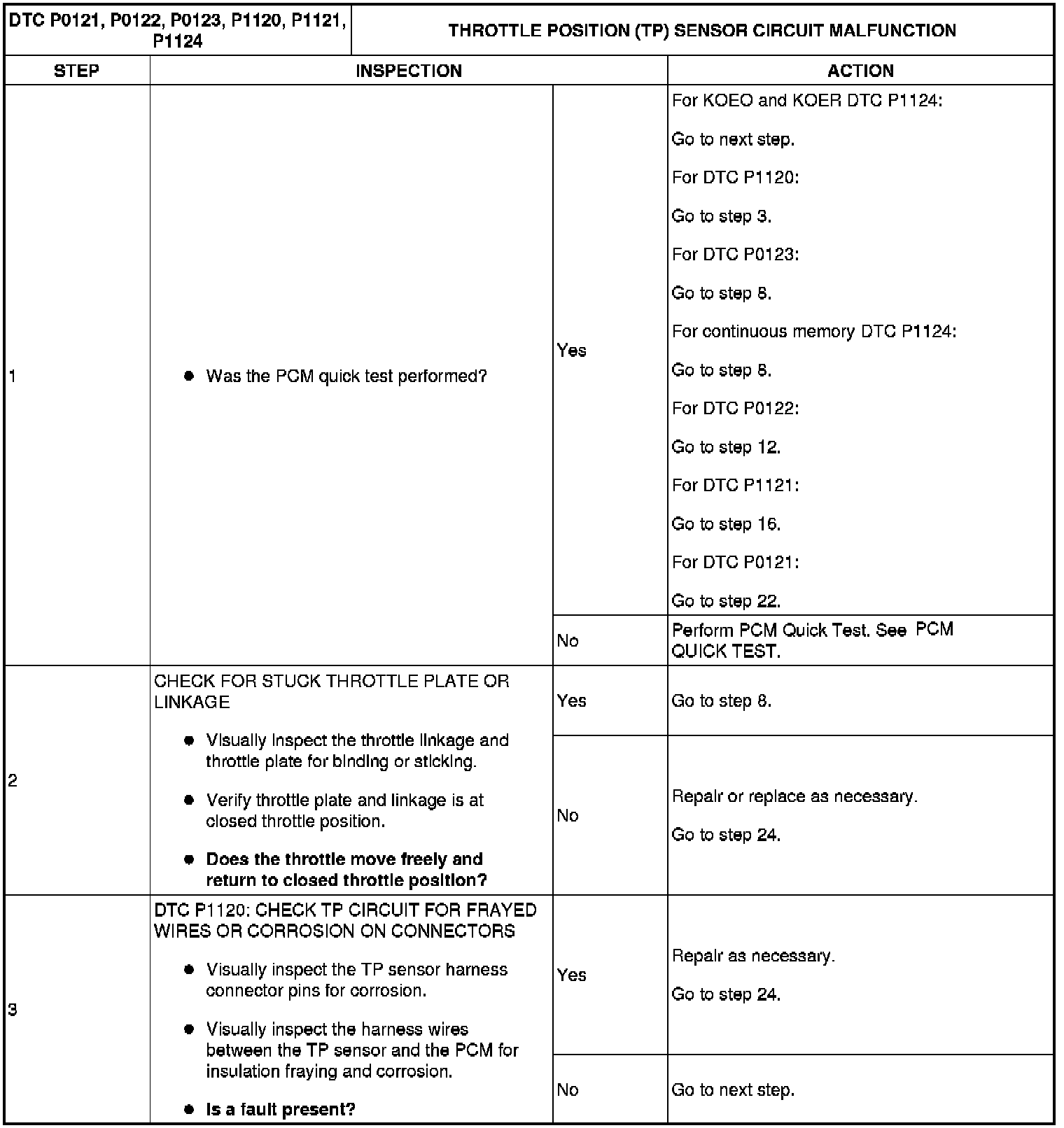

Step 1-Step 3:

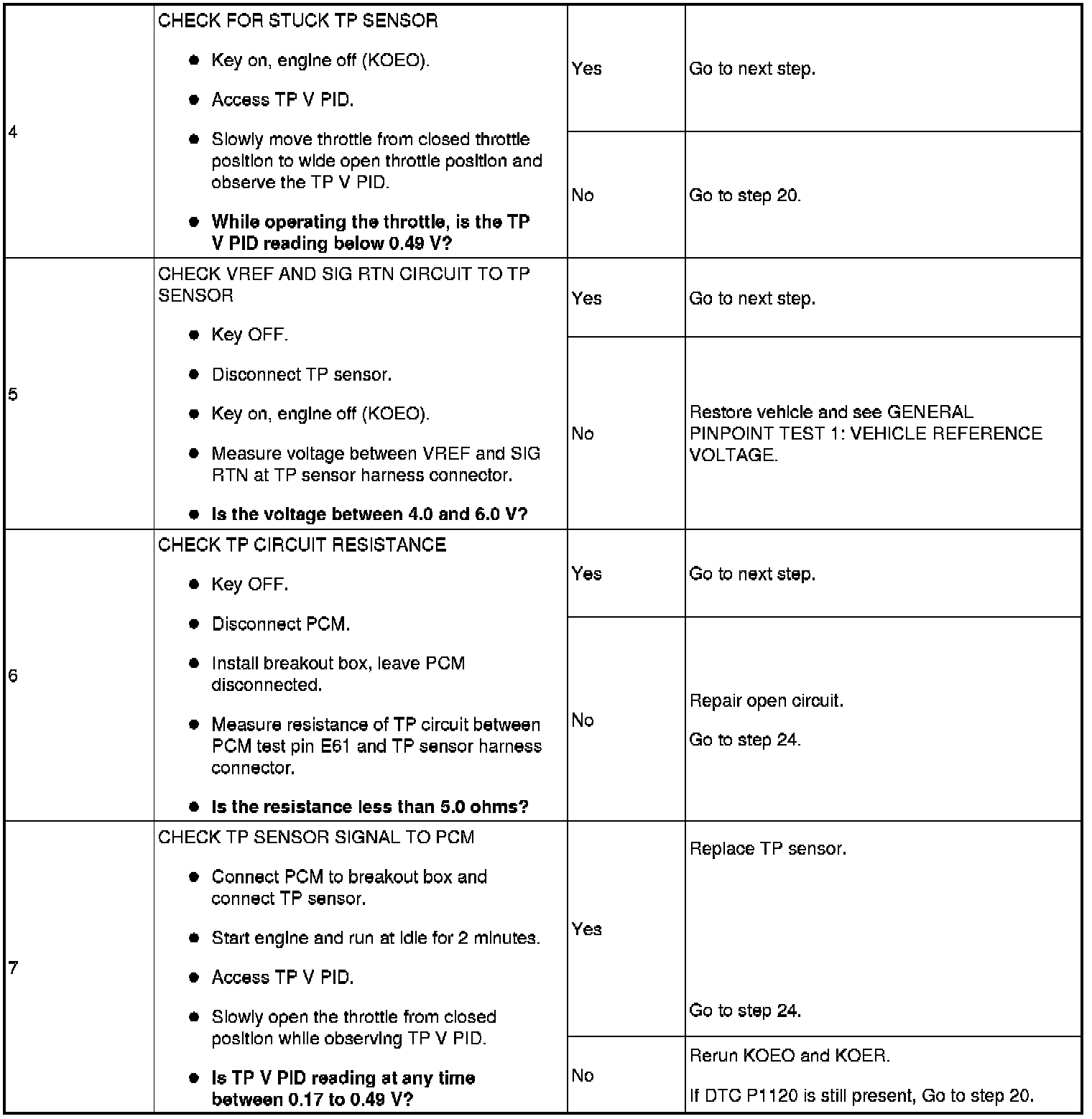

Step 4-Step 7:

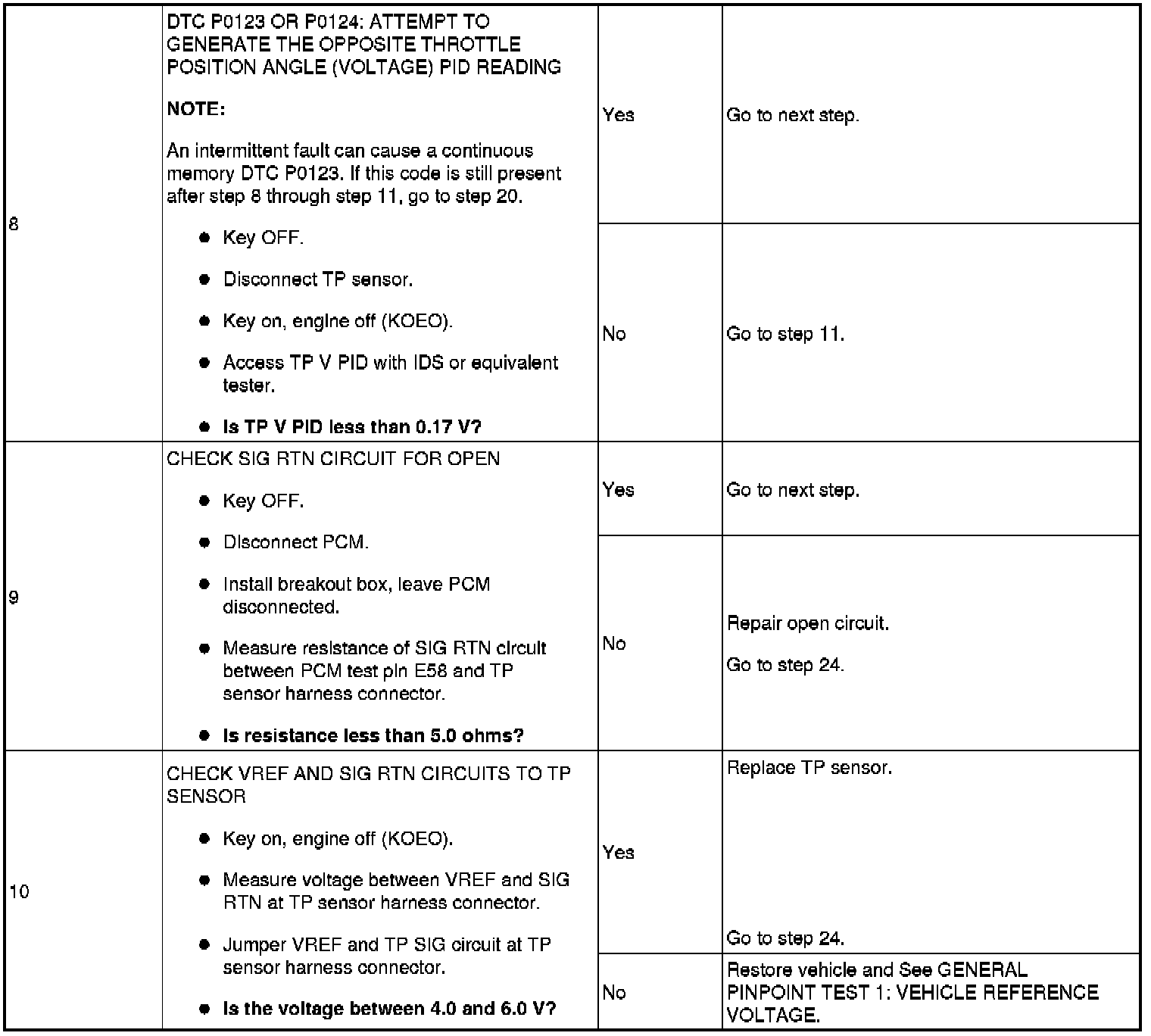

Step 8-Step 10:

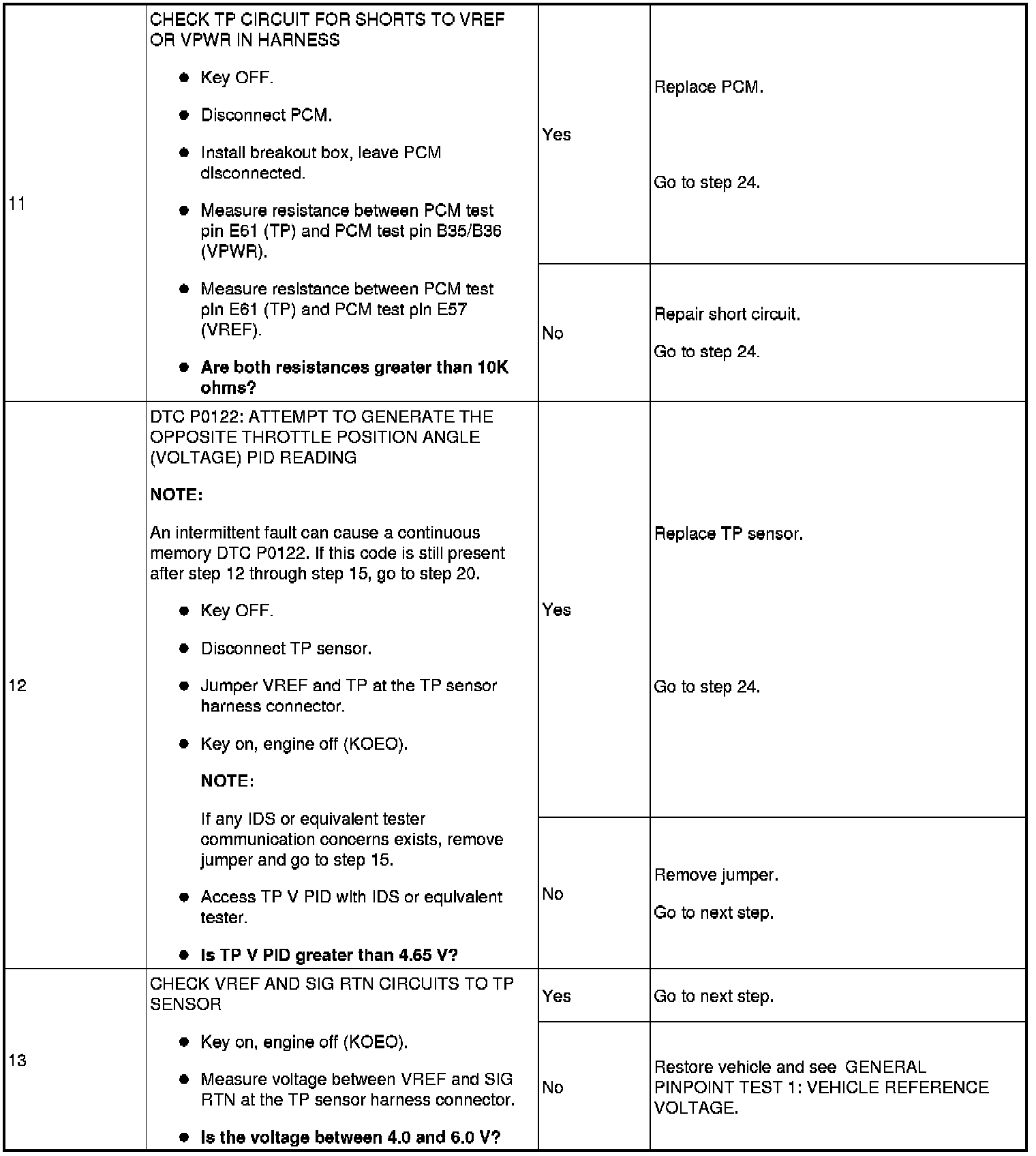

Step 11-Step 13:

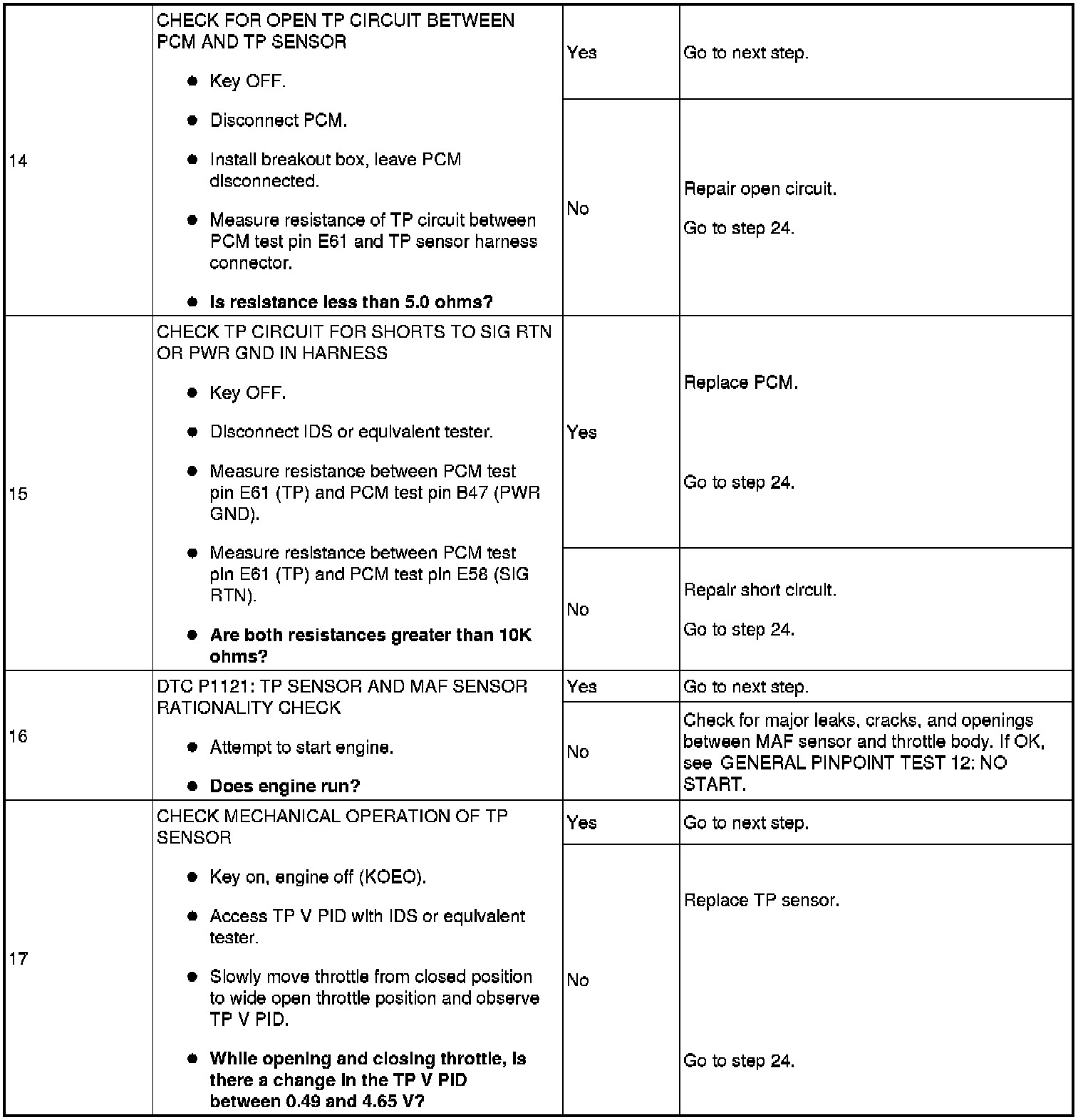

Step 14-Step 17:

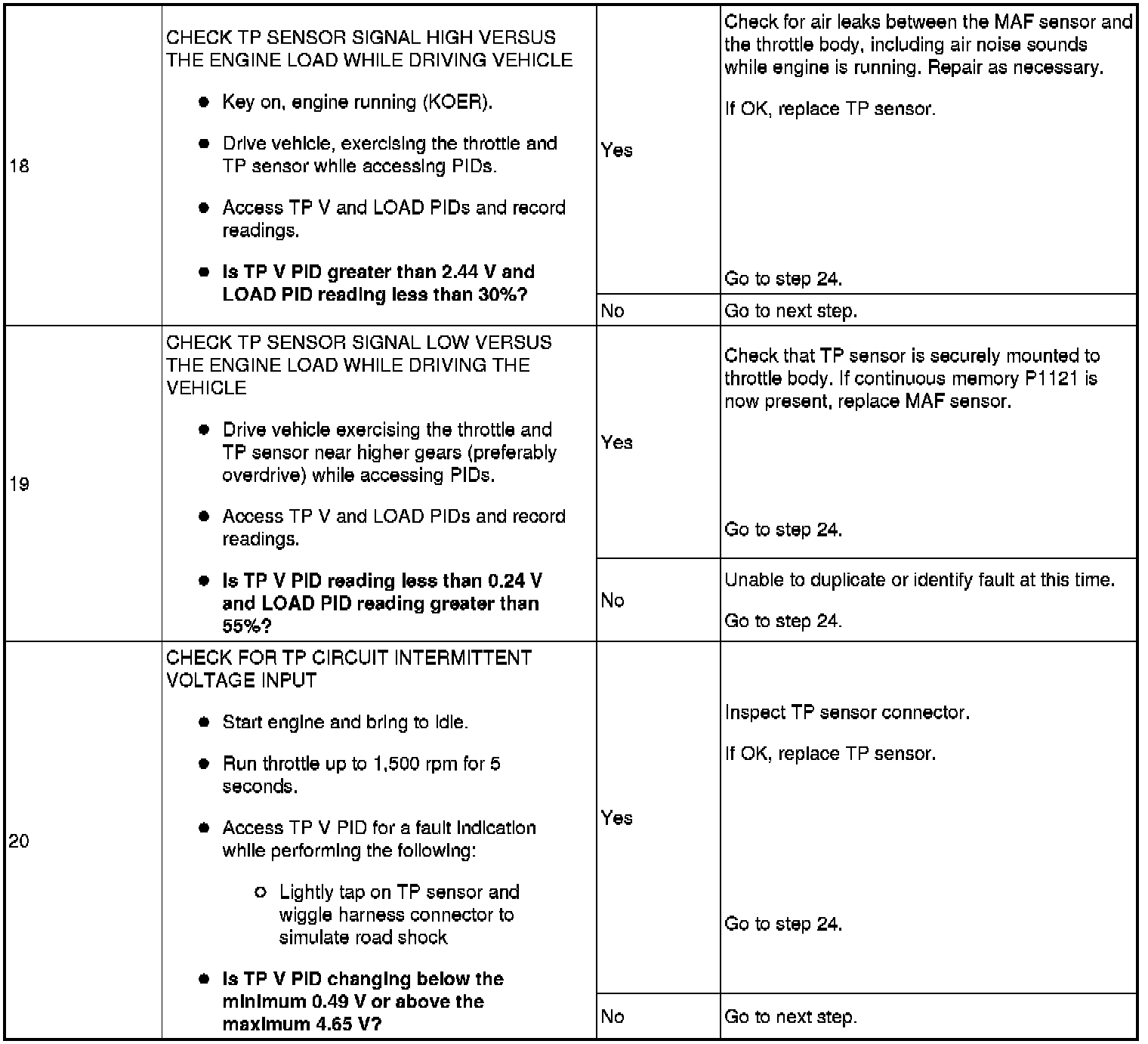

Step 18-Step 20:

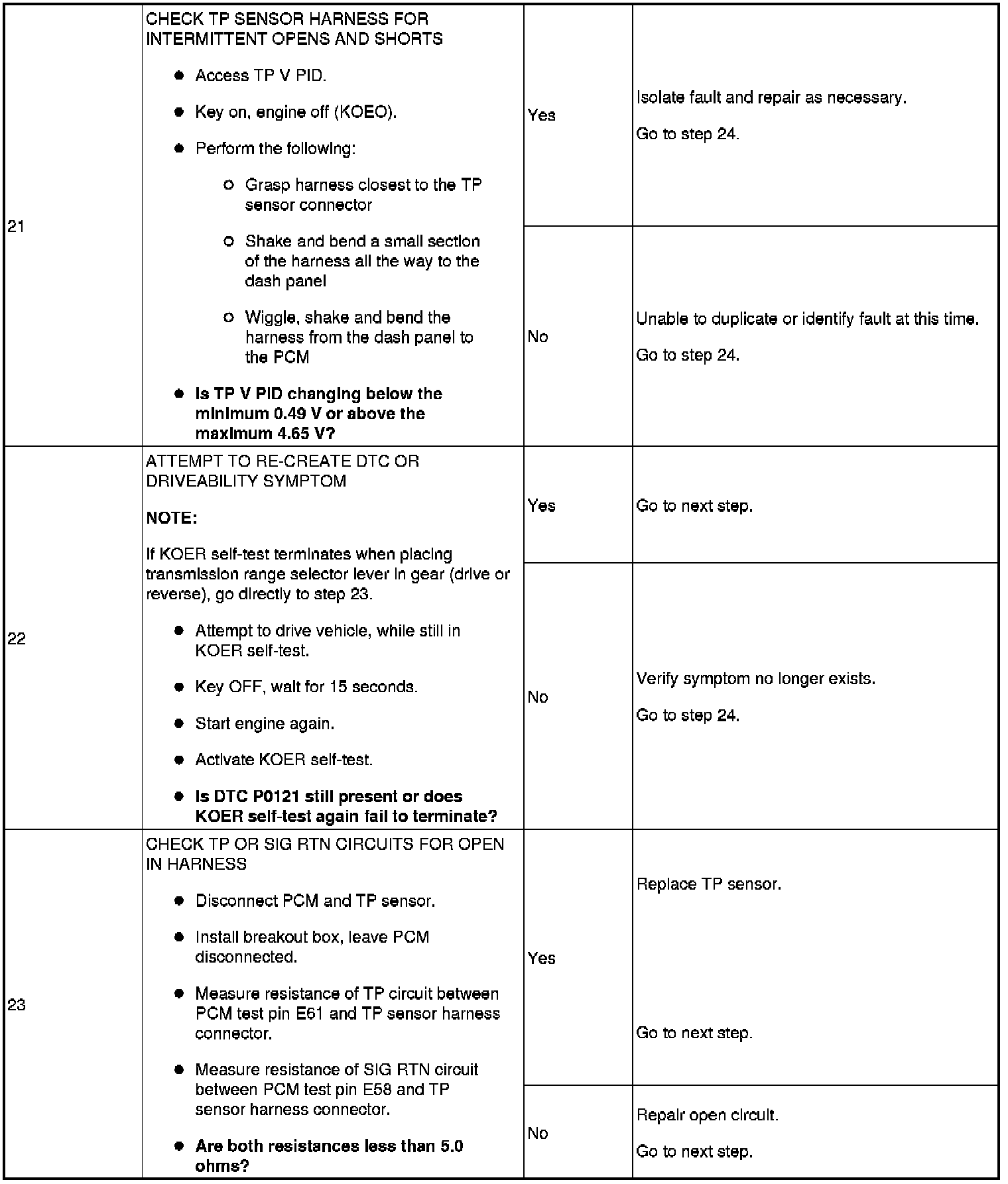

Step 21-Step 23:
