Ignition System: Testing and Inspection




IGNITION COIL PRIMARY CIRCUIT MALFUNCTION

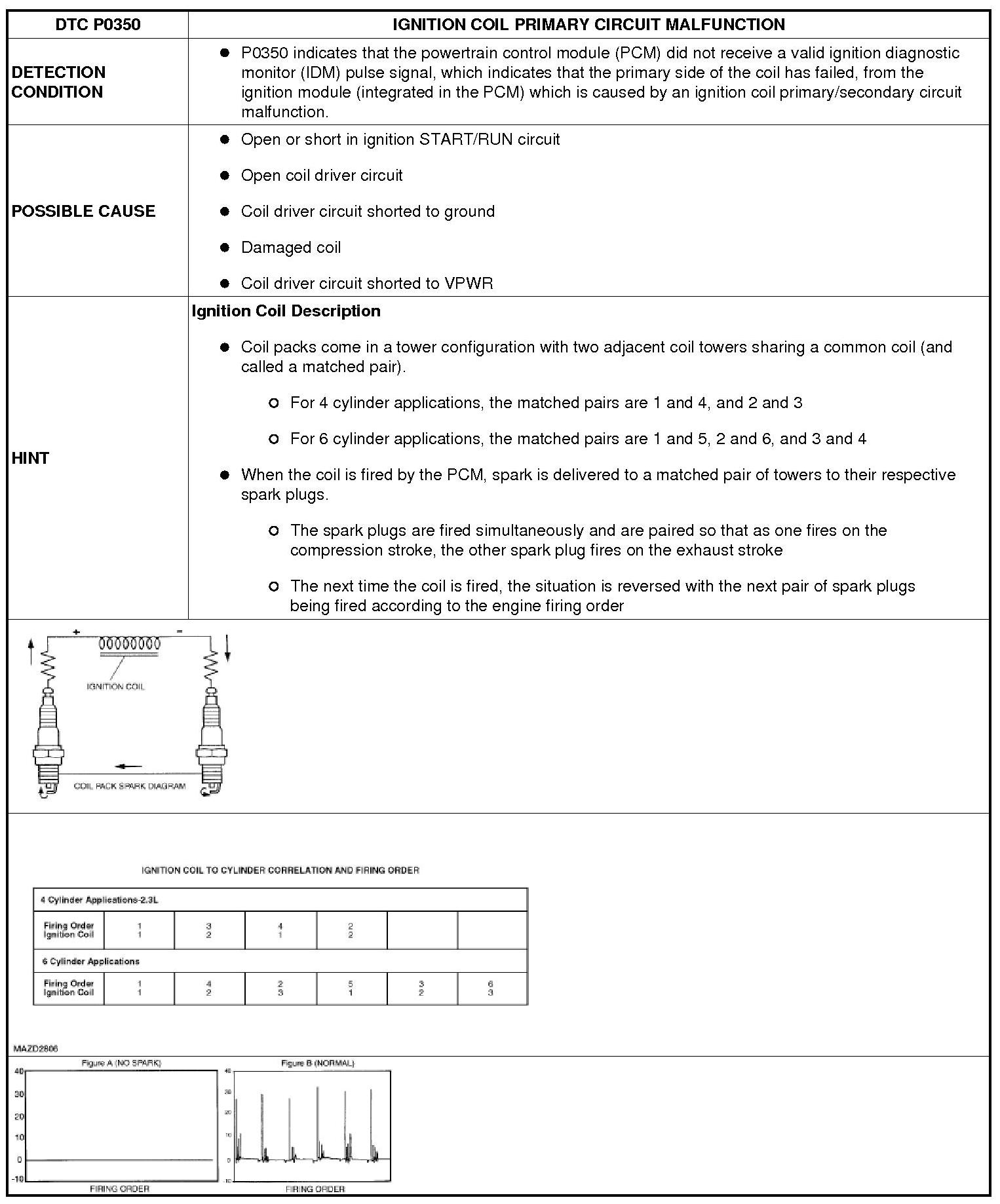

Detection Condition/Possible Cause (Part 1):





Detection Condition/Possible Cause (Part 2):

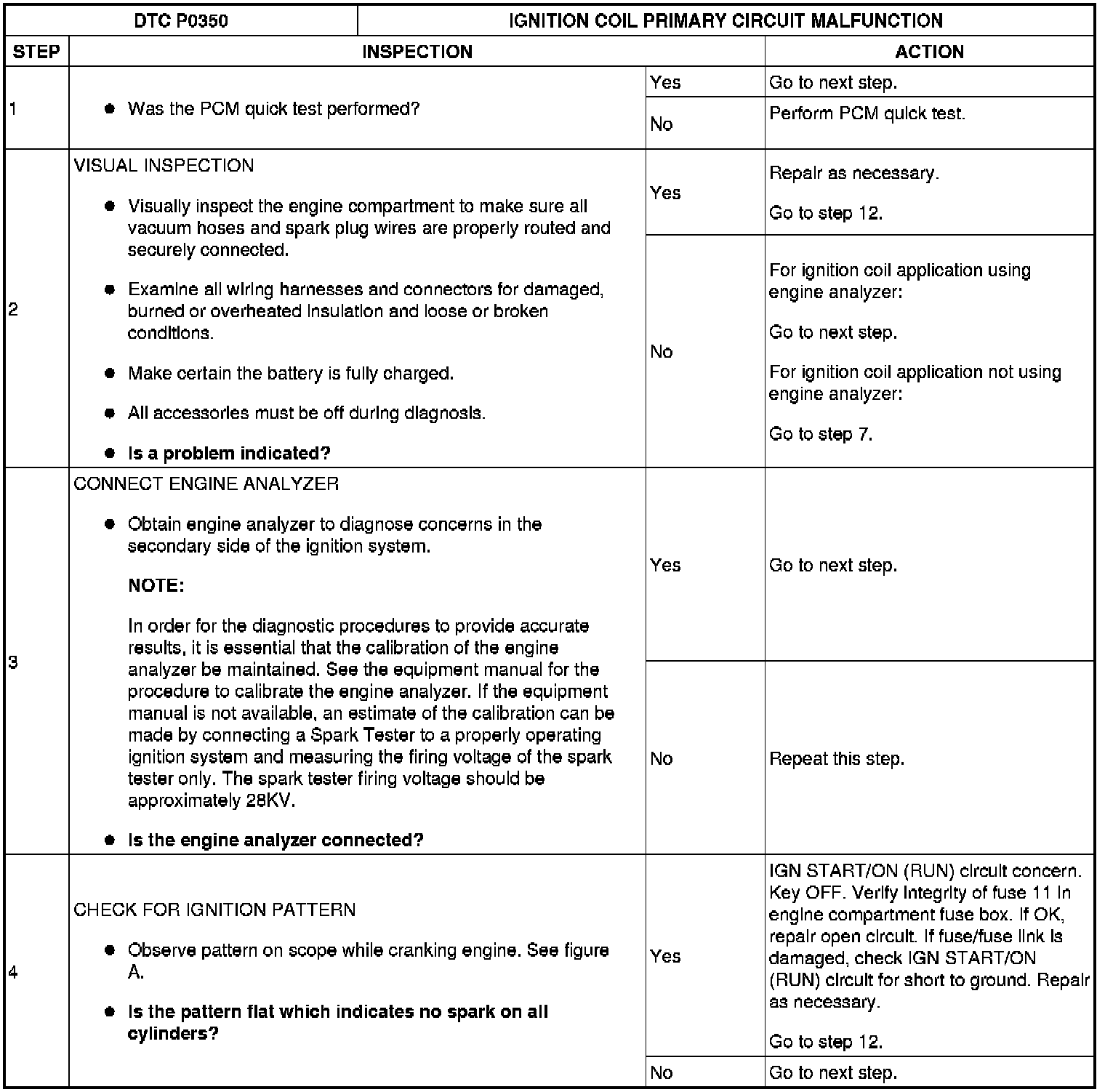

Step 1-Step 4:

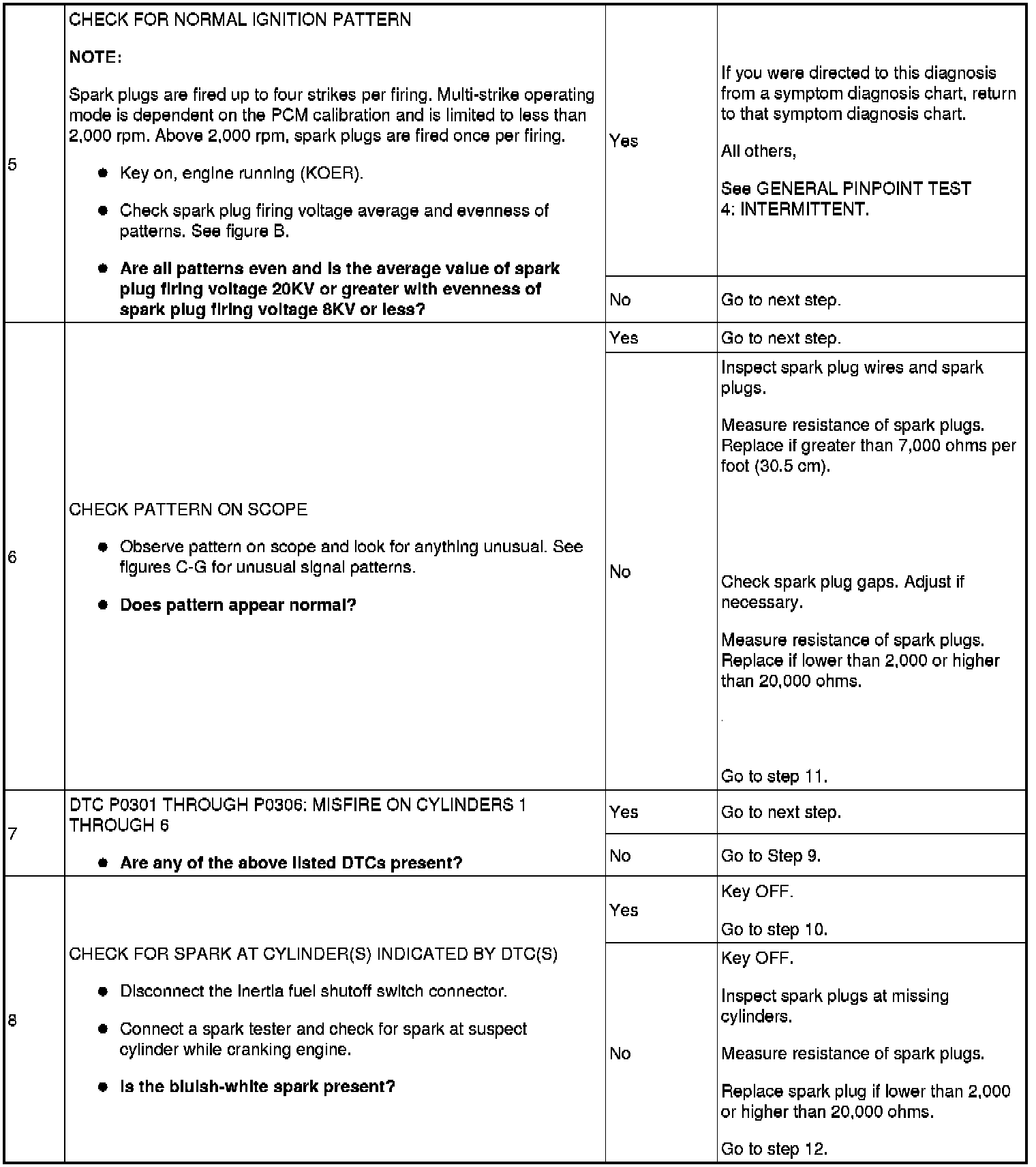

Step 5-Step 8:

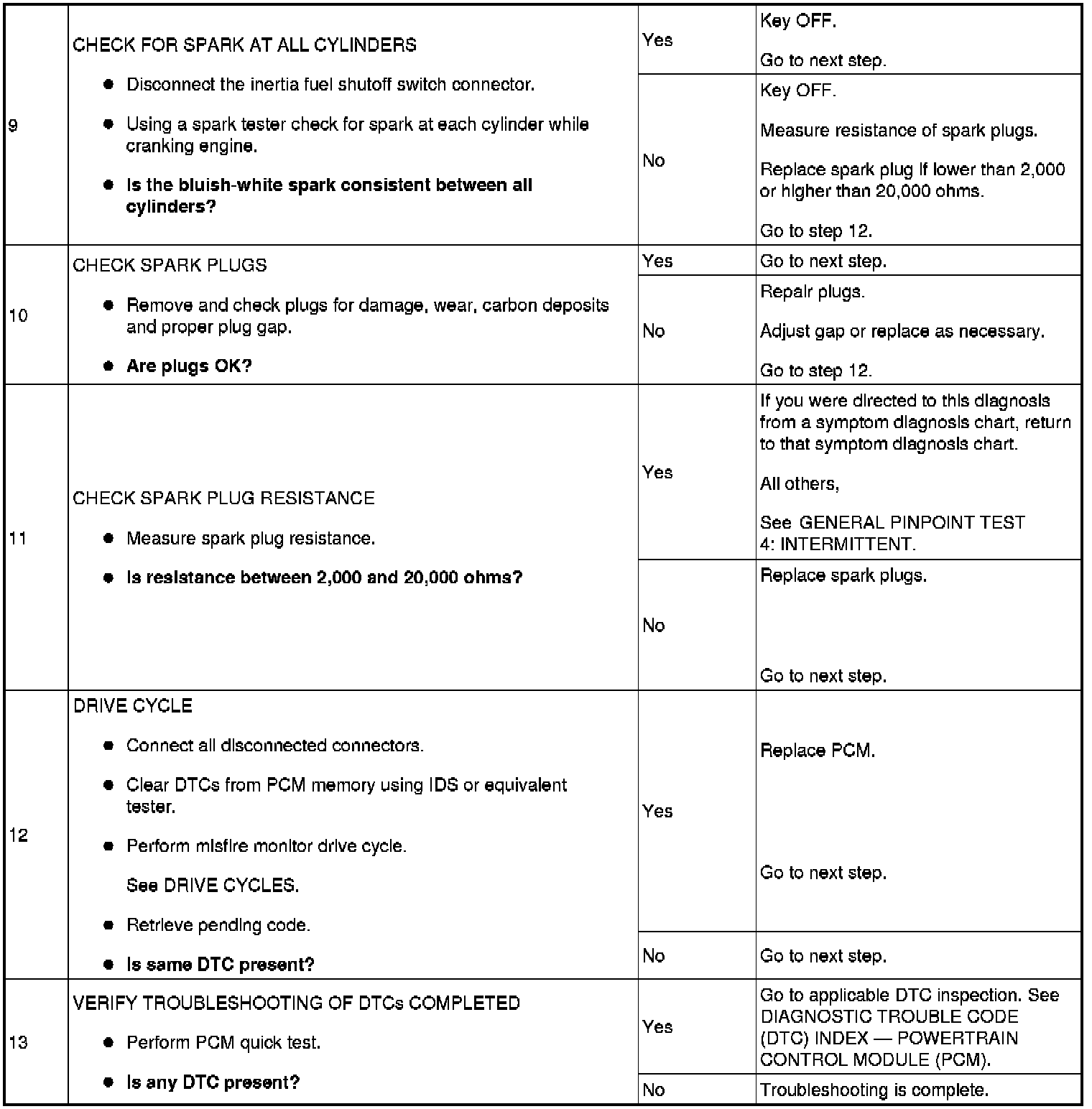

Step 9-Step 13:
