Cargo Compartment Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.

Remove in the order indicated in the table/figure.

REMOVING/INSTALLING CARGO COMPARTMENT LIGHT ⁽¹⁾

Component/Step No.

Component Description

Cargo Compartment Light (See Cargo Compartment Light Removal Note )

Connector

⁽¹⁾	See Fig 1.

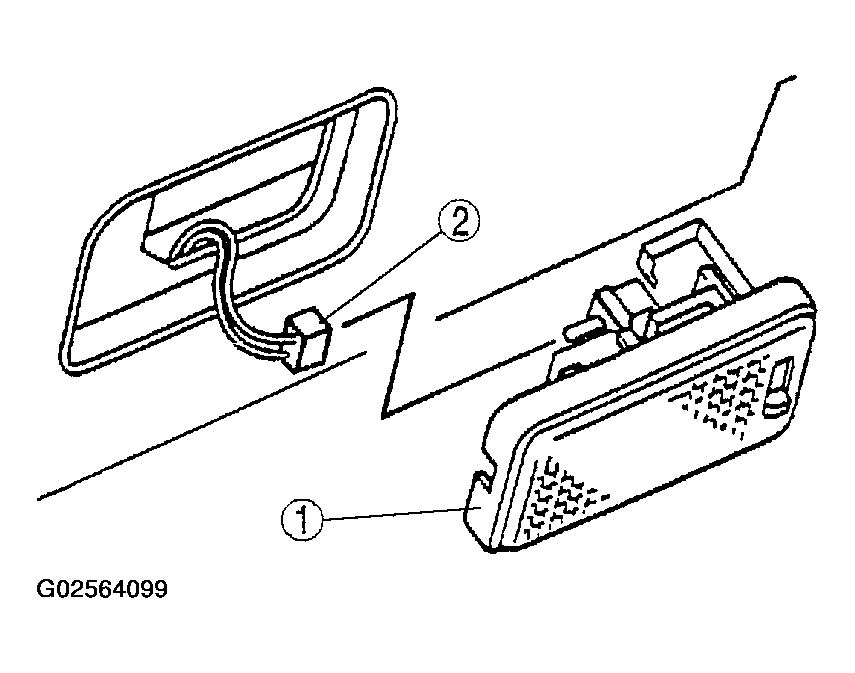

Fig 1: Removing/Installing Cargo Compartment Light

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
