Cargo Compartment Light Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
Disconnect the cargo compartment light switch connector.
Inspect for continuity between the cargo compartment light switch terminals using an ohmmeter.
- If not as specified, replace the liftgate lock.

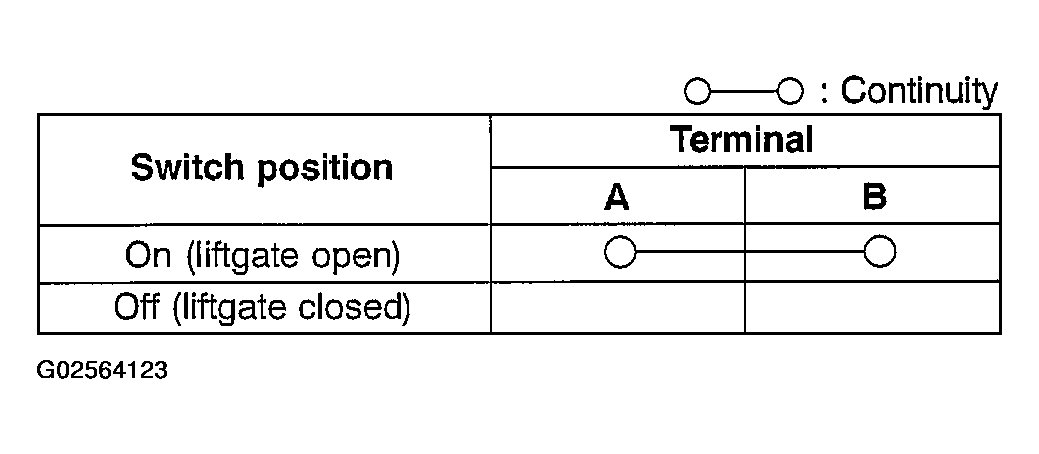

Fig 1: Cargo Compartment Light Switch Continuity Check
Courtesy of MAZDA MOTORS CORP.

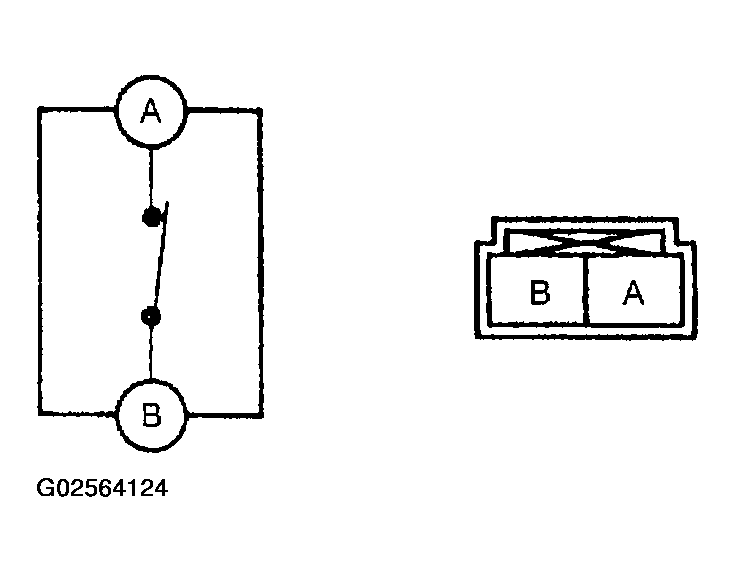

Fig 2: Identifying Cargo Compartment Light Switch Terminals
Courtesy of MAZDA MOTORS CORP.
