Combination Switch Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the driver-side air bag module. See DRIVER-SIDE AIR BAG MODULE .
Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
Remove the clock spring.

Remove in the order indicated in the table/figure.

REMOVING/INSTALLING COMBINATION SWITCH ⁽¹⁾

Component/Step No.

Component Description

Connector

Screw

Combination switch

⁽¹⁾	See Fig 1.

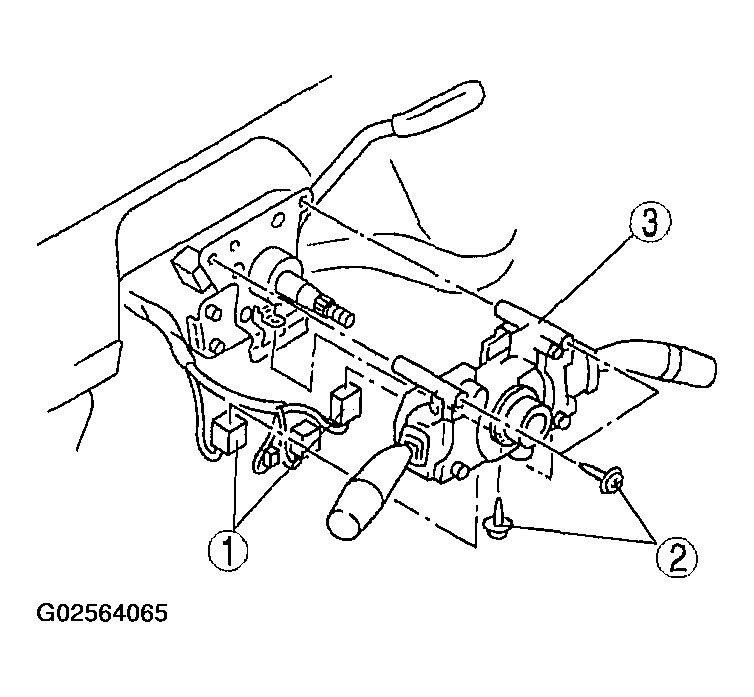

Fig 1: Removing/Installing Combination Switch

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
