Front Combination Light Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)

Remove in the order indicated in the table/figure.

REMOVING/INSTALLING FRONT COMBINATION LIGHT ⁽¹⁾

Component/Step No.

Component Description

Connector

Bolt

Fastener

Bracket

Front Combination Light

⁽¹⁾	See Fig 1.

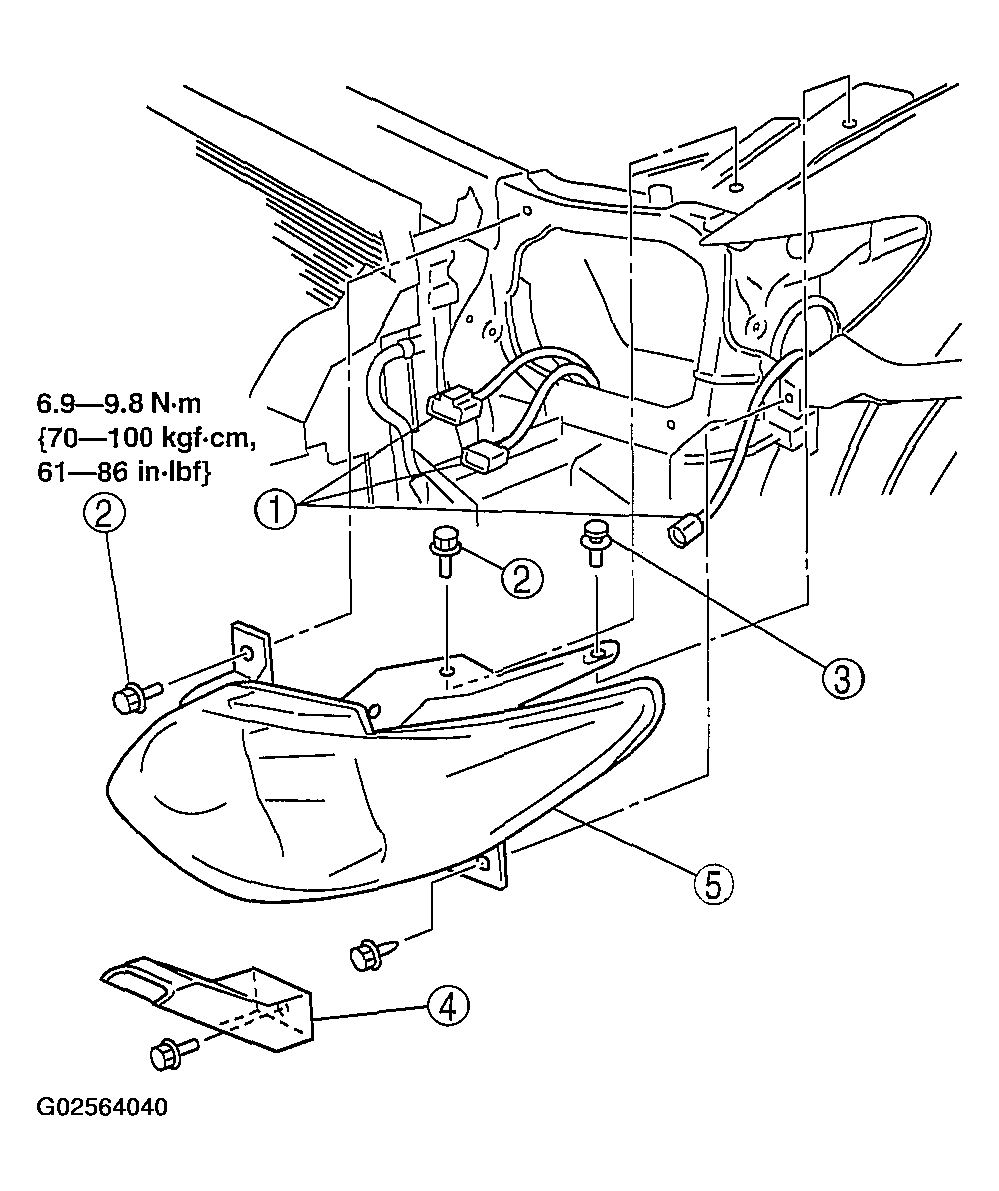

Fig 1: Removing/Installing Front Combination Light

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
Adjust the headlight aiming. (See HEADLIGHT ADJUSTMENT .)
