Hazard Warning Switch Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION .)

Remove in the order indicated in the table/figure.

REMOVING/INSTALLING HAZARD WARNING SWITCH ⁽¹⁾

Component/Step No.

Component Description

Hazard Warning Switch (See HAZARD WARNING SWITCH REMOVAL NOTE )

Connector

⁽¹⁾	See Fig 1.

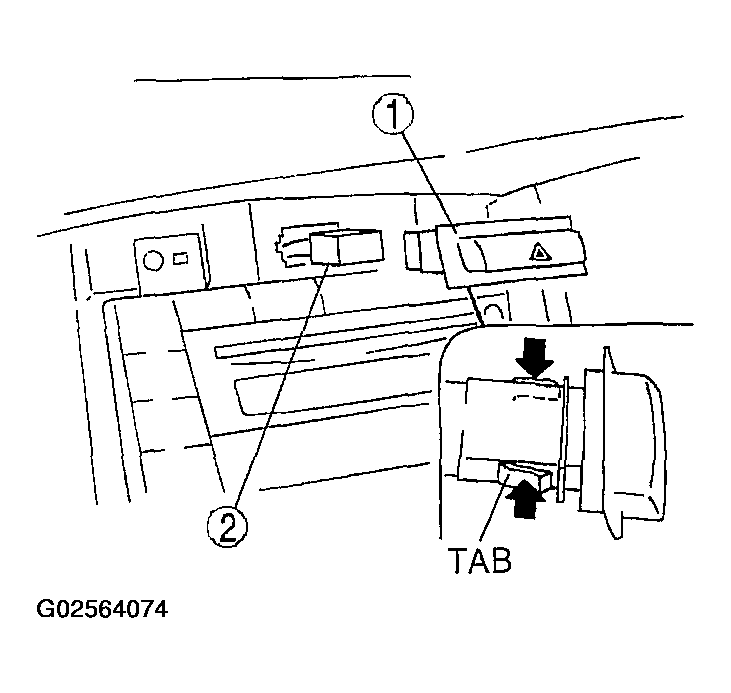

Fig 1: Removing/Installing Hazard Warning Switch

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
