Cover Installation Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cover with the "TOP" mark facing up.

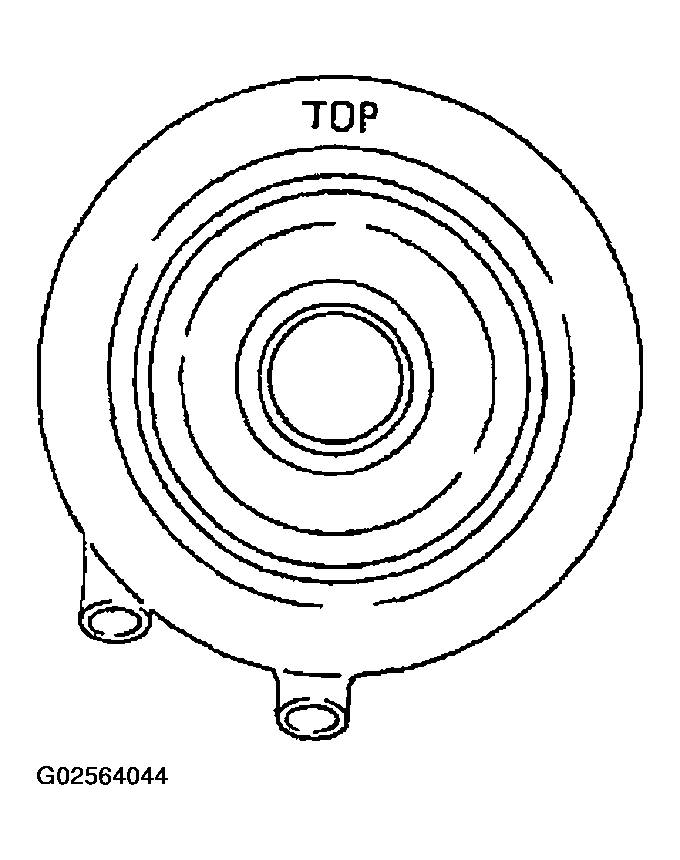

    Fig 1: Installing Cover With "TOP" Mark Facing Up
    G02564044Courtesy of MAZDA MOTORS CORP.
