Headlight Bulb Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: A halogen bulb generates extremely high heat when it is used. If the surface of the bulb is soiled, excessive heat will build up and the light's life will be shortened. When replacing the bulb, hold the metal flange, not the glass.

Disconnect the negative battery cable.

Remove in the order indicated in the table/figure.

REMOVING/INSTALLING HEADLIGHT BULB ⁽¹⁾

Component/Step No.

Component Description

Connector

Cover (See COVER INSTALLATION NOTE )

Headlight Bulb (See HEADLIGHT BULB REMOVAL NOTE )

⁽¹⁾	See Fig 1.

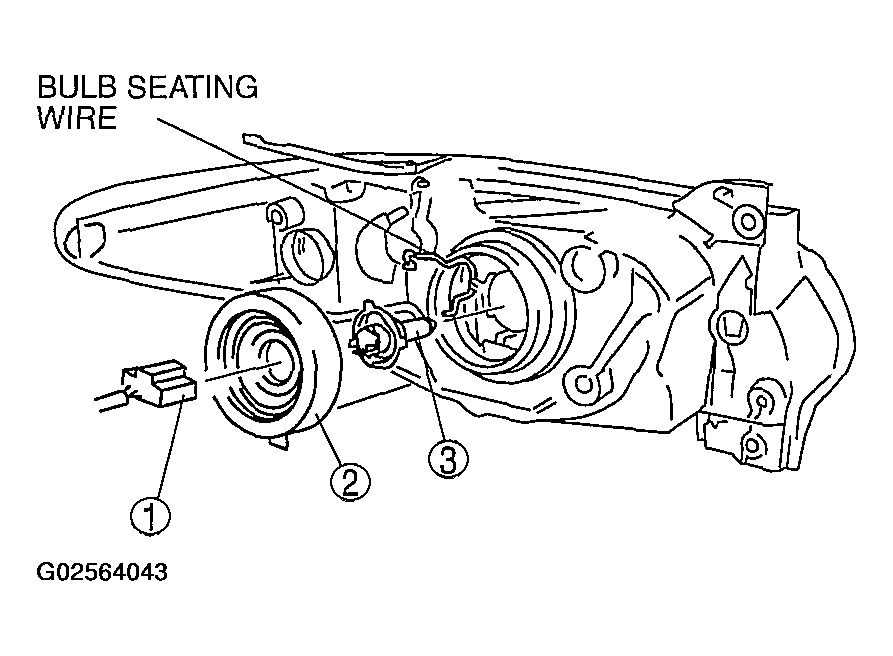

Fig 1: Removing/Installing Headlight Bulb

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
