License Plate Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.

Remove in the order indicated in the table/figure.

REMOVING/INSTALLING LICENSE PLATE LIGHT ⁽¹⁾

Component/Step No.

Component Description

License Plate Light (See LICENSE PLATE LIGHT REMOVAL NOTE )

Connector

Socket

License Plate Light Bulb

⁽¹⁾	See Fig 1.

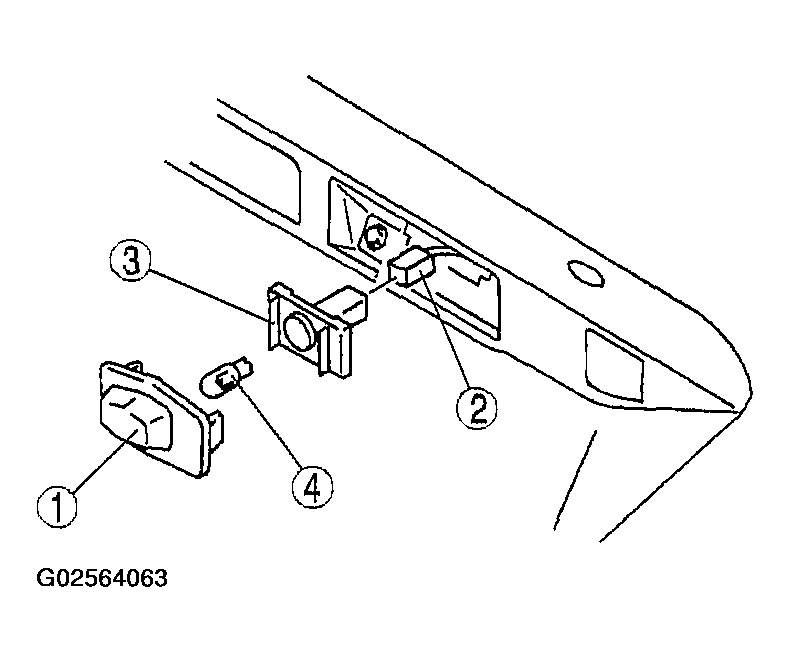

Fig 1: Removing/Installing License Plate Light

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
