Lighting Systems Location Index

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

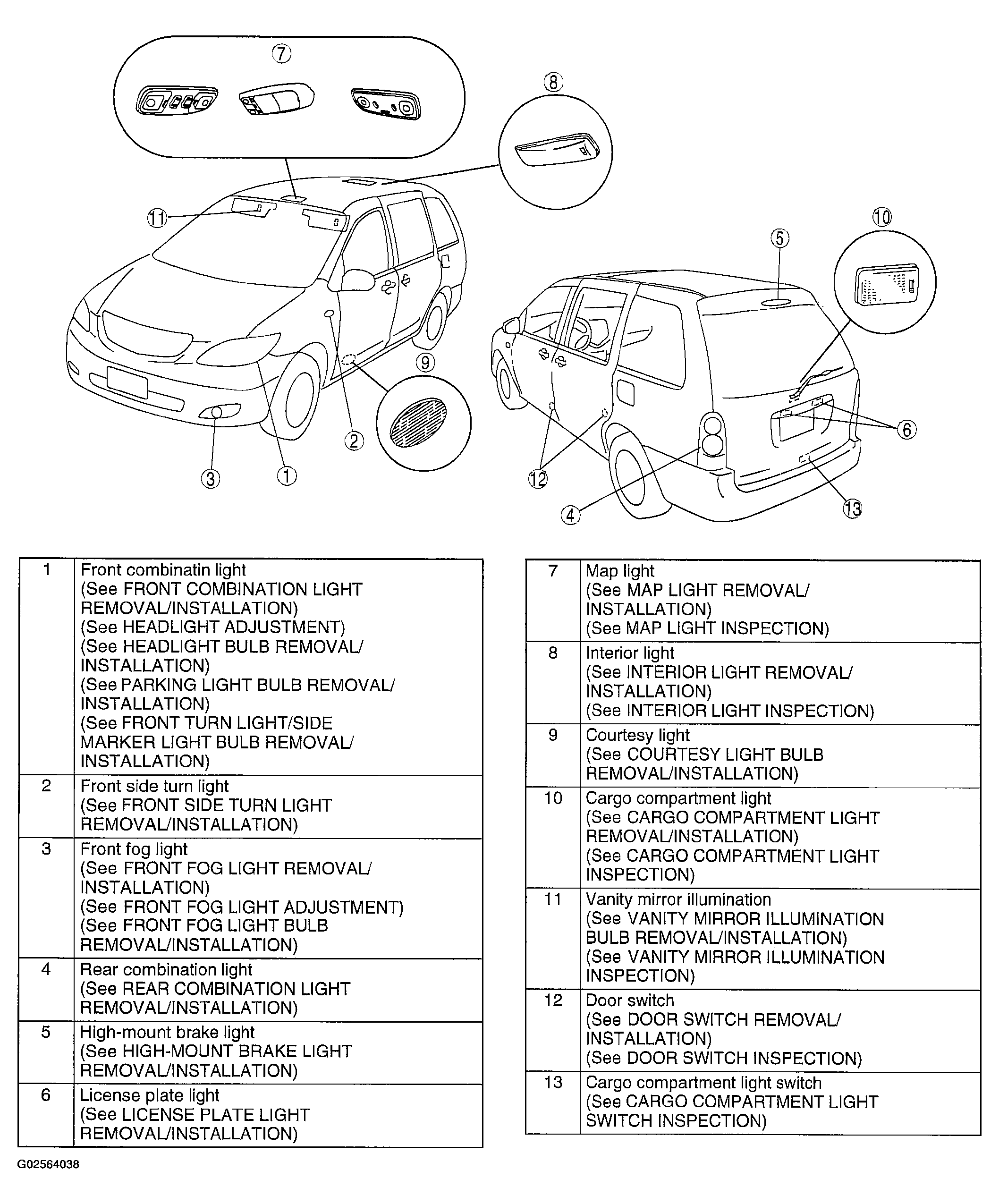

Fig 1: Lighting Systems Location Index (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

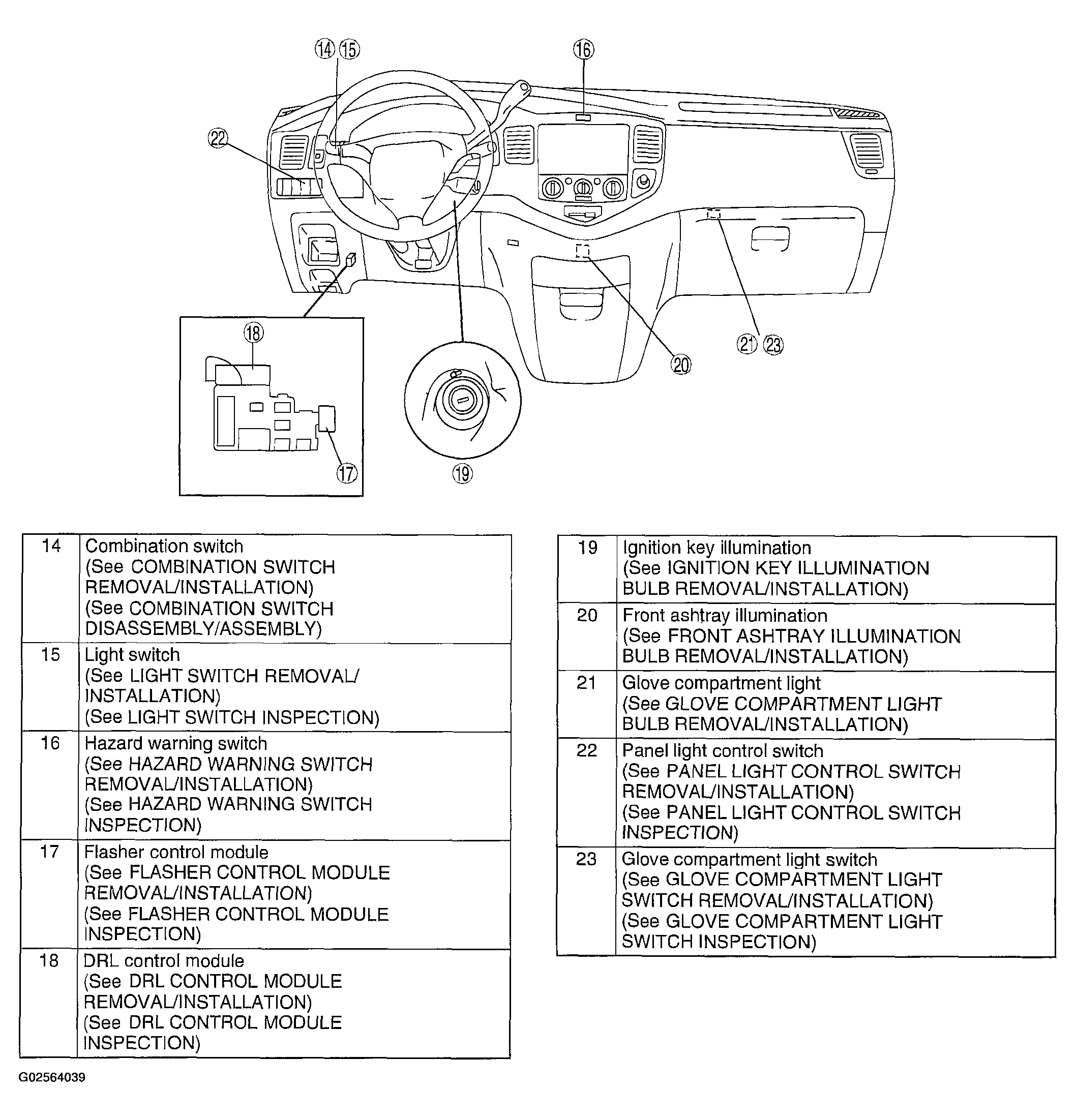

Fig 2: Lighting Systems Location Index (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
