With Sliding Sunroof: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.

Remove in the order indicated in the table/figure.

REMOVING/INSTALLING MAP LIGHT -WITH SLIDING SUNROOF ⁽¹⁾

Component/Step No.

Component Description

Map light

Connector

Lens (See LENS REMOVAL NOTE )

Map light bulb

⁽¹⁾	See Fig 1.

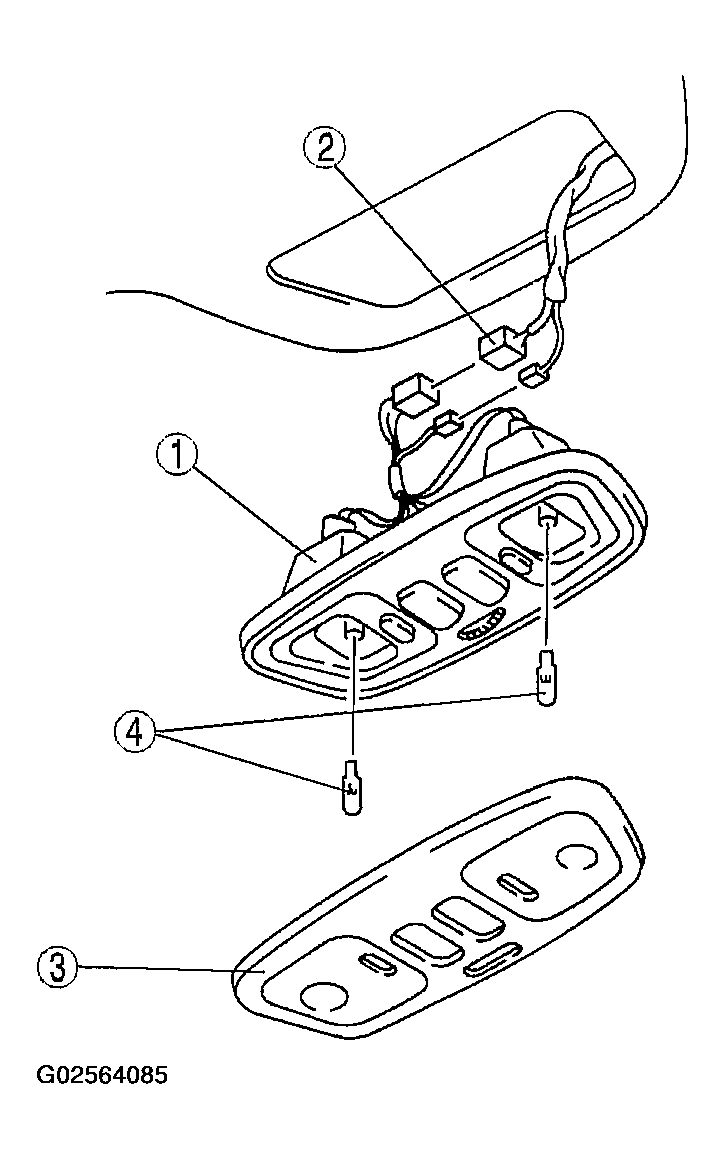

Fig 1: Removing/Installing Map Light - With Sliding Sunroof

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
