Disconnect the negative battery cable.

Remove in the order indicated in the table/figure.

REMOVING/INSTALLING MAP LIGHT - WITHOUT SLIDING SUNROOF (OVERHEAD STORAGE COMPARTMENT) ⁽¹⁾

Component/Step No.

Component Description

Screw

Overhead Console

Connector

Lens (See LENS REMOVAL NOTE )

Map light bulb

Holder

⁽¹⁾	See Fig 1.

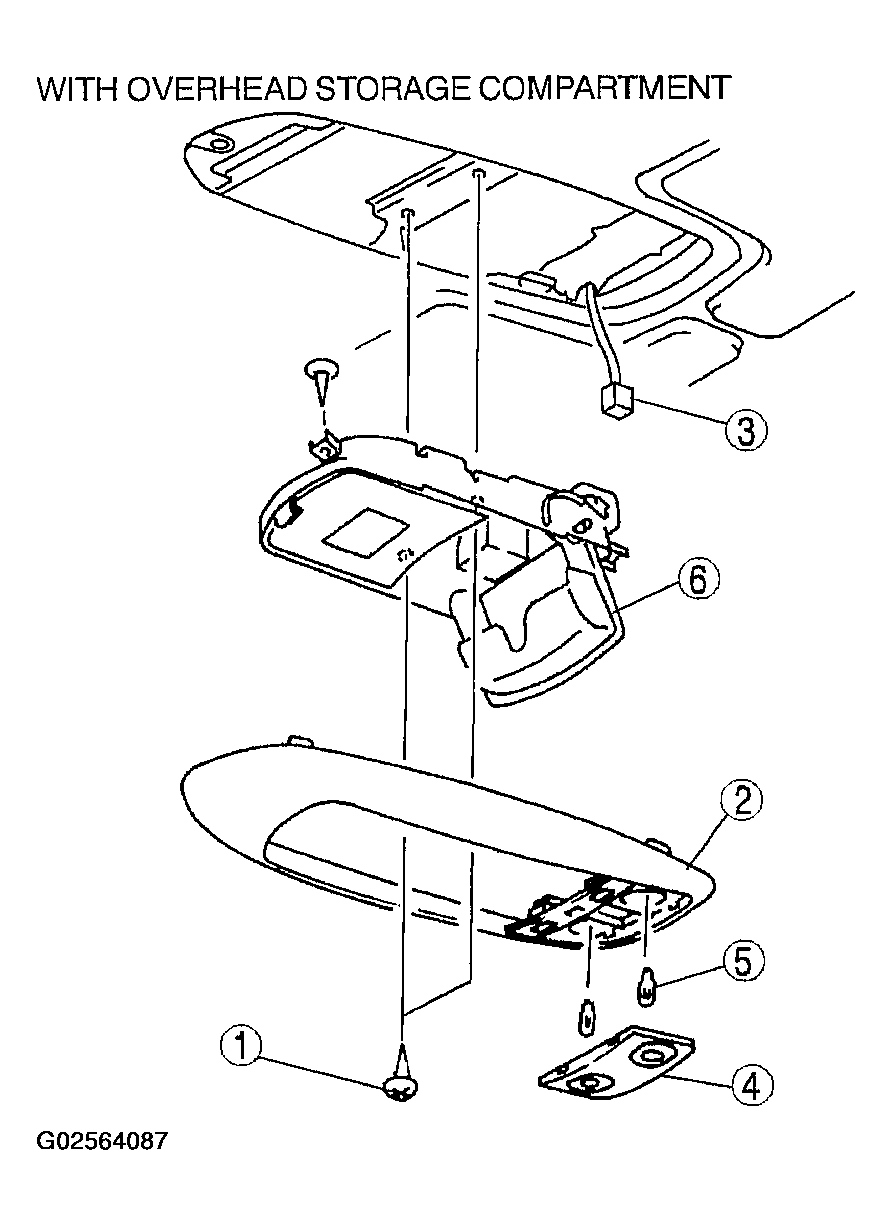

Fig 1: Removing/Installing Map Light - Without Sliding Sunroof (Overhead Storage Compartment)

Courtesy of MAZDA MOTORS CORP.

REMOVING/INSTALLING MAP LIGHT - WITHOUT SLIDING SUNROOF (WITHOUT OVERHEAD STORAGE COMPARTMENT) ⁽¹⁾

Component/Step No.

Component Description

Map Light

Connector

Lens (See LENS REMOVAL NOTE )

Map Light Bulb

⁽¹⁾	See Fig 2.

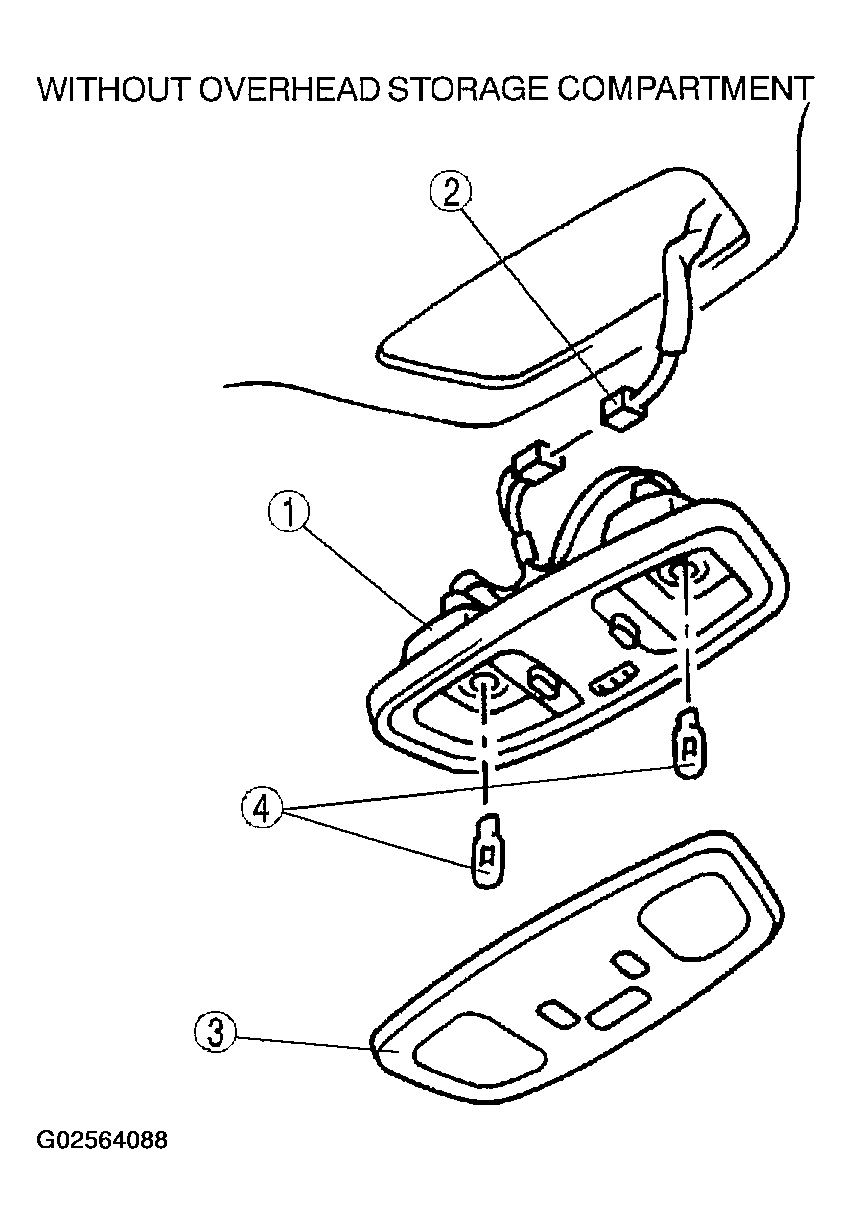

Fig 2: Removing/Installing Map Light - Without Sliding Sunroof (Without Overhead Storage Compartment)

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
