Panel Light Control Switch Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the driver-side side panel.

Remove in the order indicated in the table/figure.

REMOVING/INSTALLING PANEL LIGHT CONTROL SWITCH ⁽¹⁾

Component/Step No.

Component Description

Panel light control switch (See PANEL LIGHT CONTROL SWITCH REMOVAL NOTE )

Connector

⁽¹⁾	See Fig 1.

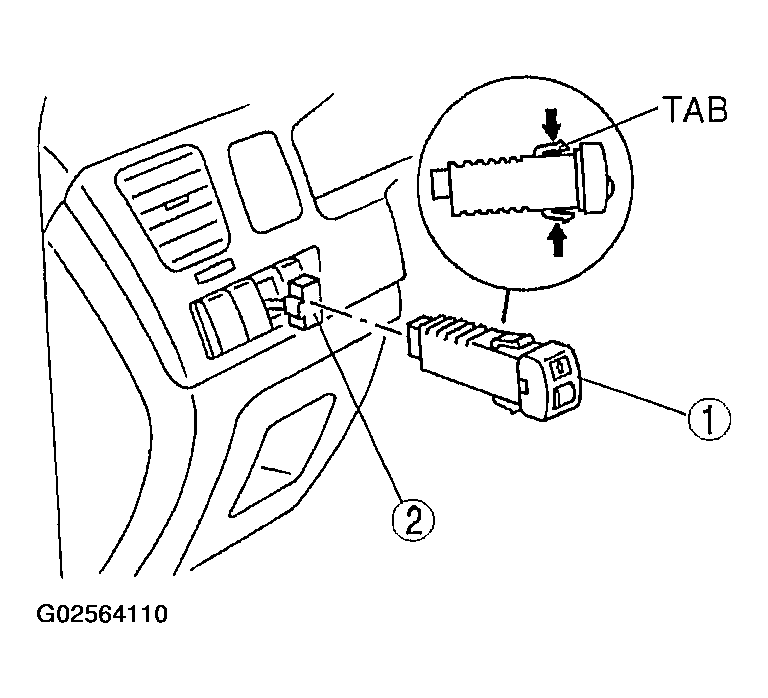

Fig 1: Removing/Installing Panel Light Control Switch

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
