Rear Combination Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the rear side trim. (Right side only.) (See REAR SIDE TRIM REMOVAL/INSTALLATION .)

Remove in the order indicated in the table/figure.

REMOVING/INSTALLING REAR COMBINATION LIGHT ⁽¹⁾

Component/Step No.

Component Description

Connector

Screw

Rear Combination Light (See REAR COMBINATION LIGHT REMOVAL NOTE )

Socket (See SOCKET INSTALLATION NOTE )

Brake Light/Taillight Bulb

Rear Turn Light Bulb

Back-up Light Bulb

Taillight Bulb

⁽¹⁾	See Fig 1.

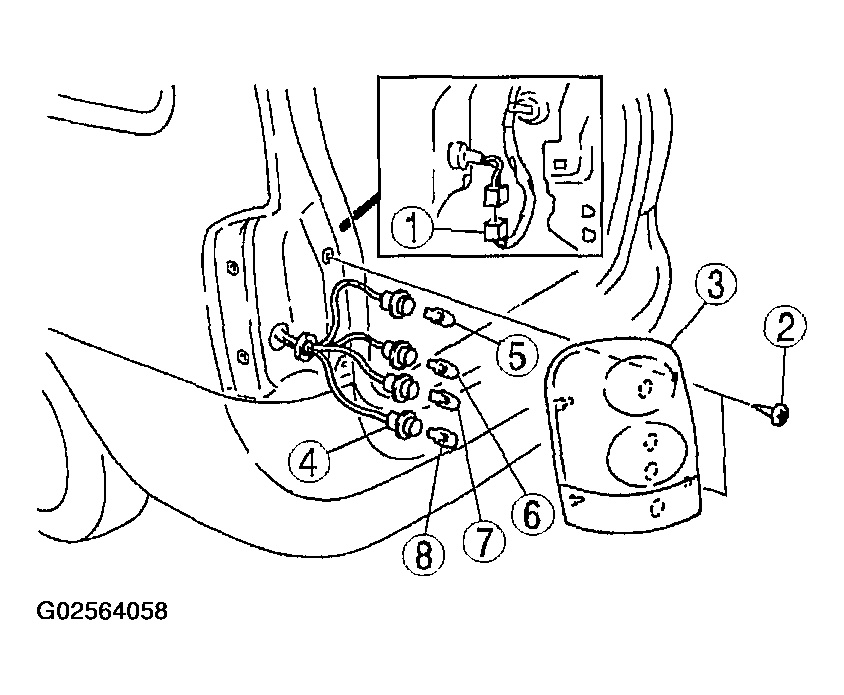

Fig 1: Removing/Installing Rear Combination Light

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
