Jacking Points - Front

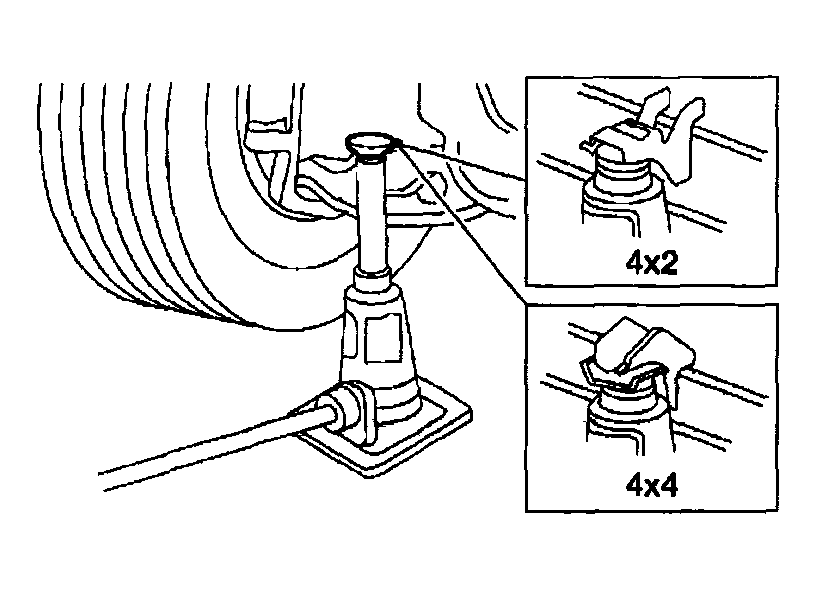

Fig 1: Identifying Jacking Points - Front
G04306886Courtesy of MAZDA MOTORS CORP.

The jacking point is a tab that extends from the front suspension lower control arm.
