System Wiring Diagram [Advanced Keyless And Start System]

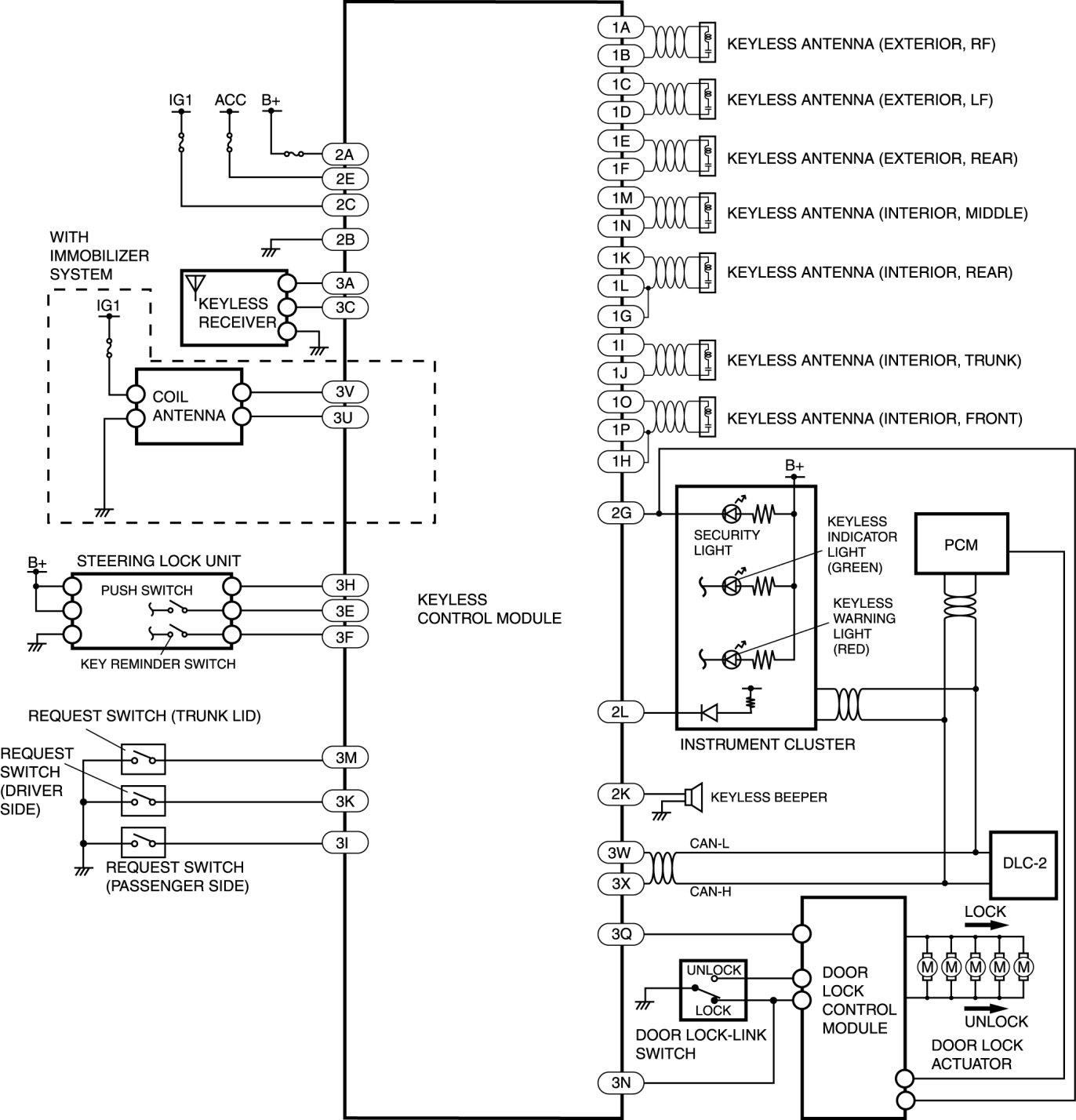

SYSTEM WIRING DIAGRAM [ADVANCED KEYLESS AND START SYSTEM]
