Active Command Mode Table [Advanced Keyless System]




ACTIVE COMMAND MODE TABLE [ADVANCED KEYLESS SYSTEM]

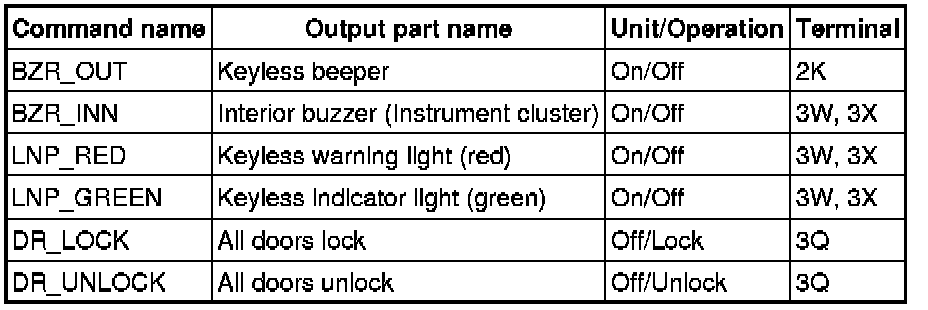

Active Command Mode Table:
