No.4 Advanced Keyless Start Function Inoperative [Advanced Keyless And Start System]




NO.4 ADVANCED KEYLESS START FUNCTION INOPERATIVE [ADVANCED KEYLESS AND START SYSTEM]

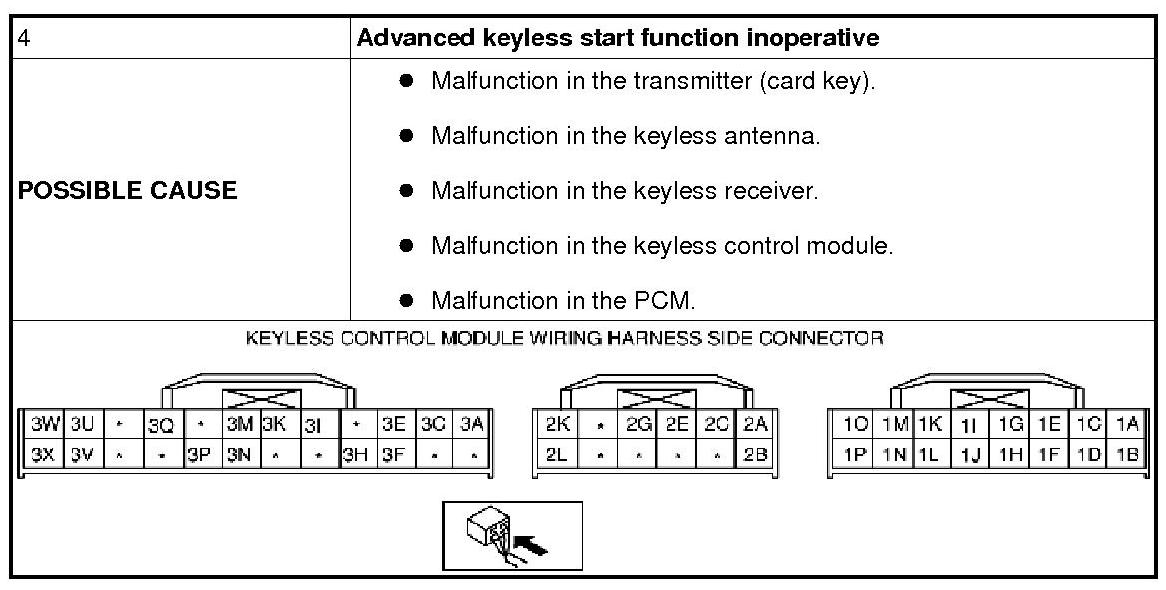

Possible Cause:





Diagnostic procedure

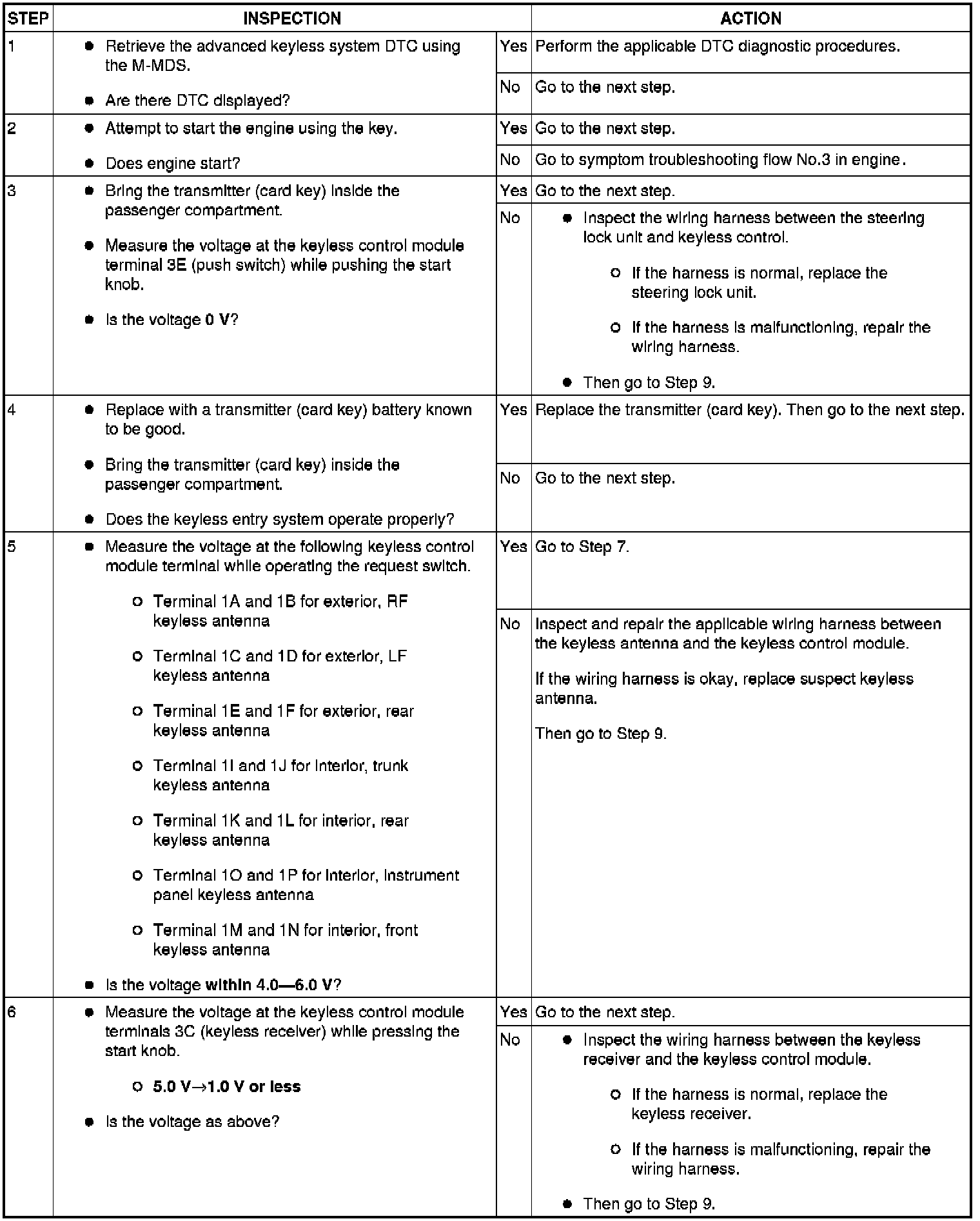

Step 1-Step 6:





Step 7-Step 9:
