A/C Amplifier

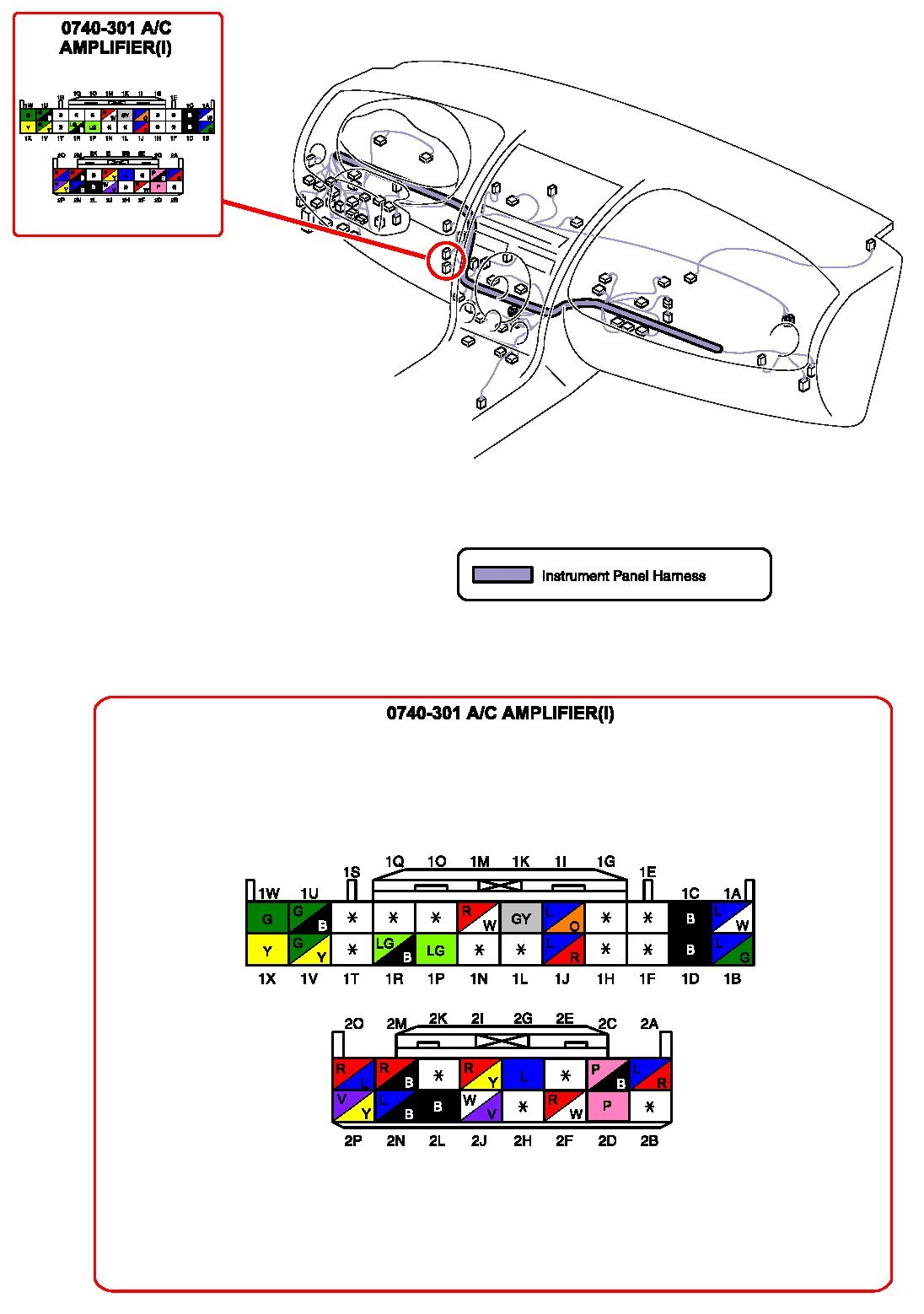

A/C Amplifier(I) (Manual Air Conditioner):

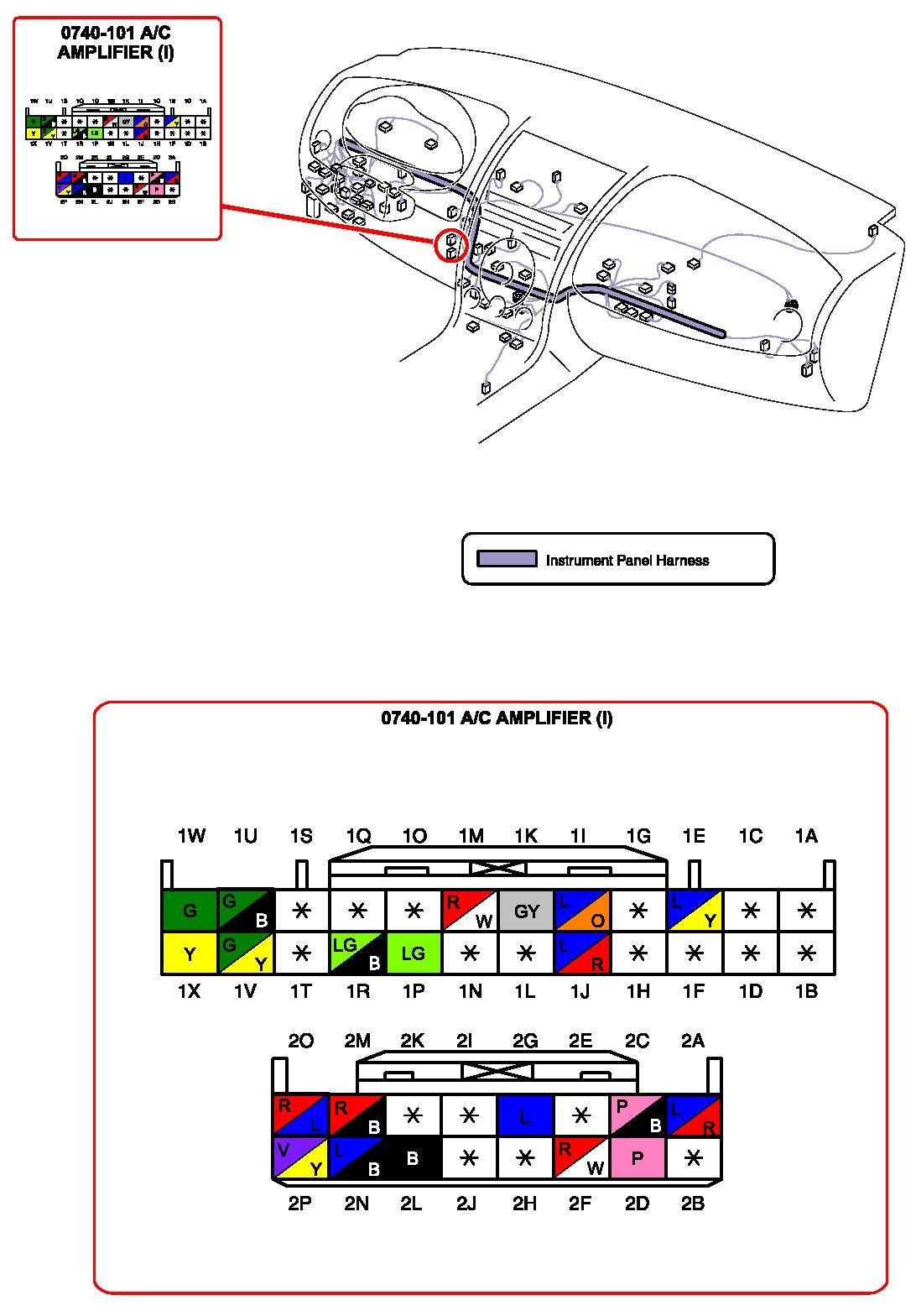

A/C Amplifier(I) (Full Auto Air Conditioner):
