Ambient Temperature Sensor

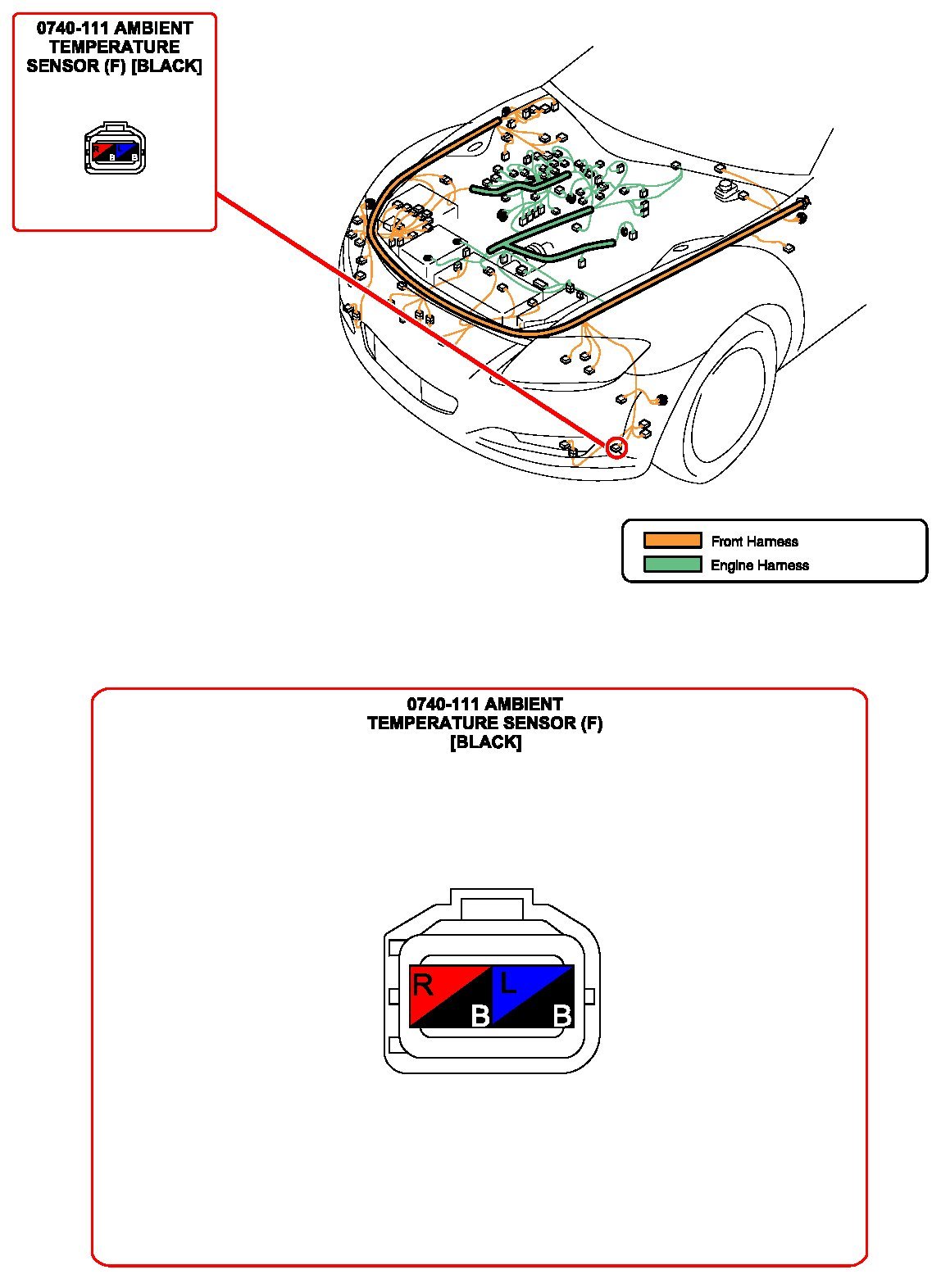

Ambient Temperature Sensor (Manual Air Conditioner):

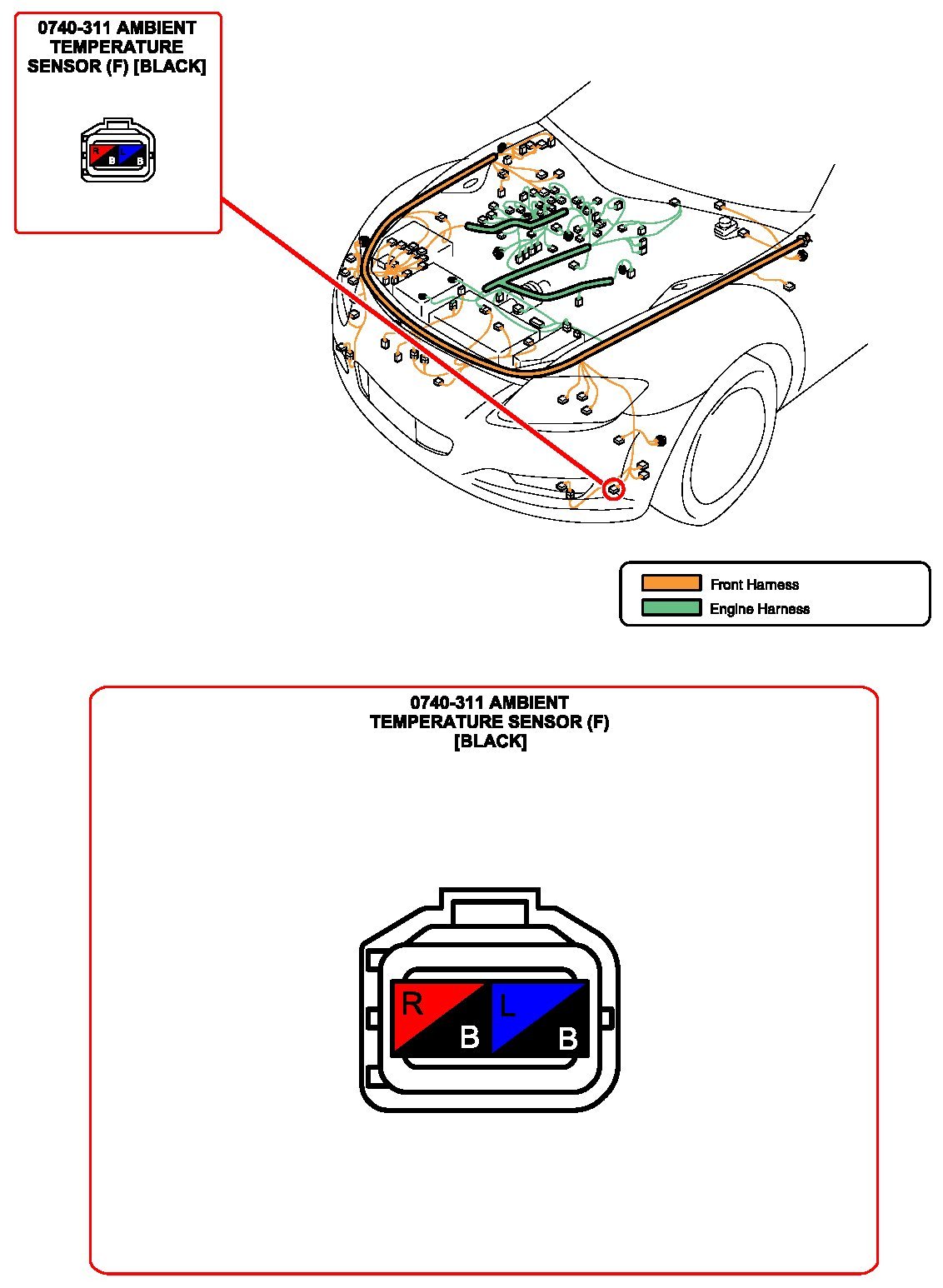

Ambient Temperature Sensor (Full Auto Air Conditioner):
