Front Tweeter LH

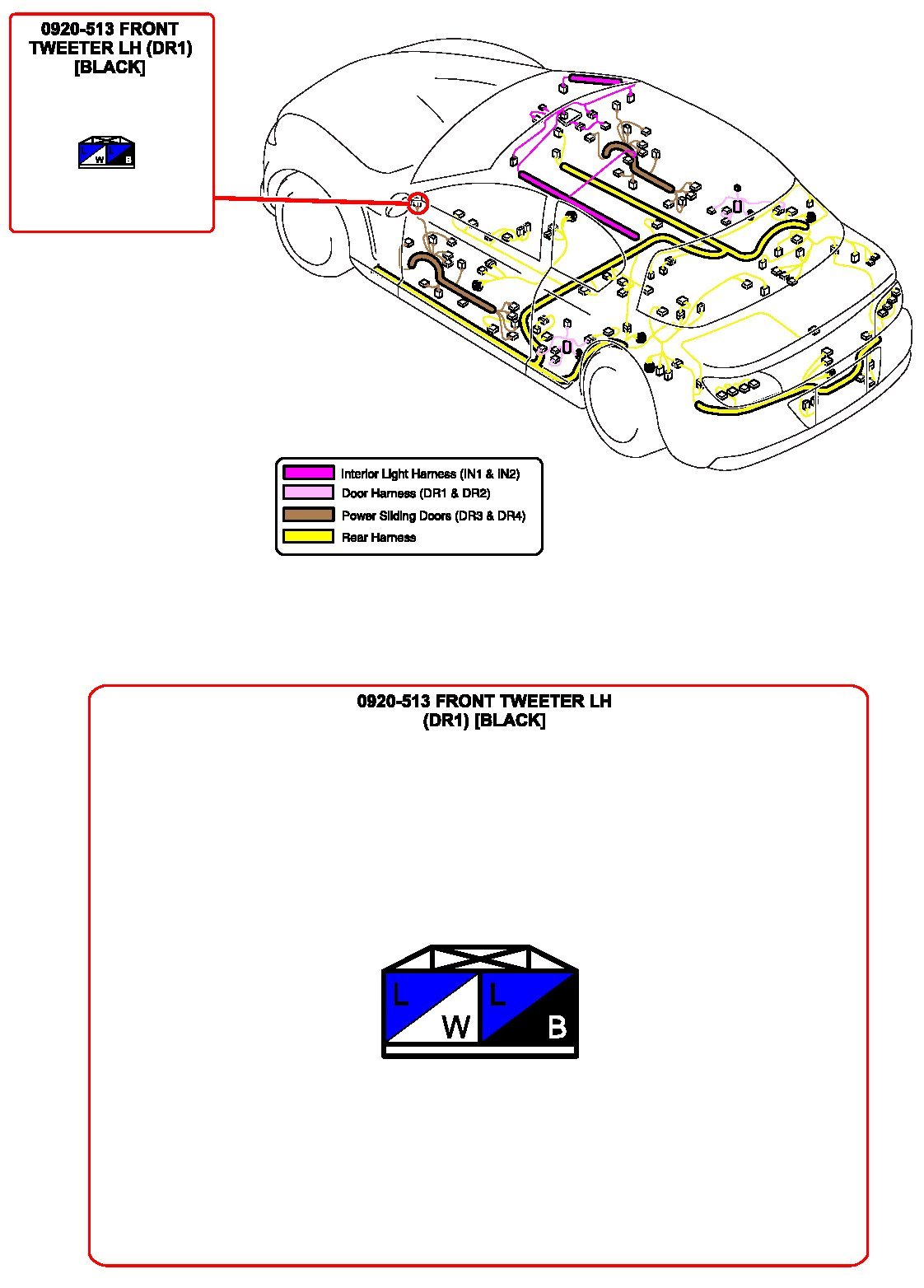

Front Tweeter LH (Without Bose):

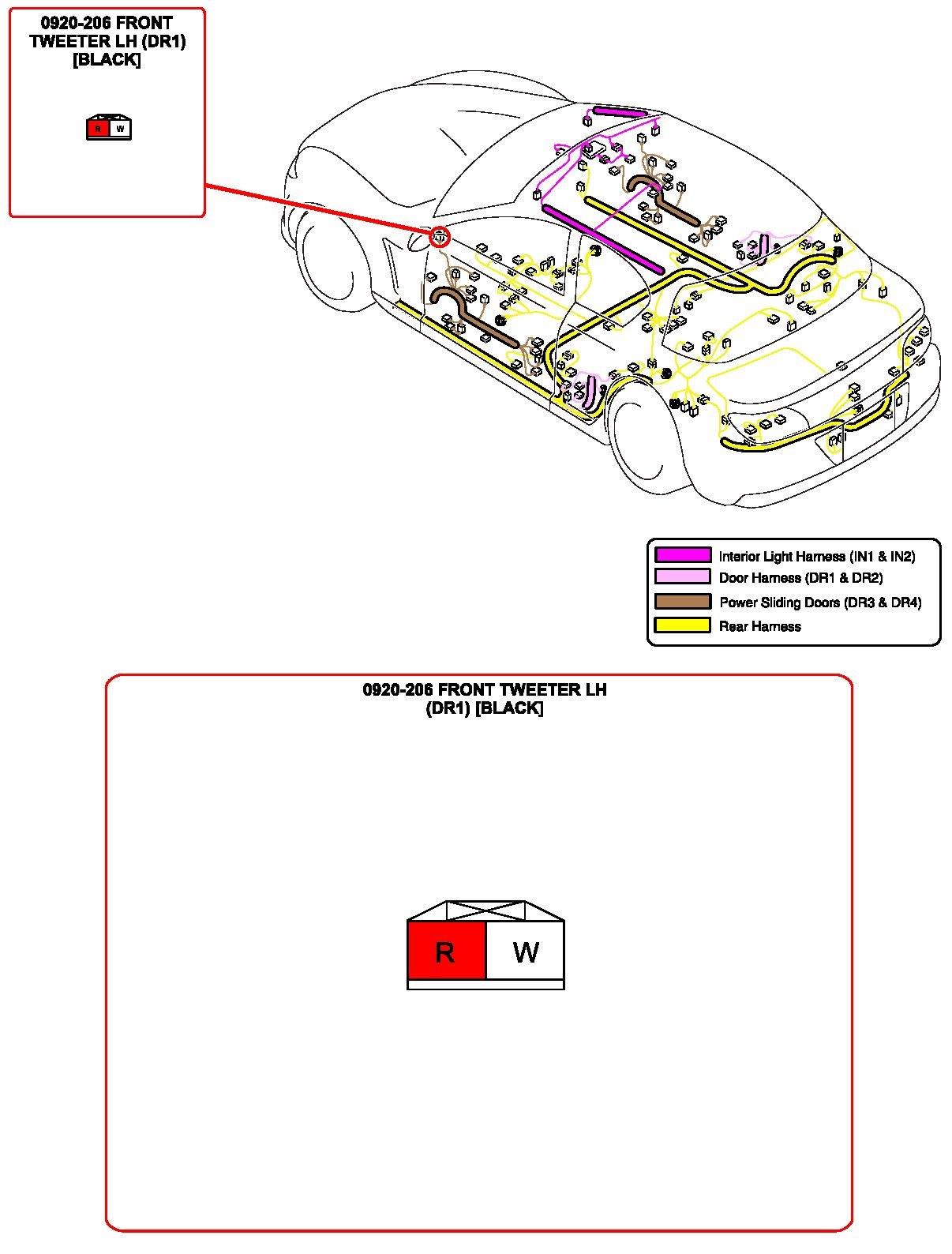

Front Tweeter LH (With Bose):

Front Tweeter LH (Car Navigation System):
