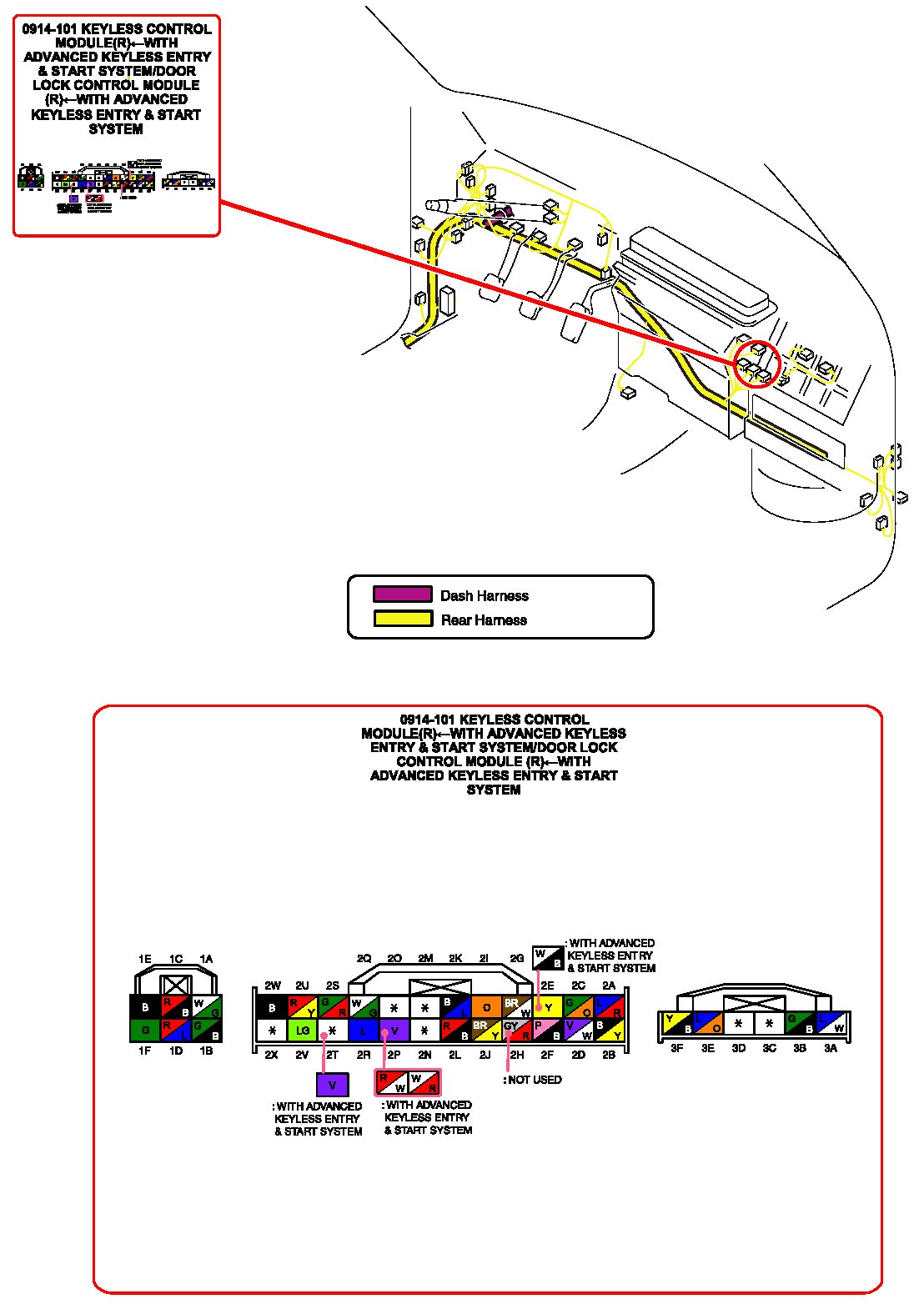

Keyless Control Module / Door Lock Control Module (With Advanced Keyless Entry & Start System)
Keyless Control Module<-With Advanced Keyless Entry & Start System/Door Lock Control Module<-With Advanced Keyless Entry & Start System:
