Refrigerant Pressure Switch

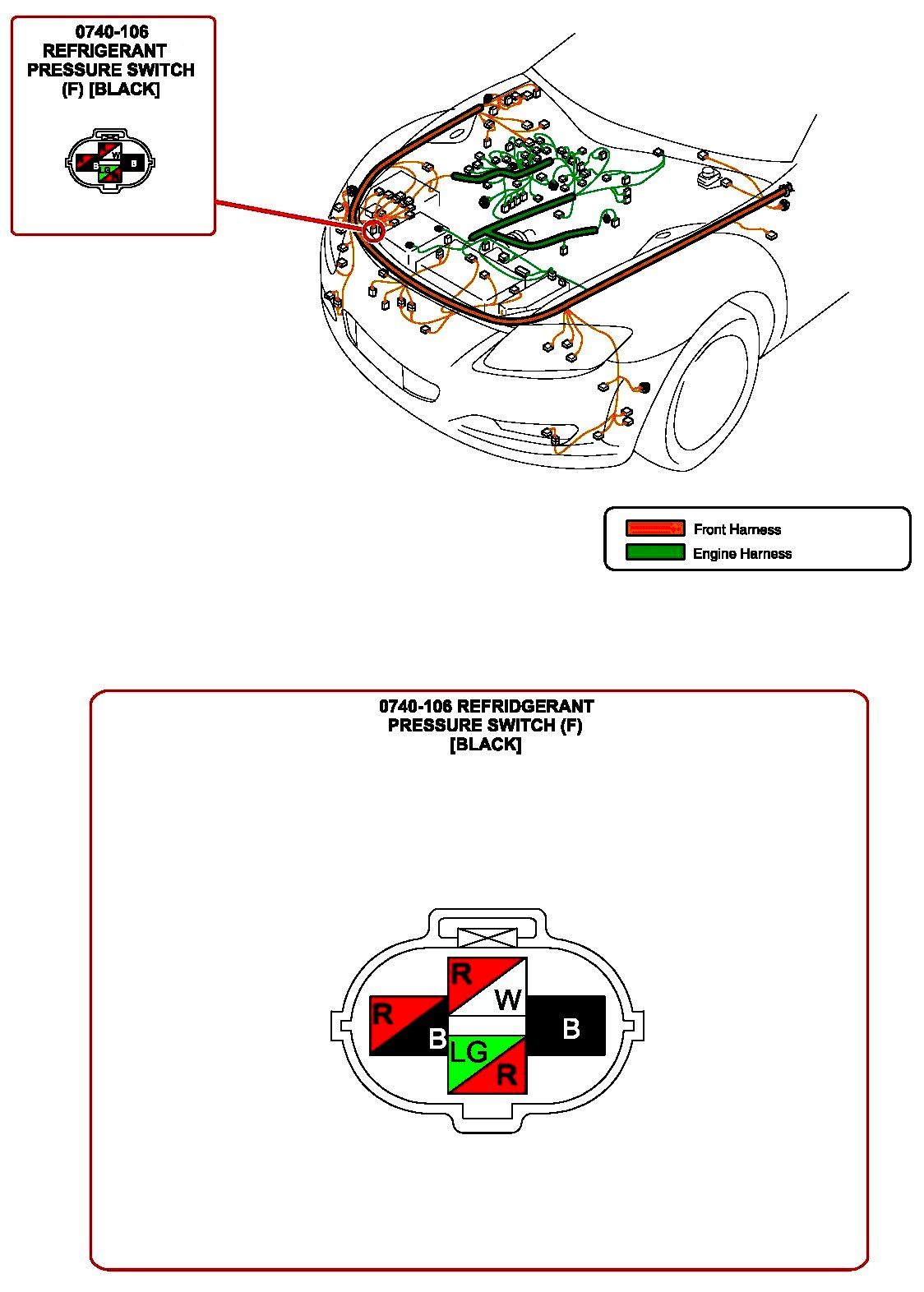

Refrigerant Pressure Switch (Manual Air Conditioner):

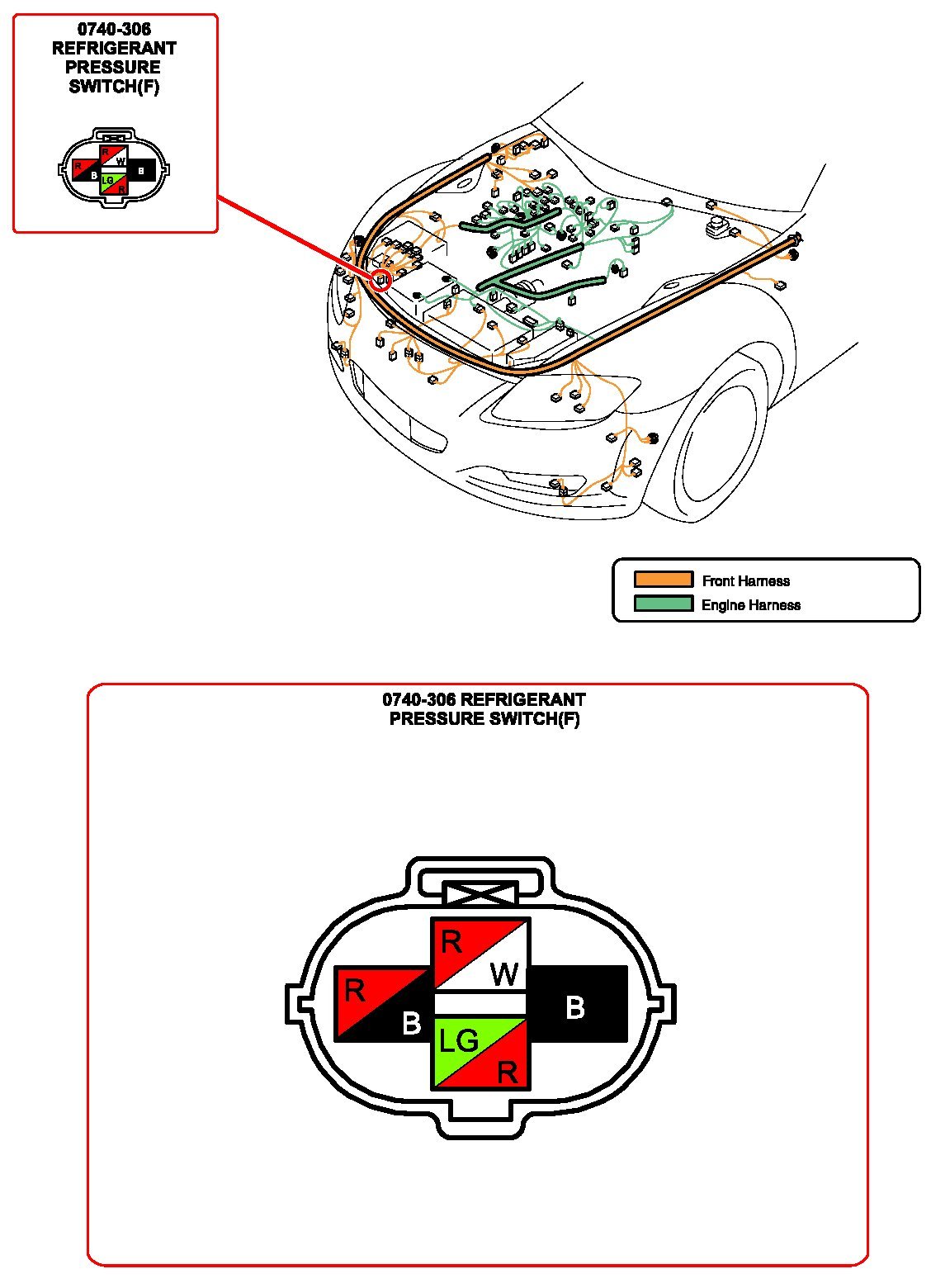

Refrigerant Pressure Switch (Full Auto Air Conditioner):
