Sirius Satellite Radio Unit

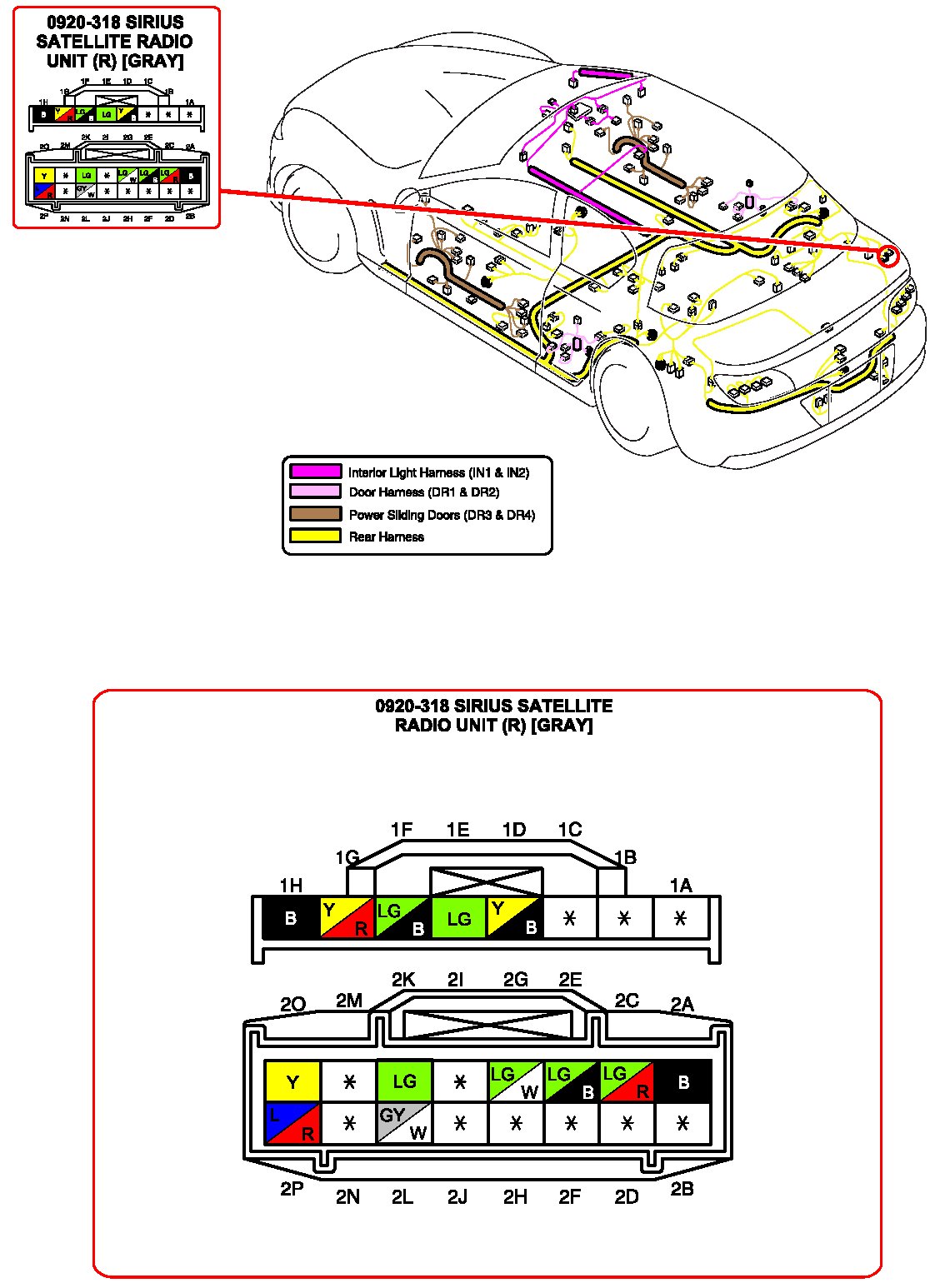

Sirius Satellite Radio Unit (Without Bose):

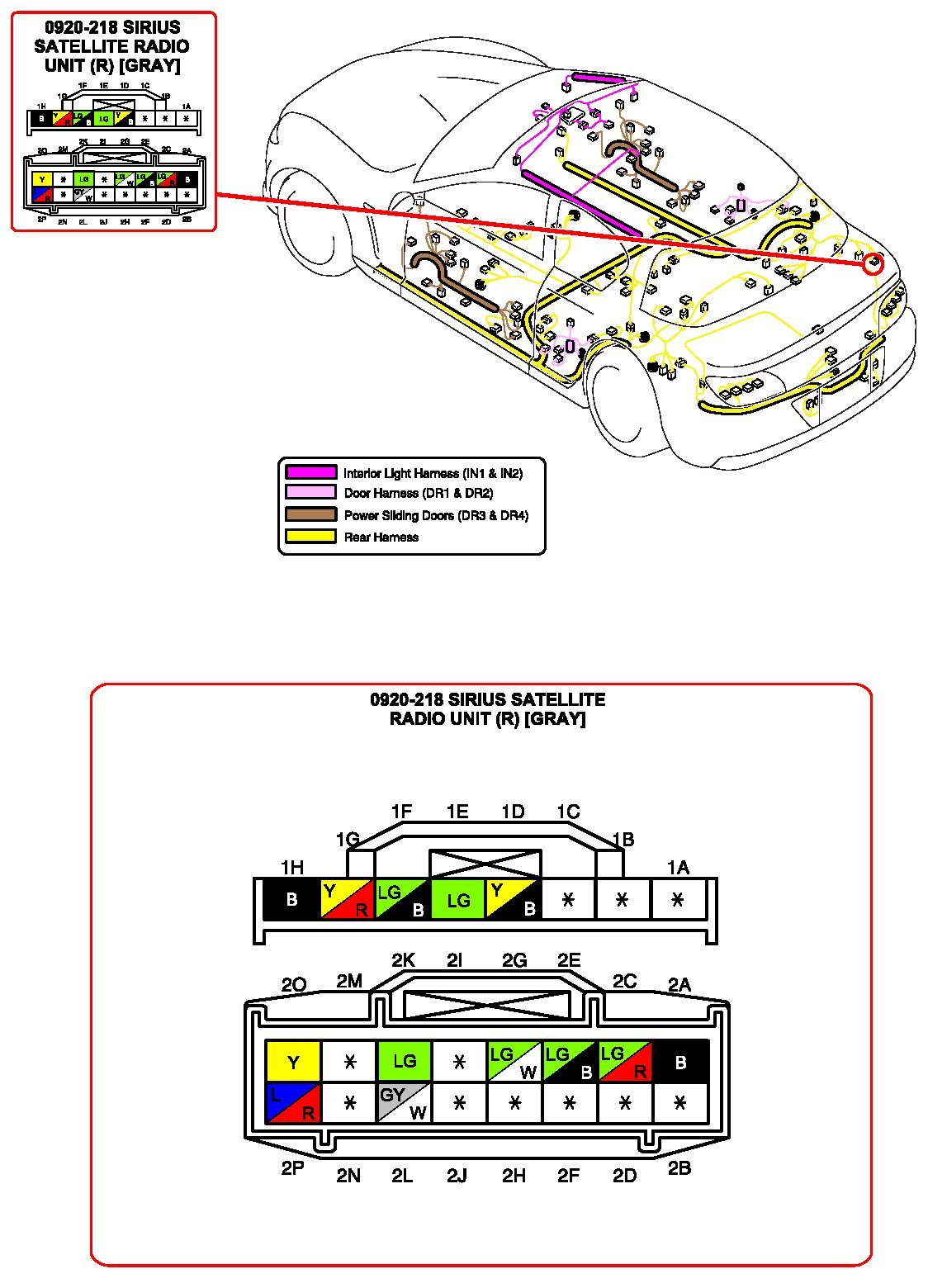

Sirius Satellite Radio Unit (With Bose):



Sirius Satellite Radio Unit (Car Navigation System):
