Mazda
>>
2009
>>
RX8 2RTR-1.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Starter Relay (ST)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

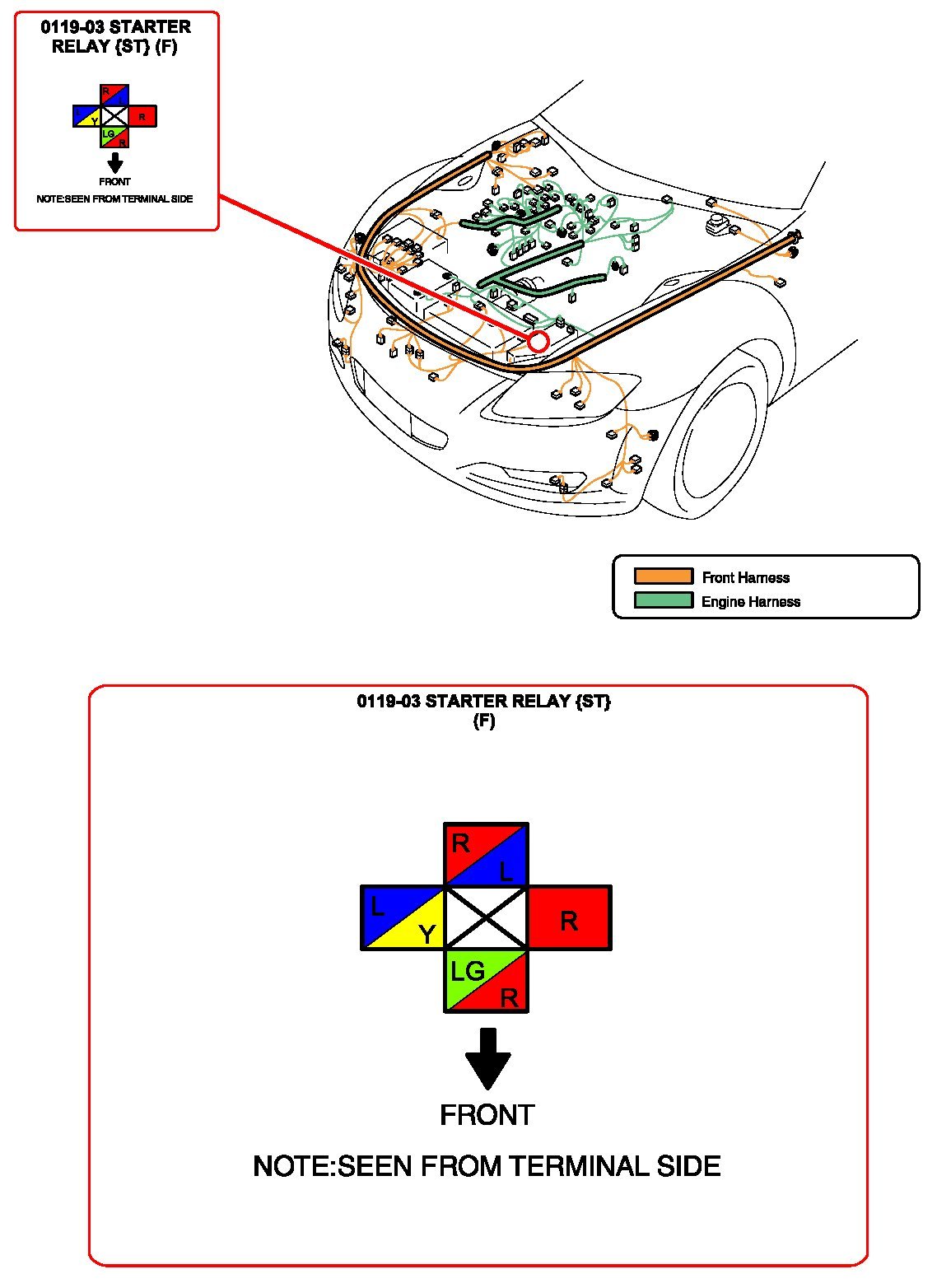

Starter Relay (ST)
Starter Relay (ST):
