Navigation System

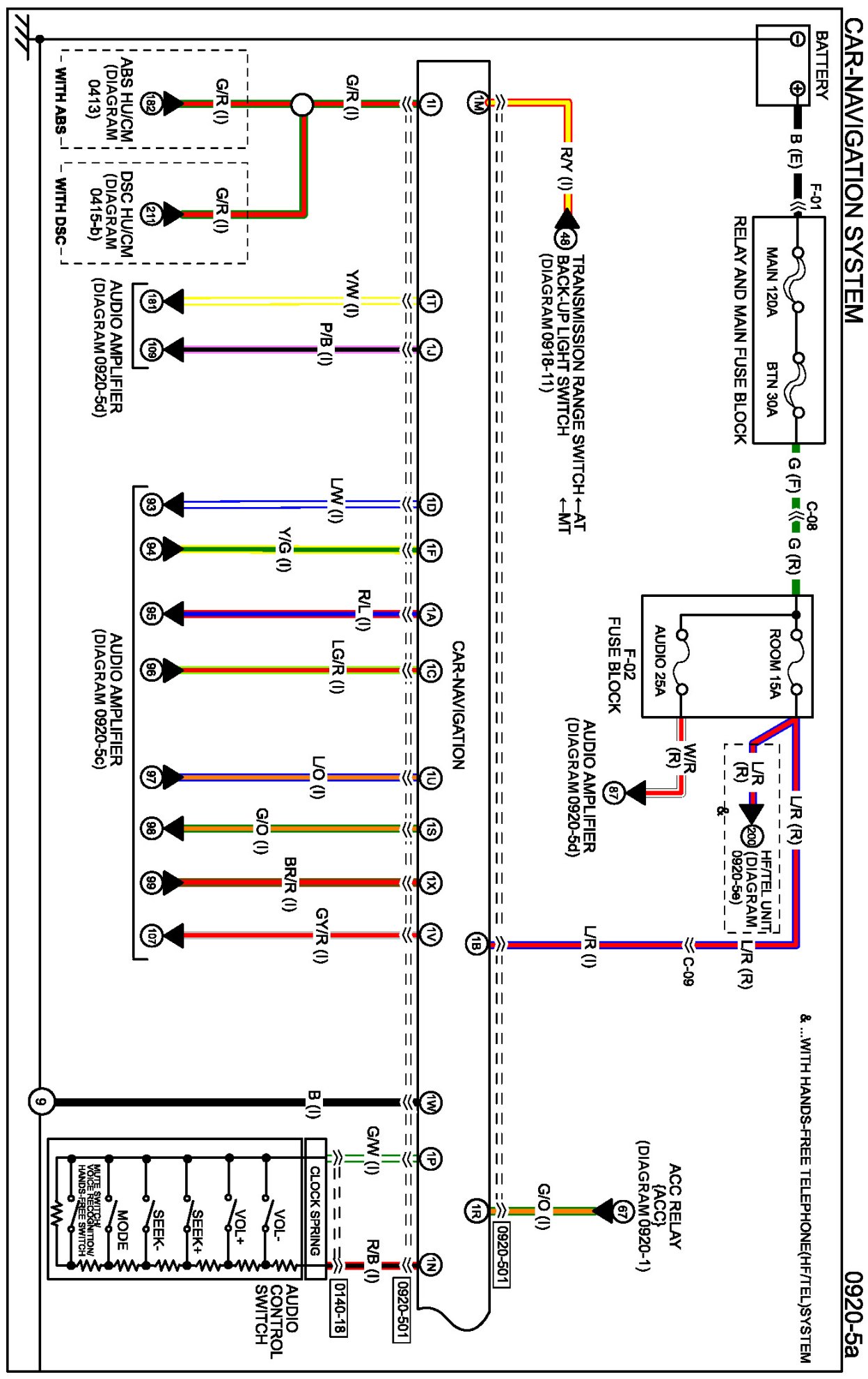

Diagram 0920-5a:

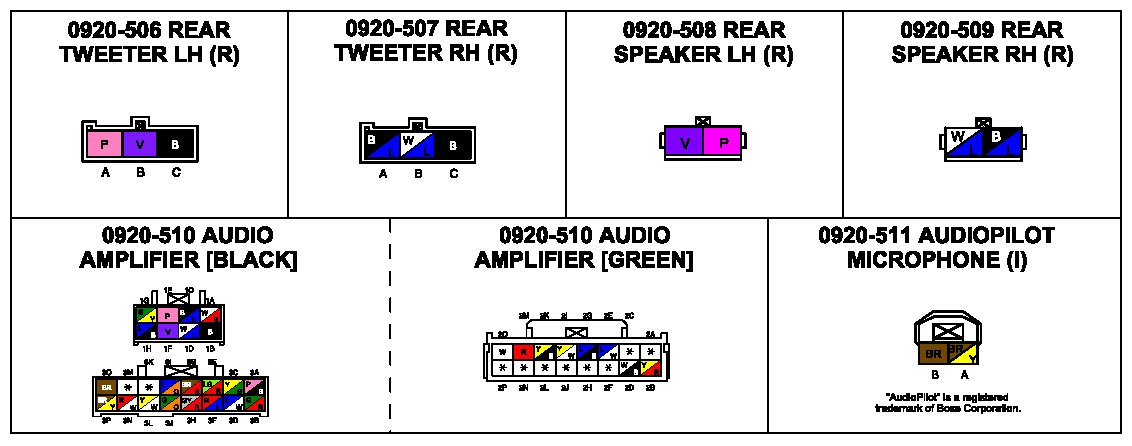

Connectors 0920-5a:

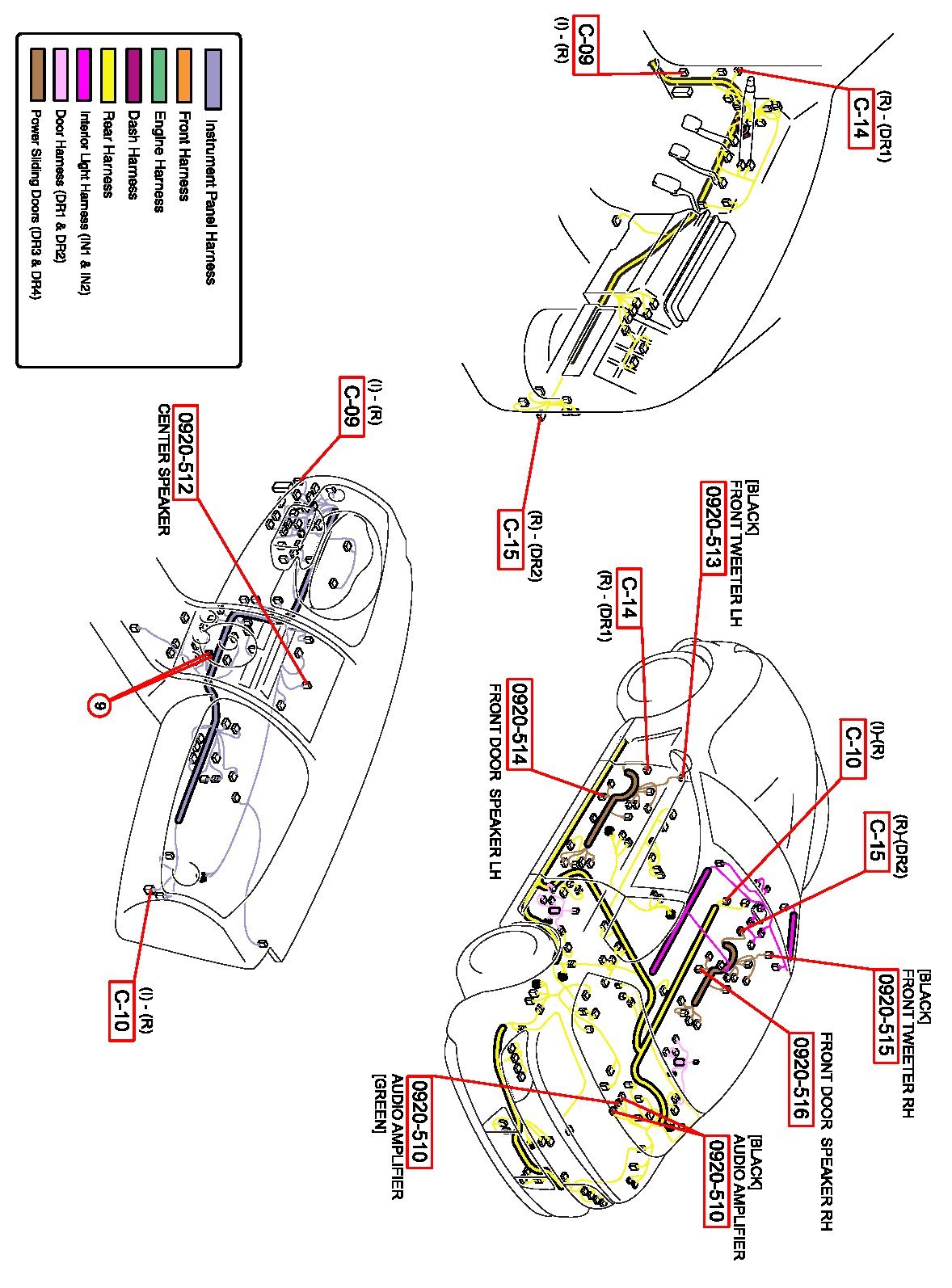

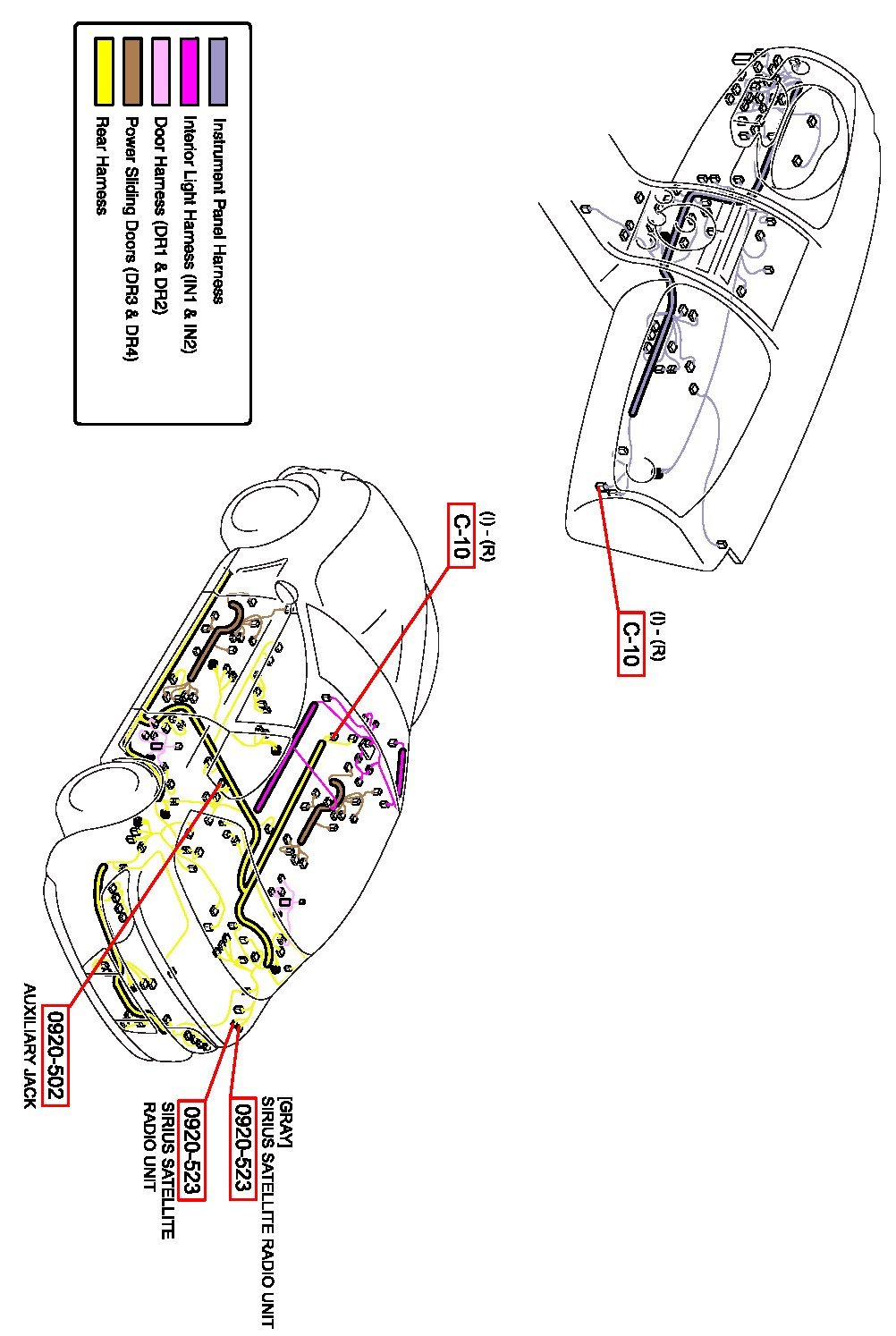

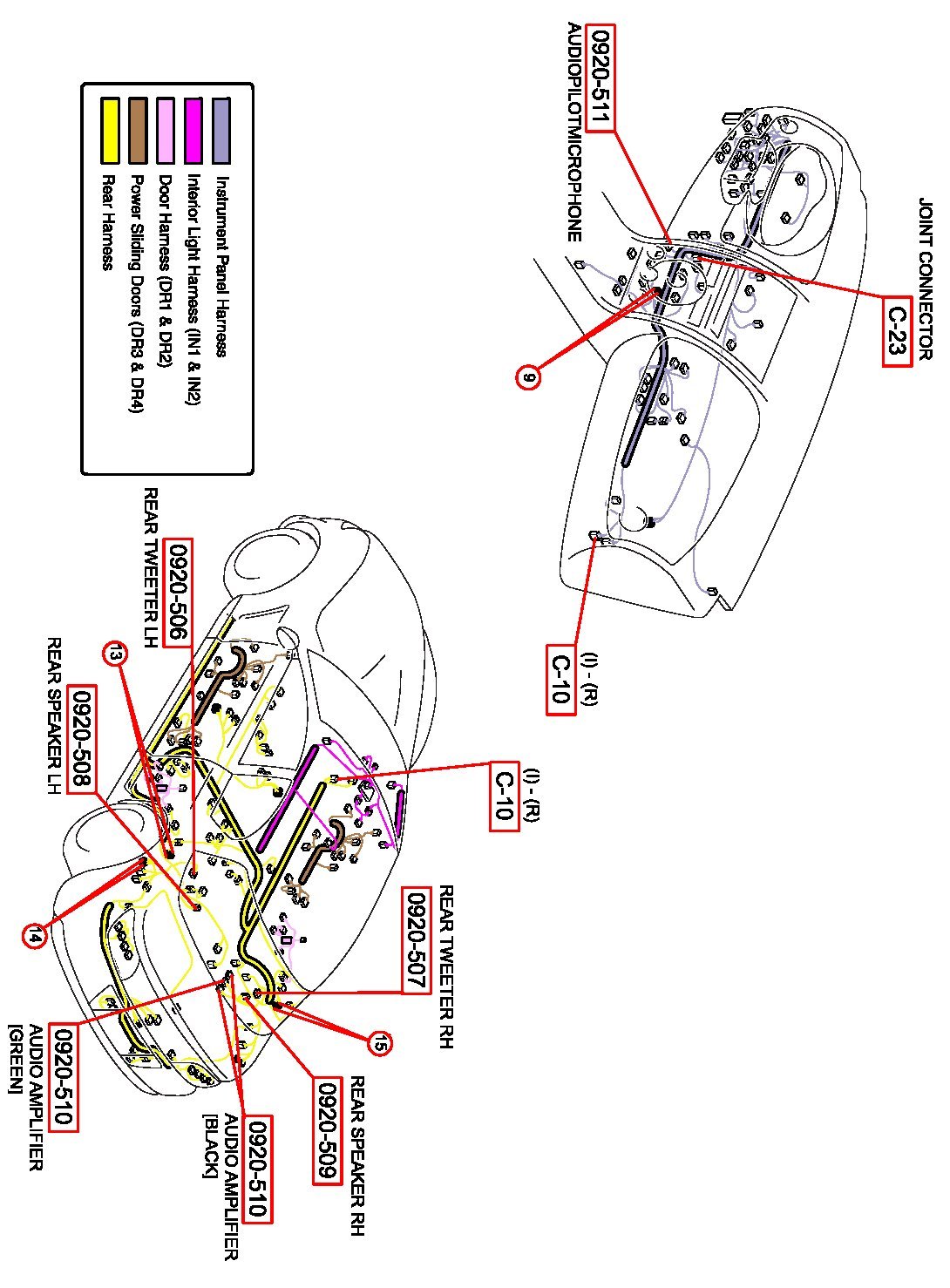

Routing View 0920-5a:

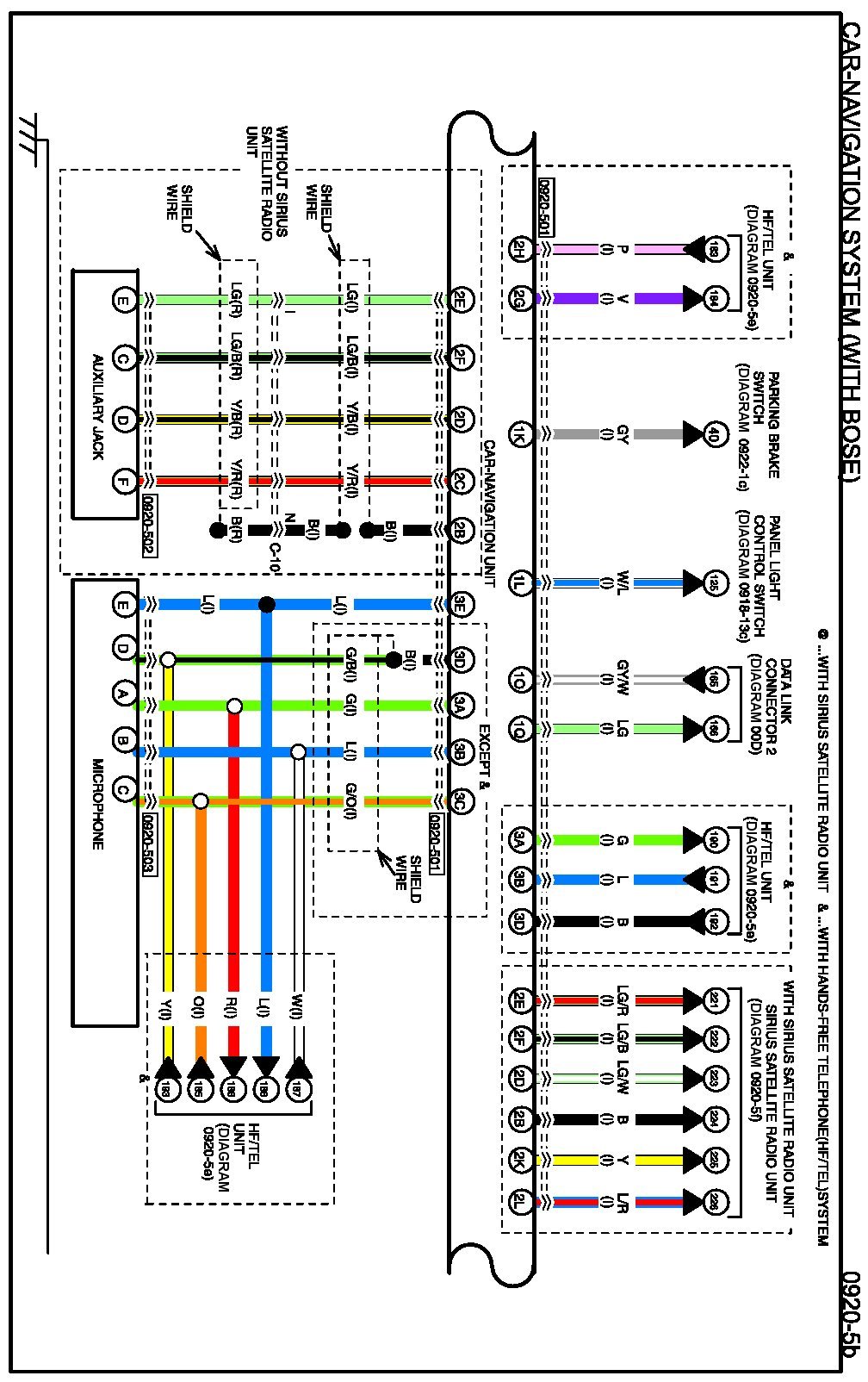

Diagram 0920-5b:

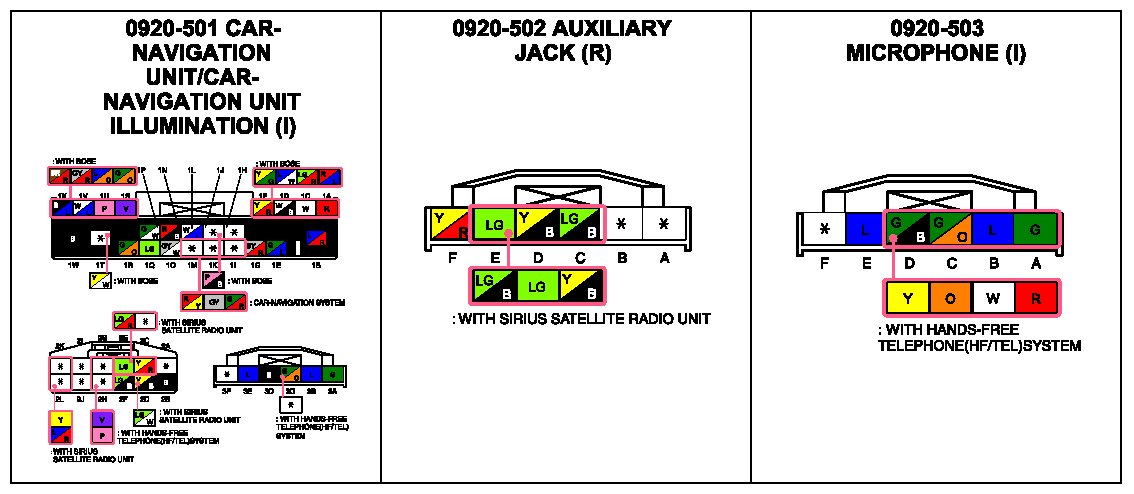

Connectors 0920-5b:

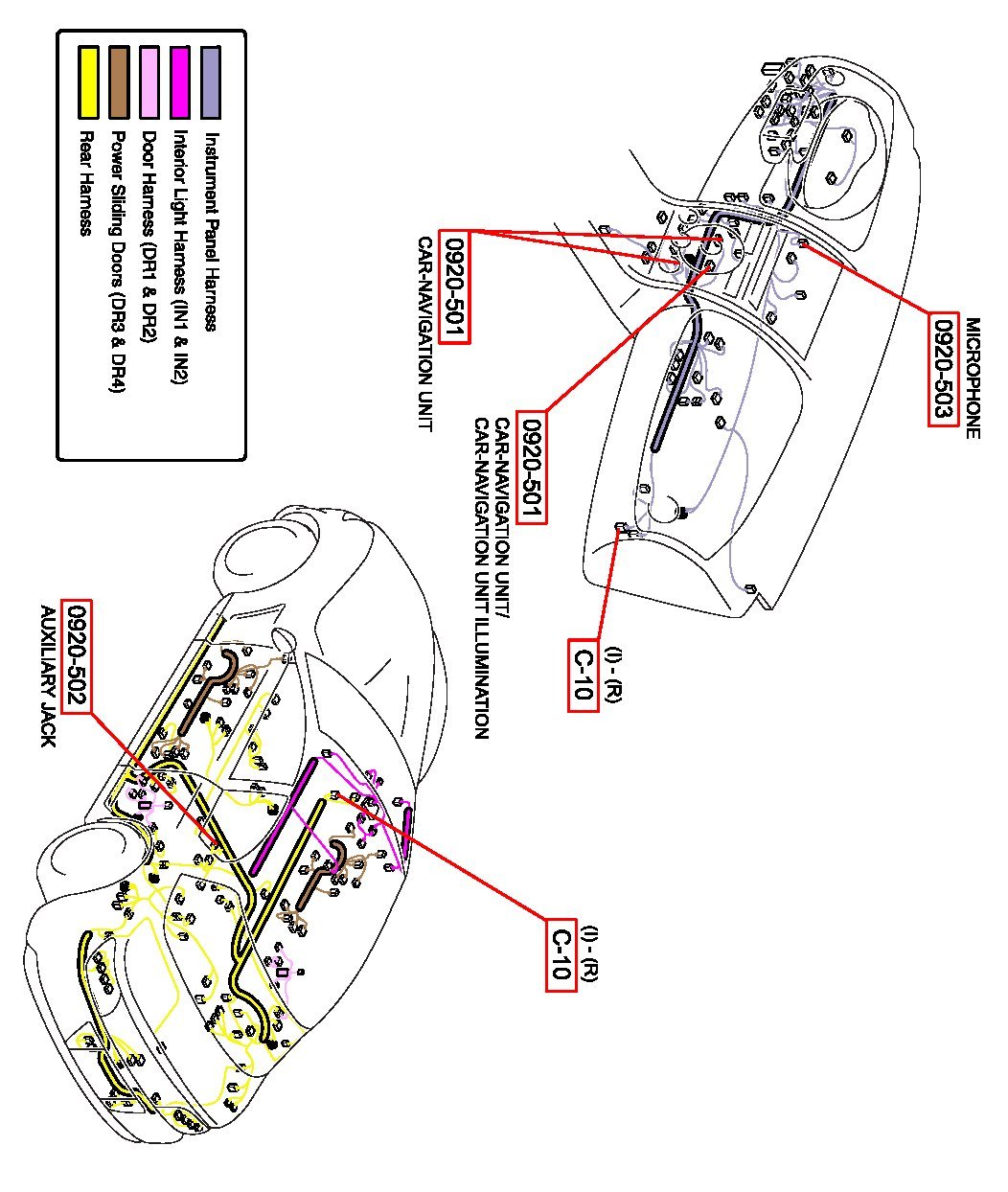

Routing View 0920-5b:

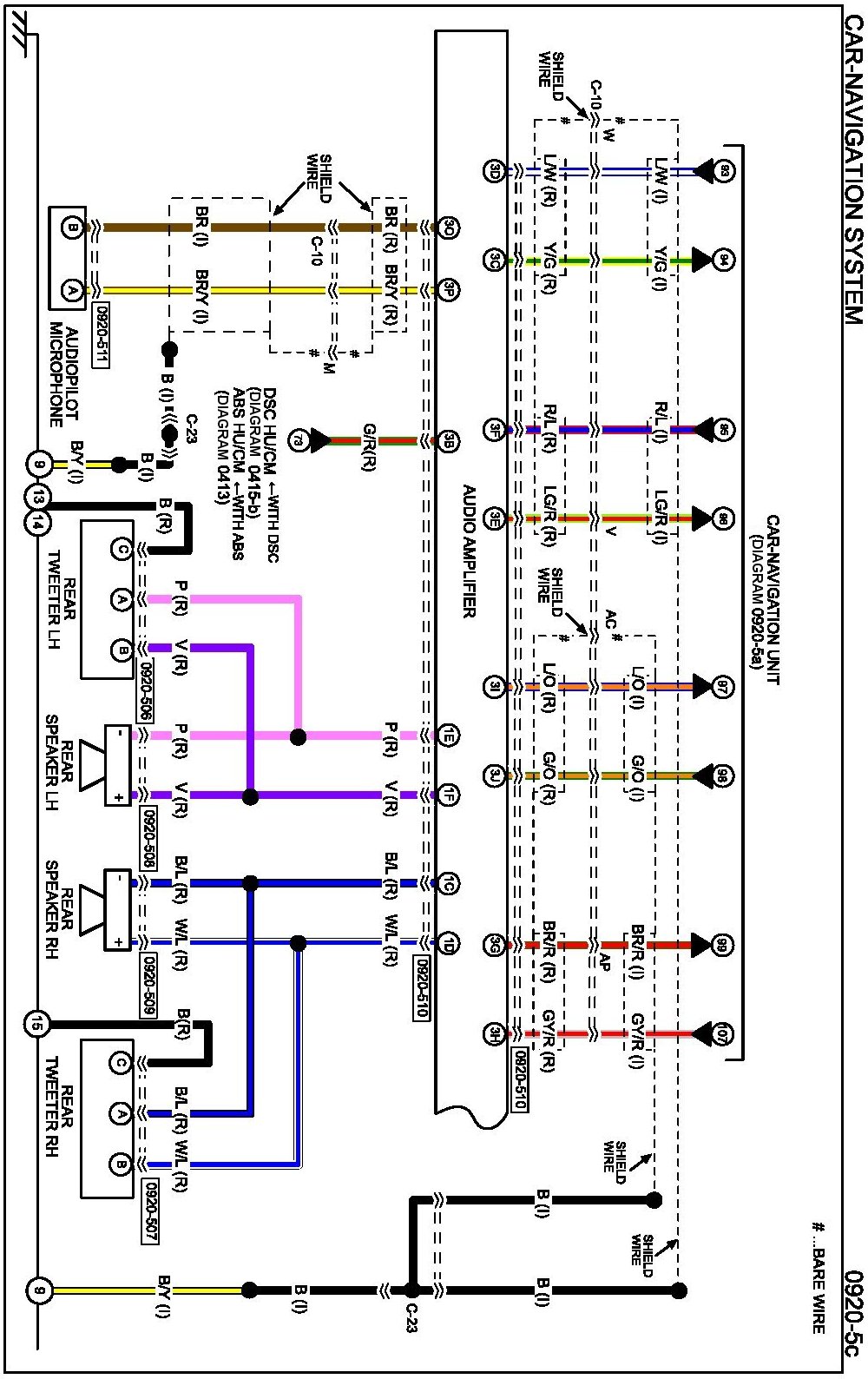

Diagram 0920-5c:

Connectors 0920-5c:

Routing View 0920-5c:

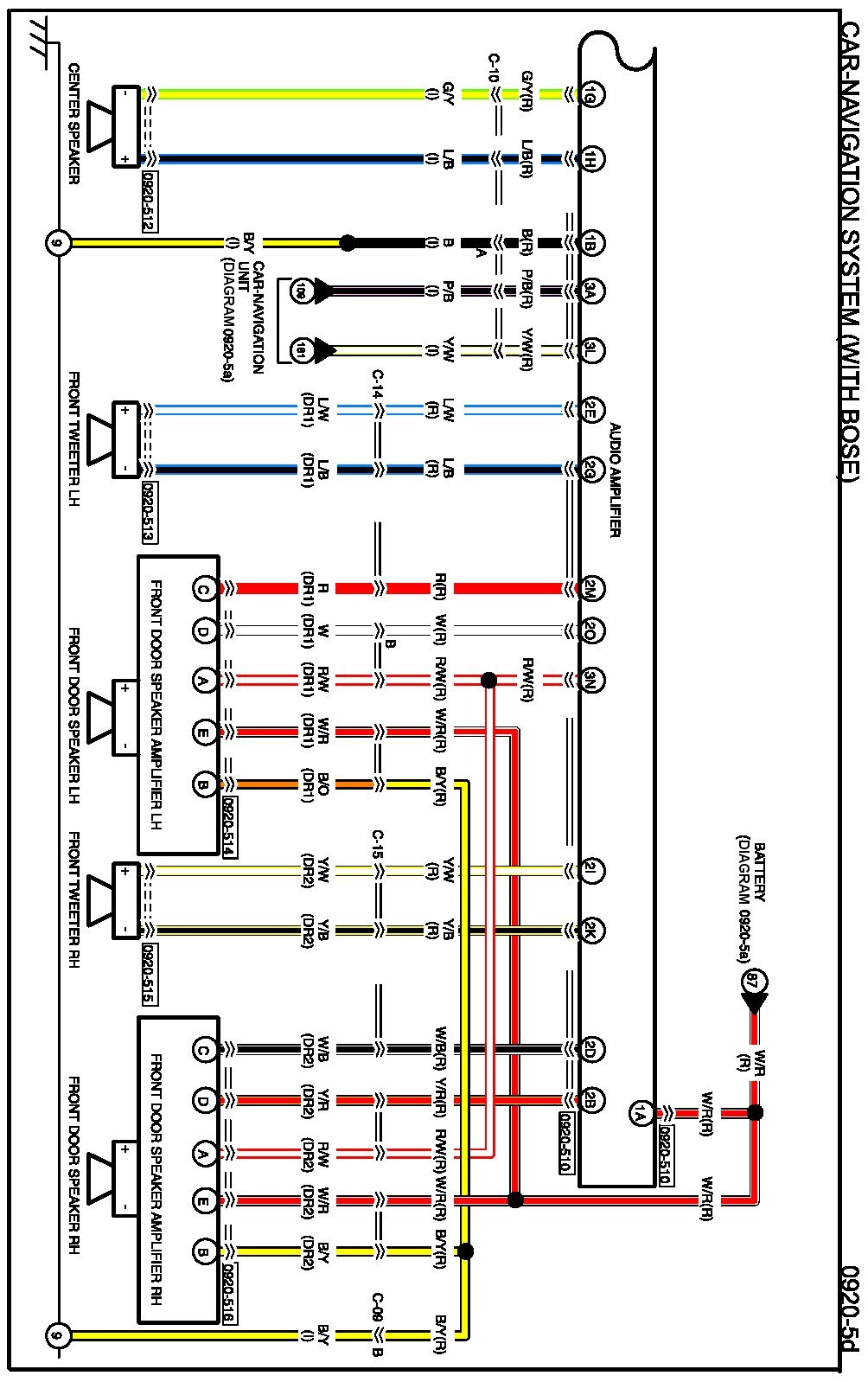

Diagram 0920-5d:

Connectors 0920-5d:

Routing View 0920-5d:

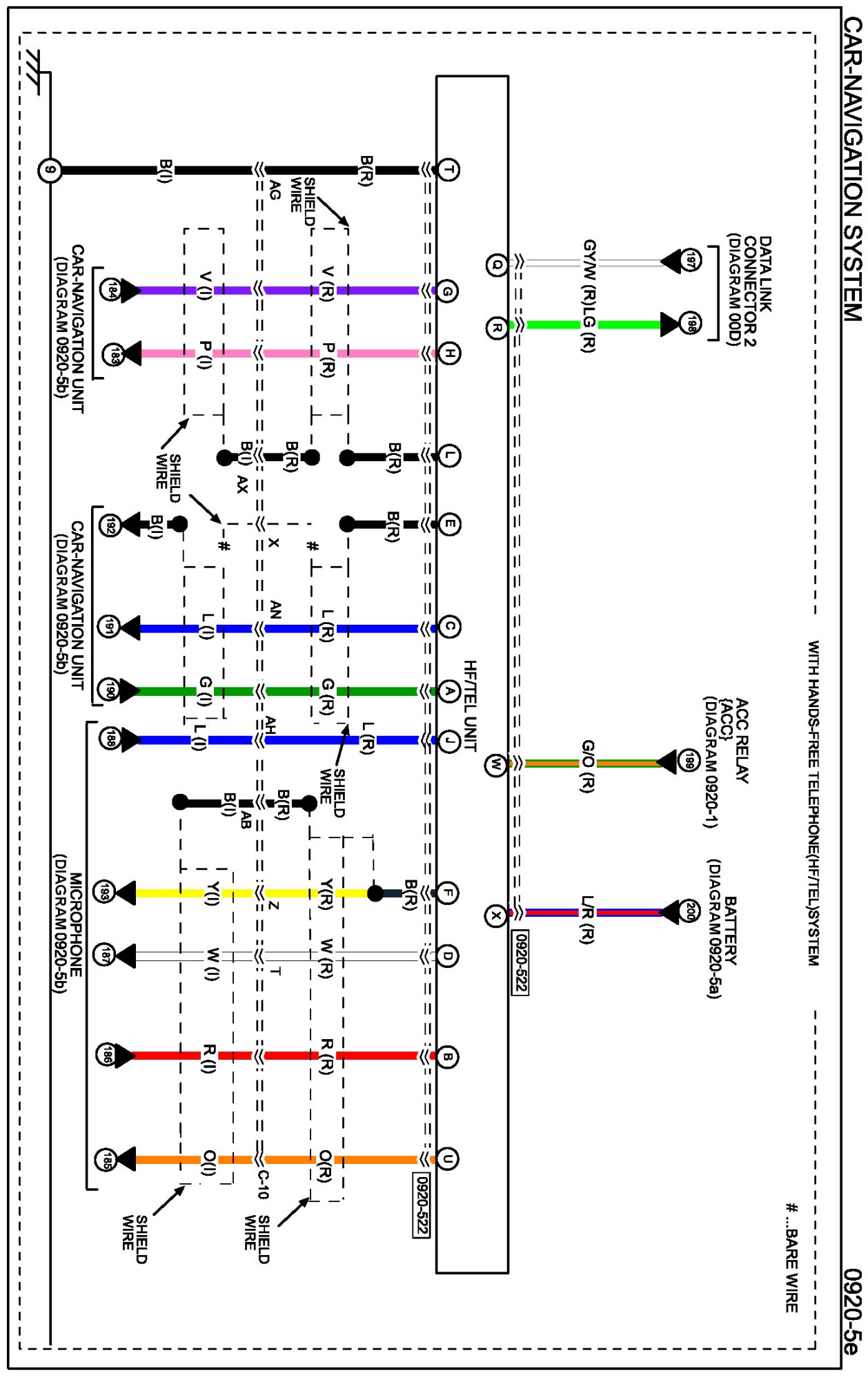

Diagram 0920-5e:

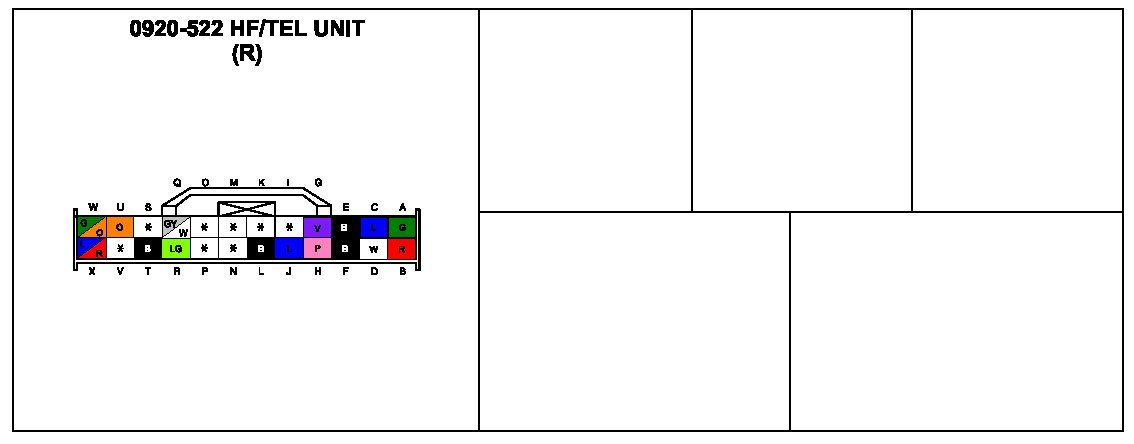

Connectors 0920-5e:

Routing View 0920-5e:

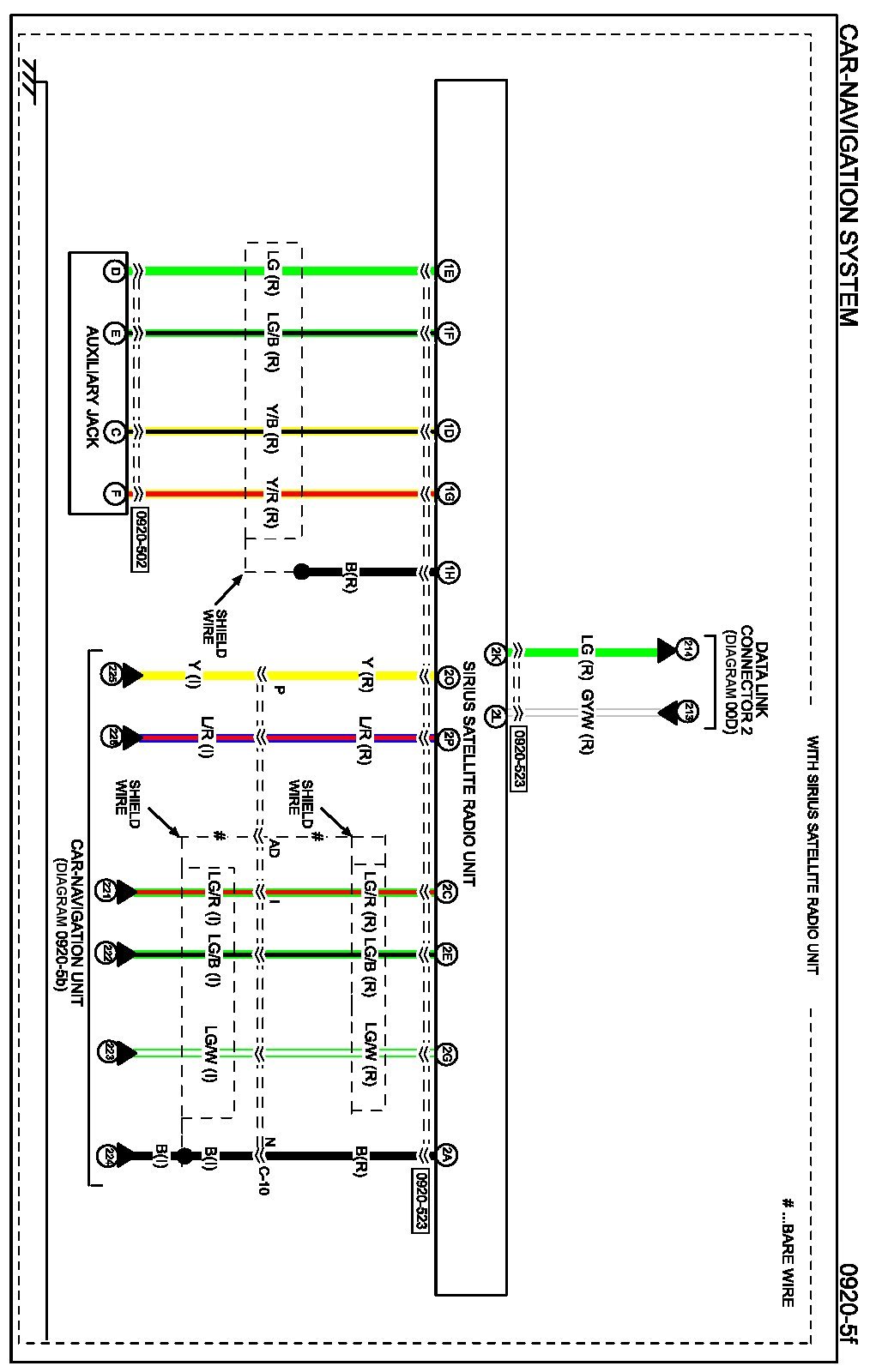

Diagram 0920-5f:

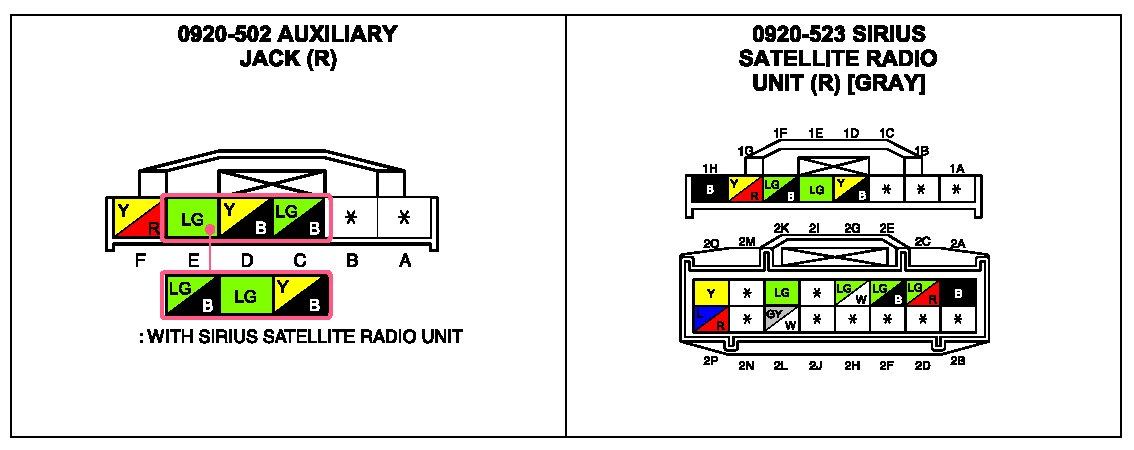

Connectors 0920-5f:

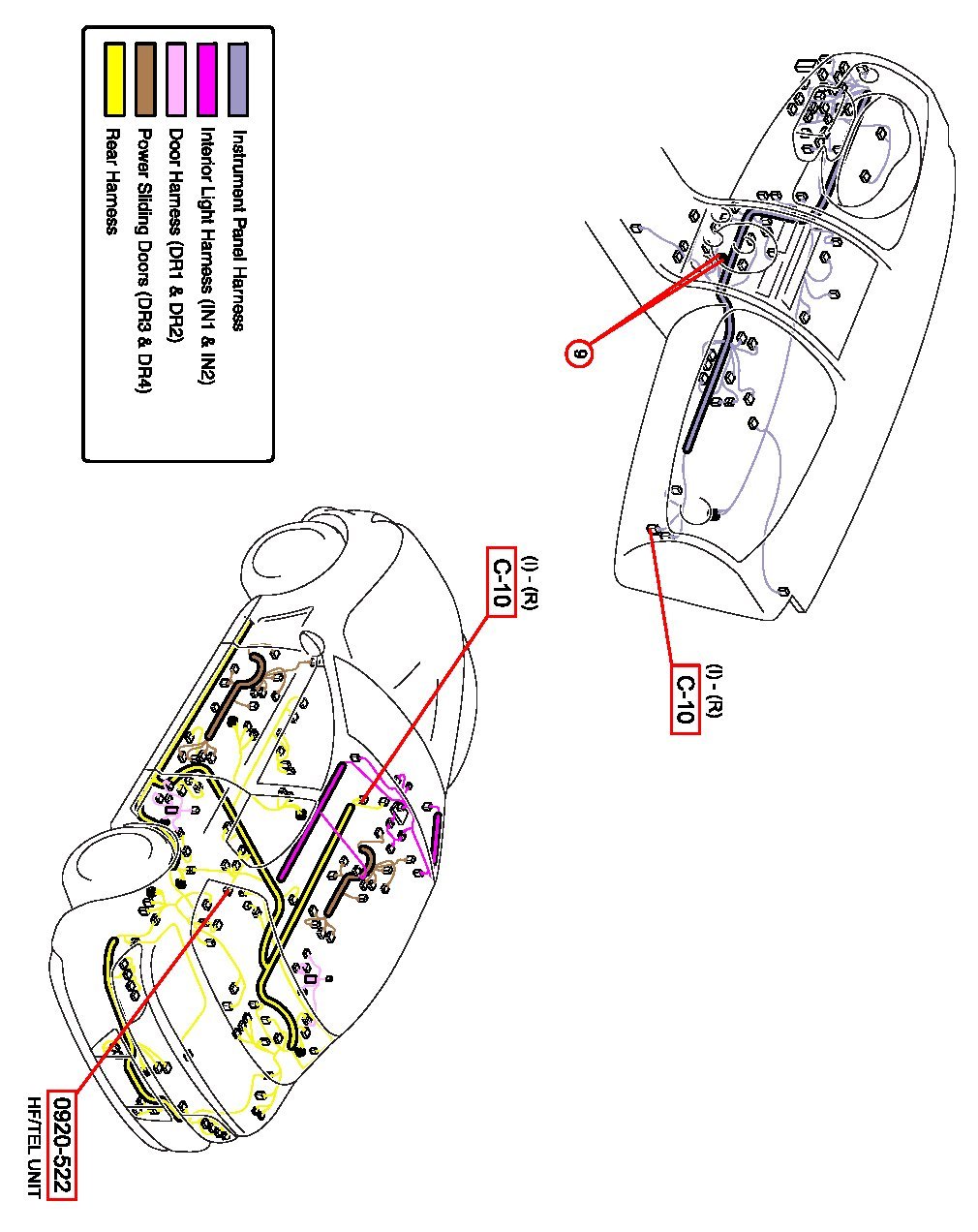

Routing View 0920-5f:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
