PID/DATA Monitor Table
PCM INSPECTION [13B-MSP]
PID/DATA monitor table (reference)

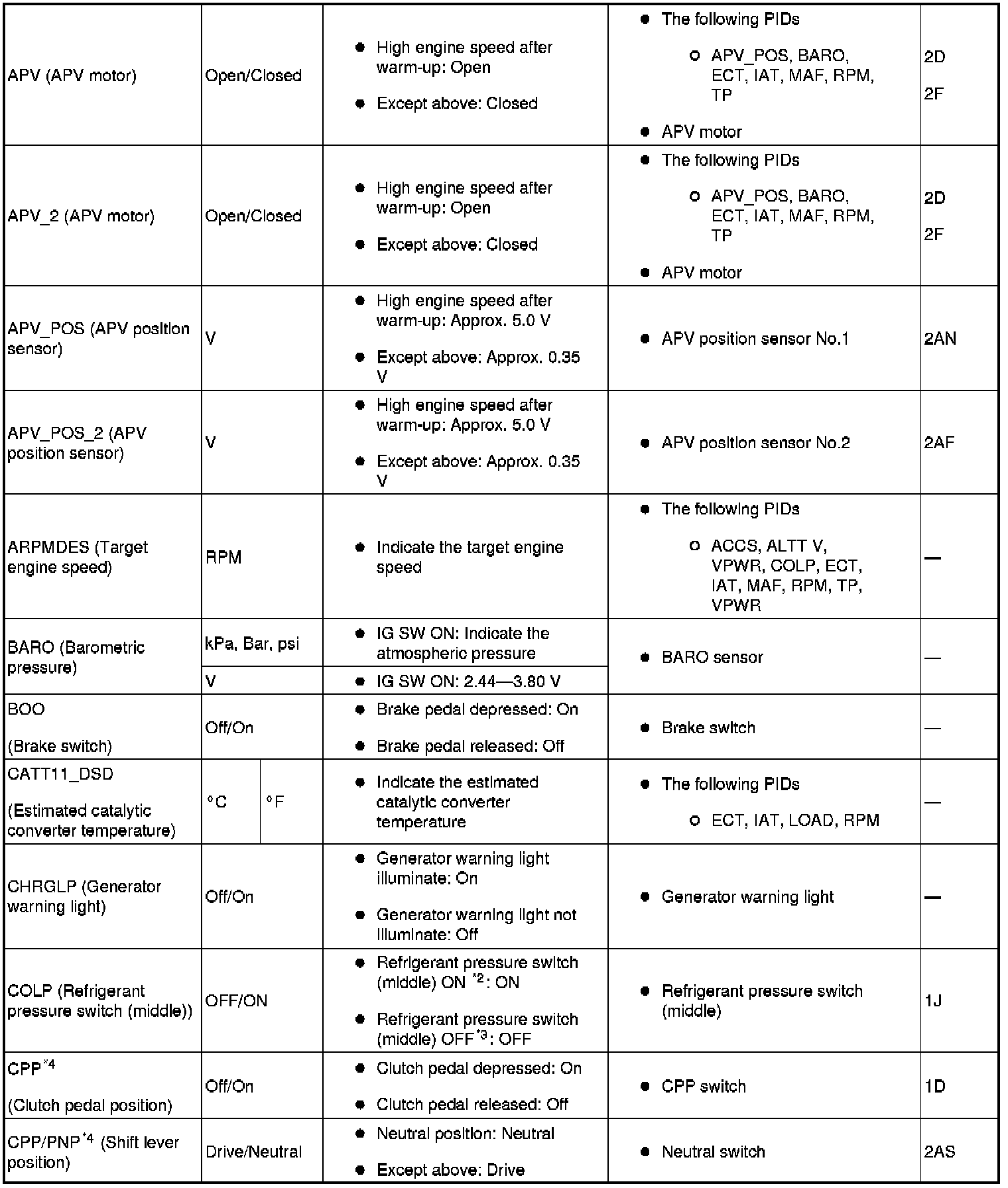

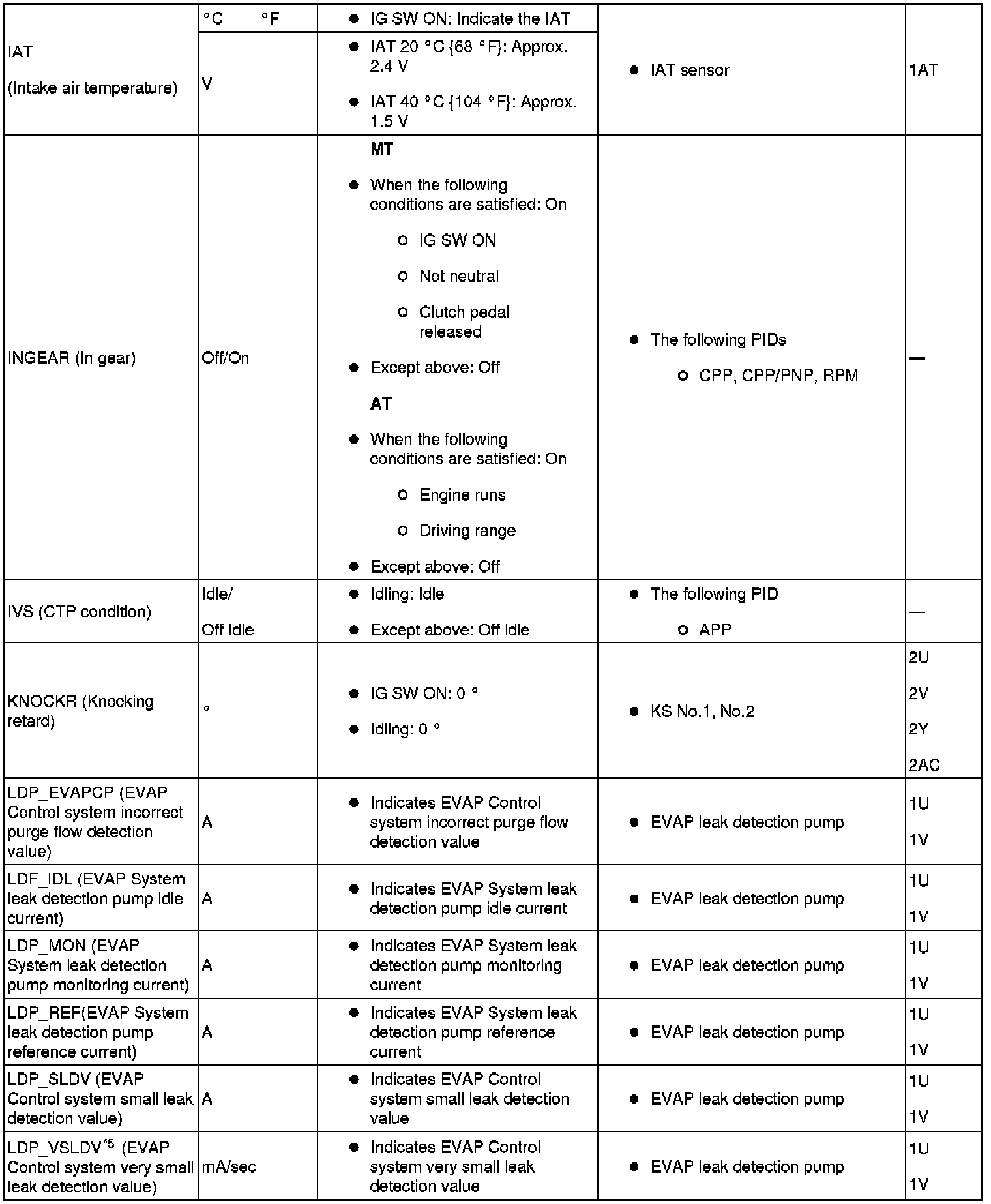

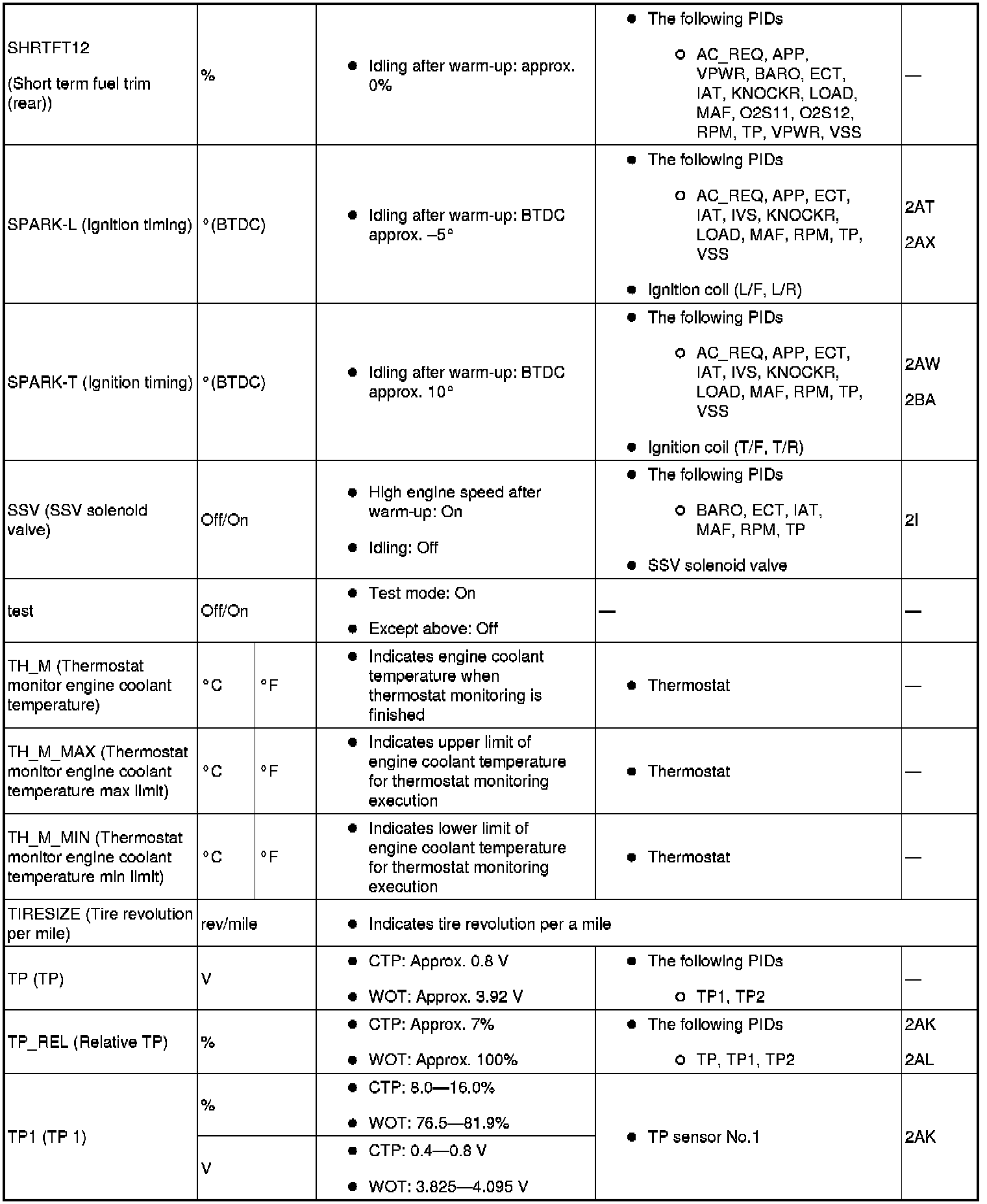

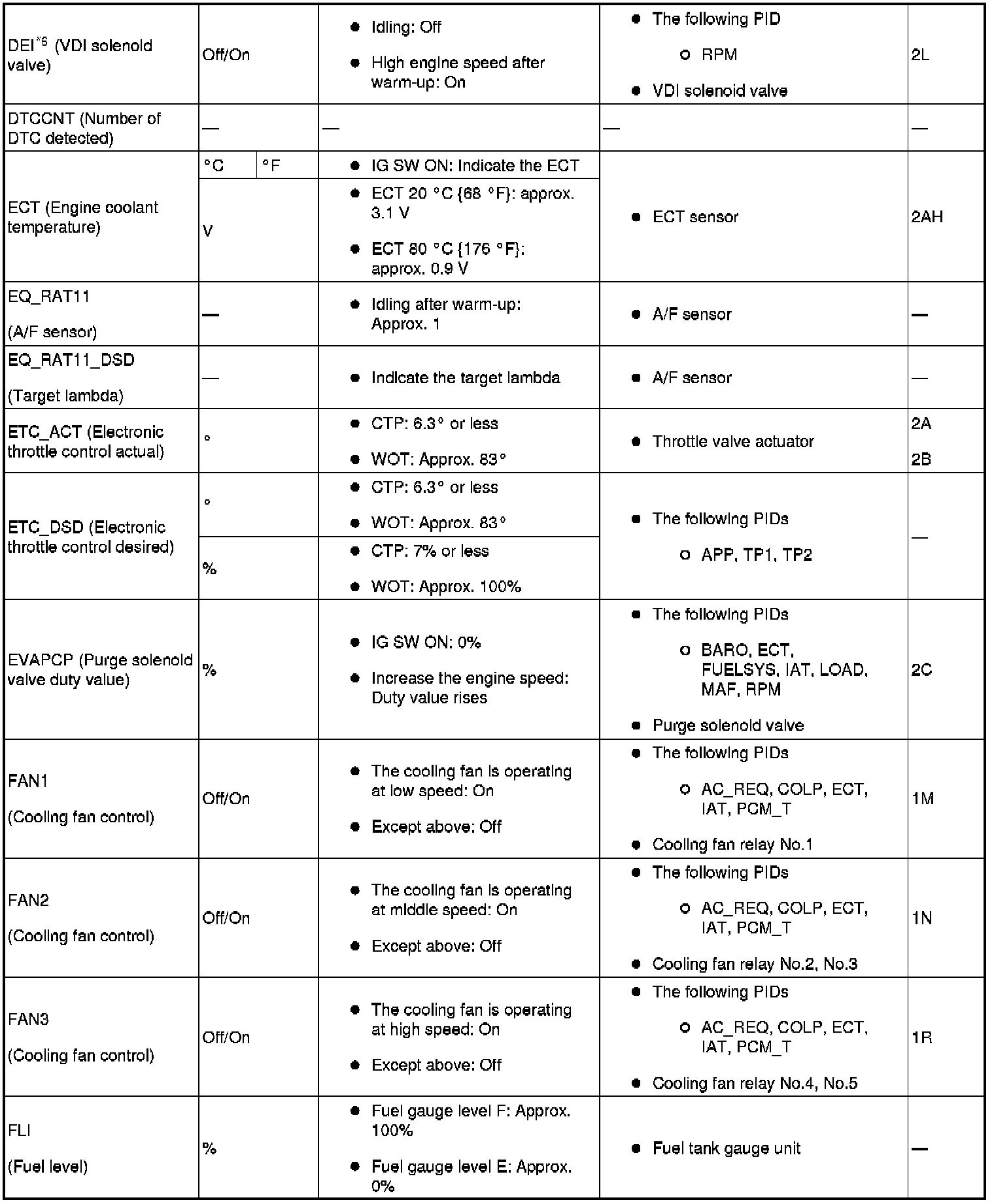

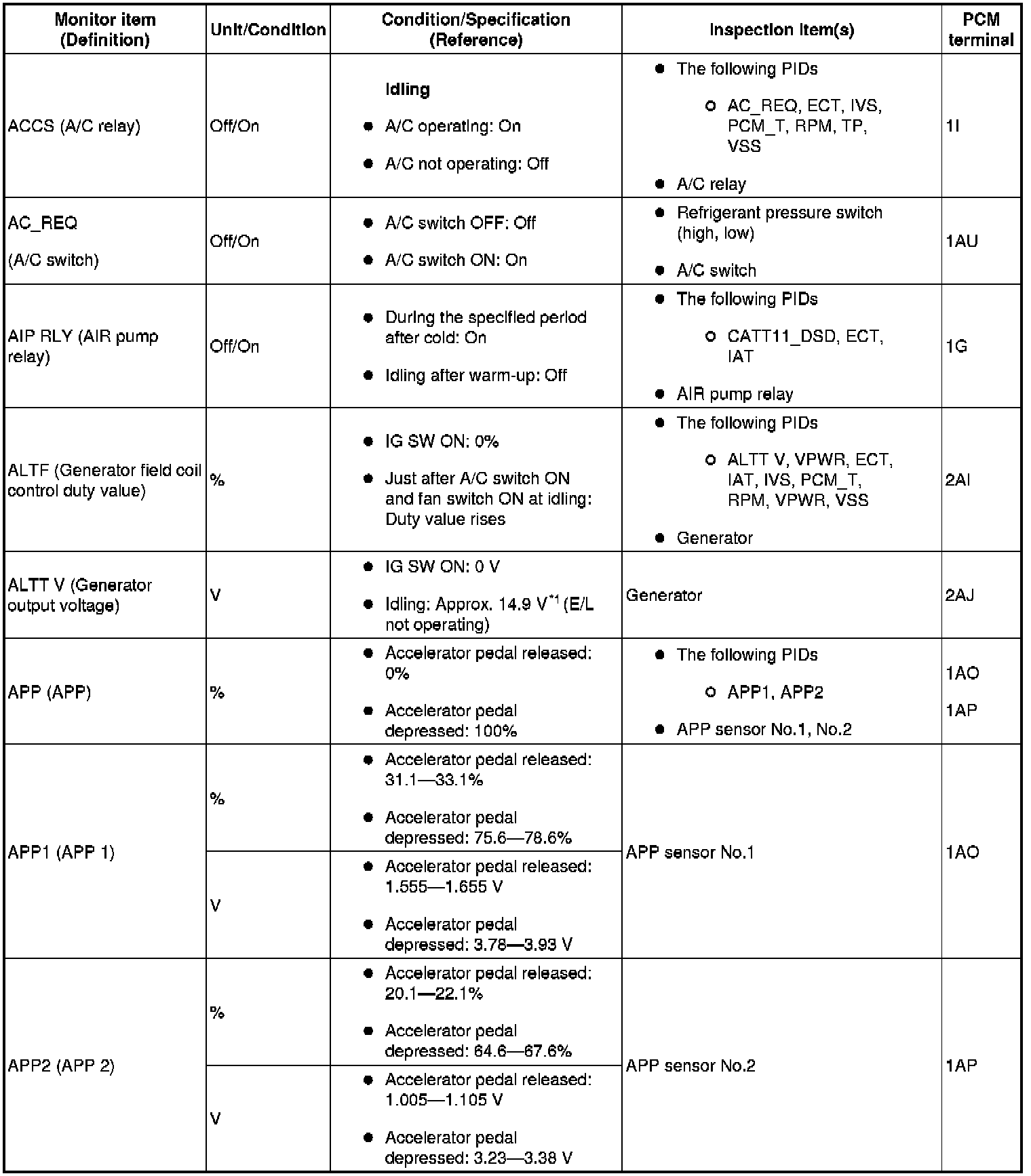

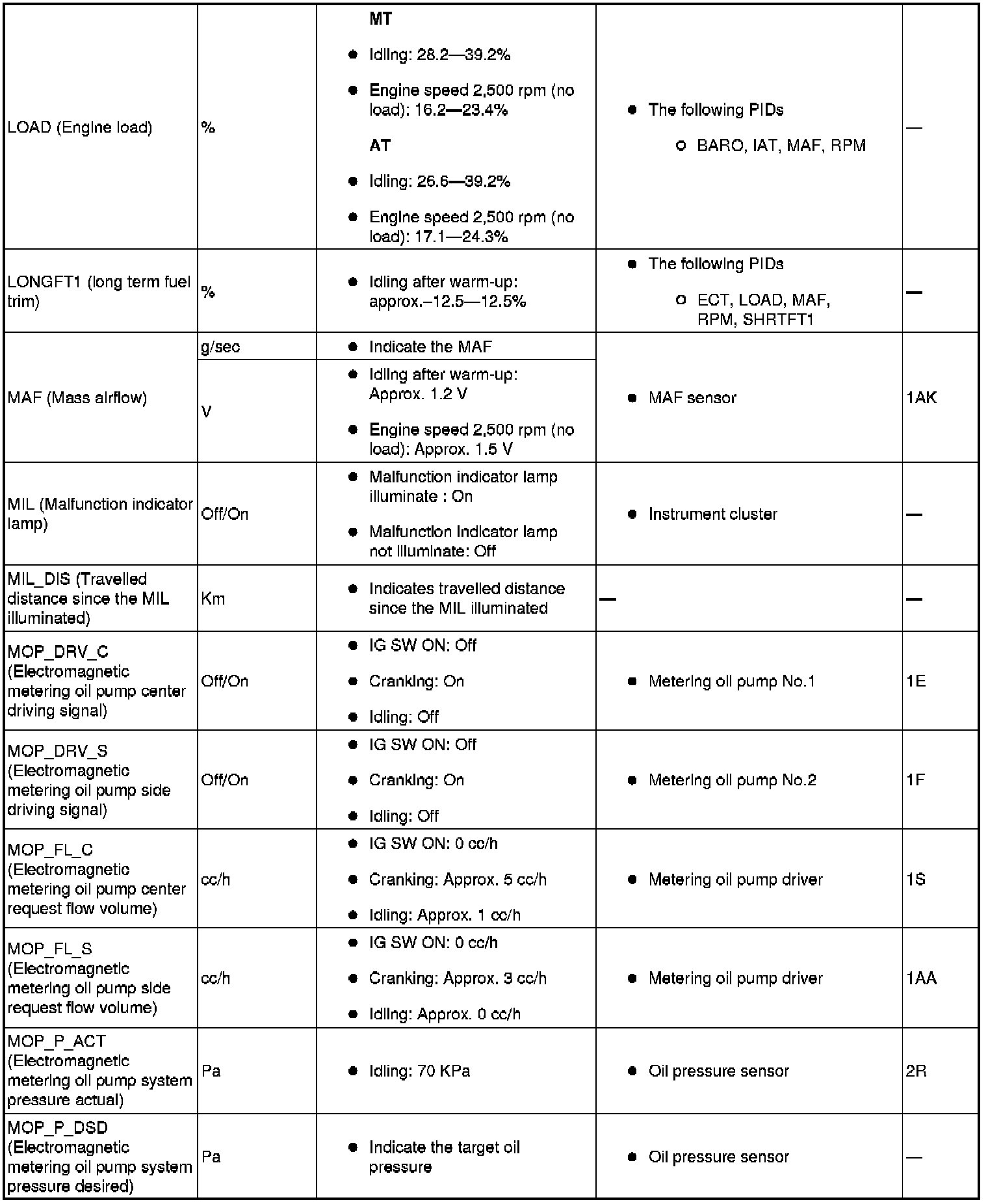

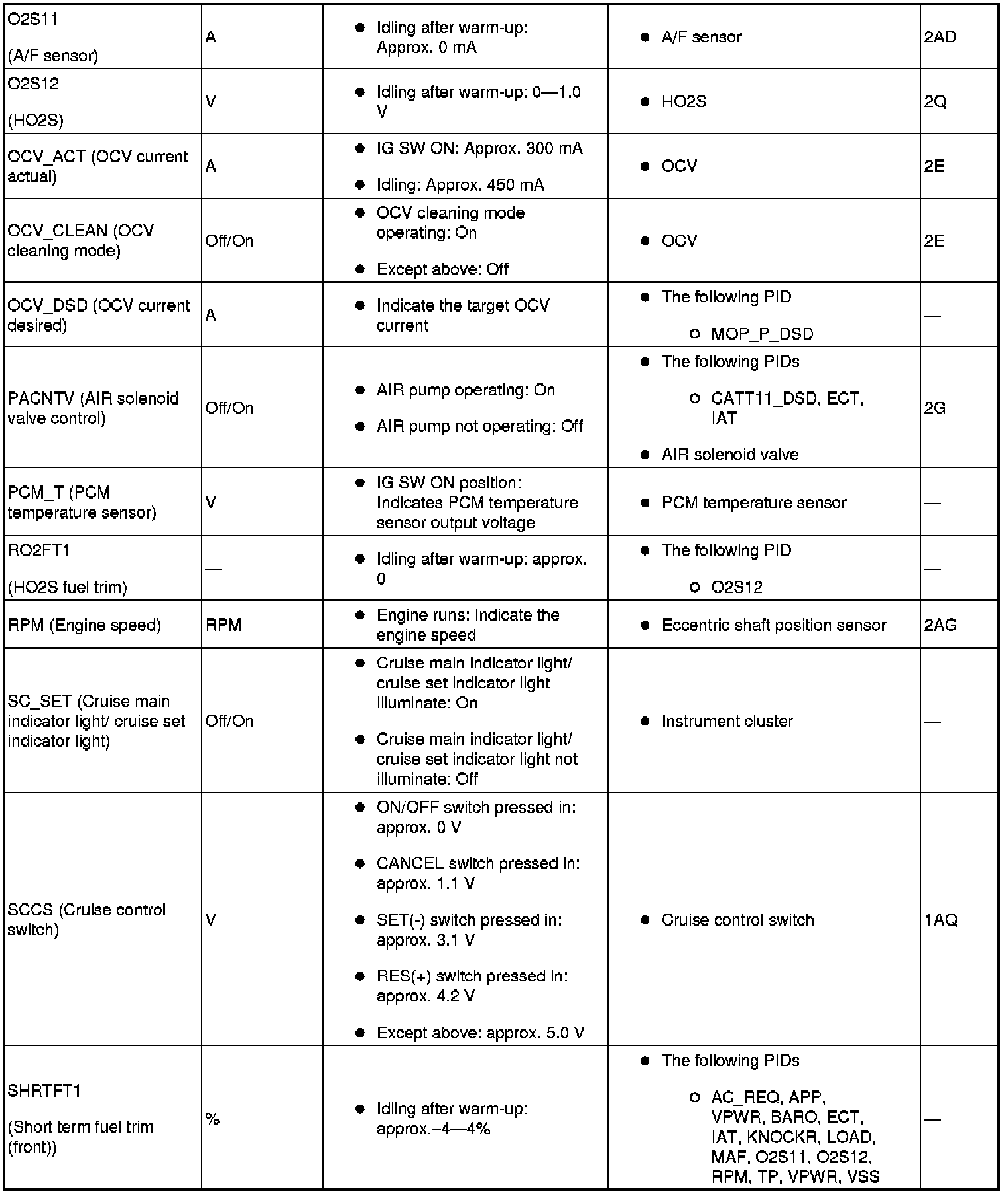

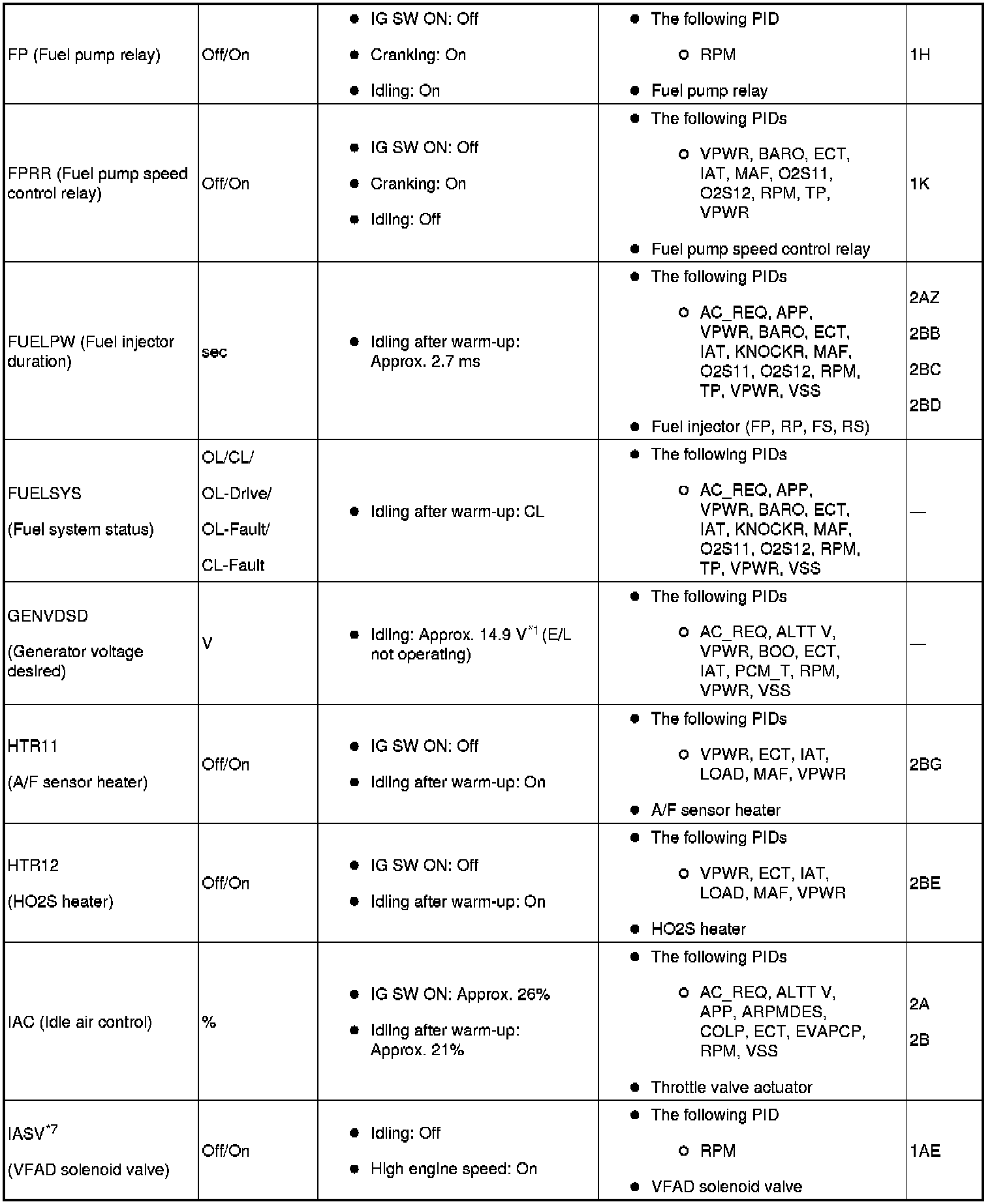

PID/Data Monitor Table (Reference) (Part 1):
PID/Data Monitor Table (Reference) (Part 2):
PID/Data Monitor Table (Reference) (Part 3):
PID/Data Monitor Table (Reference) (Part 4):
PID/Data Monitor Table (Reference) (Part 5):
PID/Data Monitor Table (Reference) (Part 6):
PID/Data Monitor Table (Reference) (Part 7):
PID/Data Monitor Table (Reference) (Part 8):

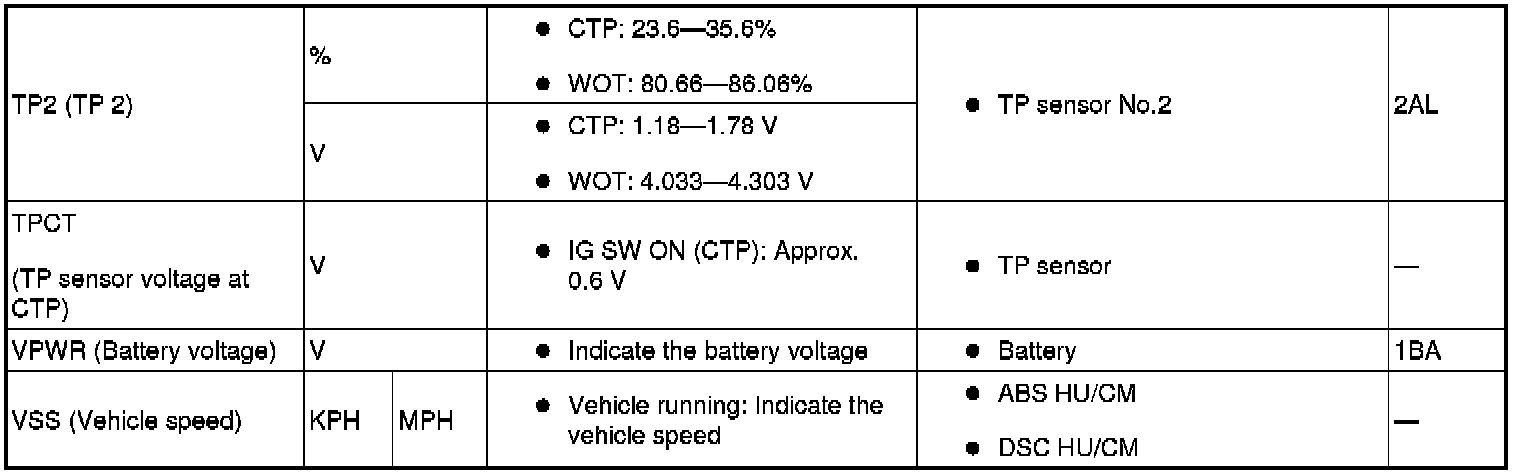

PID/Data Monitor Table (Reference) (Part 9):
*1
Calculated value; differs from terminal voltage
*2
Refrigerant pressure switch (middle) turns off when the refrigerant pressure is 1.11 MPa {11.3 kgf/cm2, 161 psi} or less
*3
Refrigerant pressure switch (middle) turns on when the refrigerant pressure is 1.60 MPa {16.3 kgf/cm2, 232 psi} or more
*4
MT
*5
California emission regulation applicable model
*6
13B-MSP(high power)
*7
With VFAD
