System Specifications

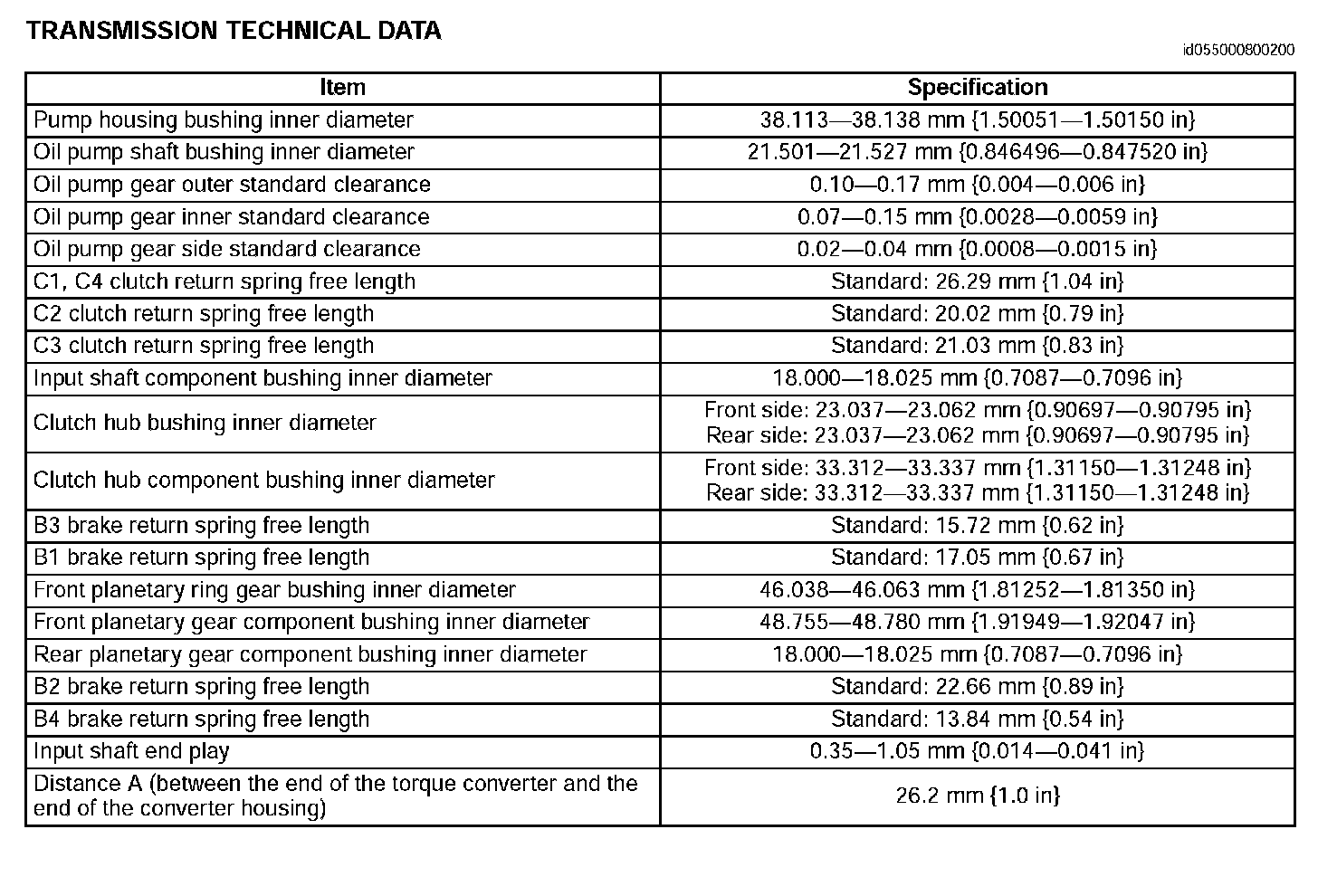

TRANSMISSION/TRANSAXLE TECHNICAL DATA
Automatic Transmission [SJ6A-EL]

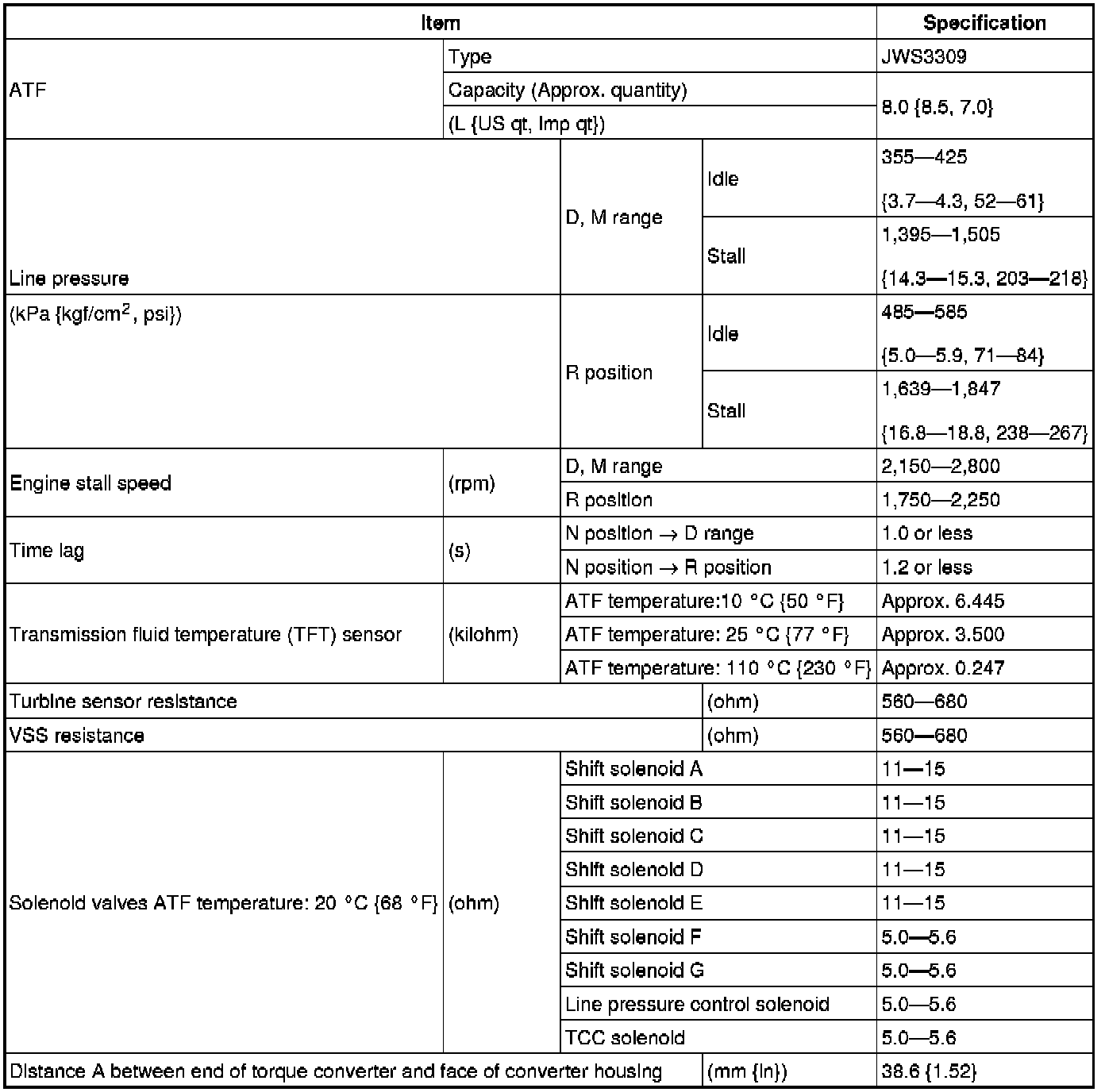

Transmission Technical Data:
