Power Window Motor, Driver Side Front

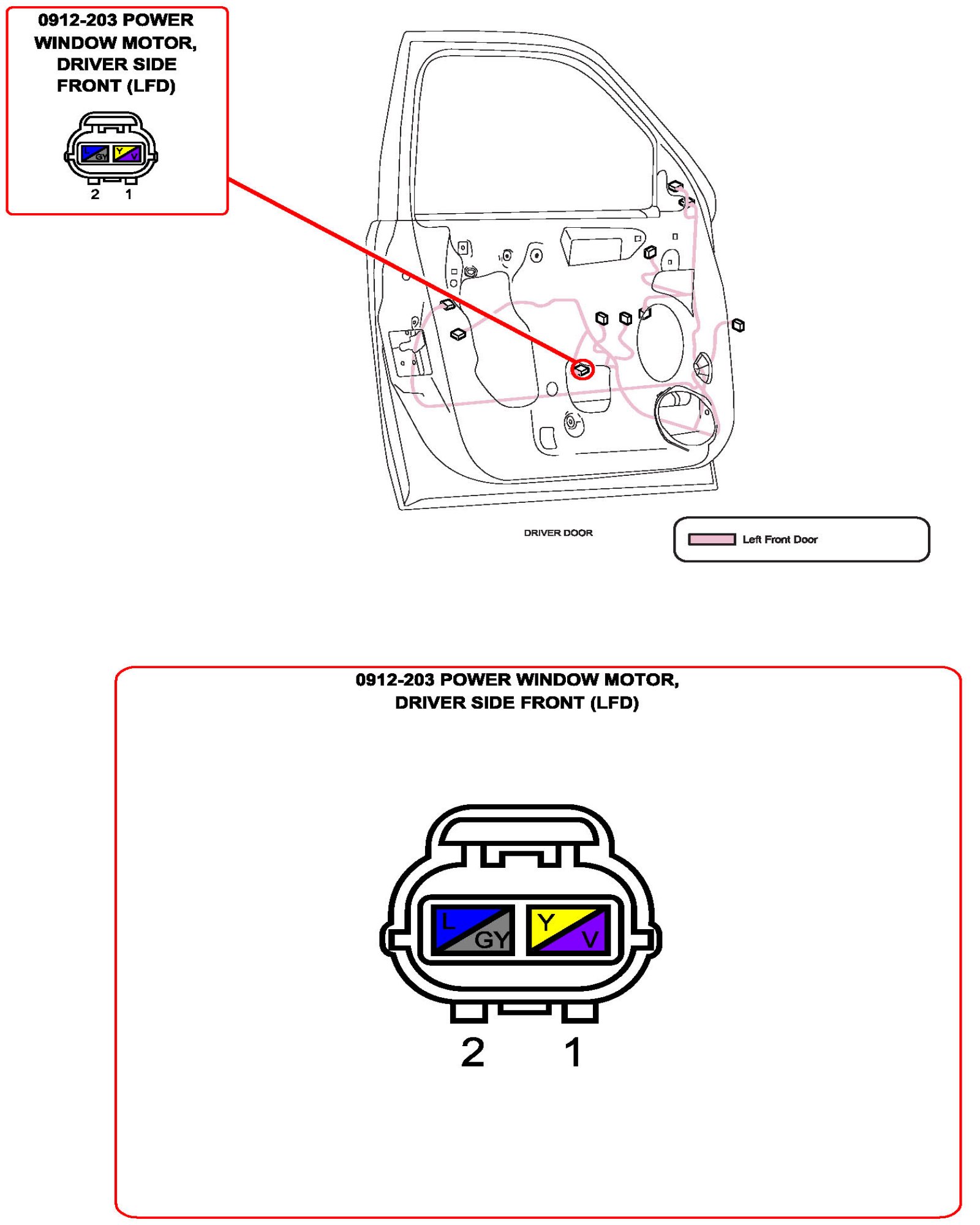

Power Window Motor, Driver Side Front:

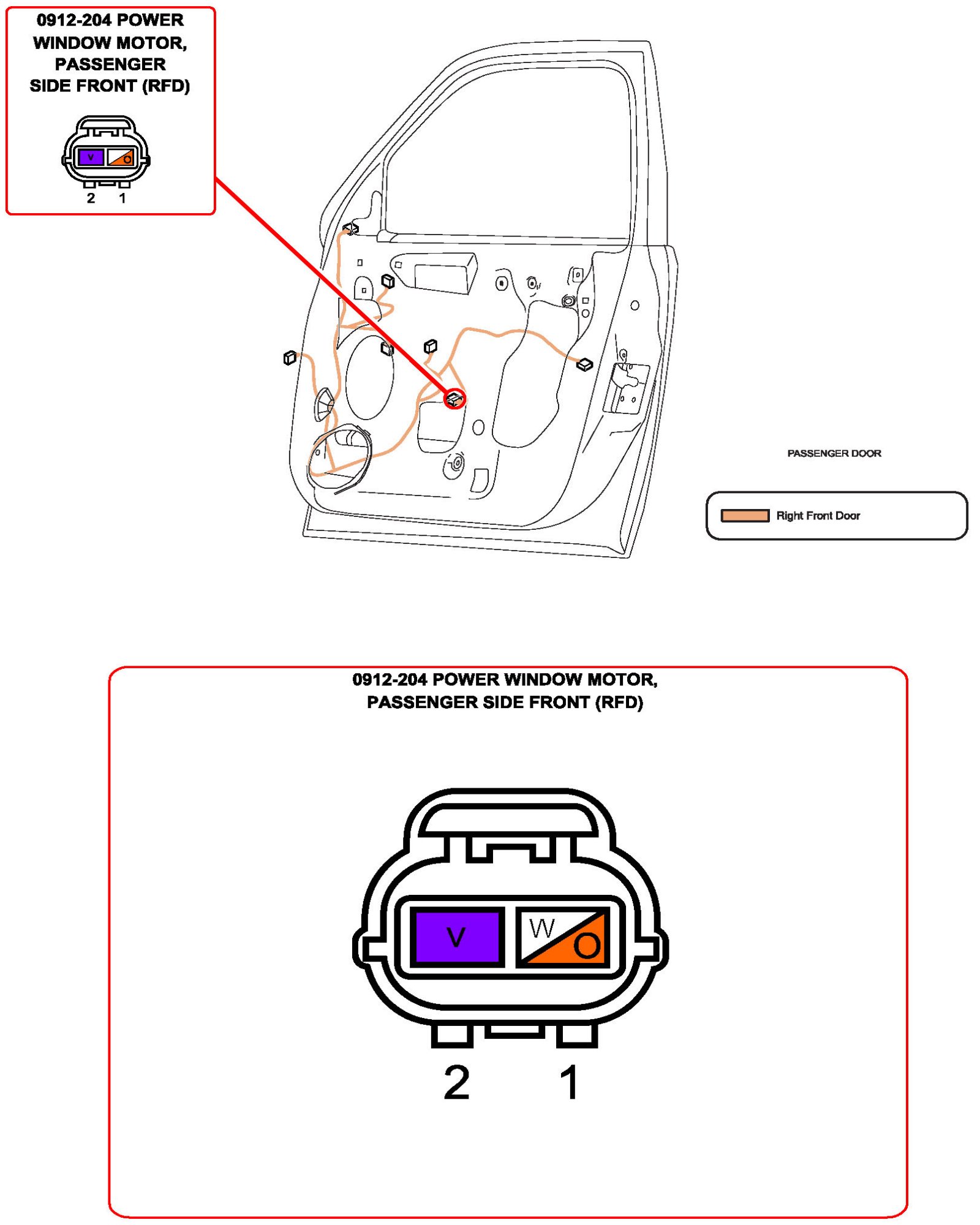

Power Window Motor, Passenger Side Front:

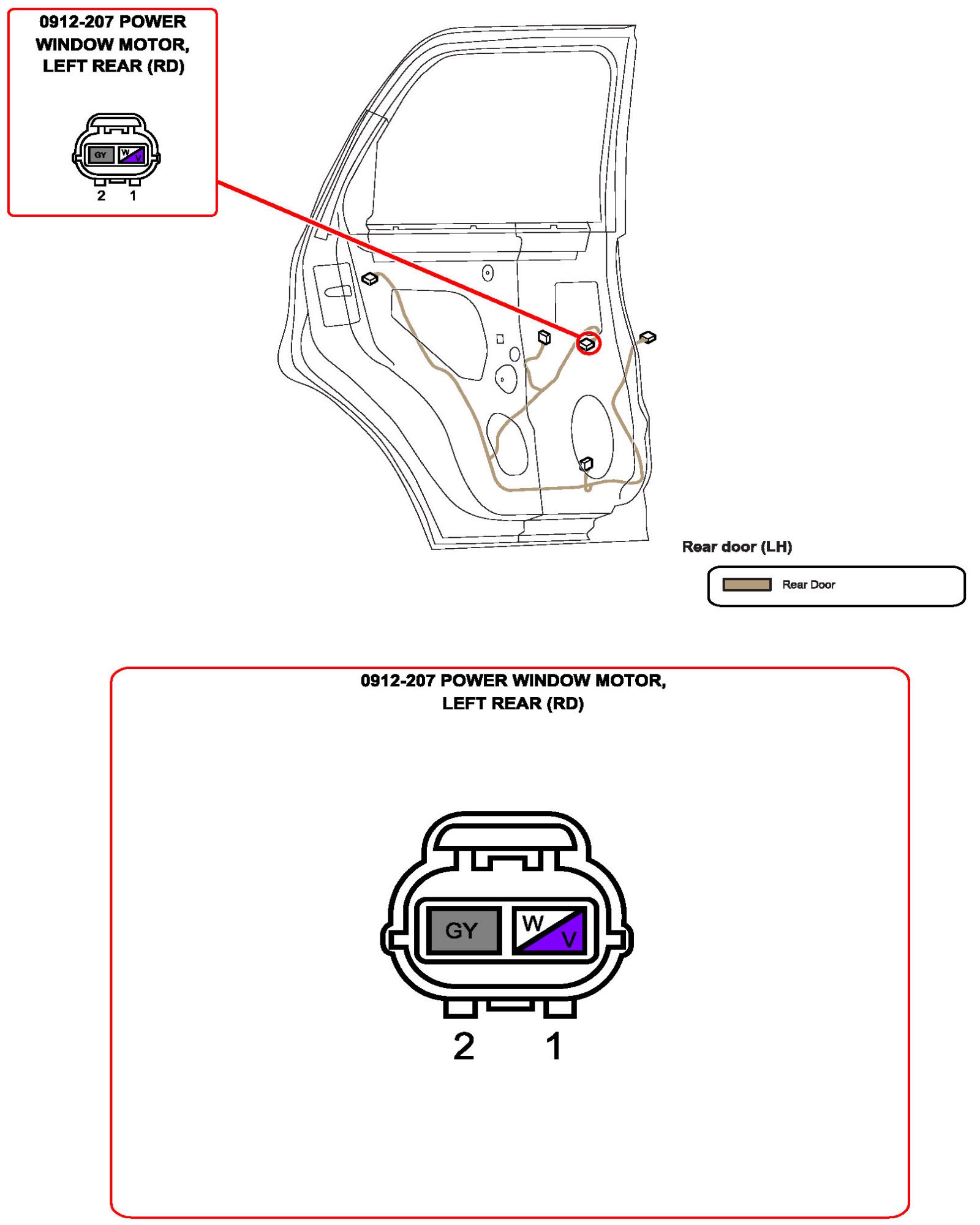

Power Window Motor, Left Rear:

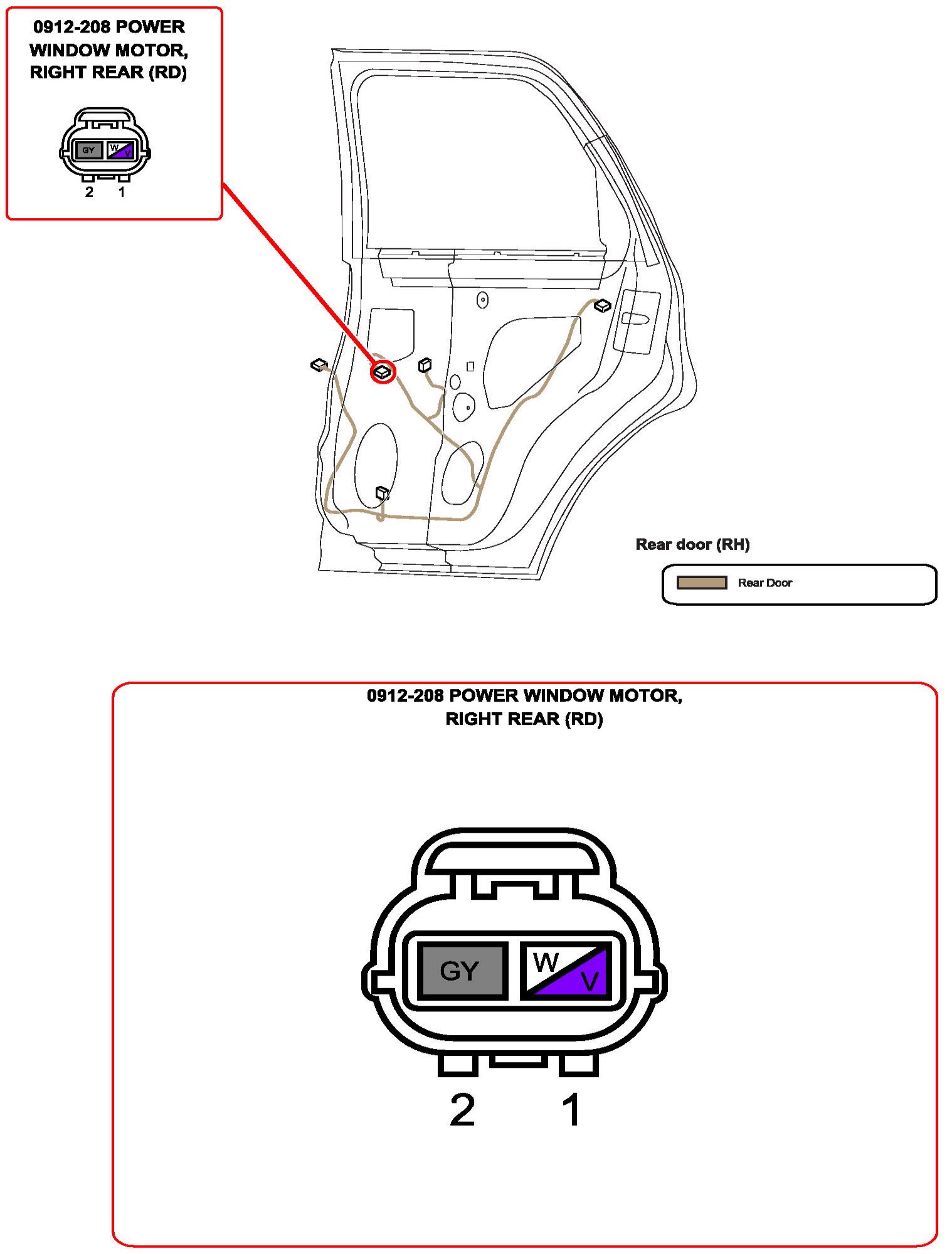

Power Window Motor, Right Rear:
