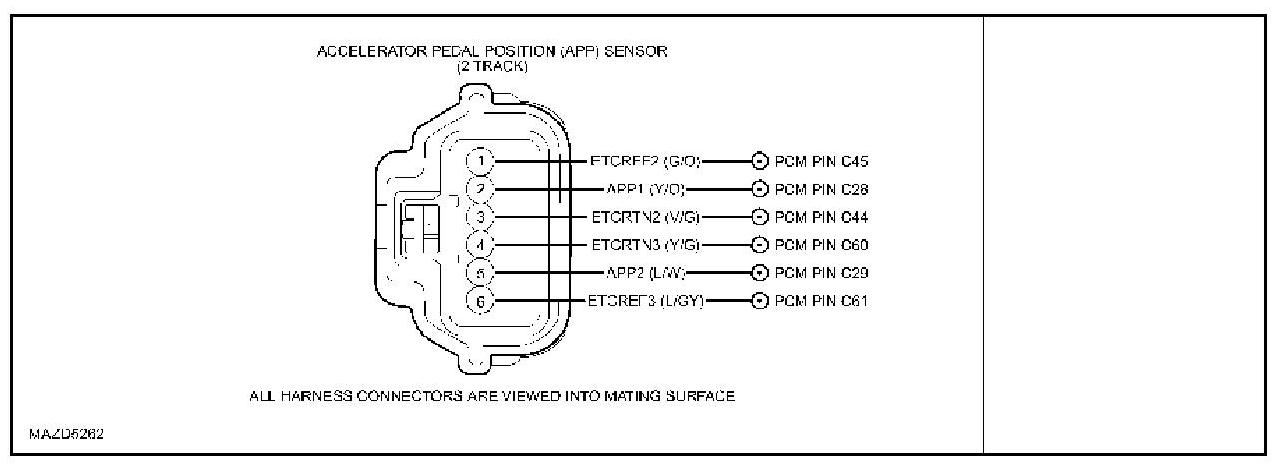

Accelerator Pedal Position Sensor: Testing and Inspection

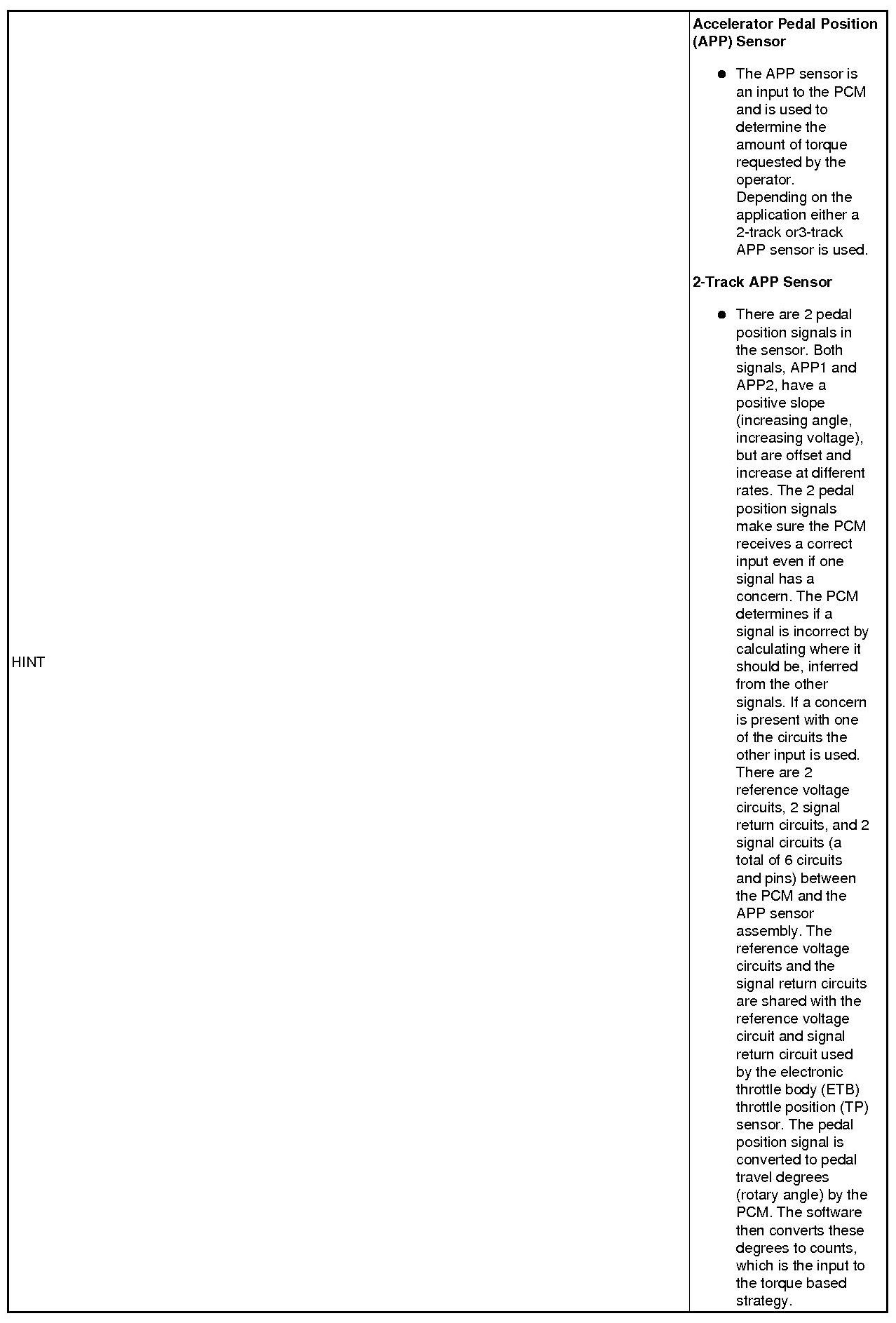

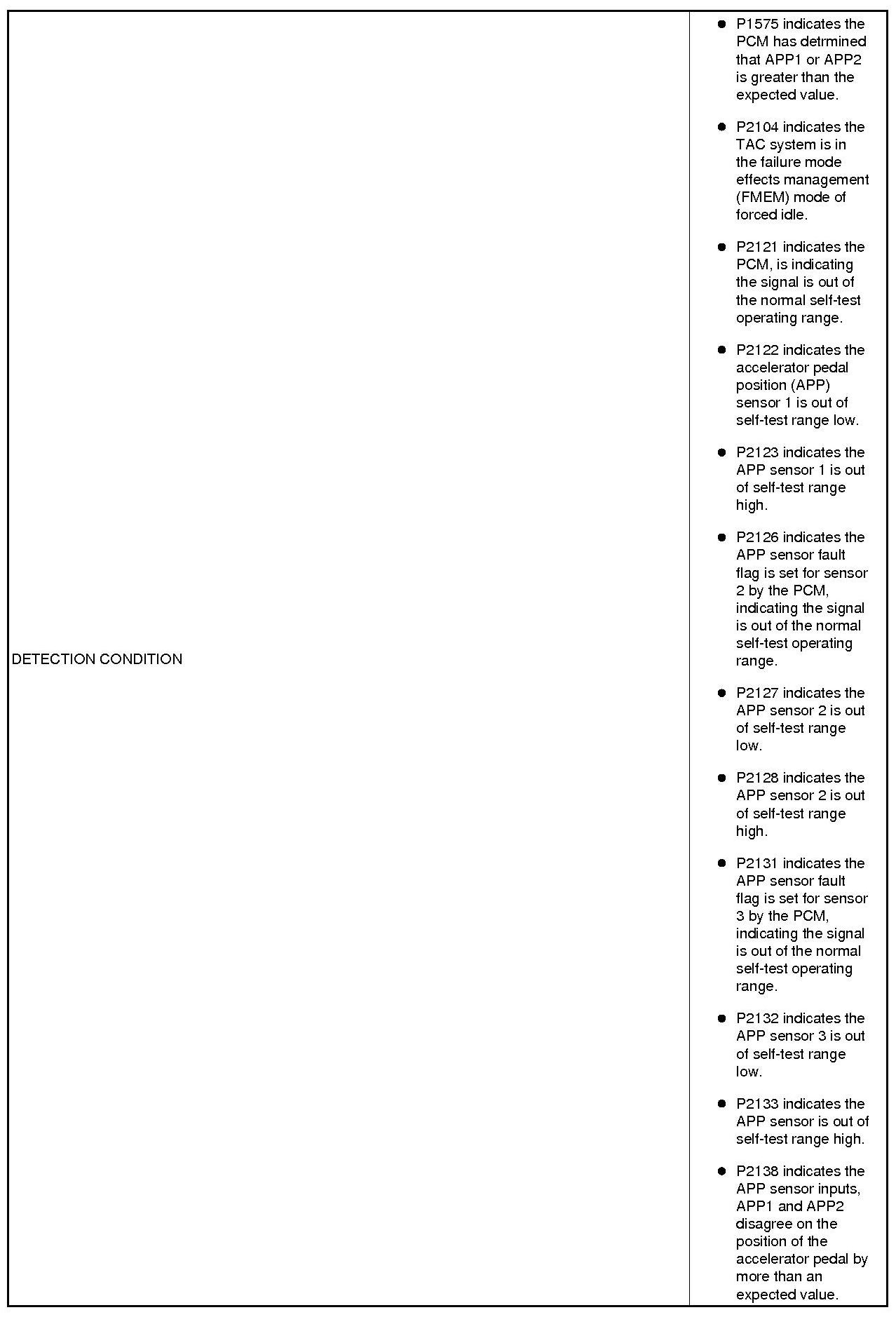

Detection Condition:

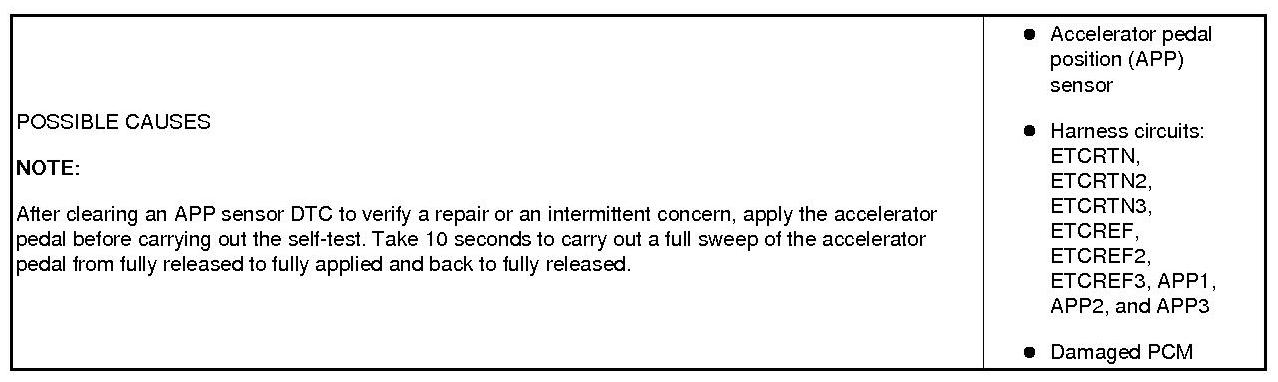

Possible Causes (Part 1):

Possible Causes (Part 2):

Possible Causes (Part 3):

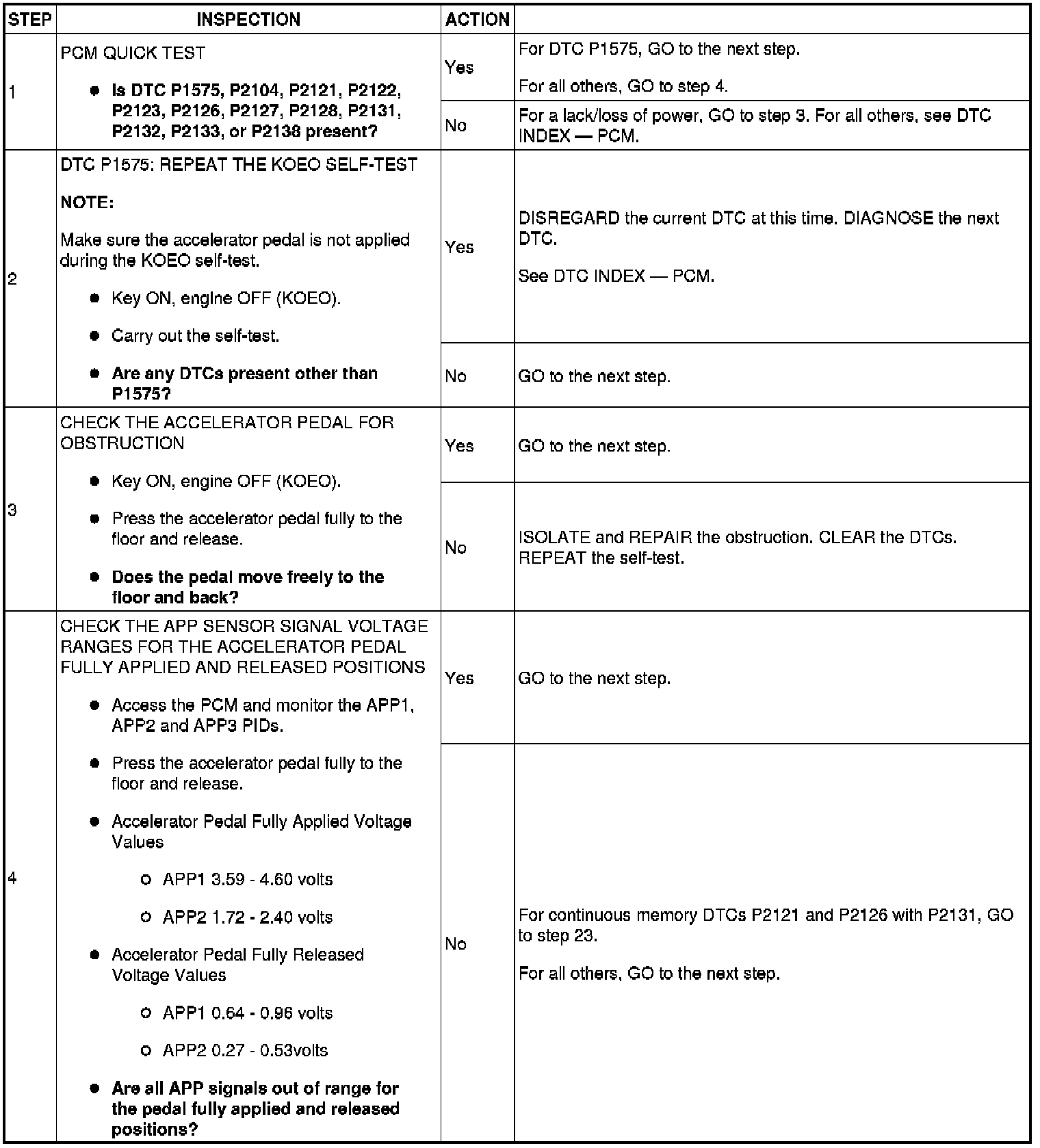

Step 1-Step 4:

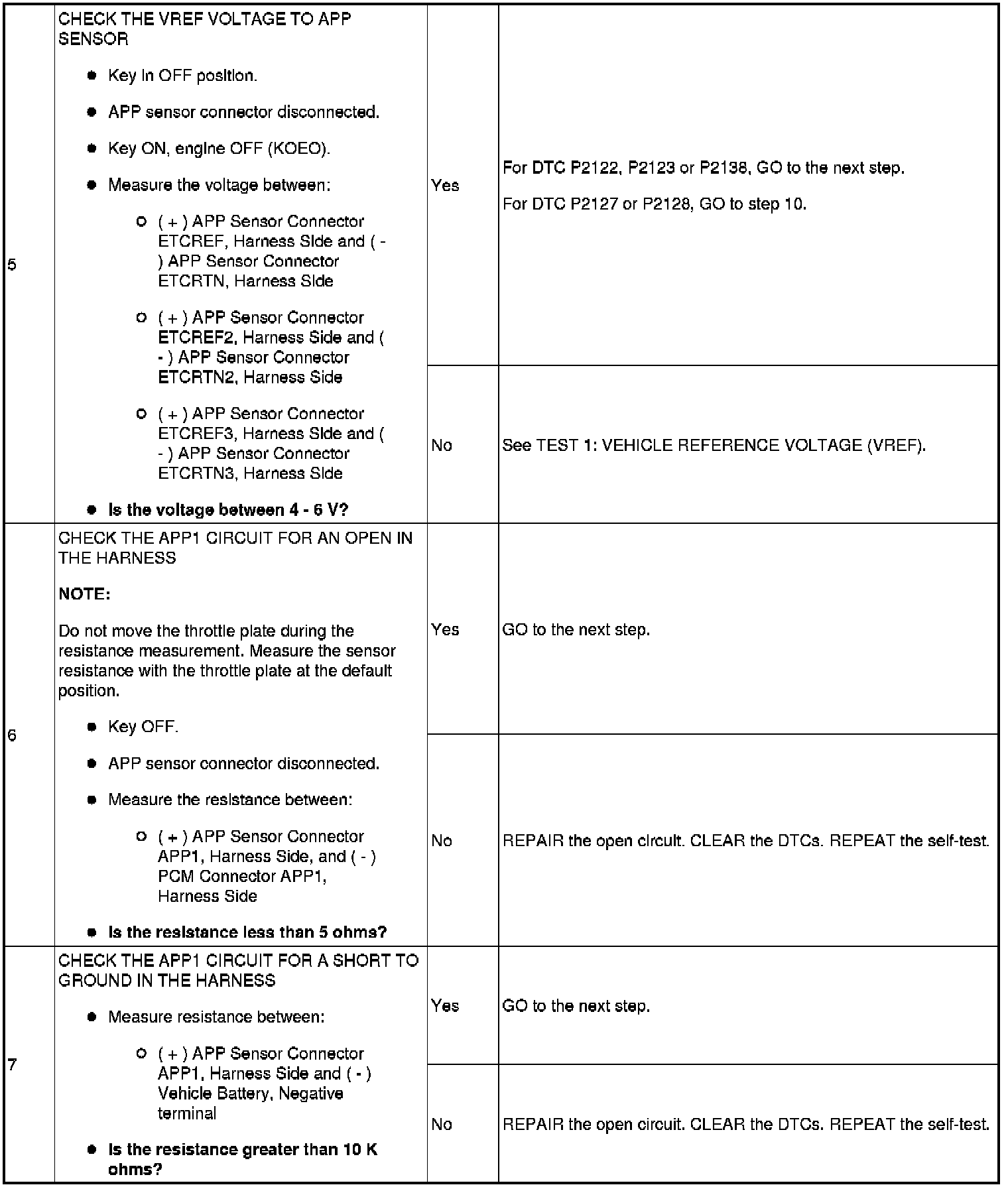

Step 5-Step 7:

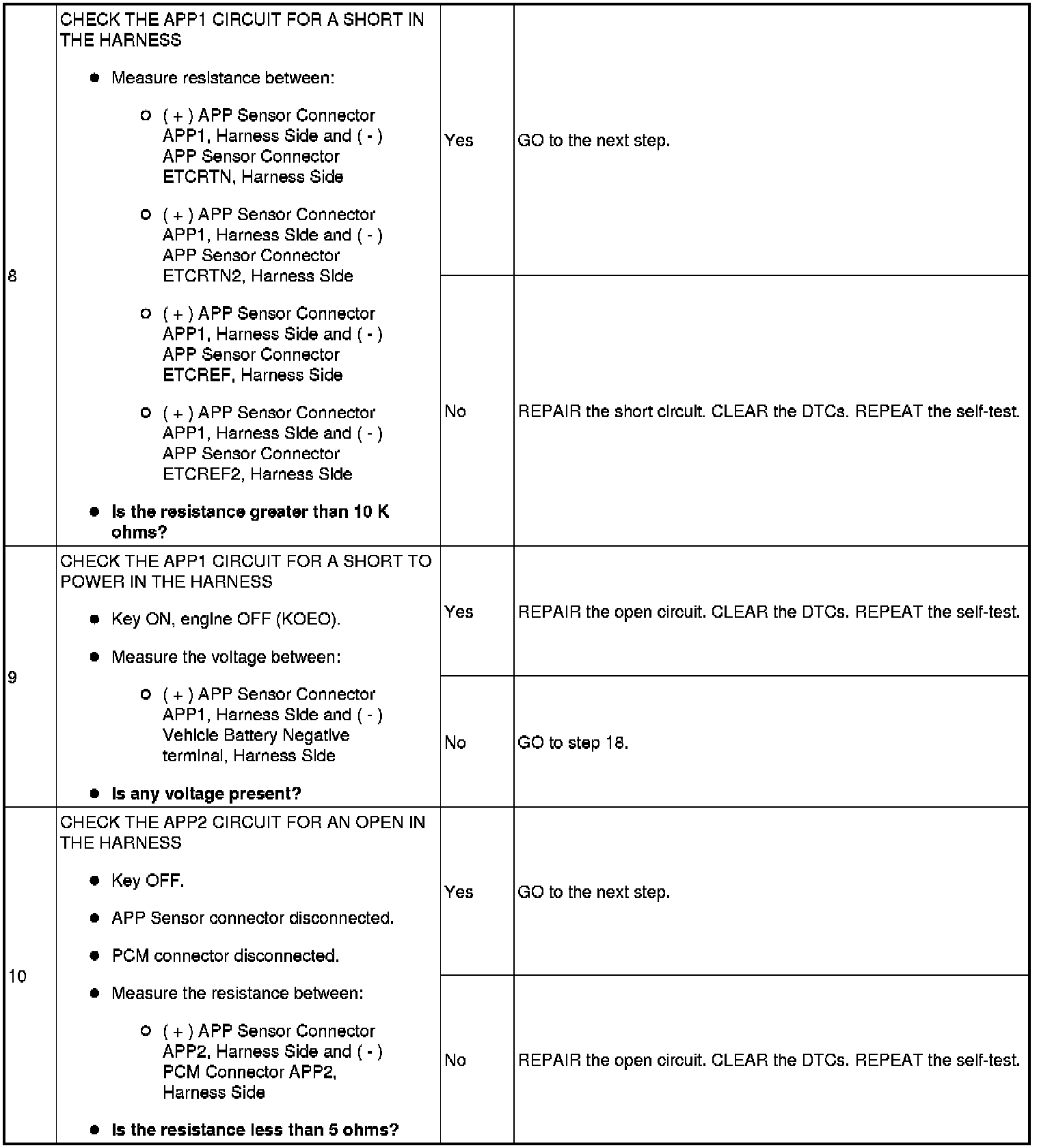

Step 8-Step 10:

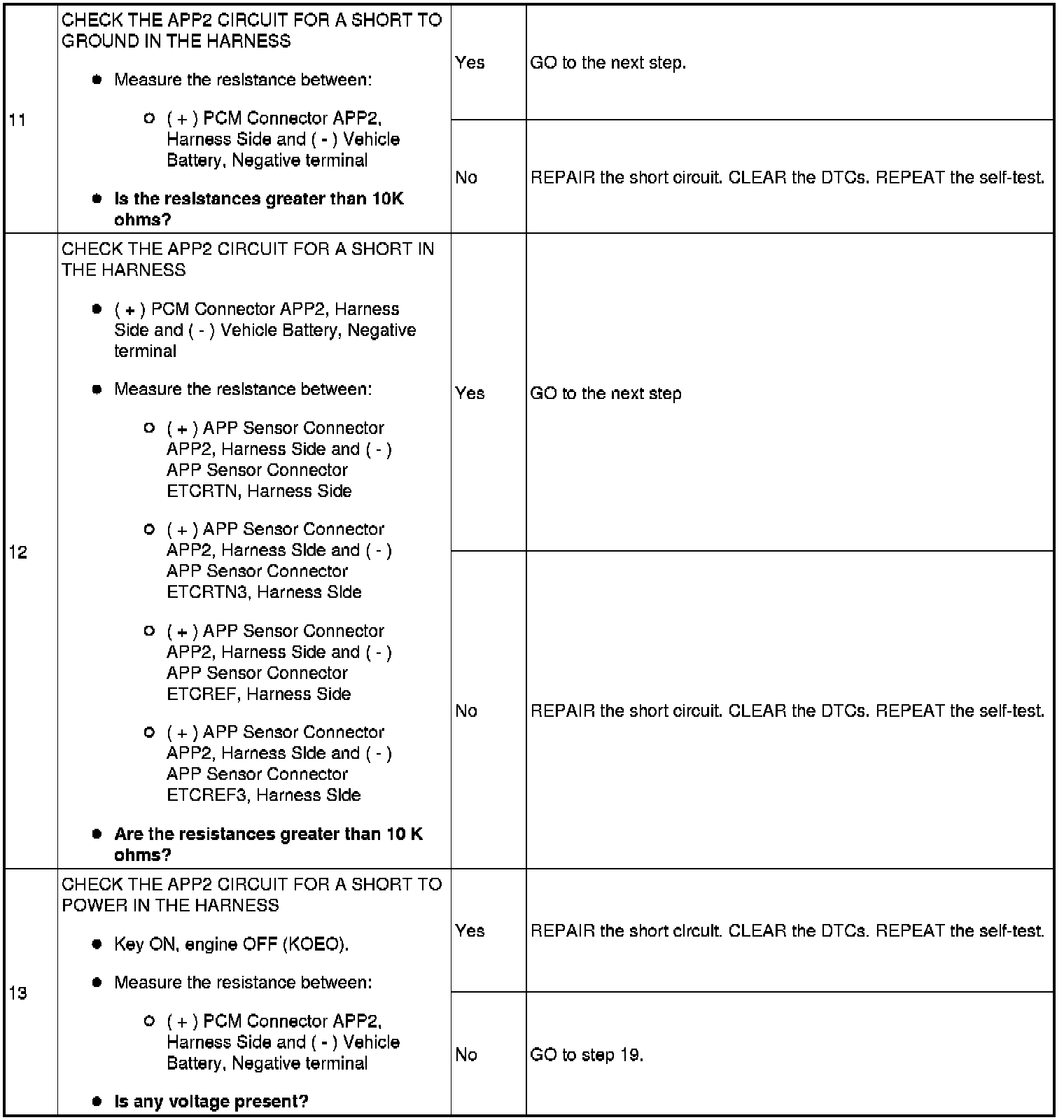

Step 11-Step 13:

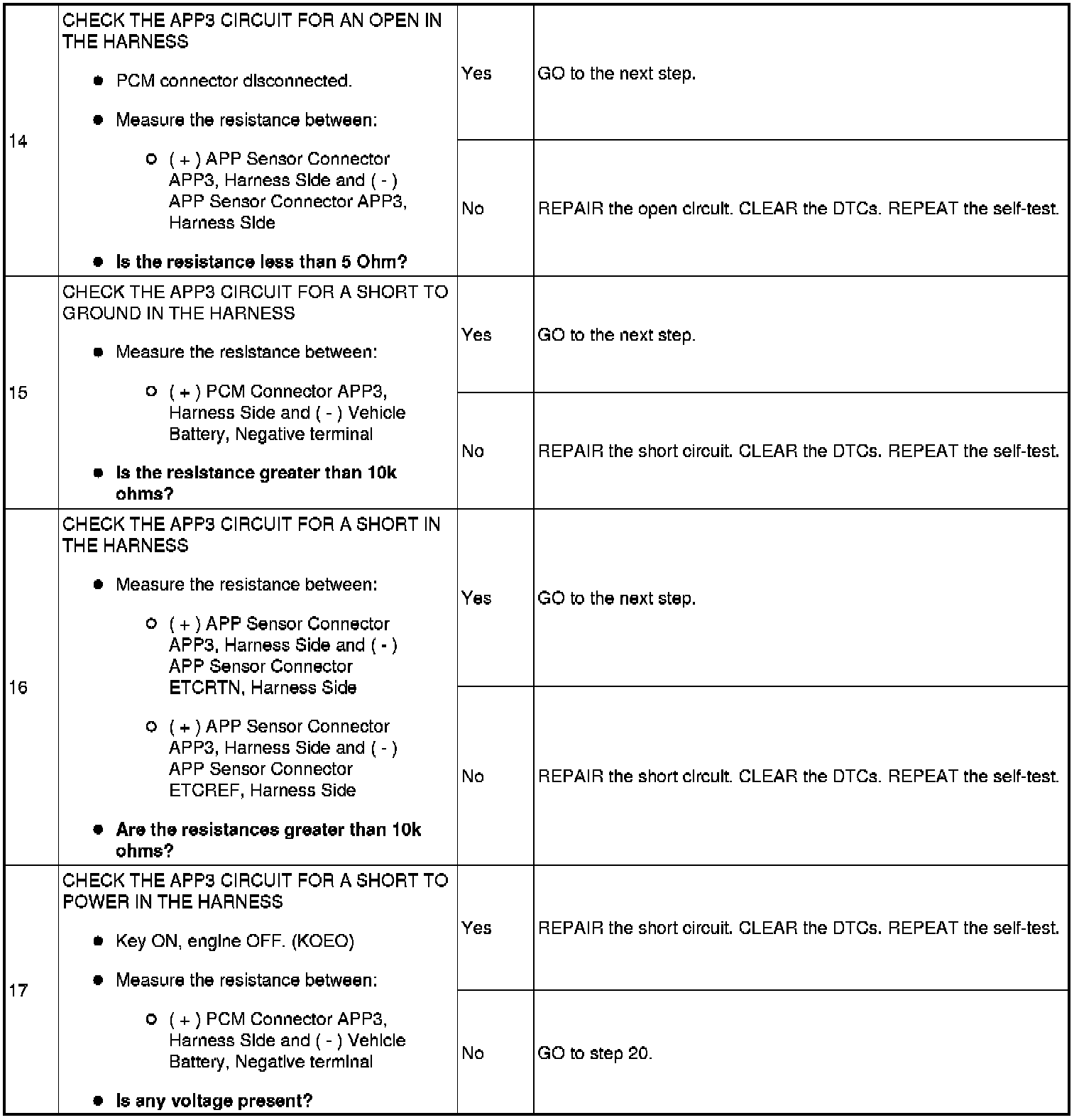

Step 14-Step 17:

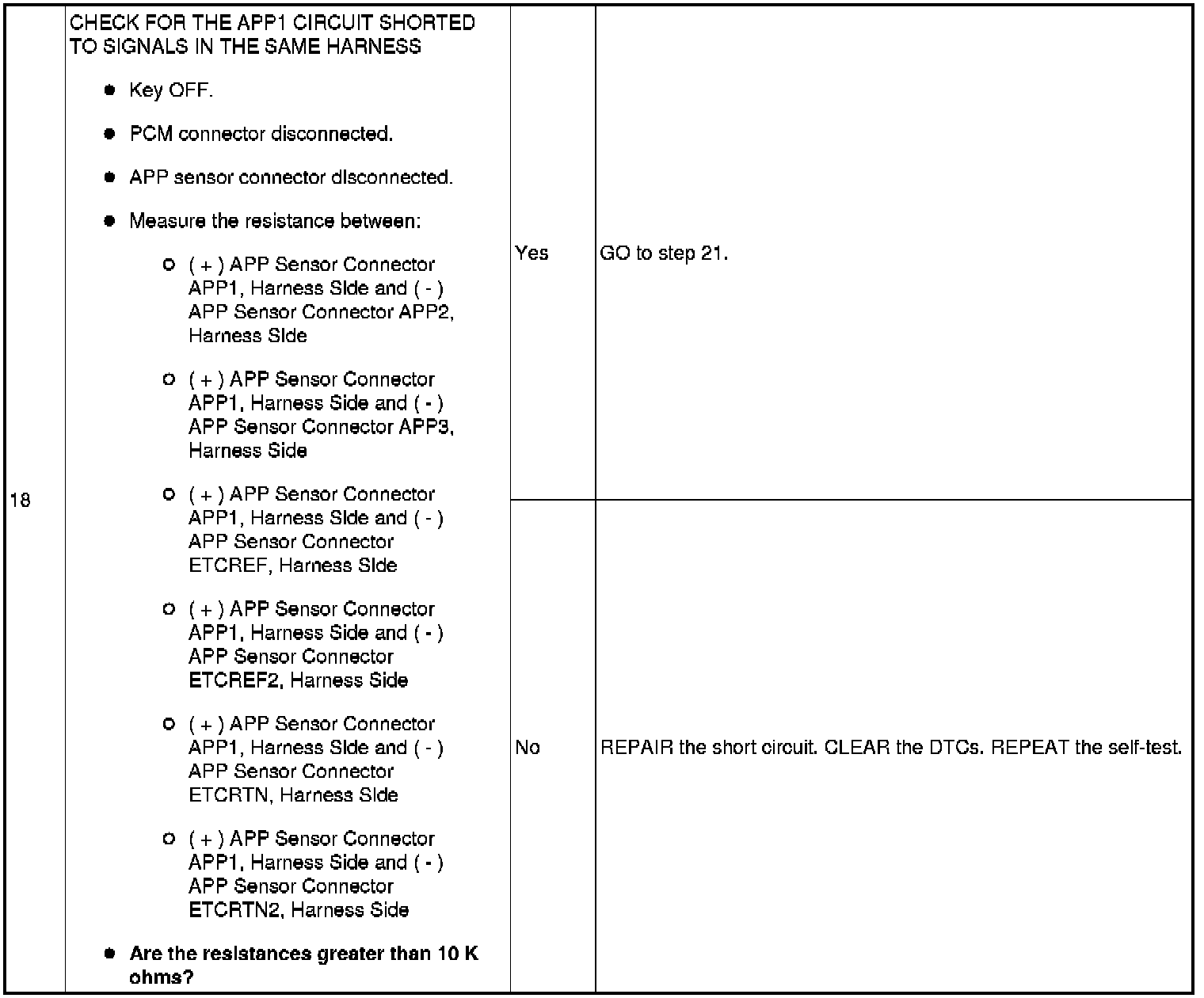

Step 18:

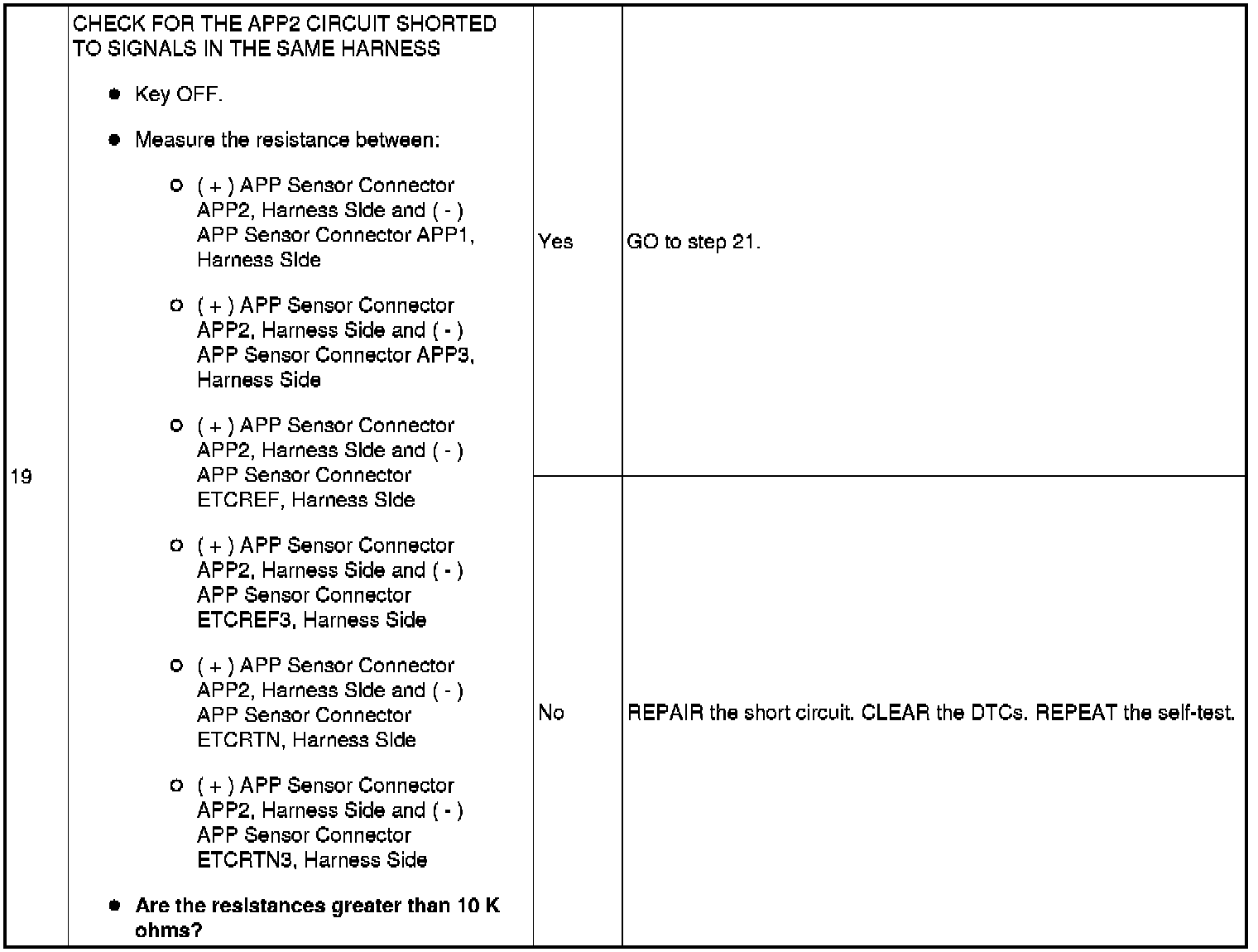

Step 19:

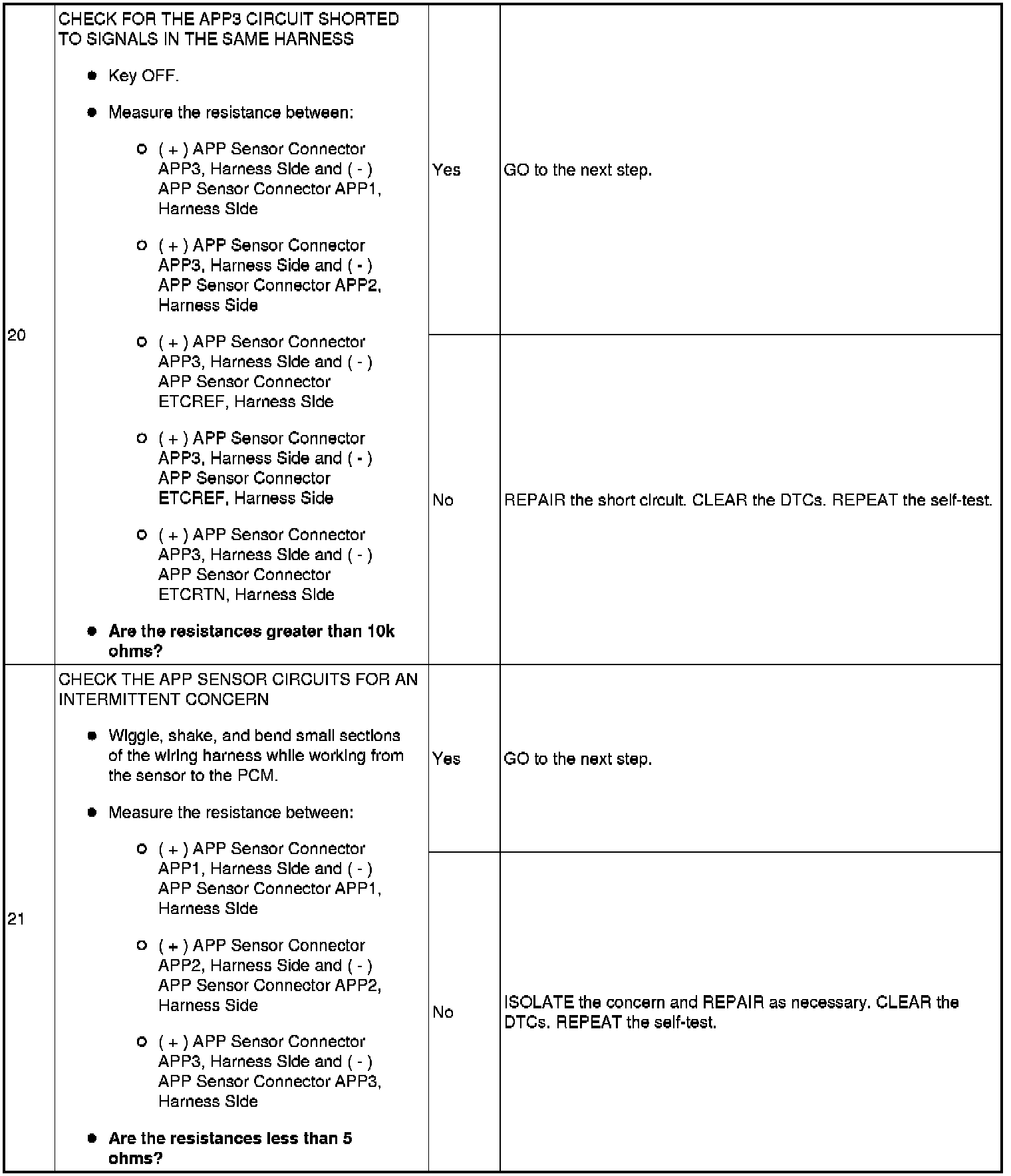

Step 20-Step 21:

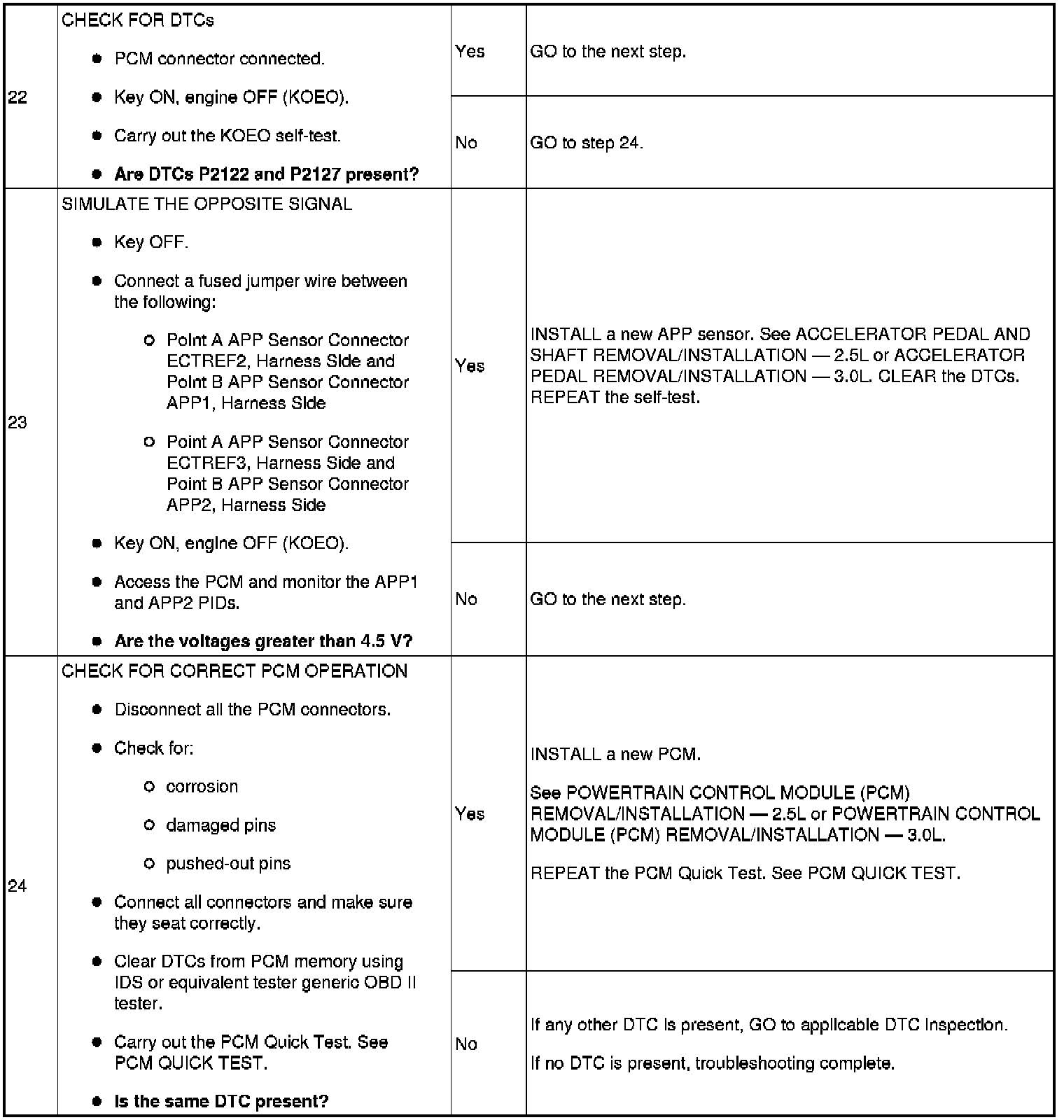

Step 22-Step 24:
