Air Flow Meter/Sensor: Testing and Inspection

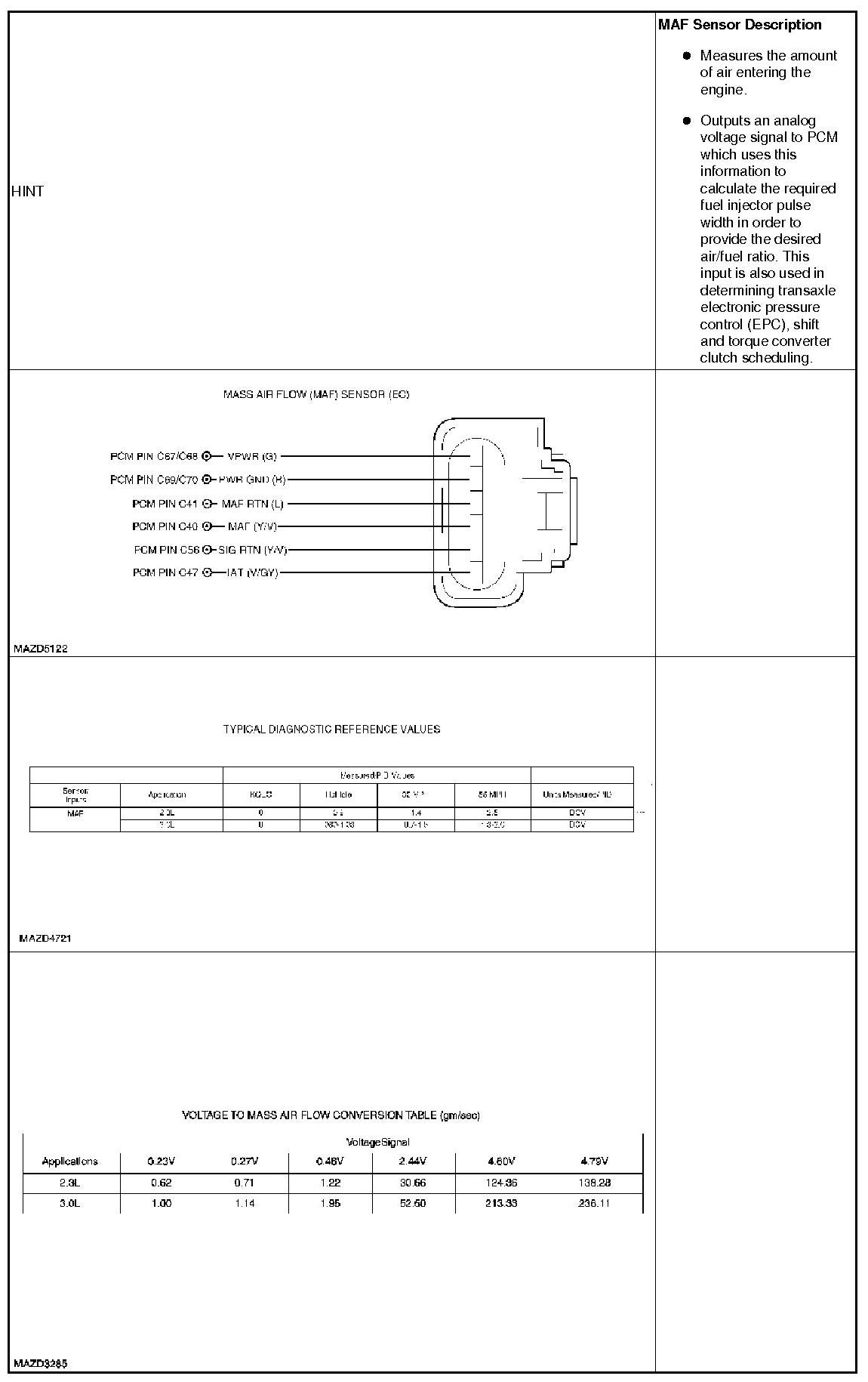

MASS AIR FLOW (MAF) SENSOR

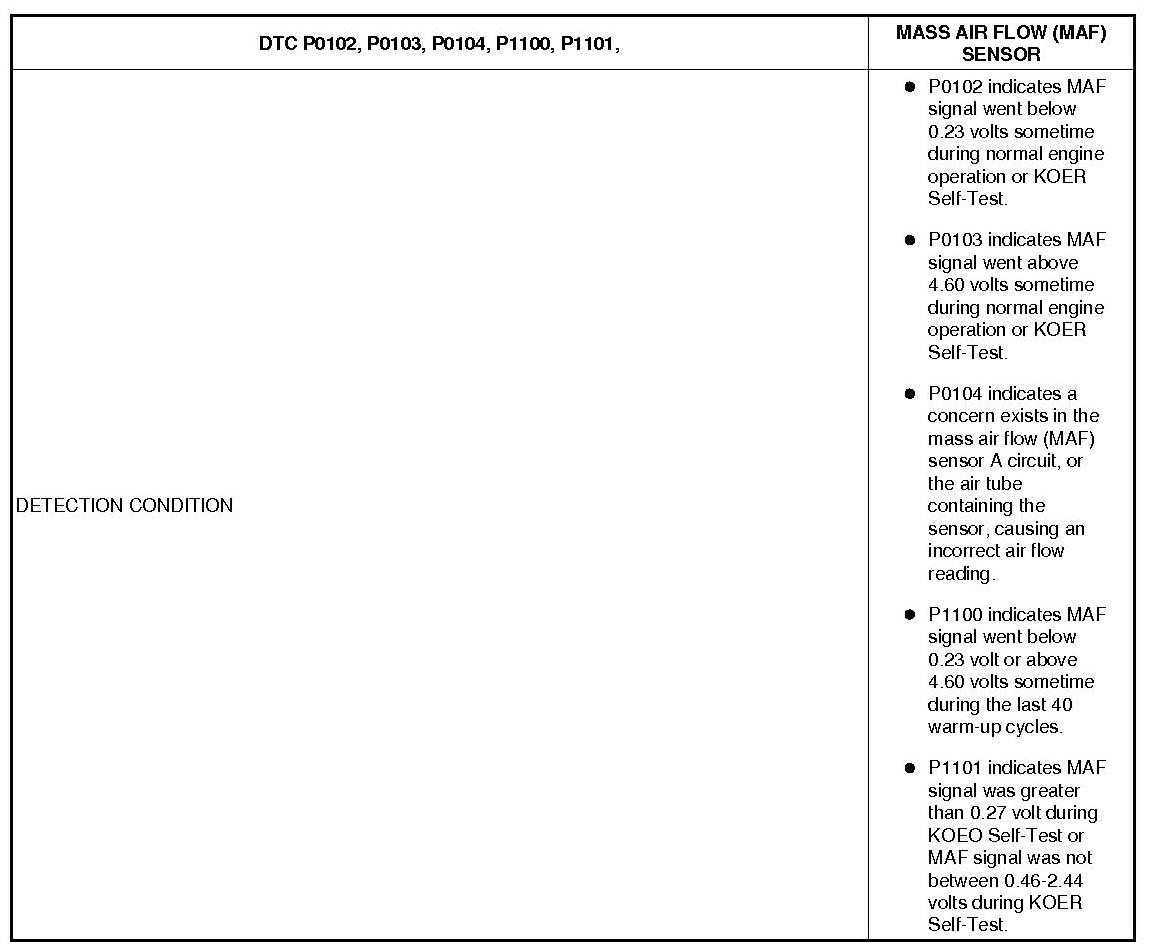

Detection Condition:

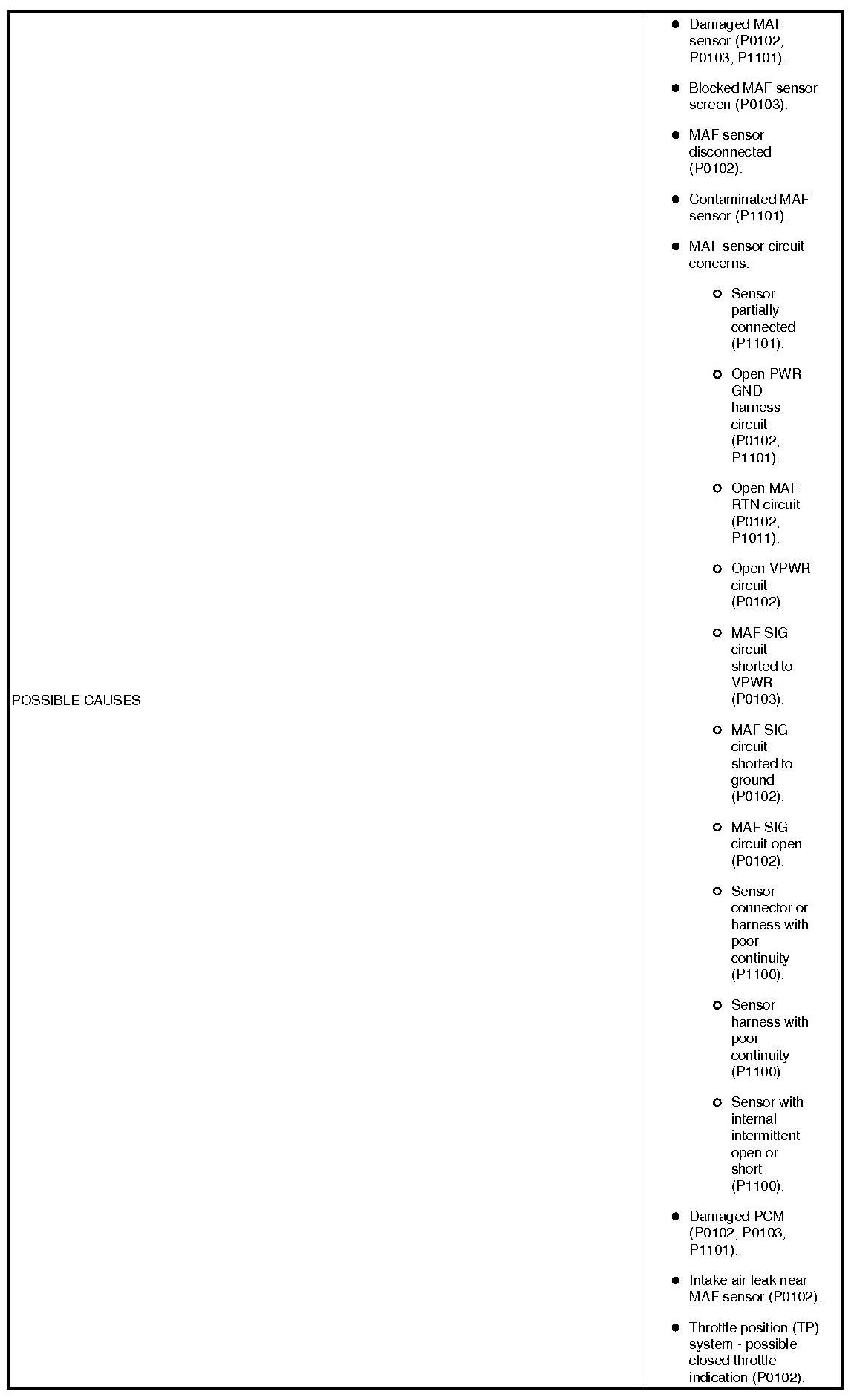

Possible Causes (Part 1):

Possible Causes (Part 2):

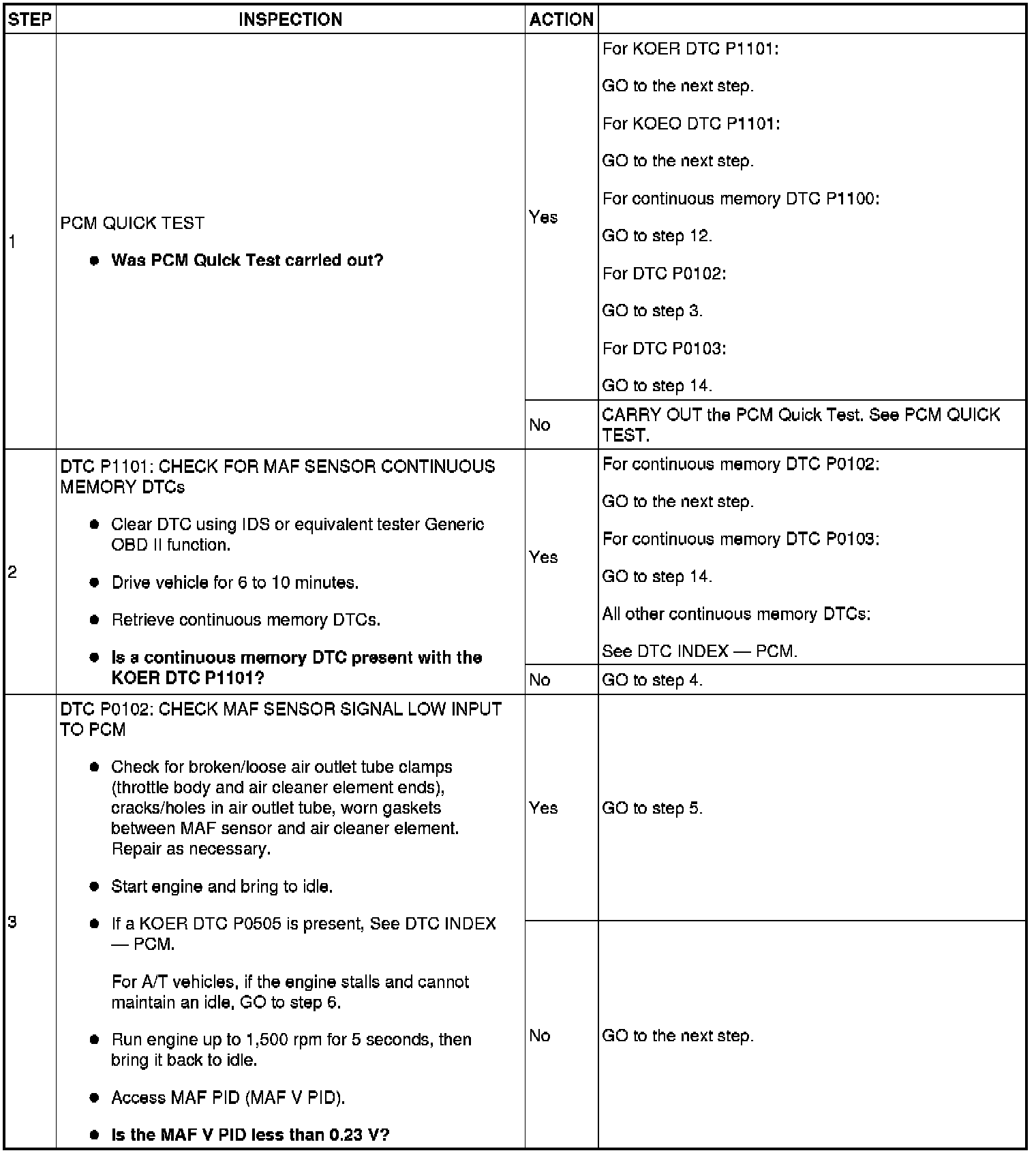

Step 1-Step 3:

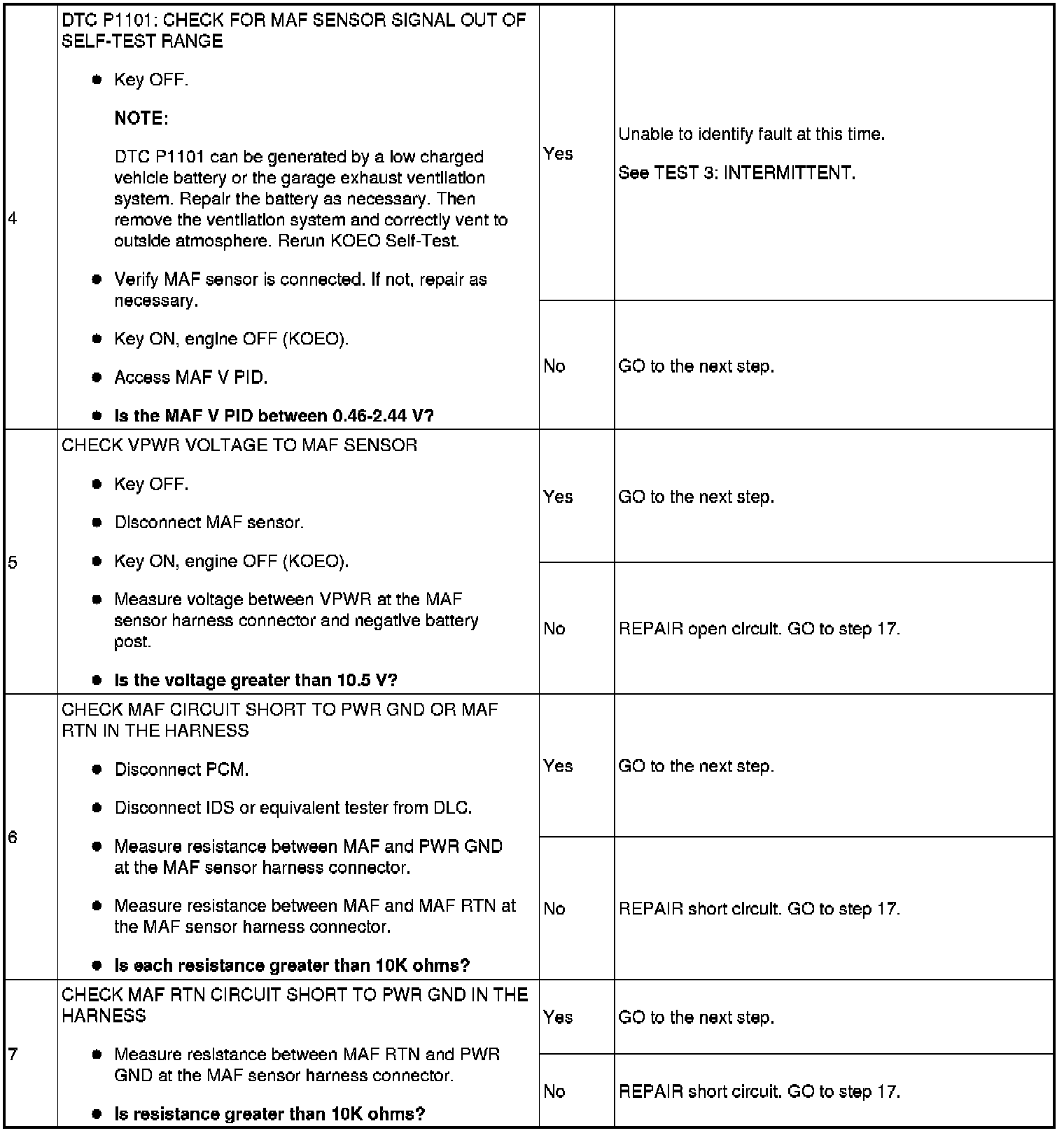

Step 4-Step 7:

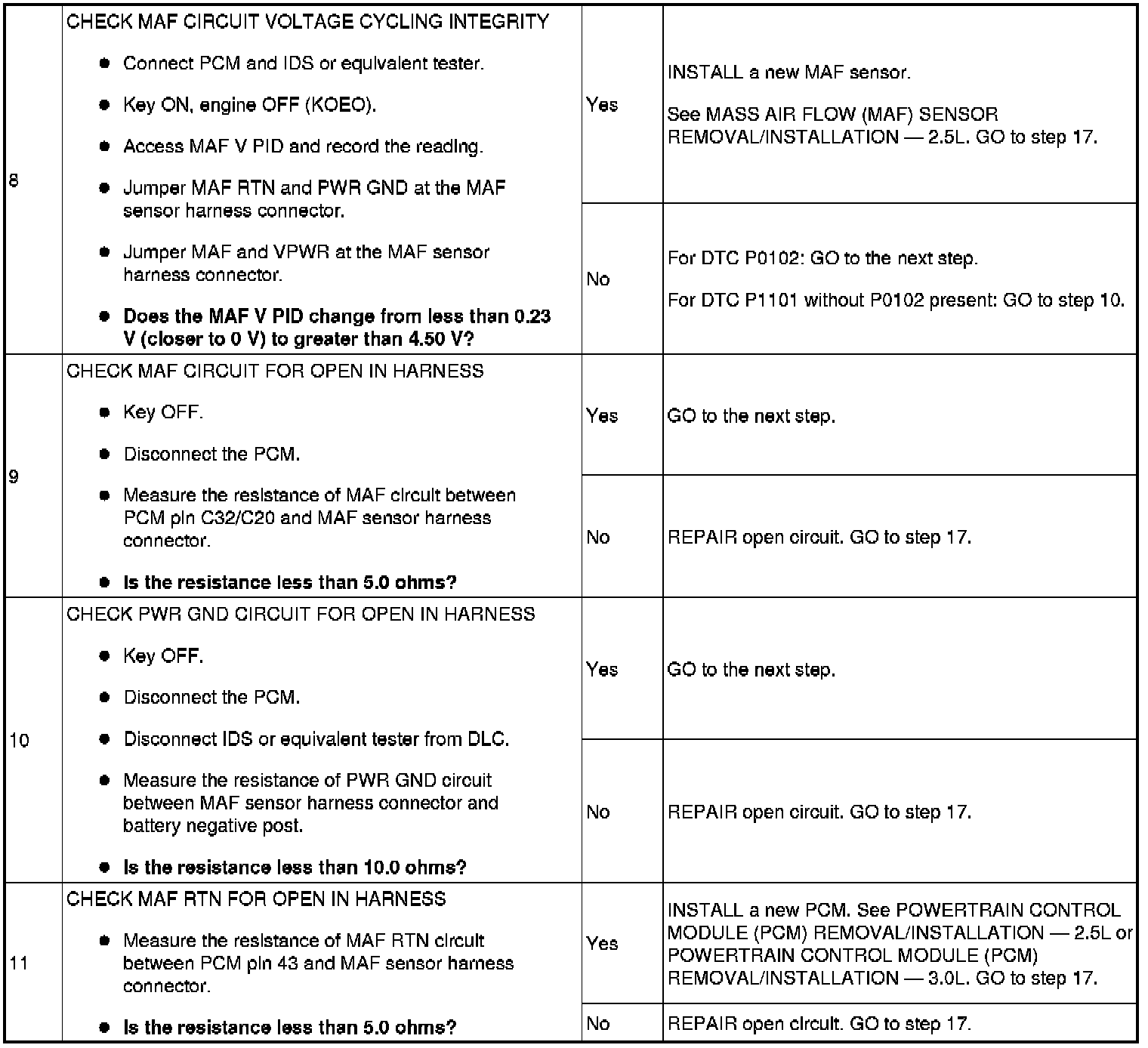

Step 8-Step 11:

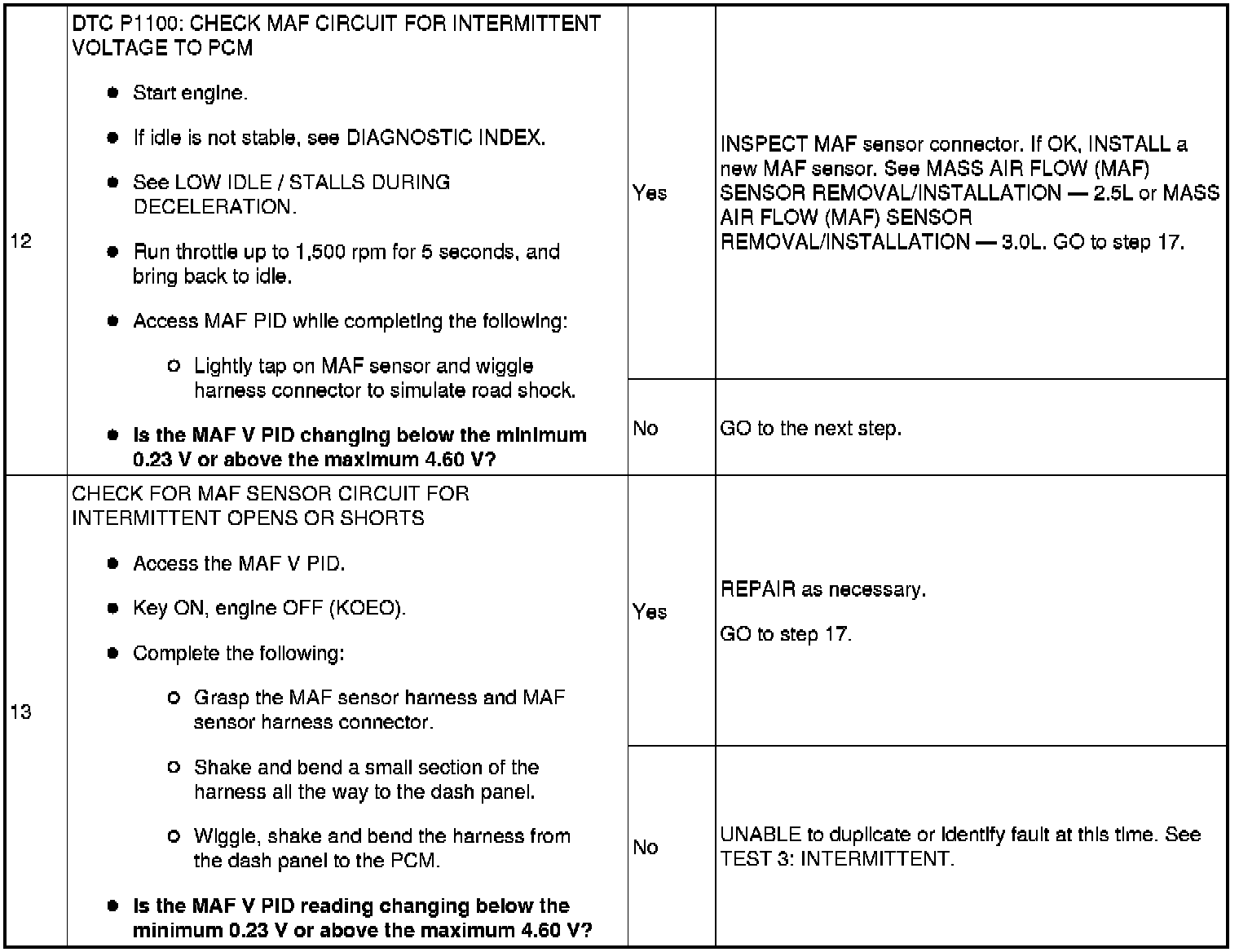

Step 12-Step 13:

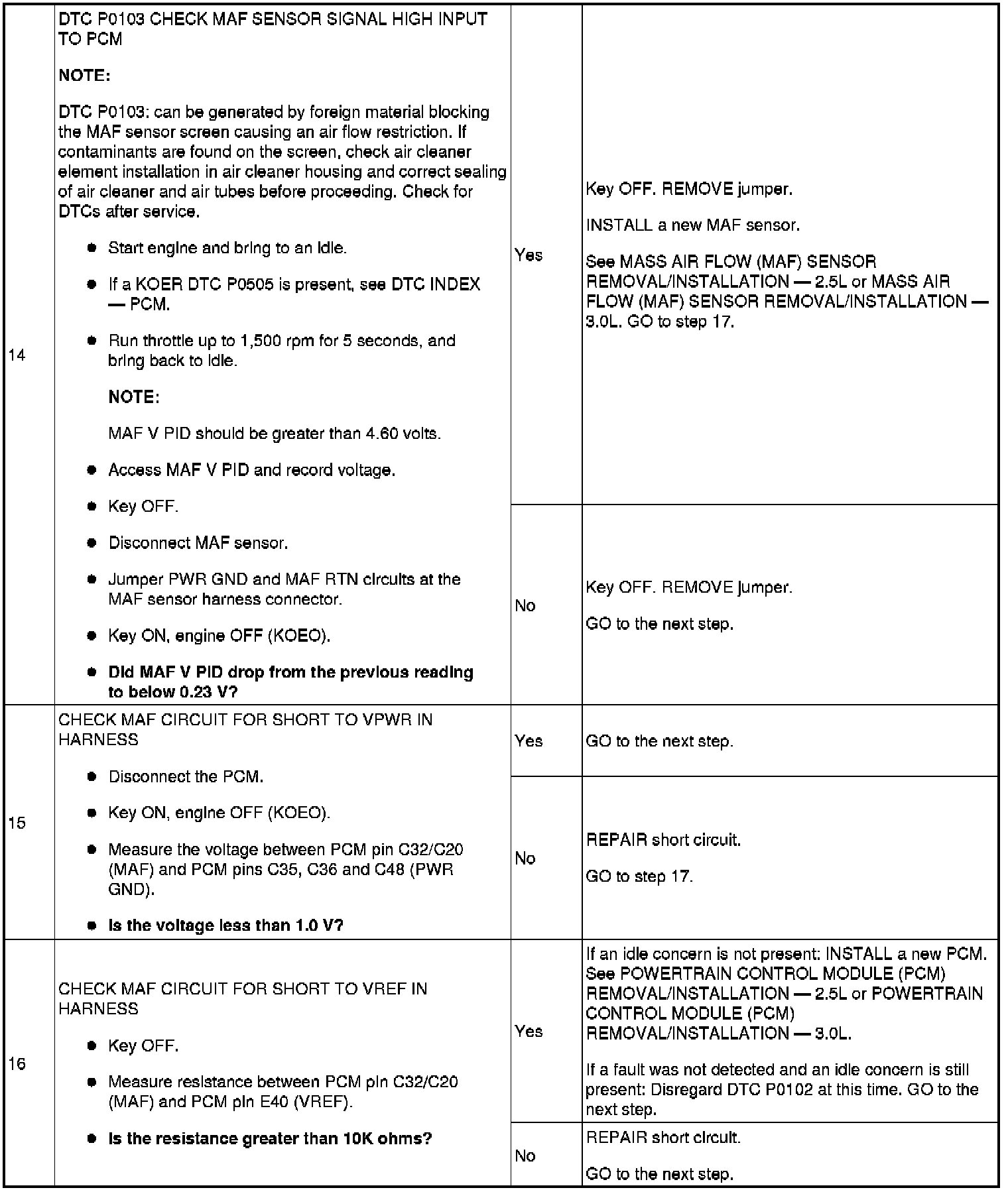

Step 14-Step 16:

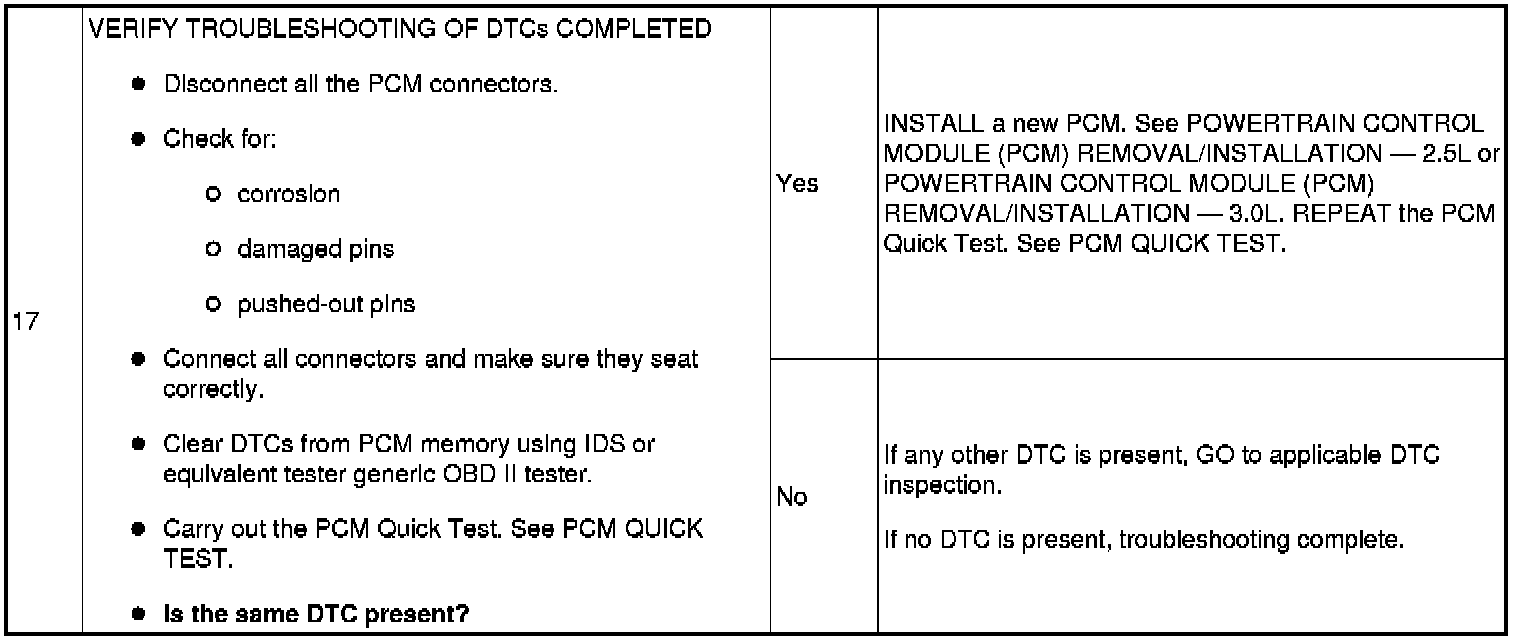

Step 17:
