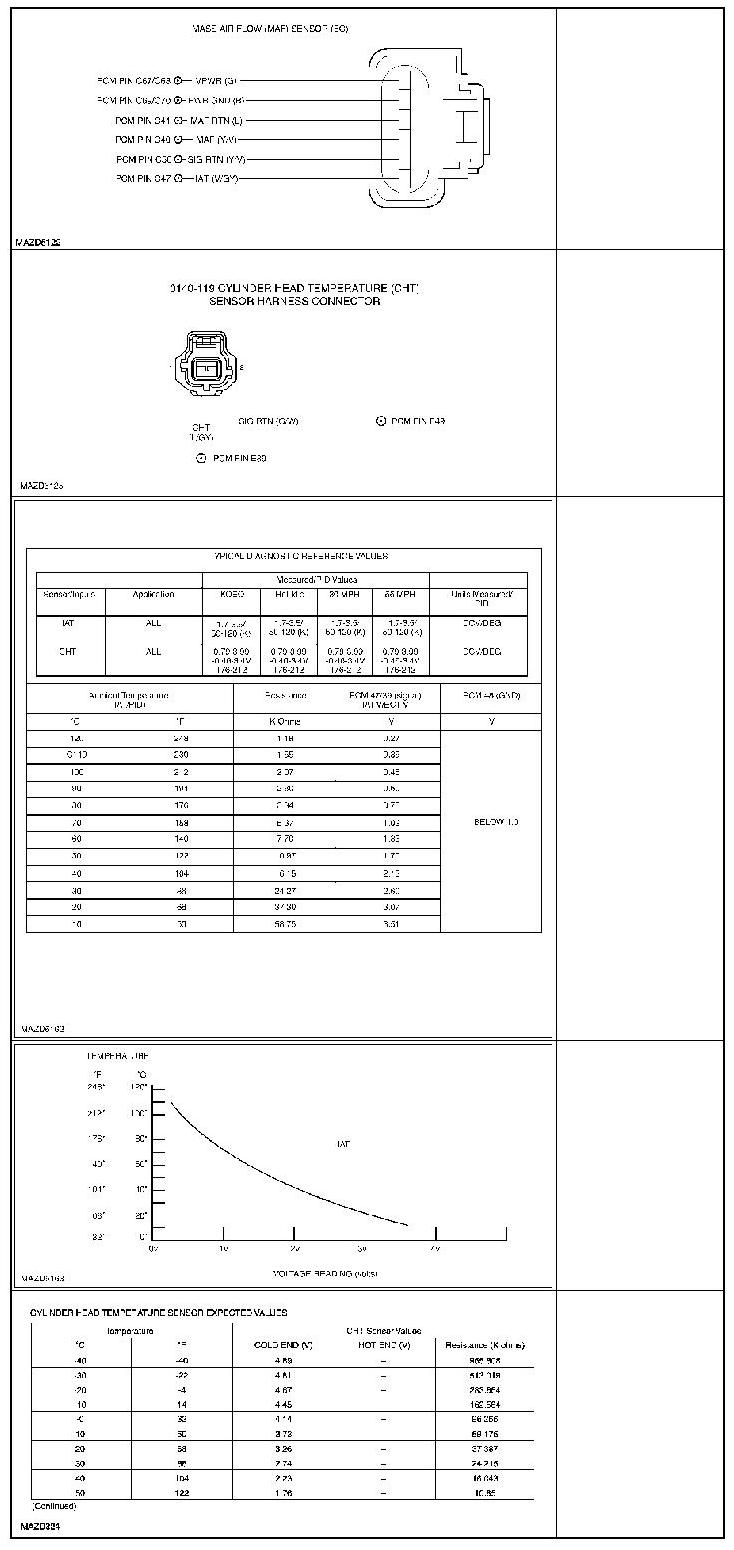

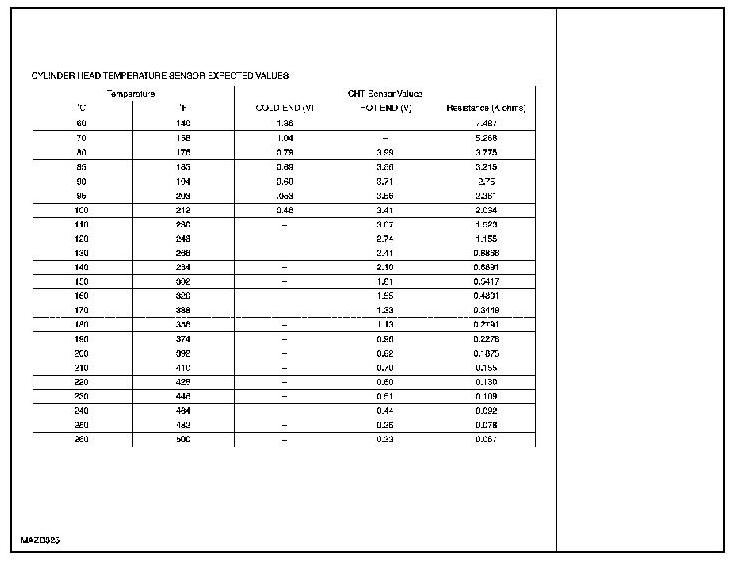

Engine Temperature Sensor: Testing and Inspection

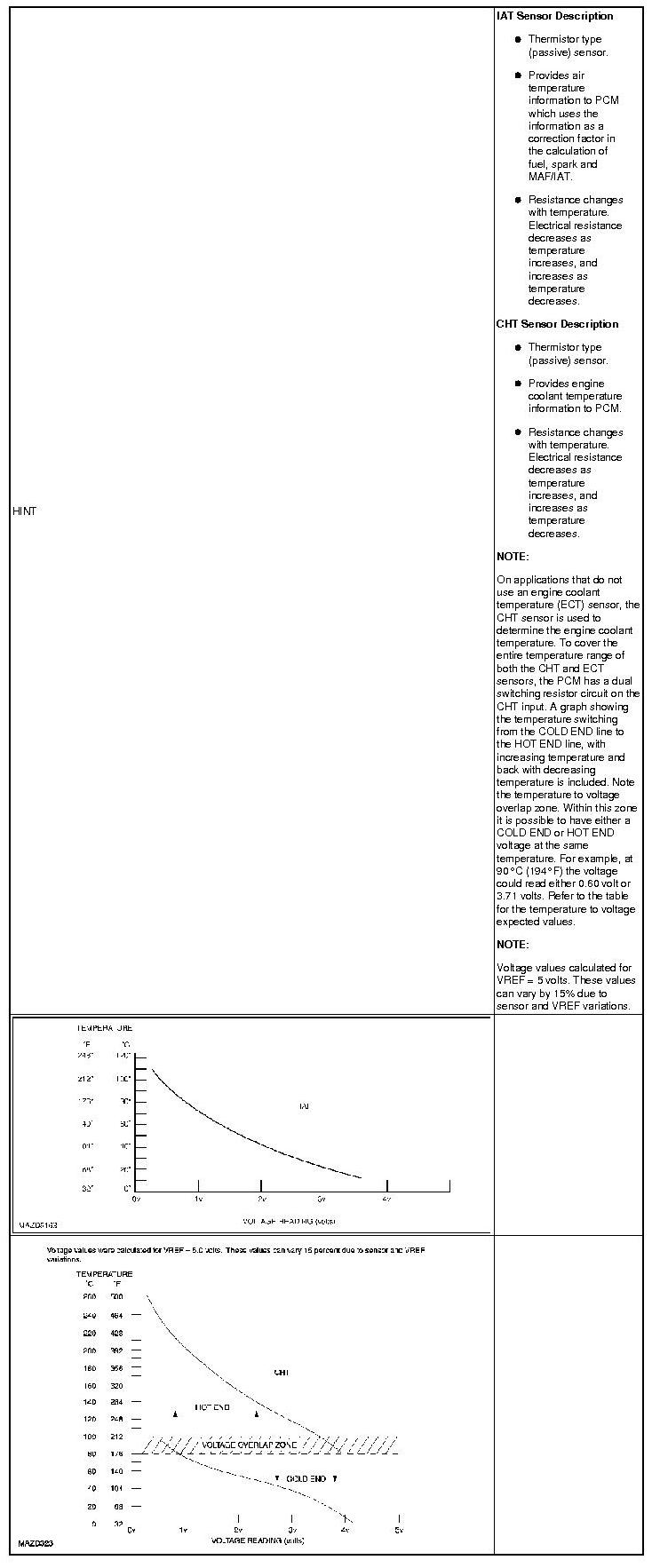

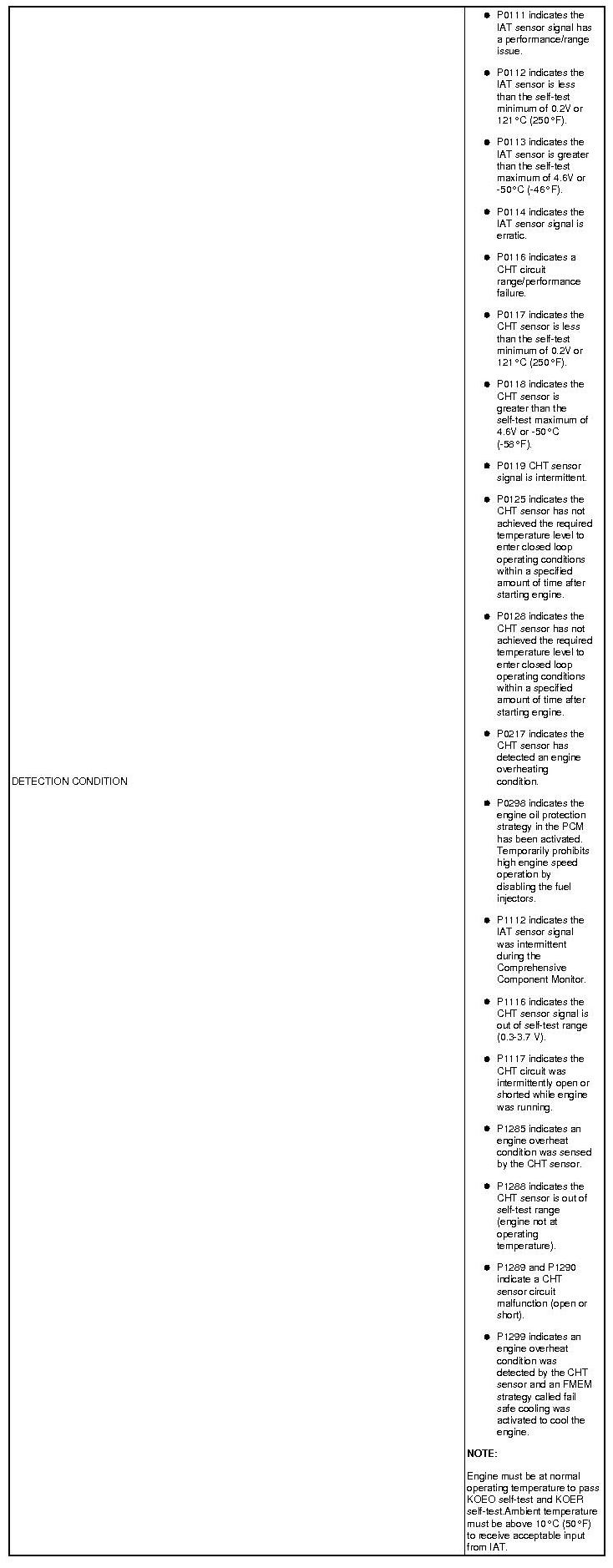

Detection Condition:

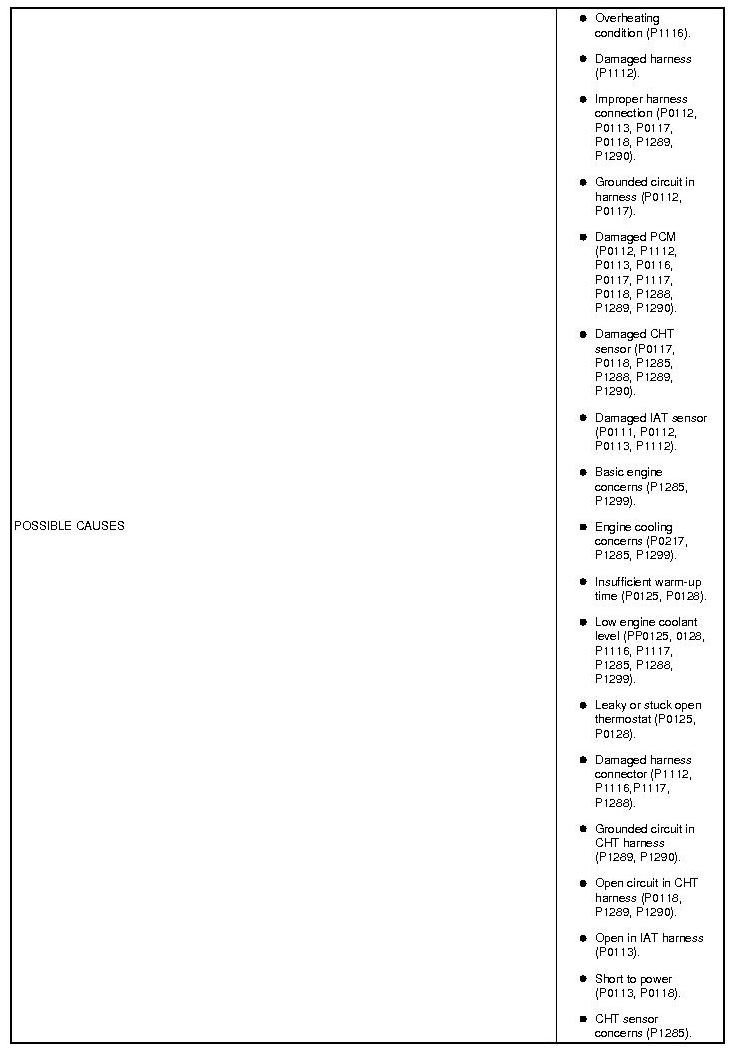

Possible Causes (Part 1):

Possible Causes (Part 2):

Possible Causes (Part 3):

Possible Causes (Part 4):

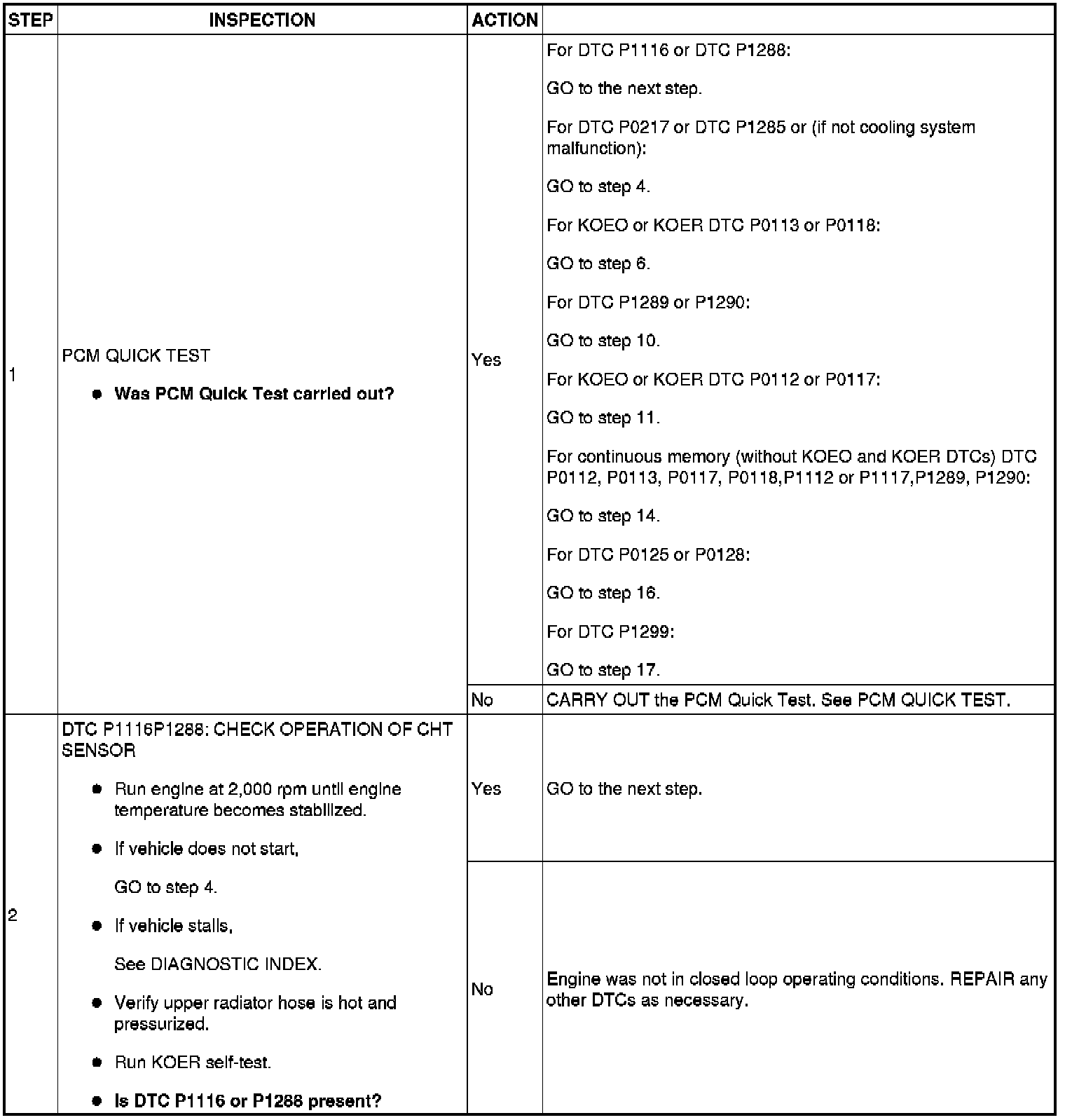

Step 1-Step 2:

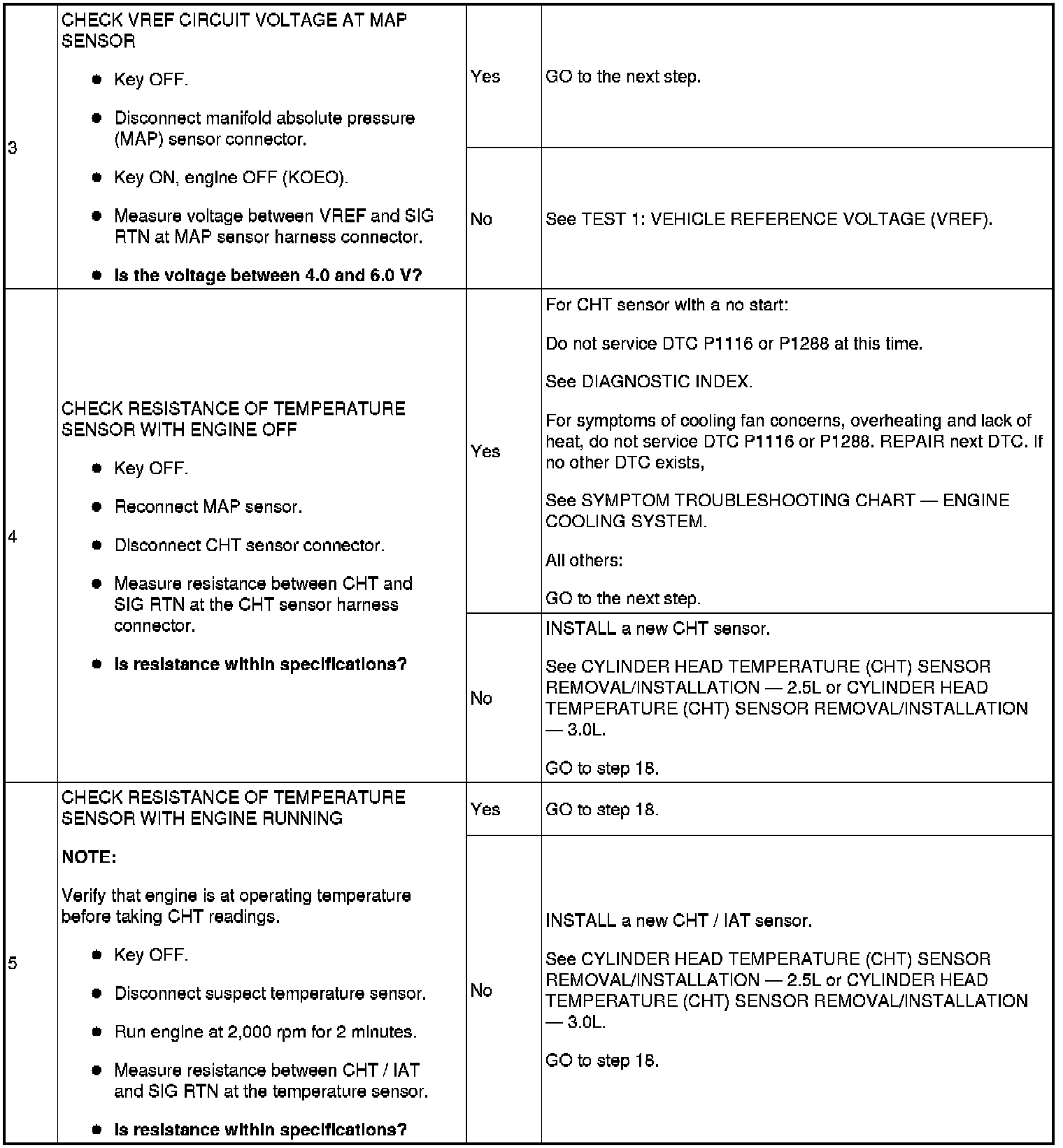

Step 3-Step 5:

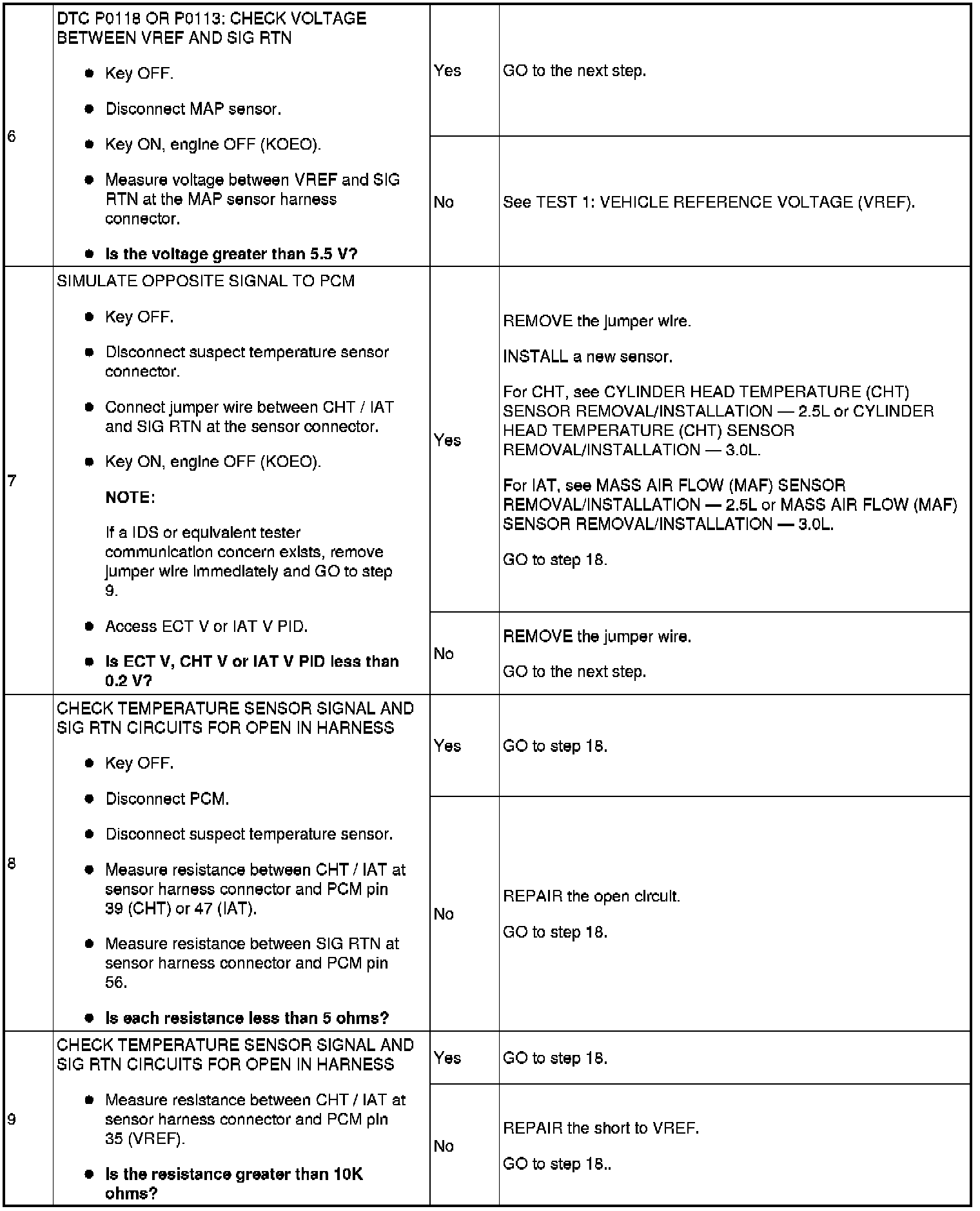

Step 6-Step 9:

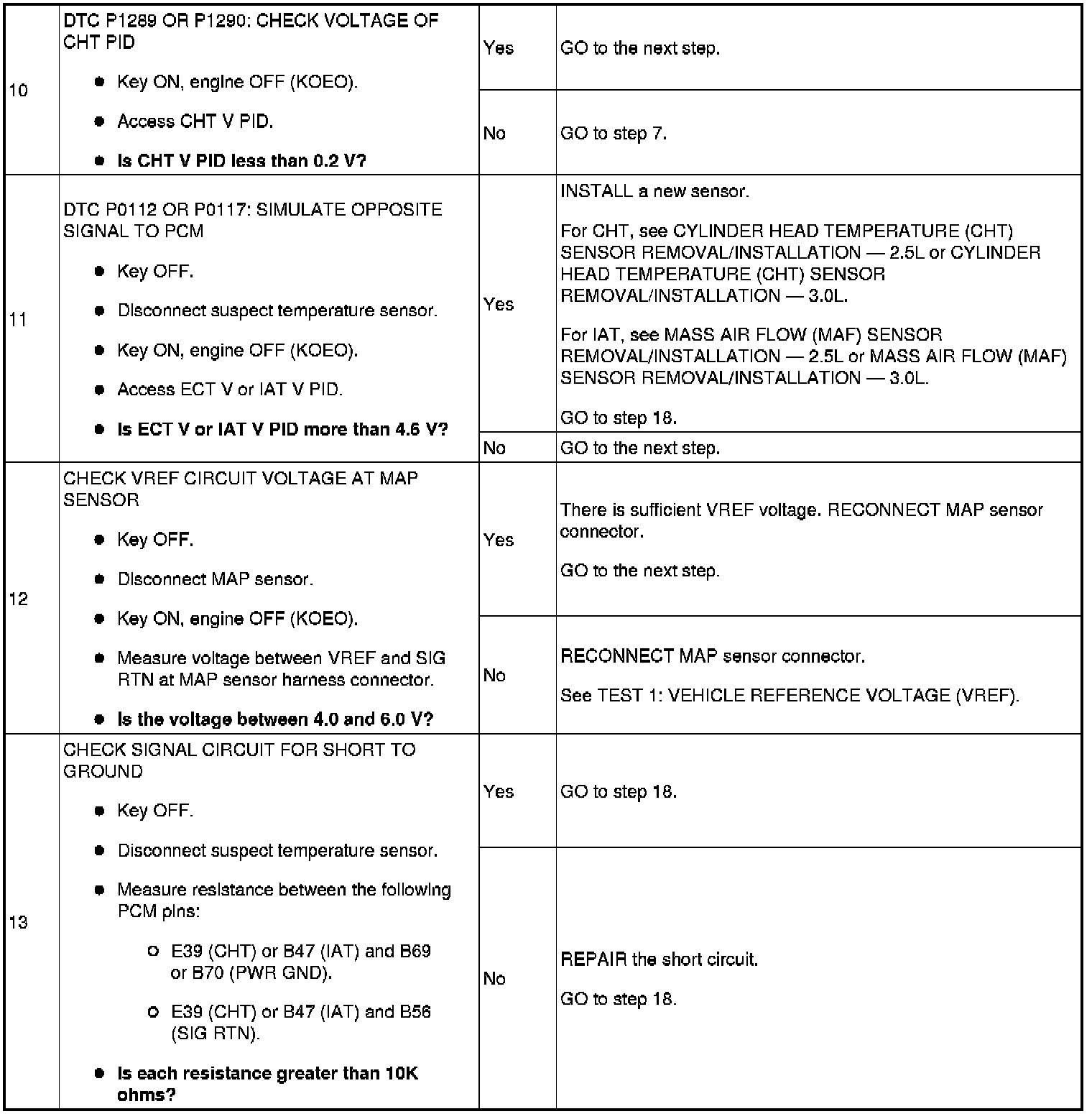

Step 10-Step 13:

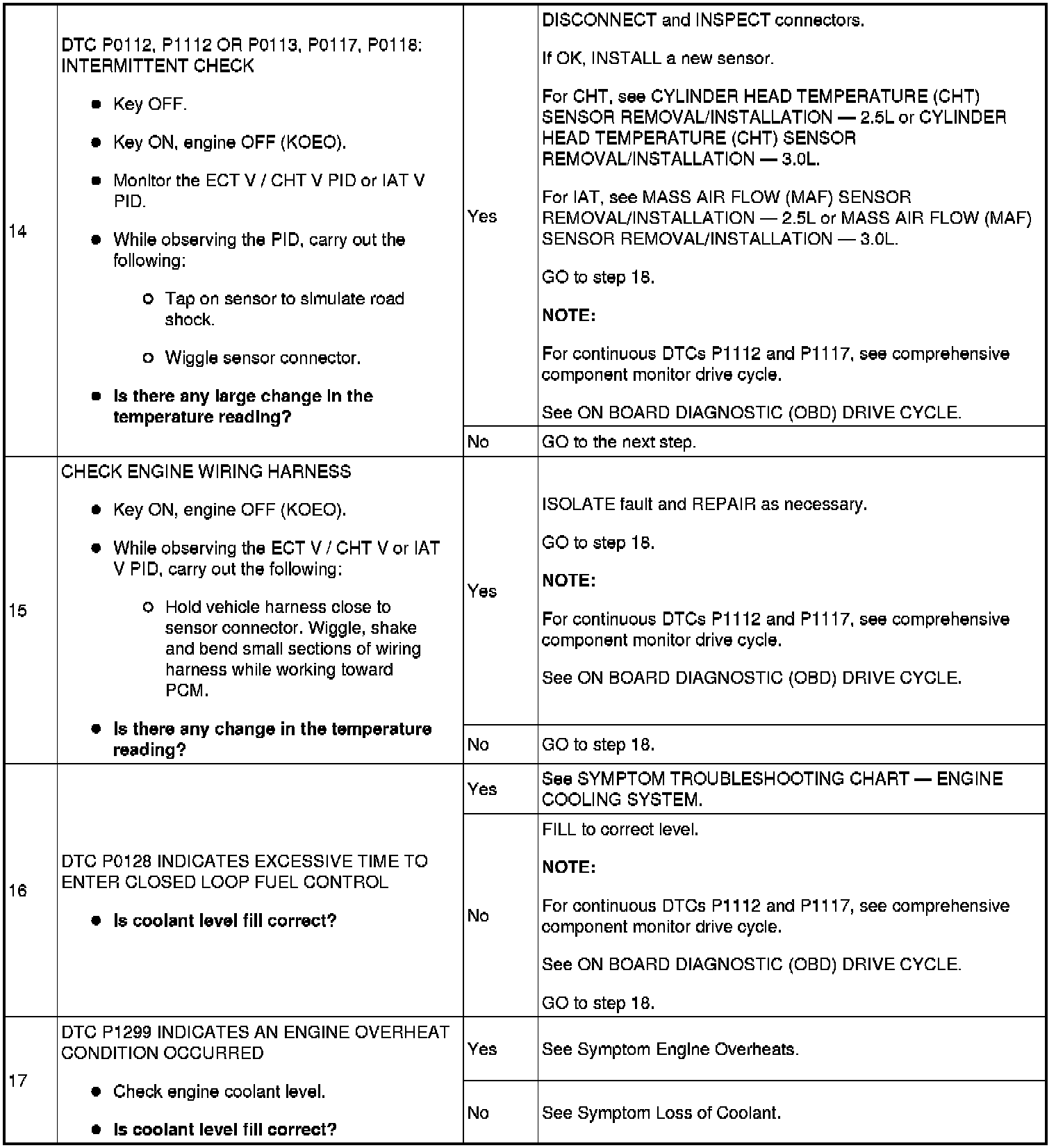

Step 14-Step 17:

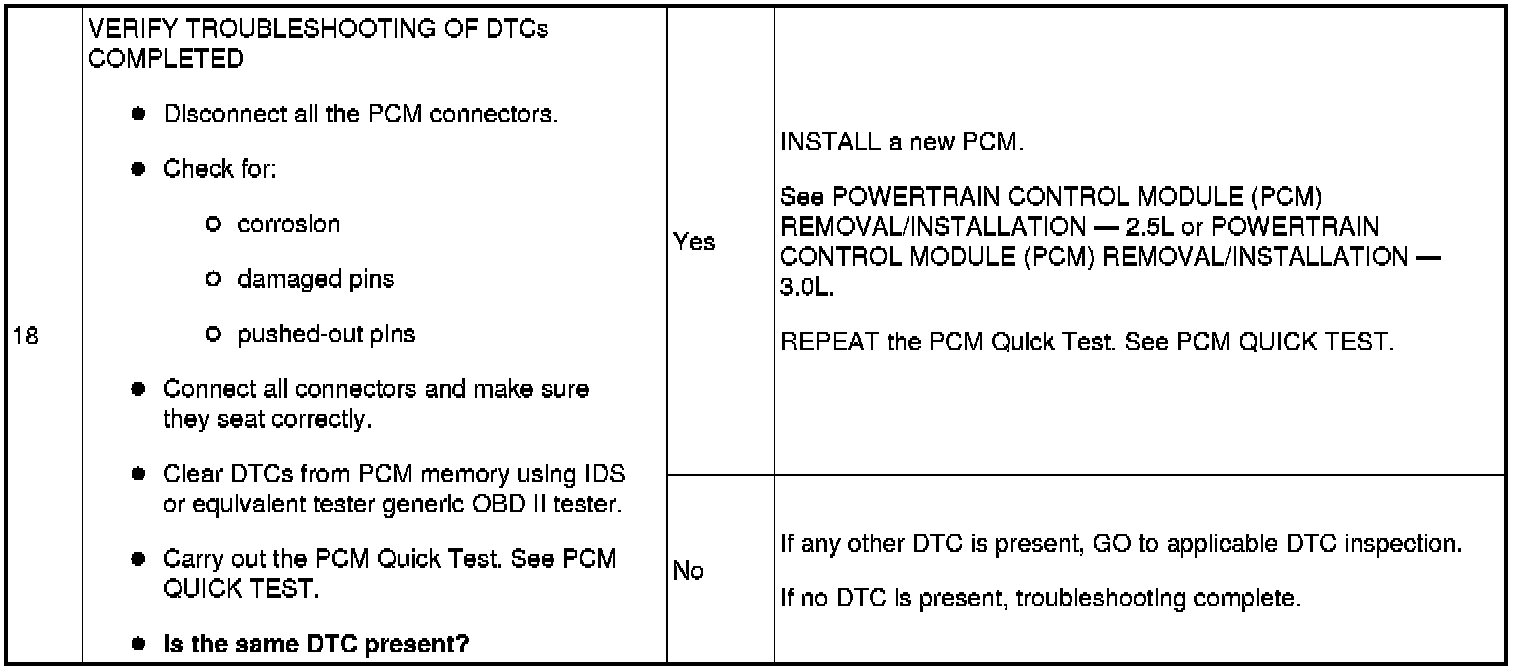

Step 18:
