Catalyst Efficiency Monitor Malfunction




CATALYST EFFICIENCY MONITOR MALFUNCTION

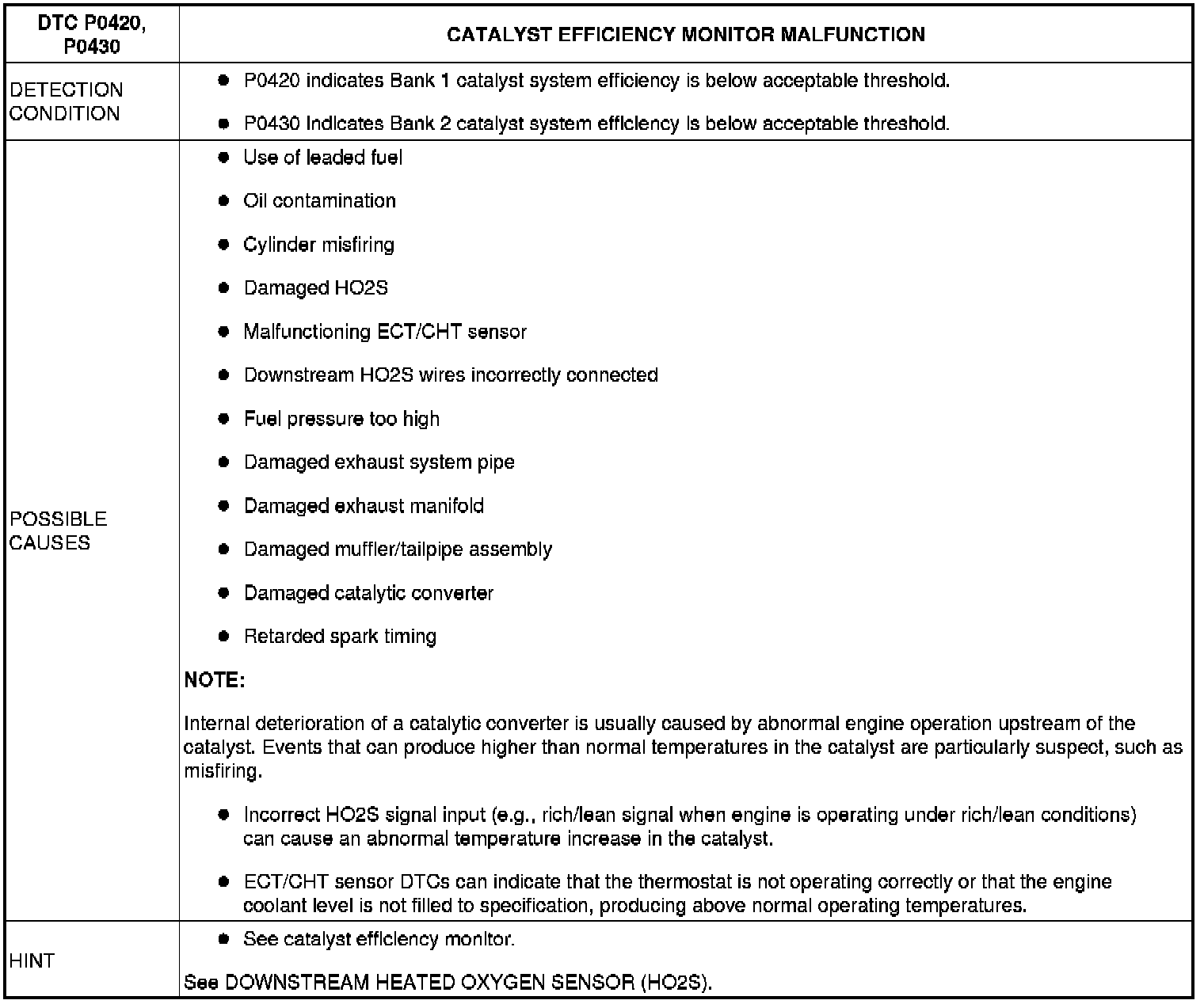

Detection Condition/Possible Cause:

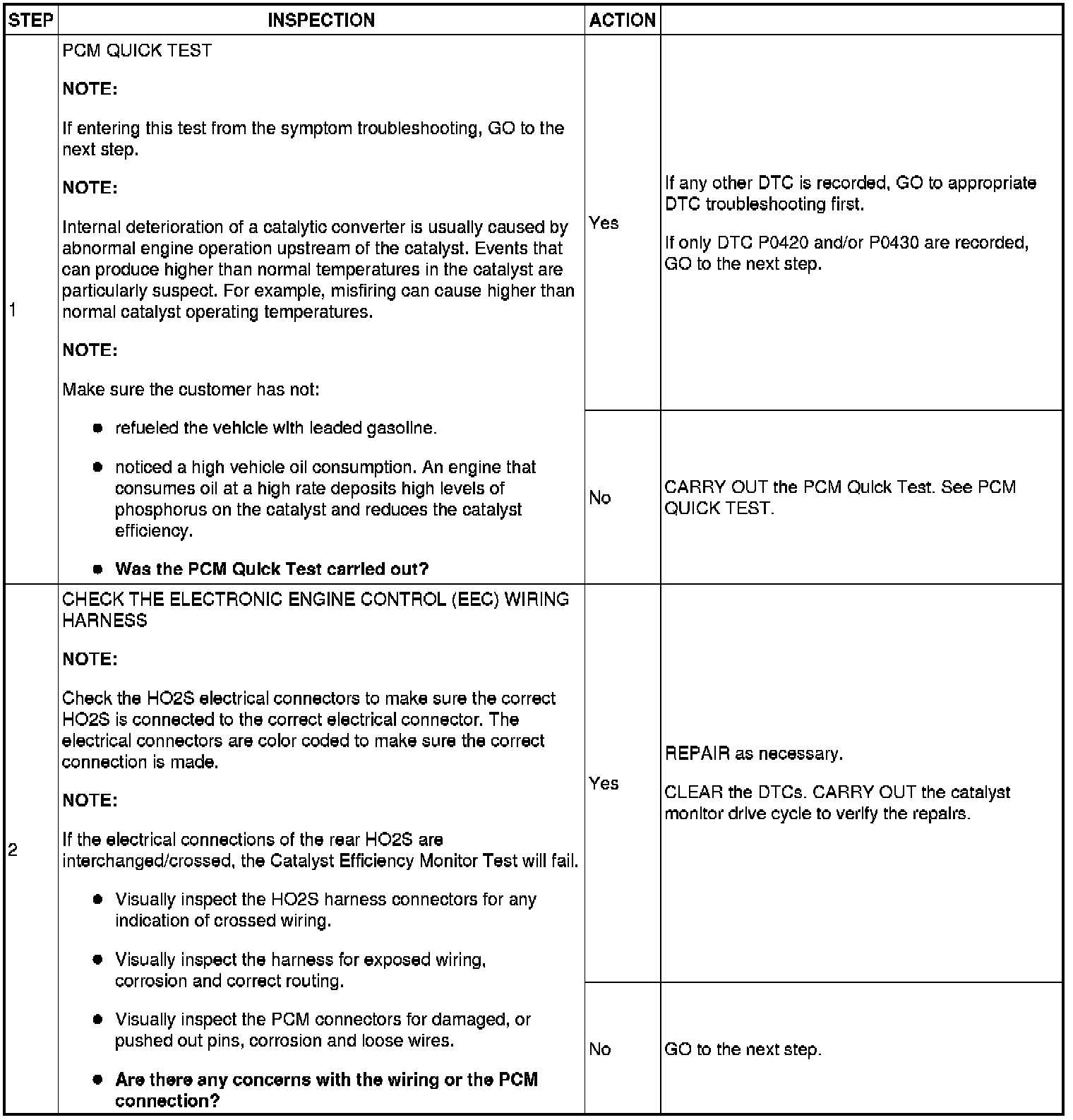

Step 1-Step 2:

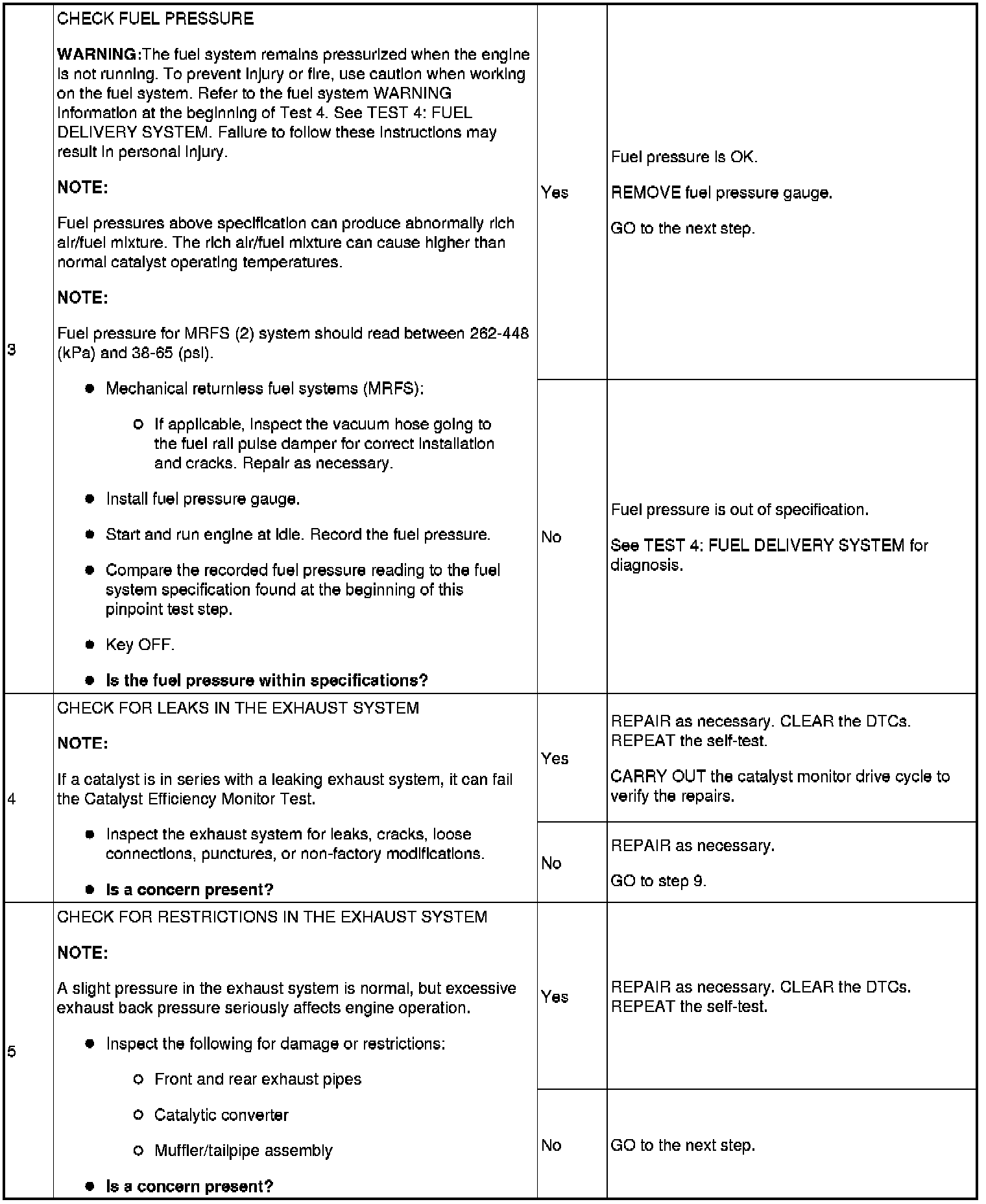

Step 3-Step 5:

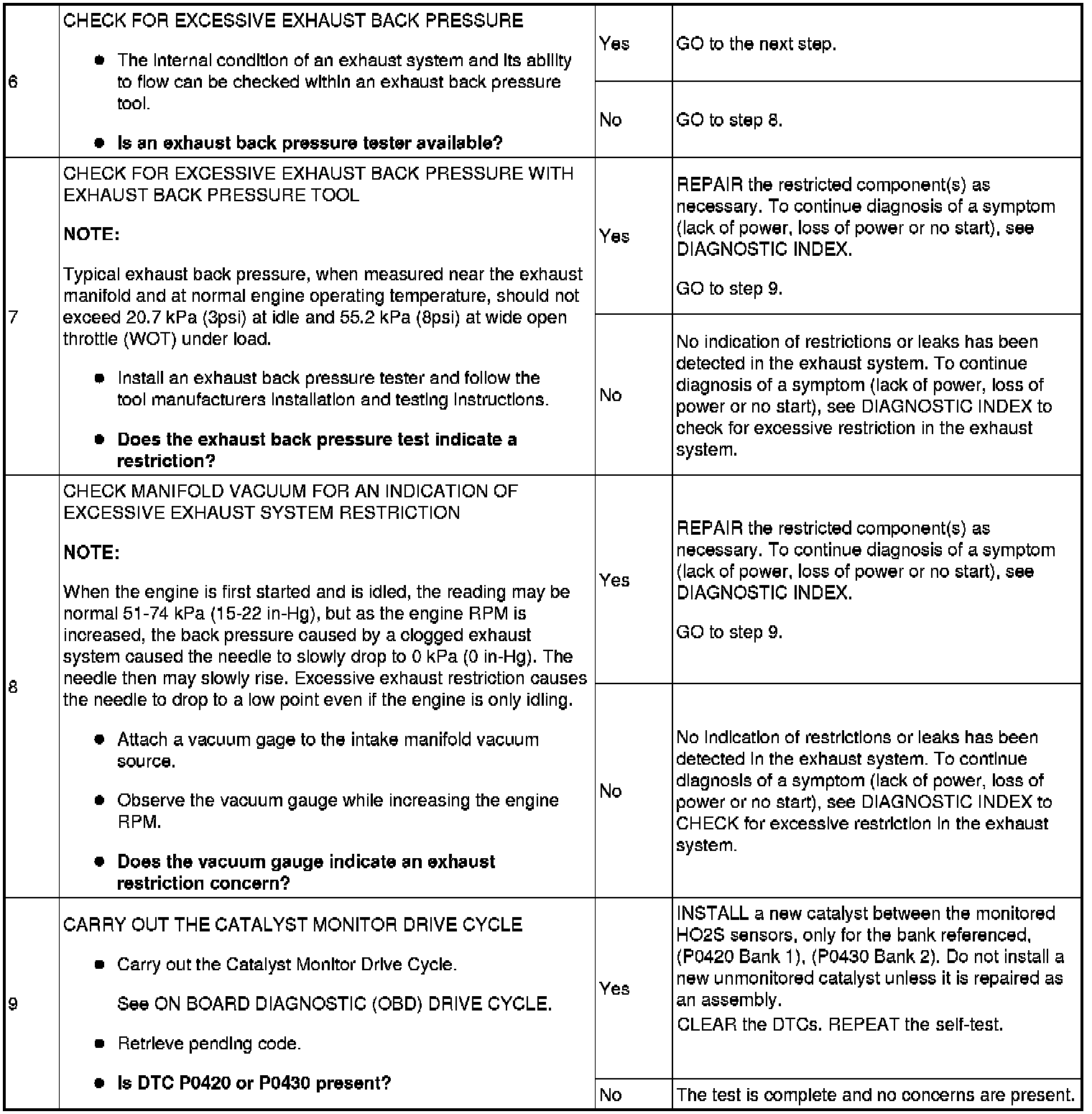

Step 6-Step 9:
