Symptom Troubleshooting Chart - Engine
-
SYMPTOM TROUBLESHOOTING CHART - ENGINE

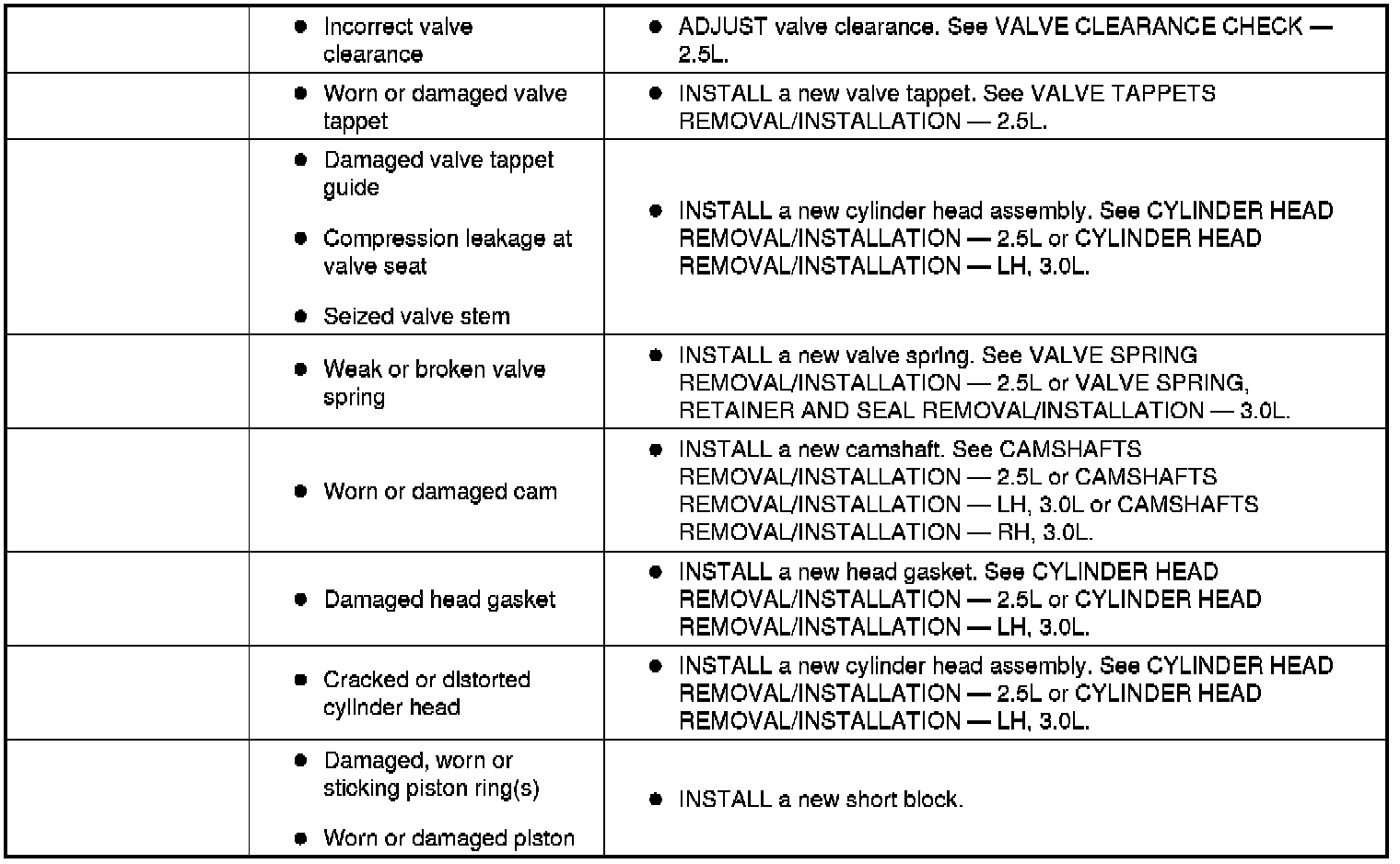

Symptom Troubleshooting Chart (Part 1):

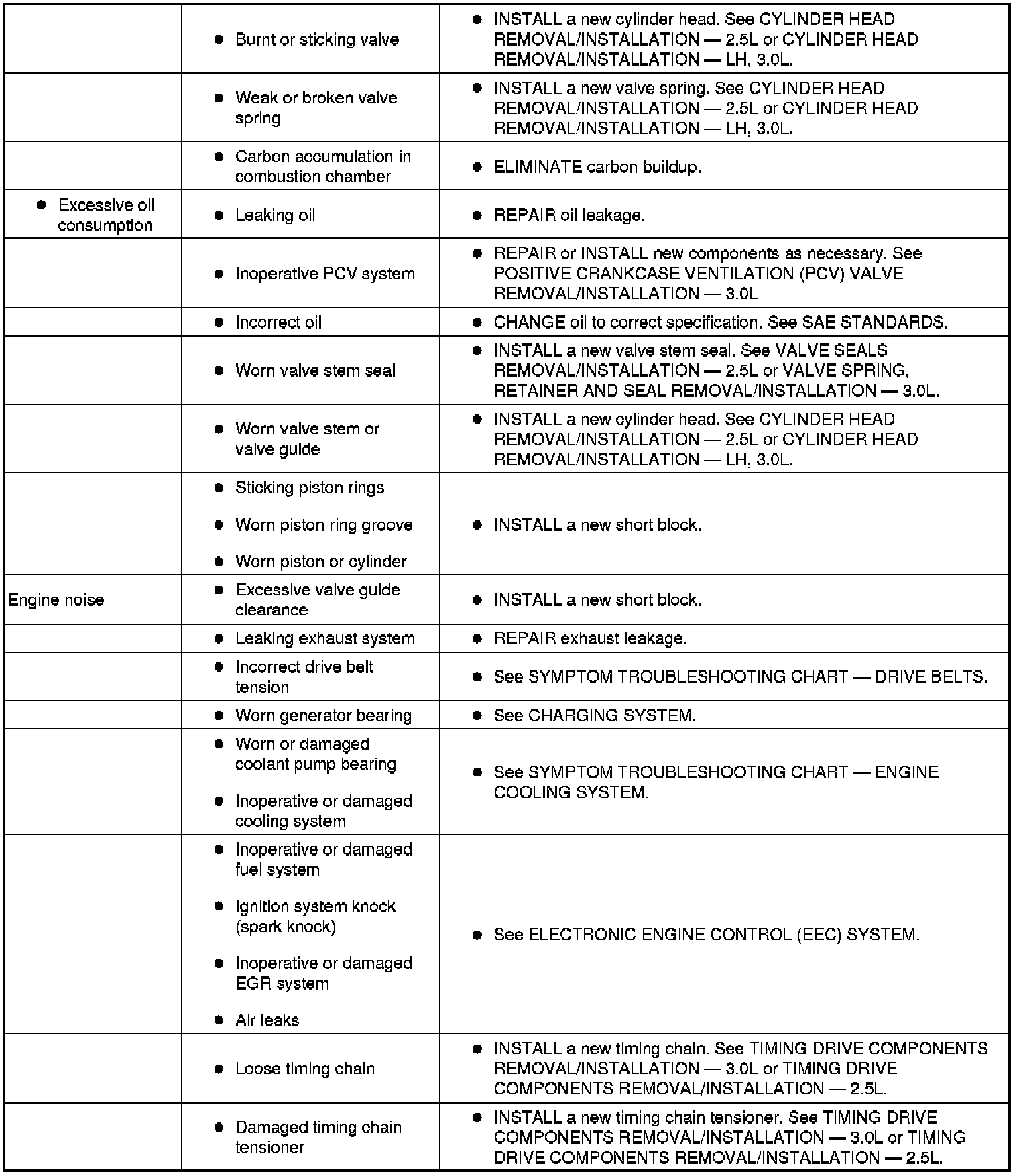

Symptom Troubleshooting Chart (Part 2):

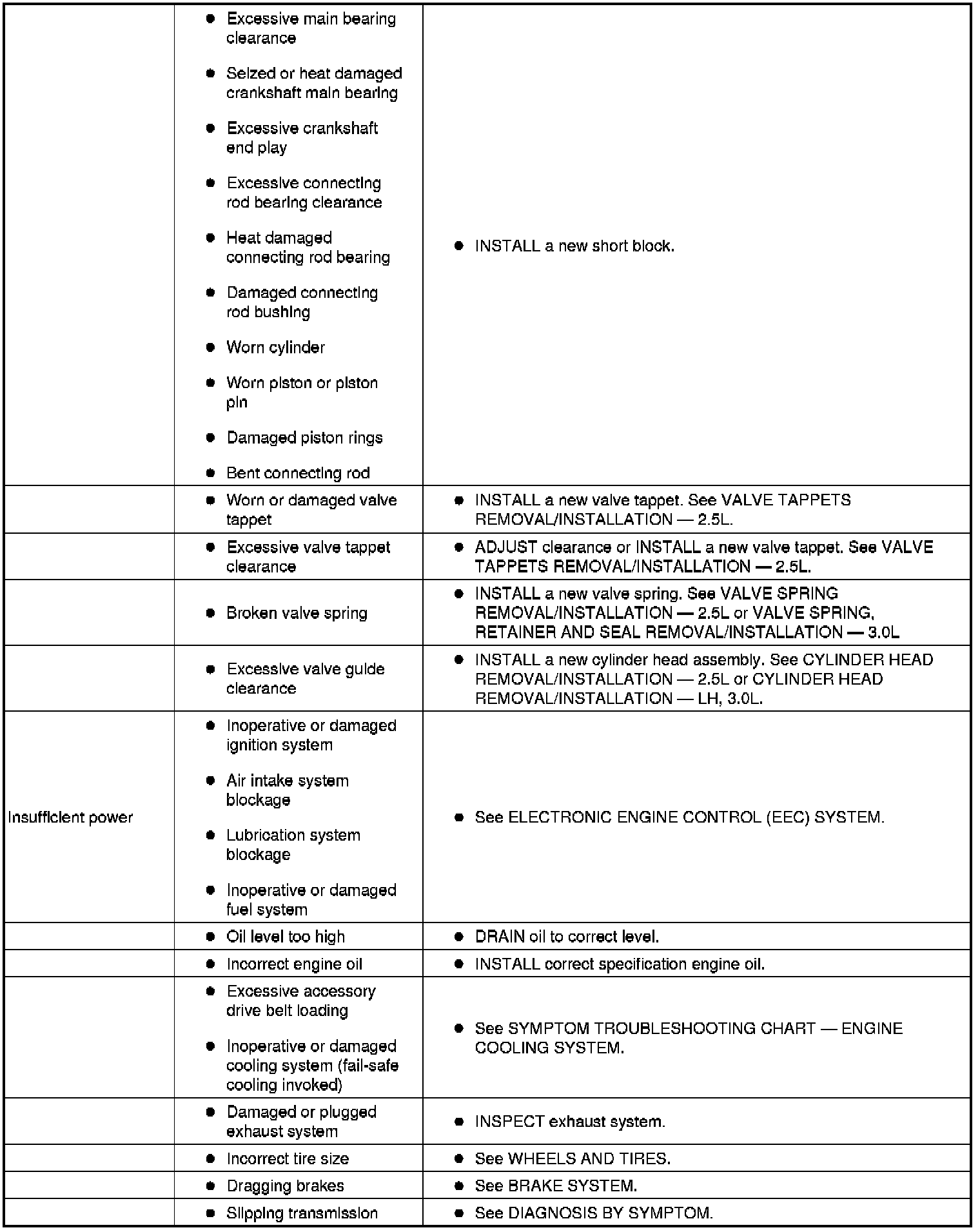

Symptom Troubleshooting Chart (Part 3):

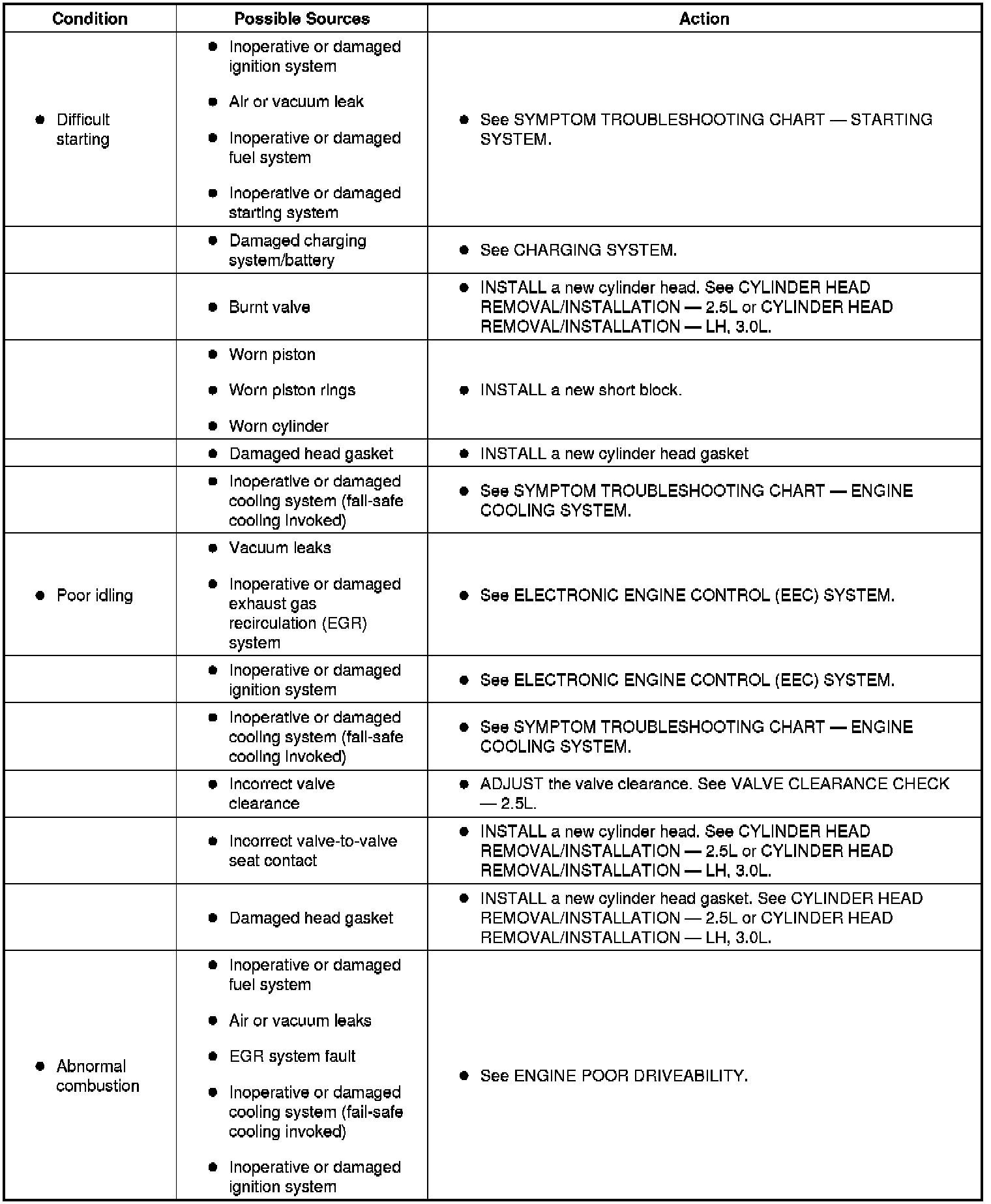

Symptom Troubleshooting Chart (Part 4):
