Ignition System: Locations



-

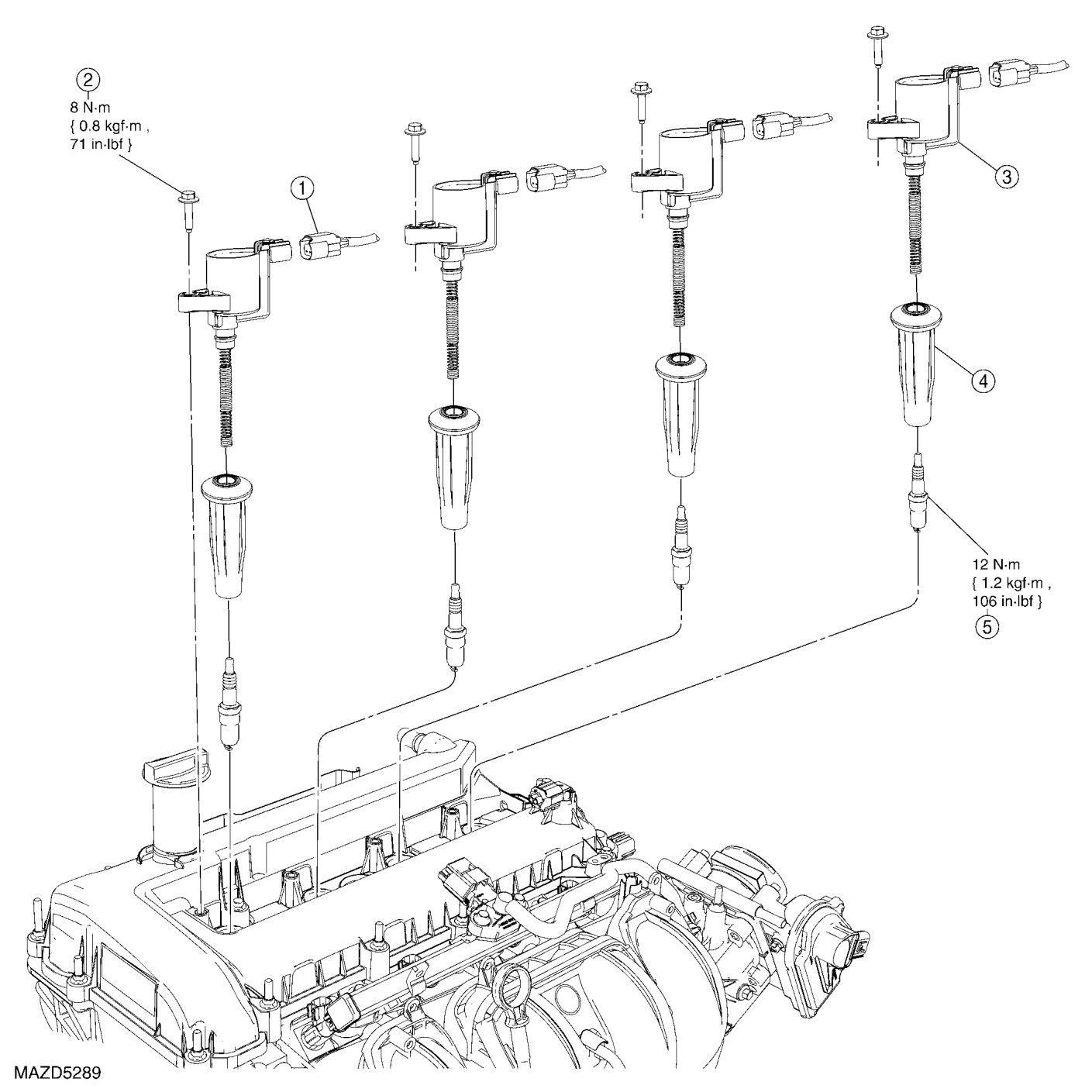

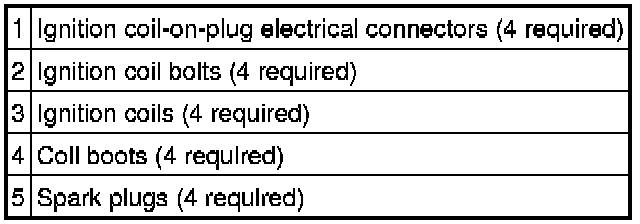

ENGINE IGNITION COMPONENTS - EXPLODED VIEW











1. For additional information, see the procedures.
