Alignment

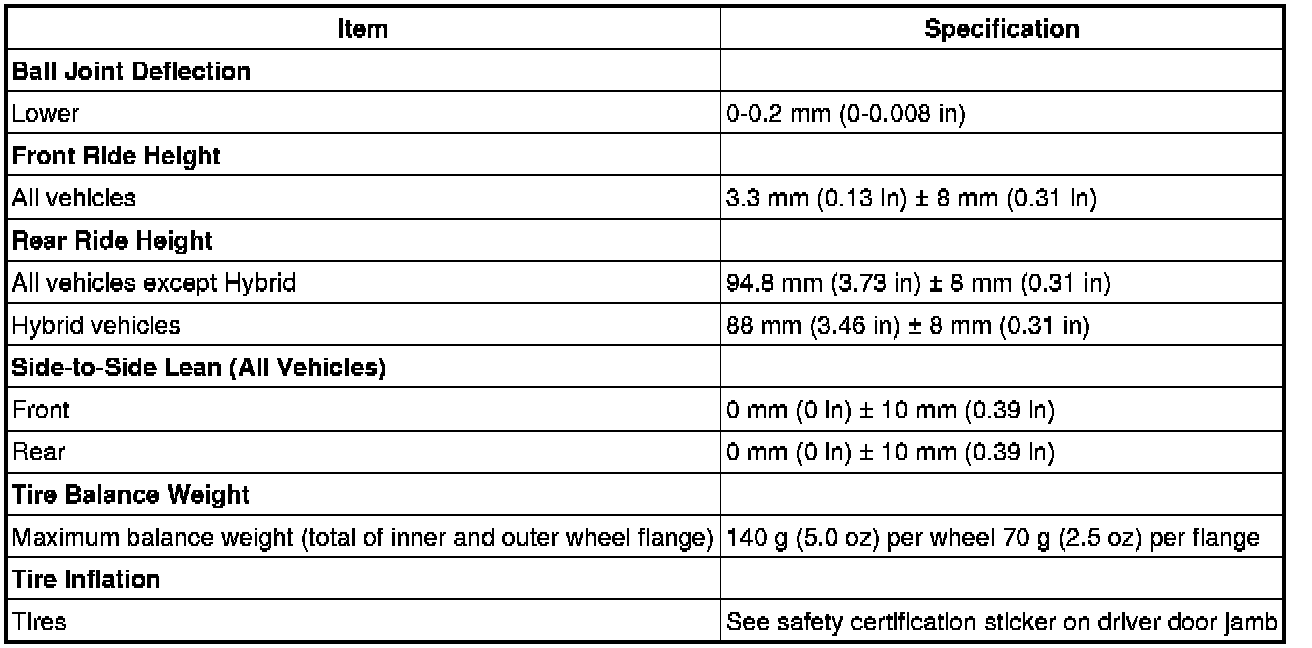

General Specifications

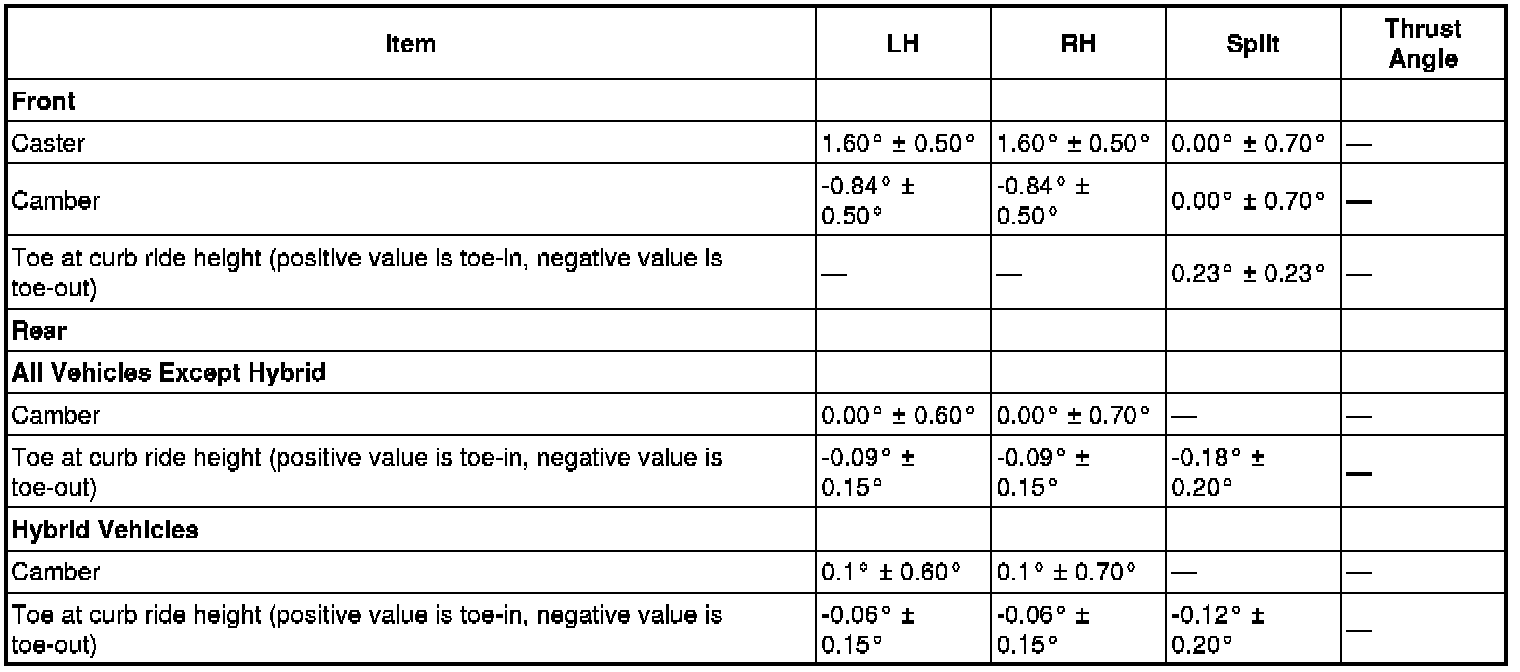

Alignment Specifications





NOTE:All alignment specifications are with the vehicle fuel tank full.
