Keyless Entry: Description and Operation

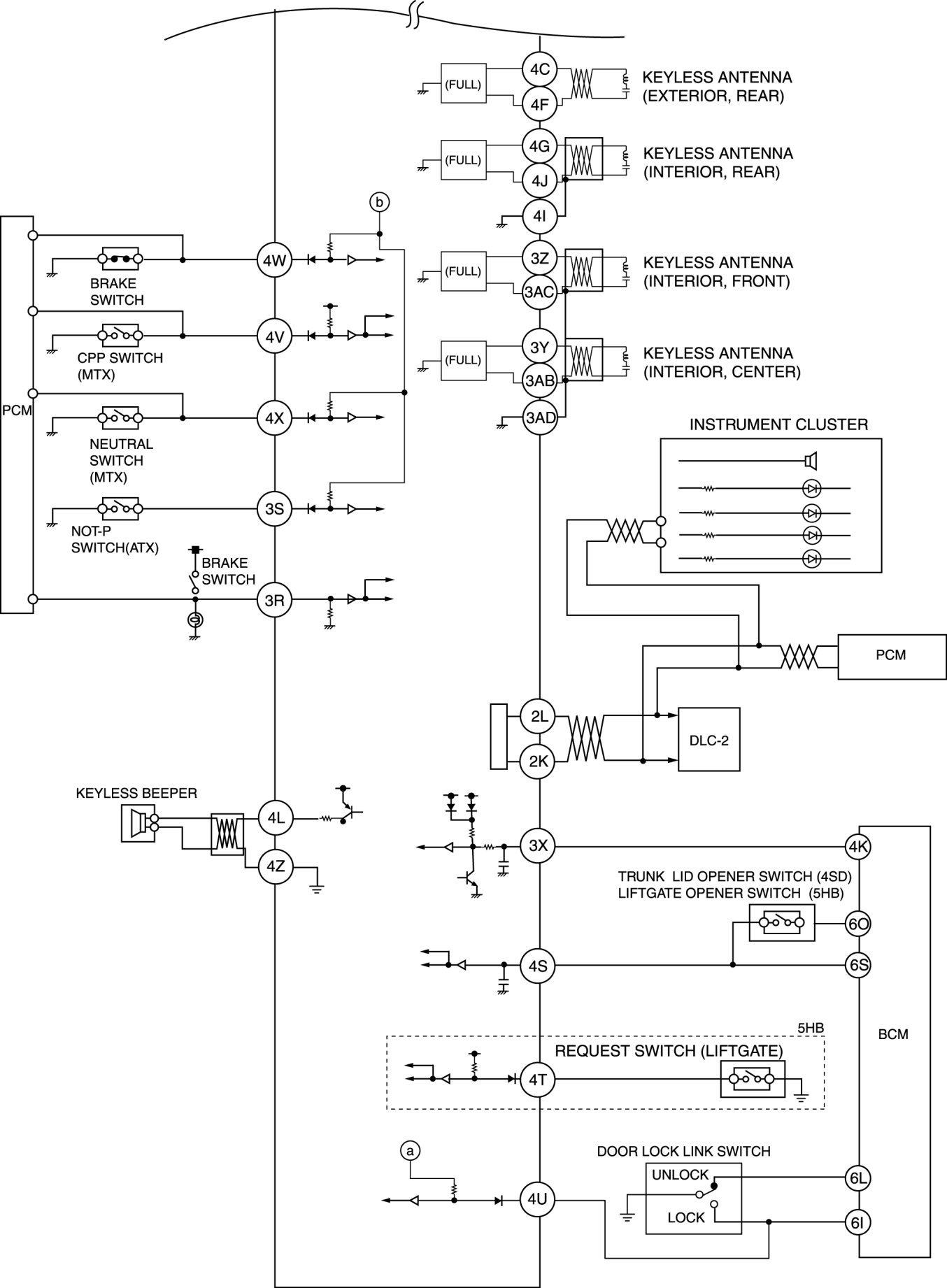

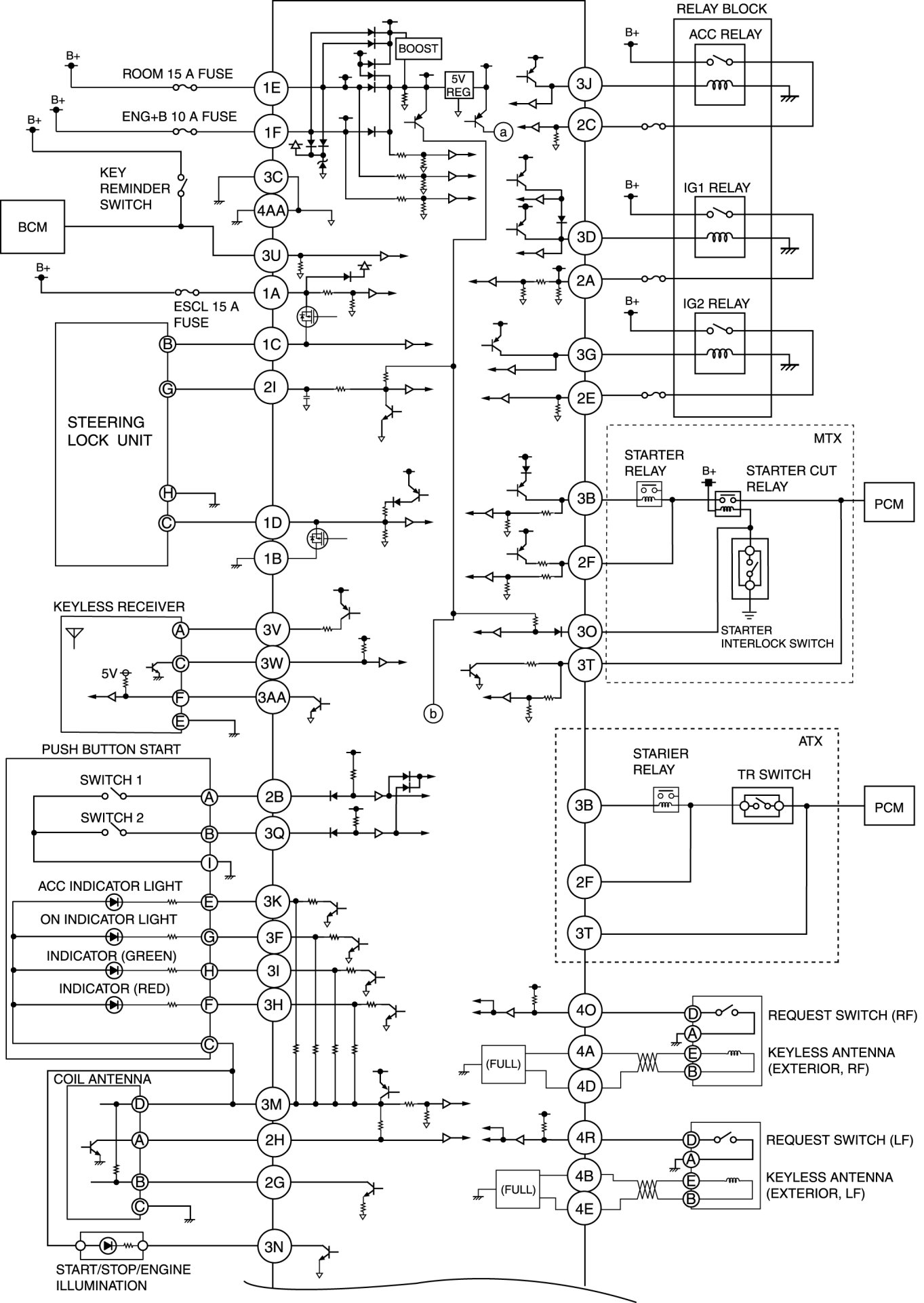

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]









*1
Applied VIN (assumed):

- JM1 BL1S6*A# 100001-180029
- JM1 BL1H3*A# 100001-180029
- JM1 BL1H4*A# 100001-180029
- JM1 BL1H6*A# 100001-180029
- JM1 BL1S5*A# 100001-180029
- JM1 BL1H5*A# 100001-180029
