Fluid Replacement

AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FS5A-EL]

WARNING:
- A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool before changing the ATF.

1. Drain the ATF.
a. Remove the oil dipstick.

b. Remove the aerodynamic under cover NO.2. Aerodynamic Under Cover No.2 Removal/Installation

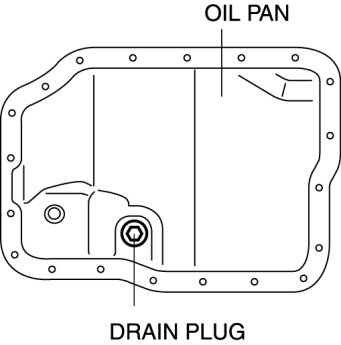

c. Remove the drain plug and washer to drain the ATF into a container.






2. Add the ATF.
a. Install a new washer and the drain plug.

Tightening torque
- 30-41 Nm {3.1-4.1 kgf-m, 23-30 ft-lbf}

b. Add the specified ATF through the oil filler tube.

ATF Type
- ATF M-V

ATF Capacity (Reference)
- Draining ATF from drain plug: 3.0 L {3.2 US qt, 2.6 lmp qt}
- Overhauling transaxle: 5.0 L {5.3 US qt, 4.4 lmp qt}

3. Install the aerodynamic under cover NO.2. Aerodynamic Under Cover No.2 Removal/Installation

4. Install the oil dipstick.

5. Inspect the ATF level. Procedures
