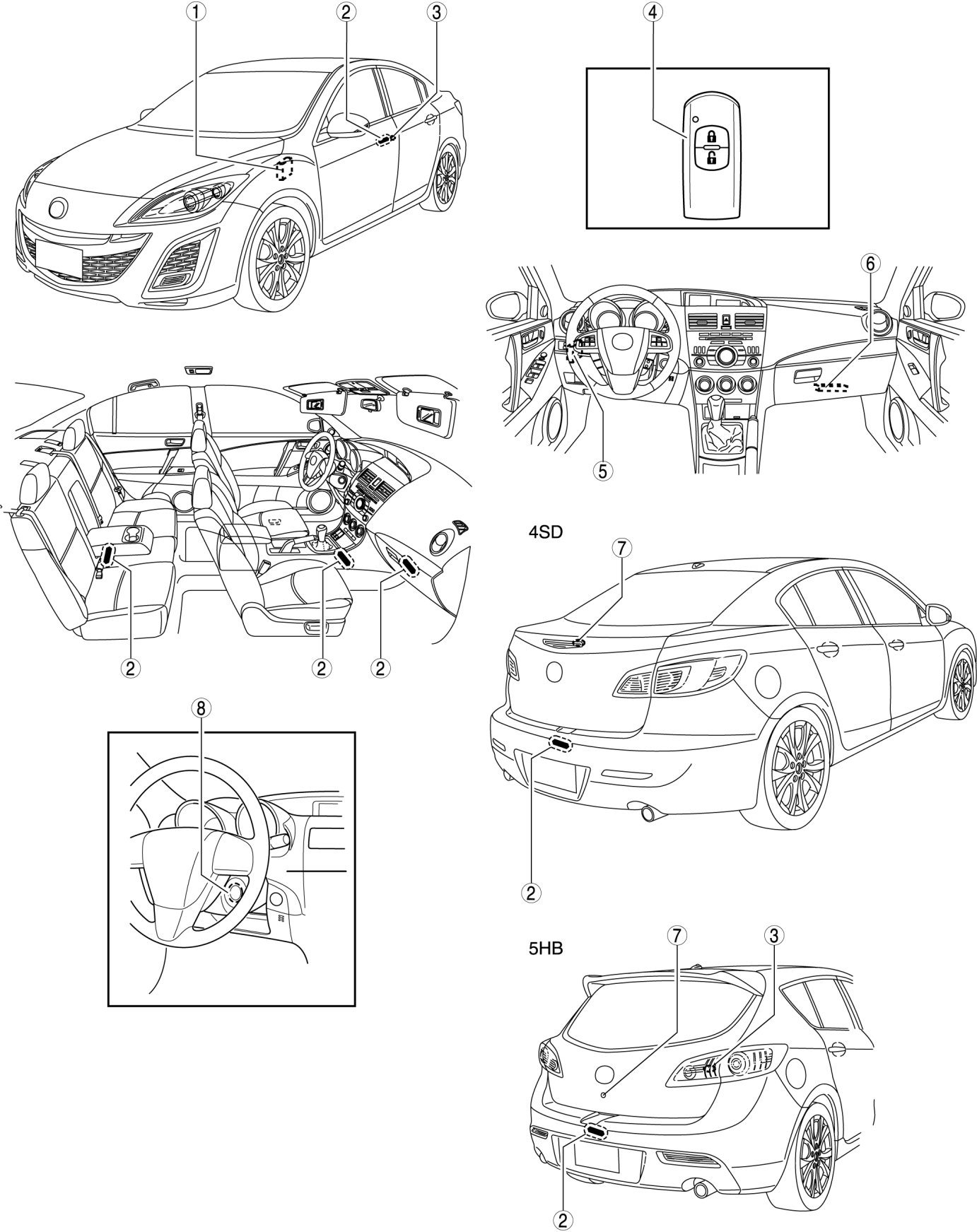

Component Locations

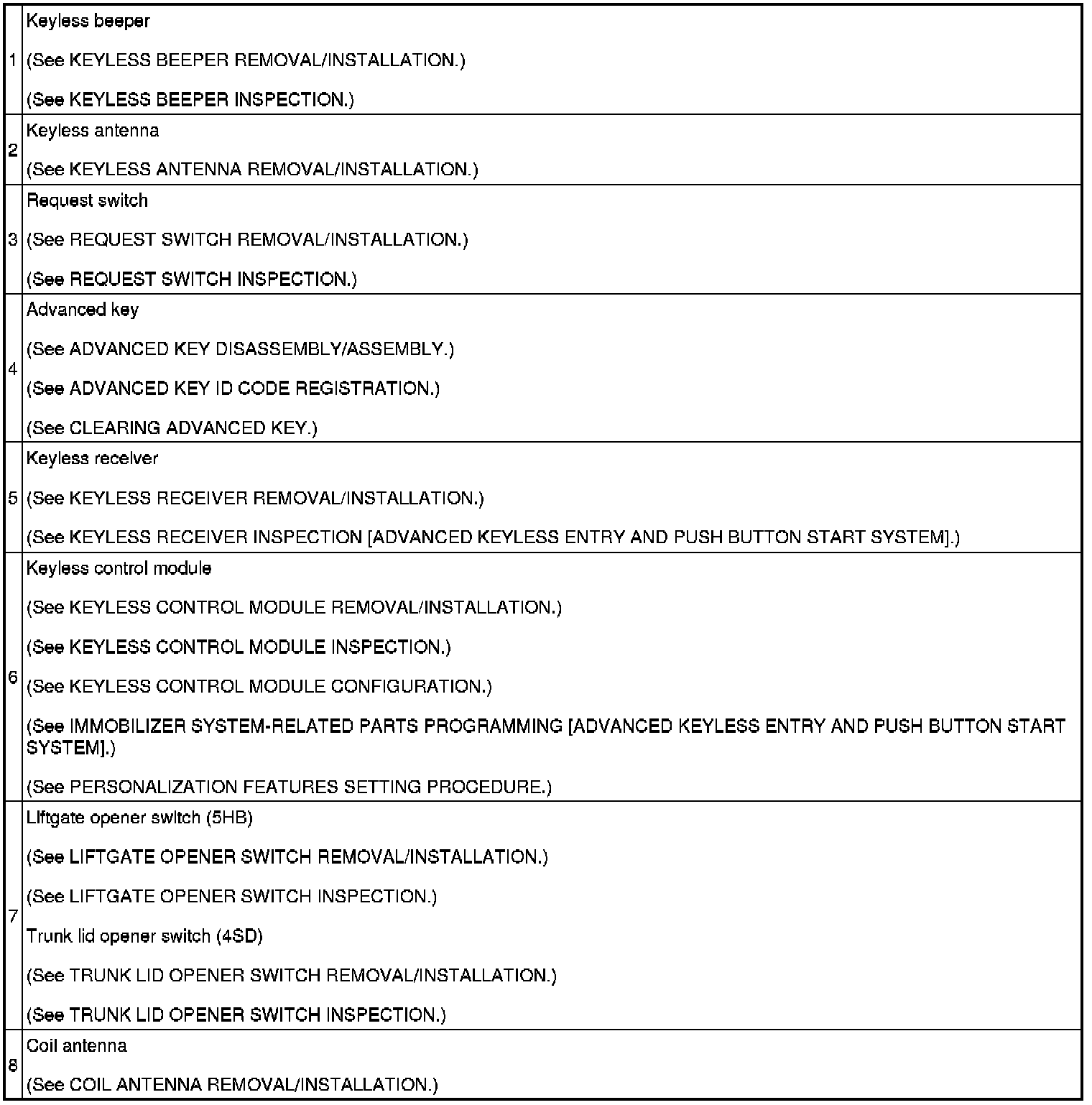

SECURITY AND LOCKS LOCATION INDEX

Advanced Keyless Entry And Push Button Start System/Immobilizer System





*1
Keyless antenna (interior front) Applied VIN (assumed):

- JM1 BL1S6*A# 100001-180029
- JM1 BL1H3*A# 100001-180029
- JM1 BL1H4*A# 100001-180029
- JM1 BL1H6*A# 100001-180029
- JM1 BL1S5*A# 100001-180029
- JM1 BL1H5*A# 100001-180029
