Keyless Beeper Inspection




KEYLESS BEEPER INSPECTION

1. Disconnect the negative battery cable.

2. Remove the front mudguard. Service and Repair

3. Remove the keyless beeper. Keyless Beeper Removal/Installation

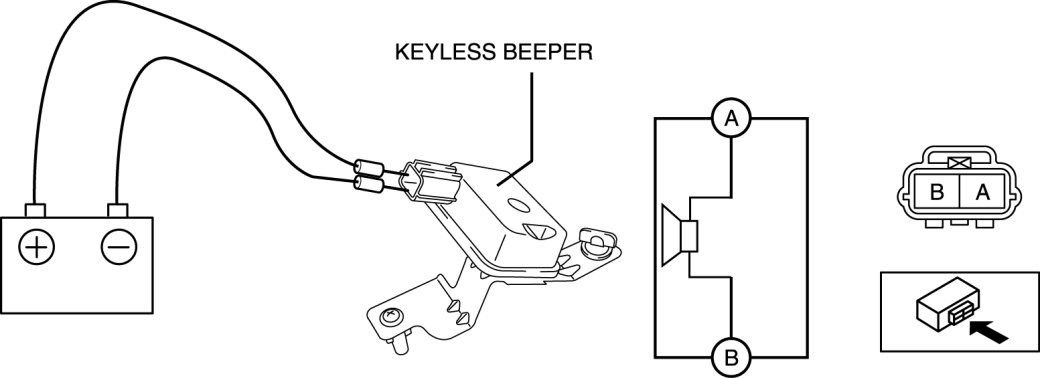

4. When applying battery positive voltage to the keyless beeper, verify that an electromagnetic sound is heard.

- If the sound cannot be verified, replace the keyless beeper.
