Advanced Keyless Entry And Push Button Start System
PID/DATA MONITOR TABLE [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

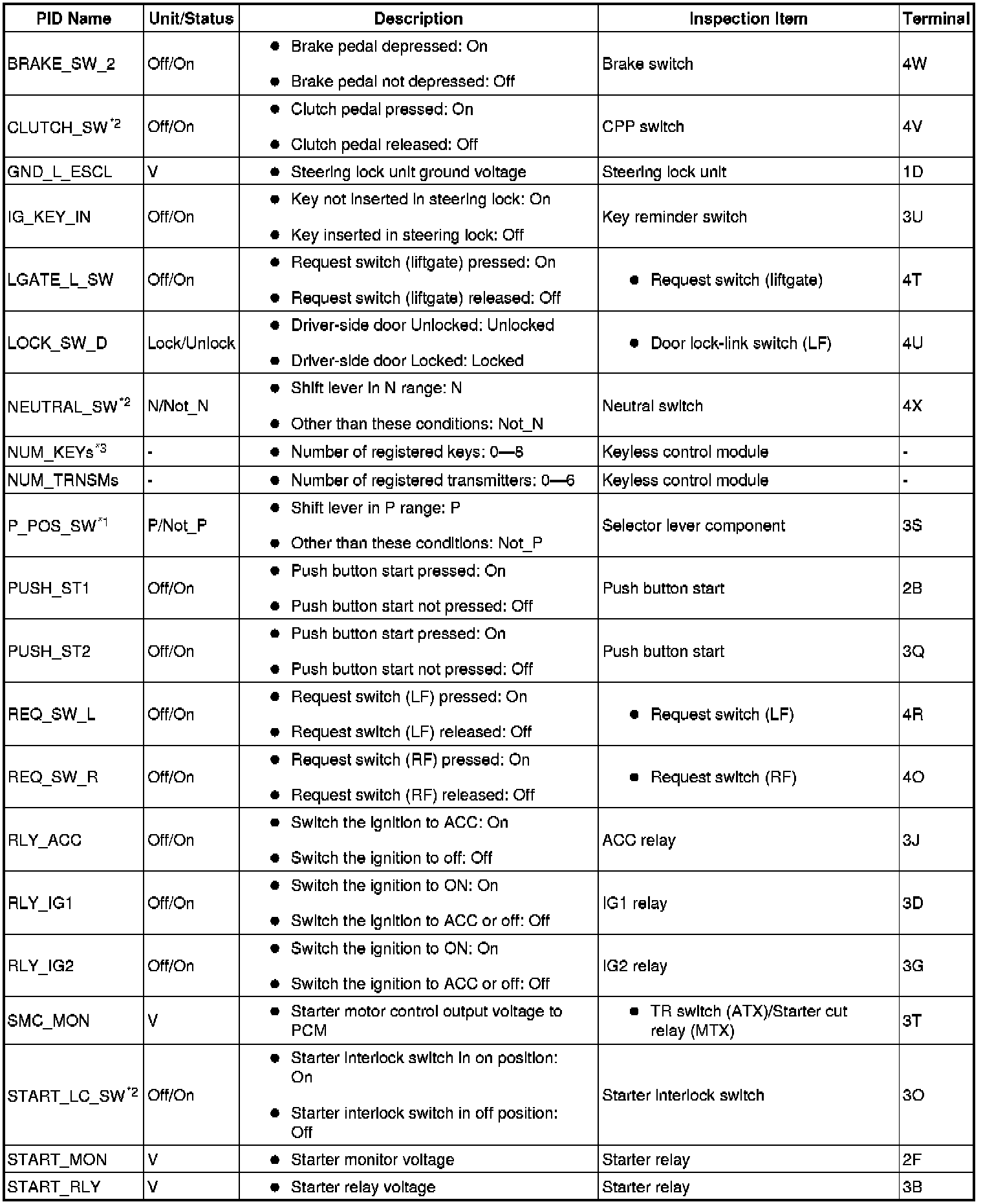

PID/DATA Monitor Table (Part 1):

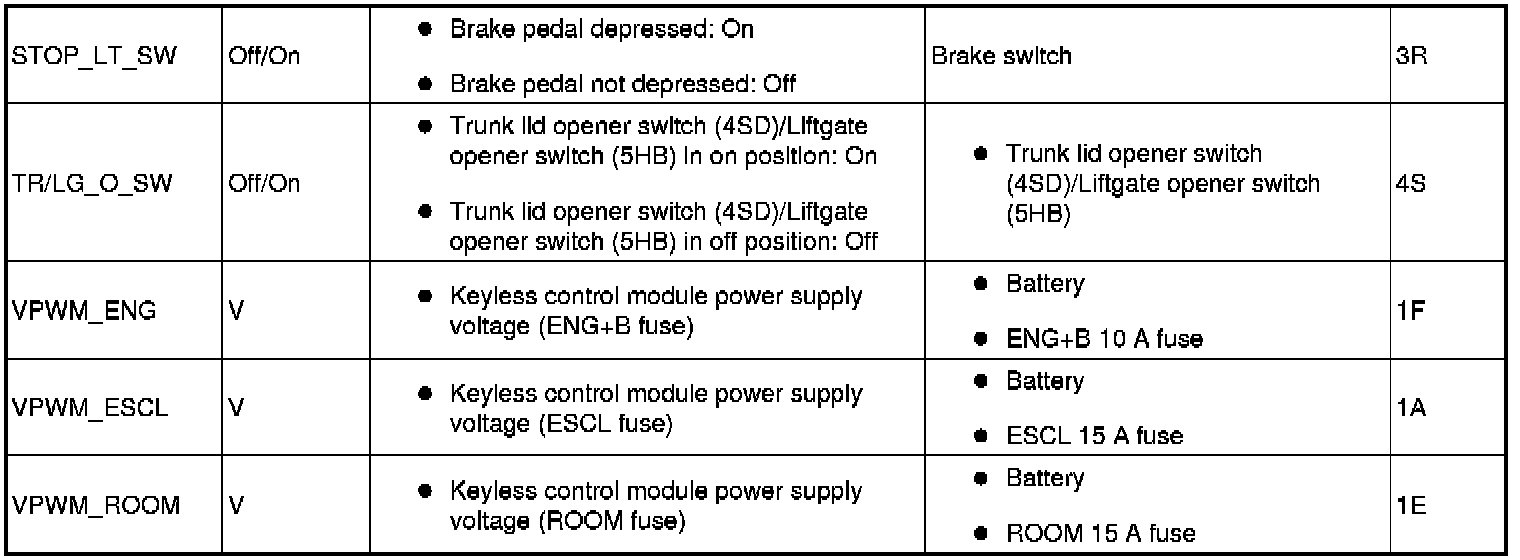

PID/DATA Monitor Table (Part 2):
*1
ATX
*2
MTX
*3
Vehicles with immobilizer system
PID/DATA MONITOR TABLE [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
*1
ATX
*2
MTX
*3
Vehicles with immobilizer system
