No.3 Push Button Start System Does Not Operate - Advanced Keyless Entry And Push Button Start System




NO.3 PUSH BUTTON START SYSTEM DOES NOT OPERATE [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

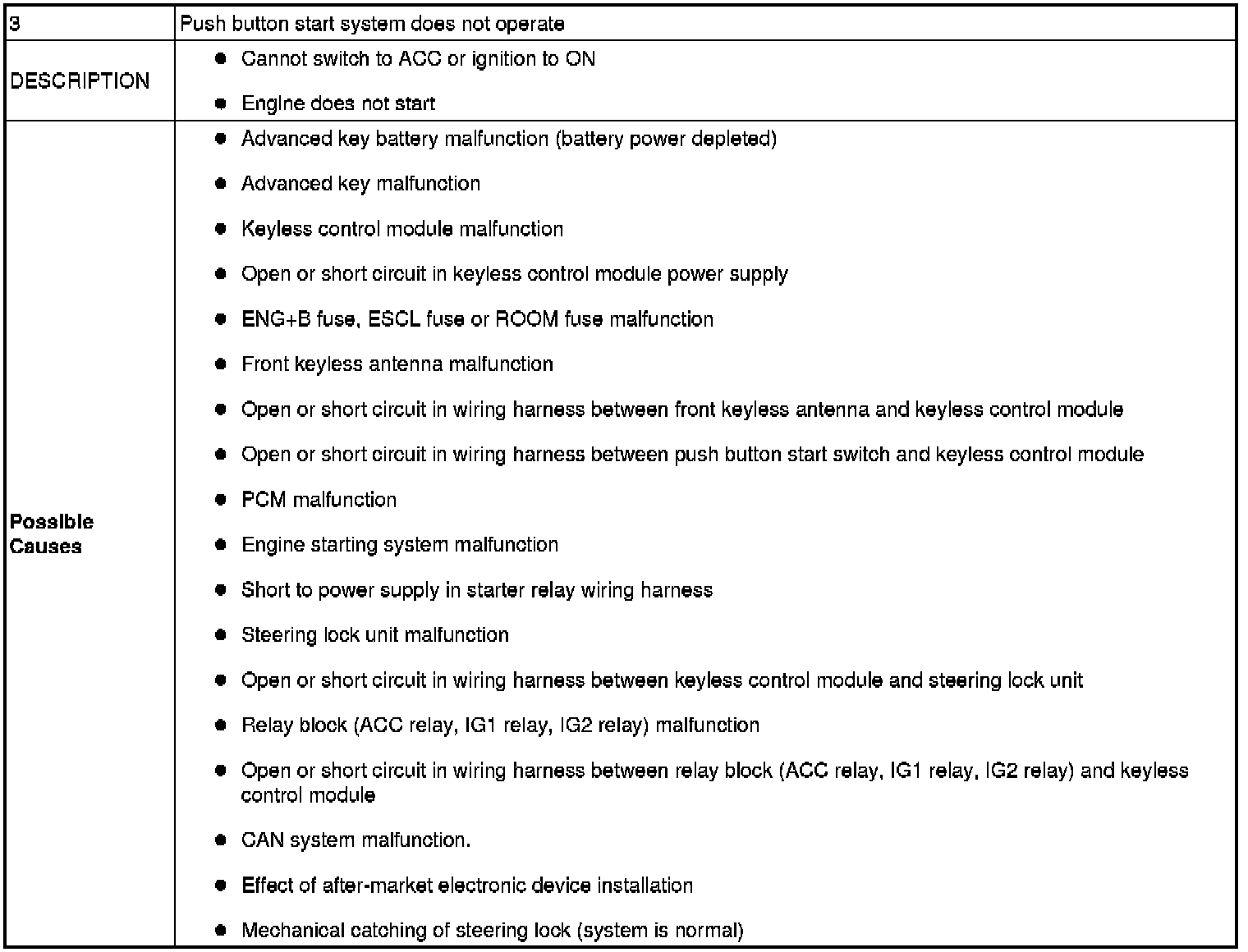

Description/Possible Cause:





Diagnostic procedure

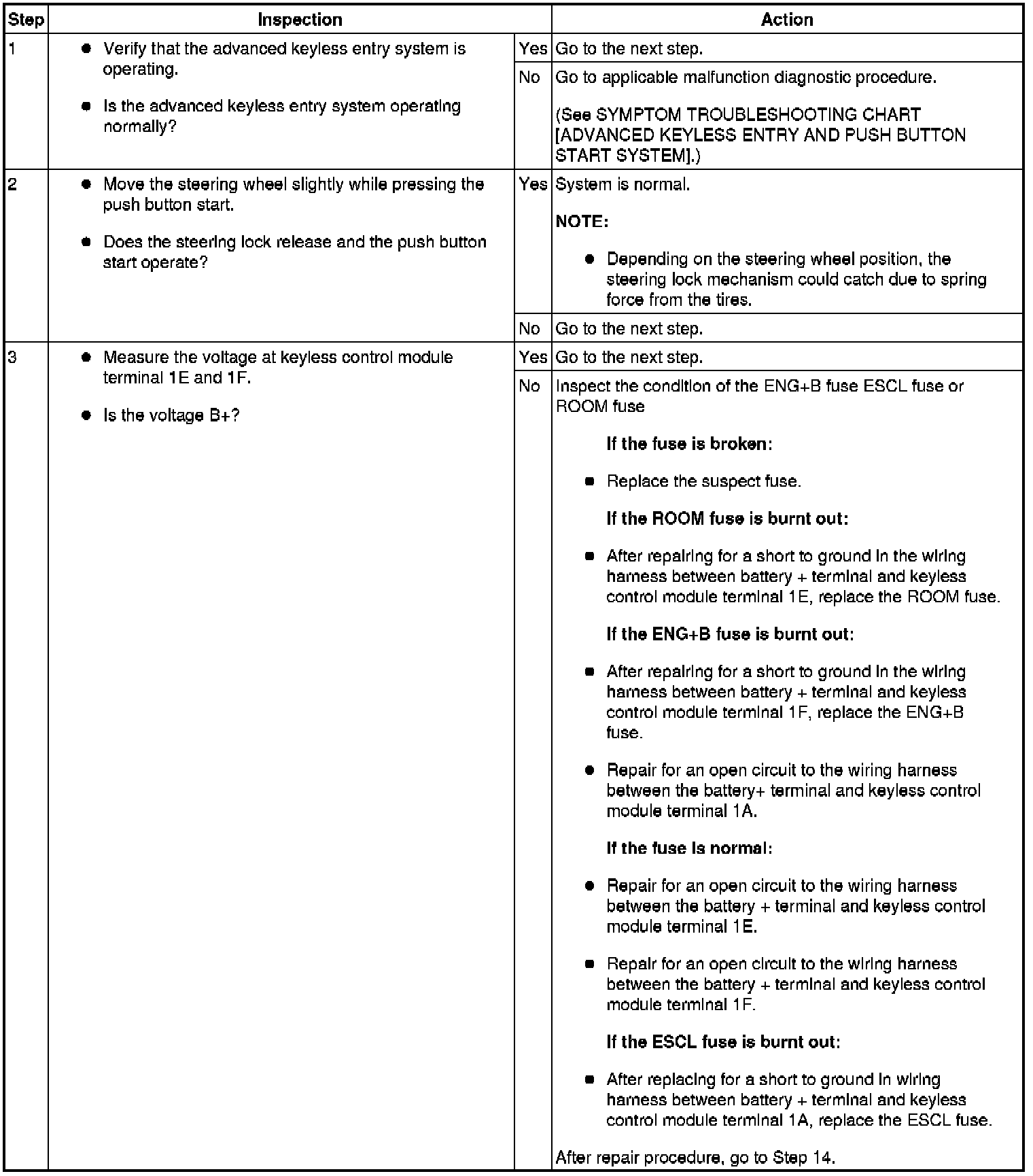

Step 1-Step 3:

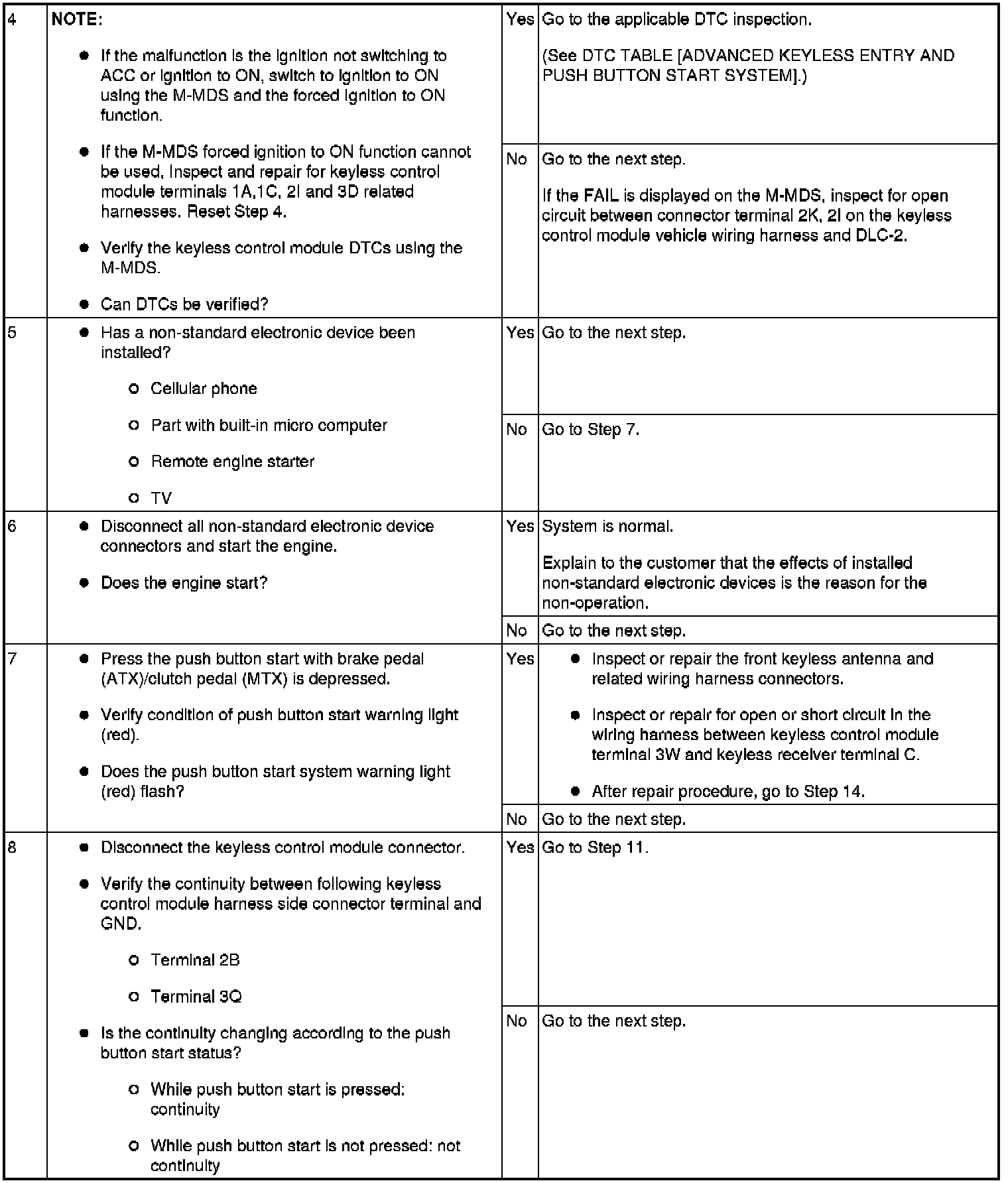

Step 4-Step 8:

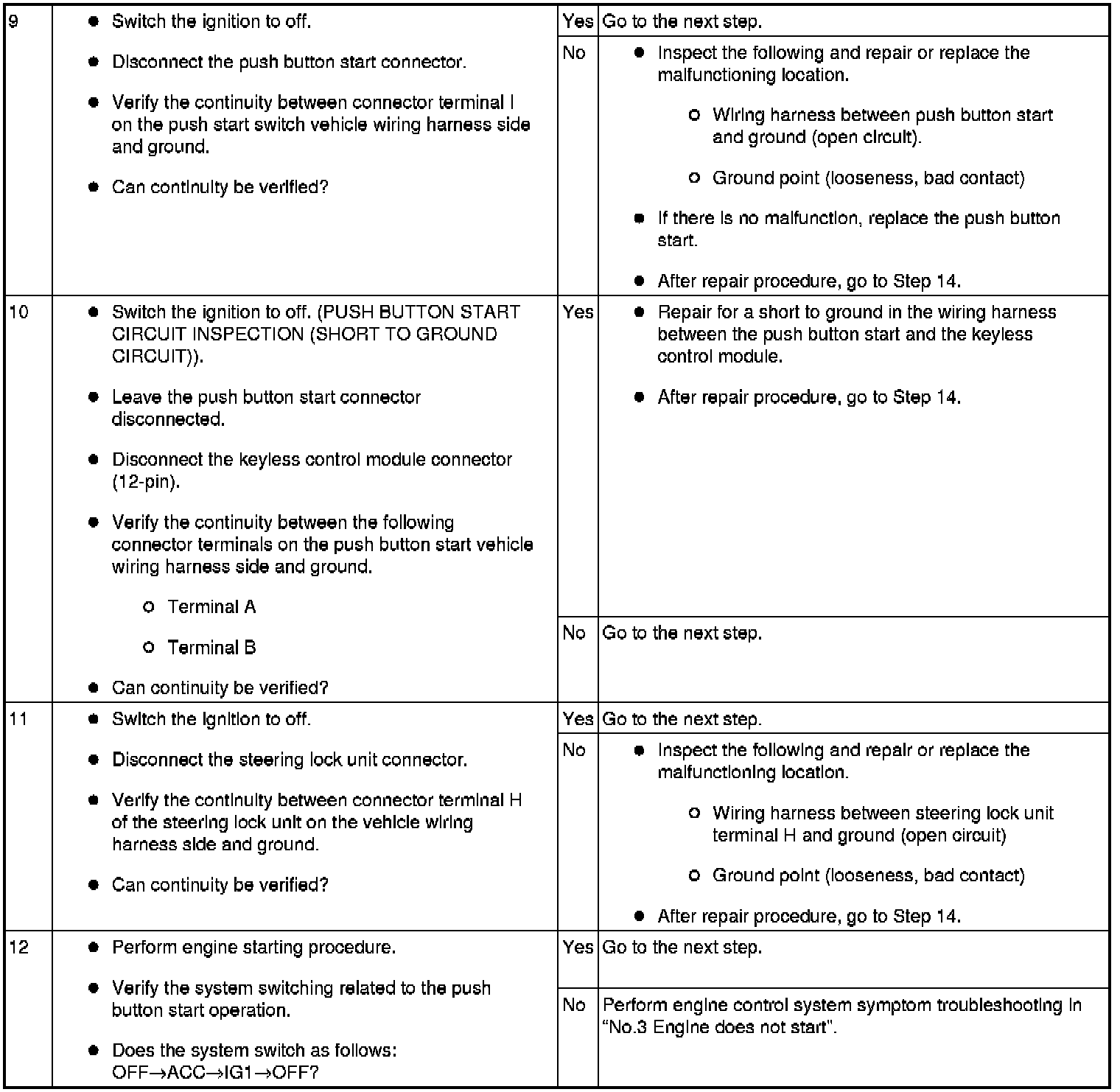

Step 9-Step 12:

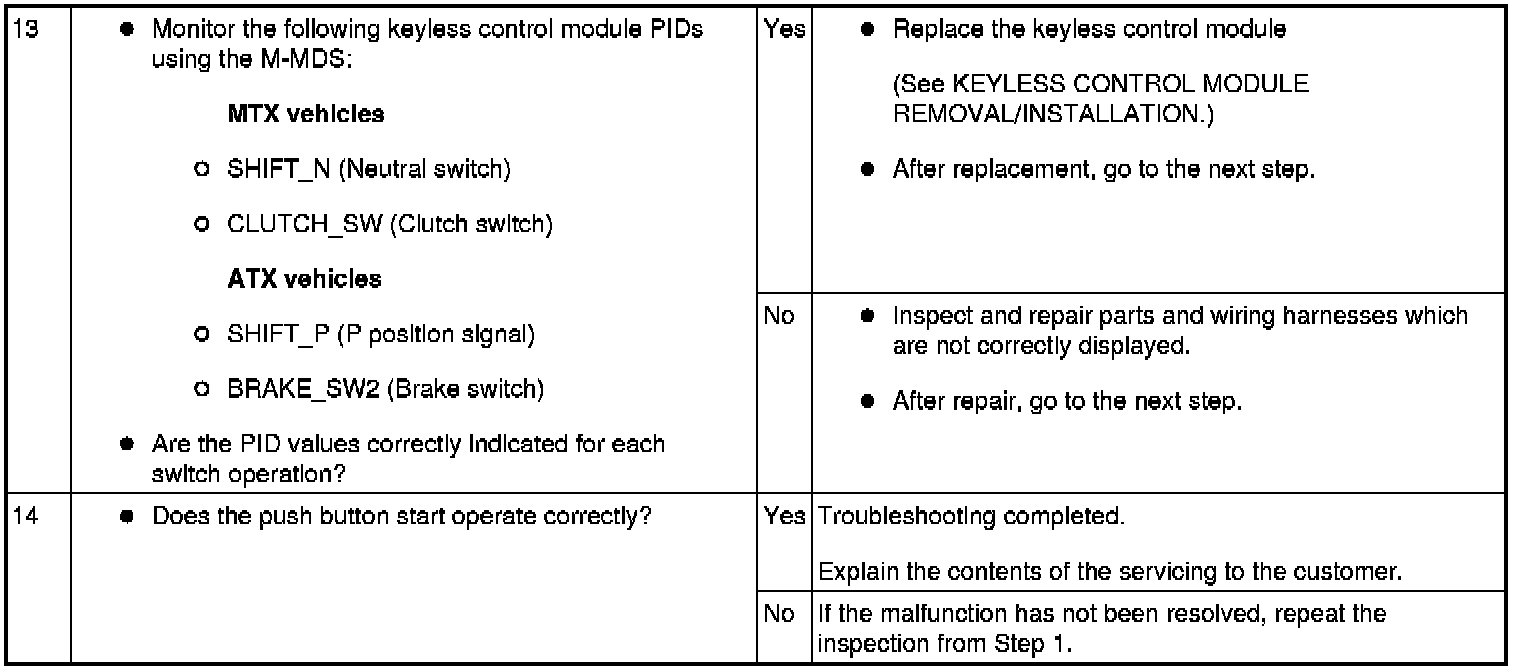

Step 13-Step 14:
