Cruise Control Switch: Testing and Inspection

CRUISE CONTROL SWITCH INSPECTION [LF, L5]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable and wait for 1 min or more.

3. Remove the driver-side air bag module. Driver-Side Air Bag Module Removal/Installation

4. Disconnect the cruise control switch connector.

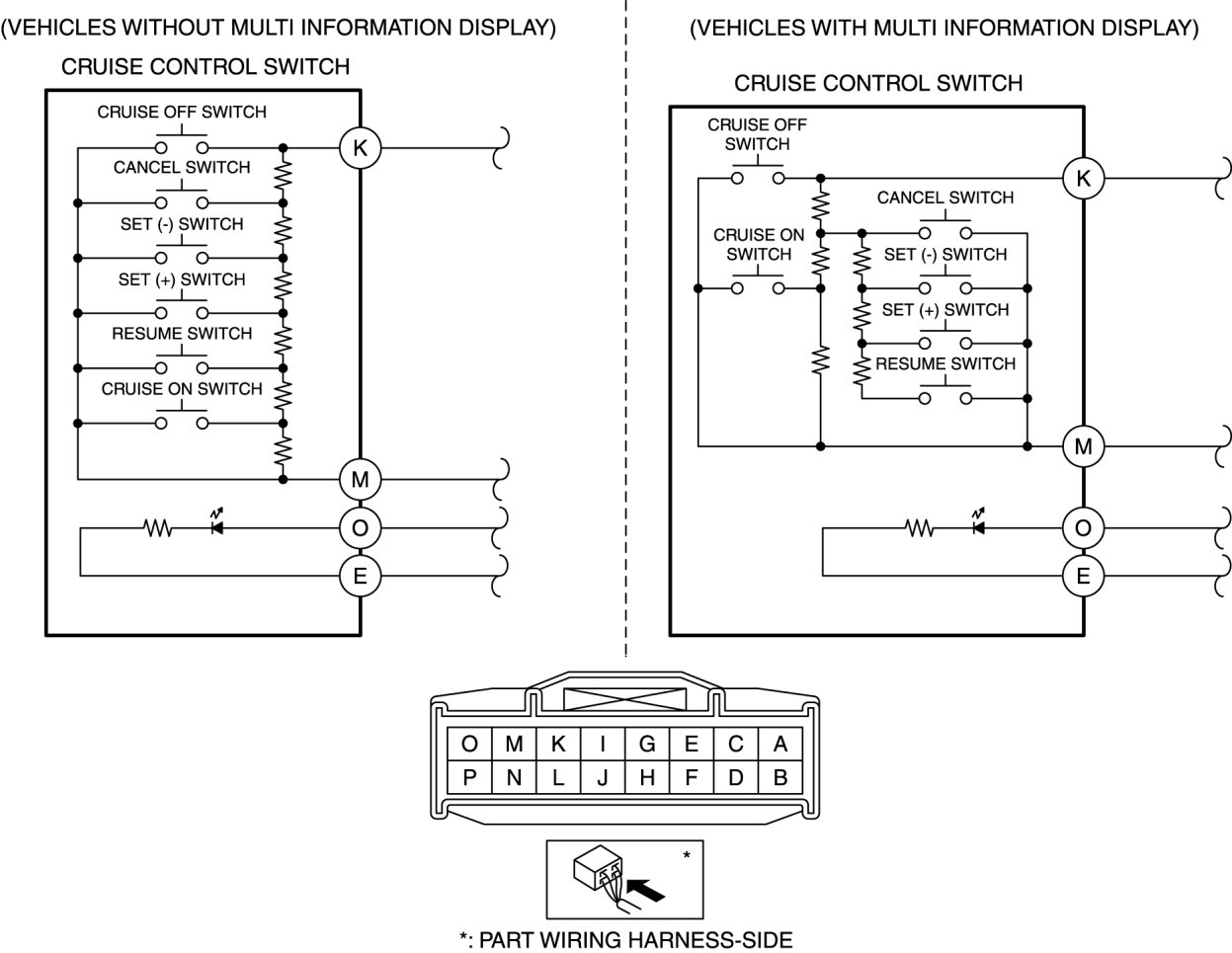

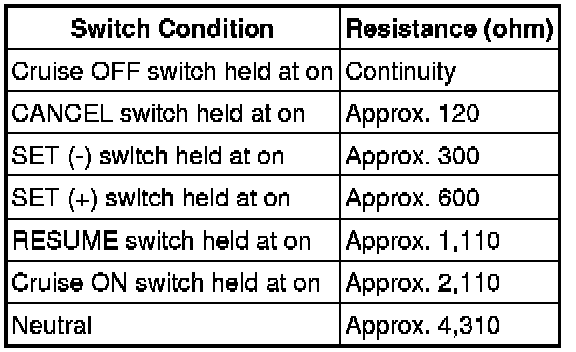

5. Inspect for resistance and continuity between cruise control switch terminals K and M (part wiring harness-side) using a tester.

- If not as specified, replace the steering switch. Service and Repair

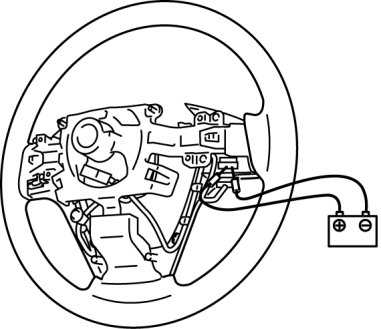

6. Apply battery positive voltage to cruise control switch connector terminal O (part wiring harness-side), and terminal E (part wiring harness-side) to ground.






7. Verify that the LED illuminates.

- If the LED does not illuminate, replace the steering switch. Service and Repair
