Engine Front Cover Assembly Note
Engine Front Cover Assembly NoteCaution
^ Install the engine front cover within 10 minutes of applying the silicone sealant.

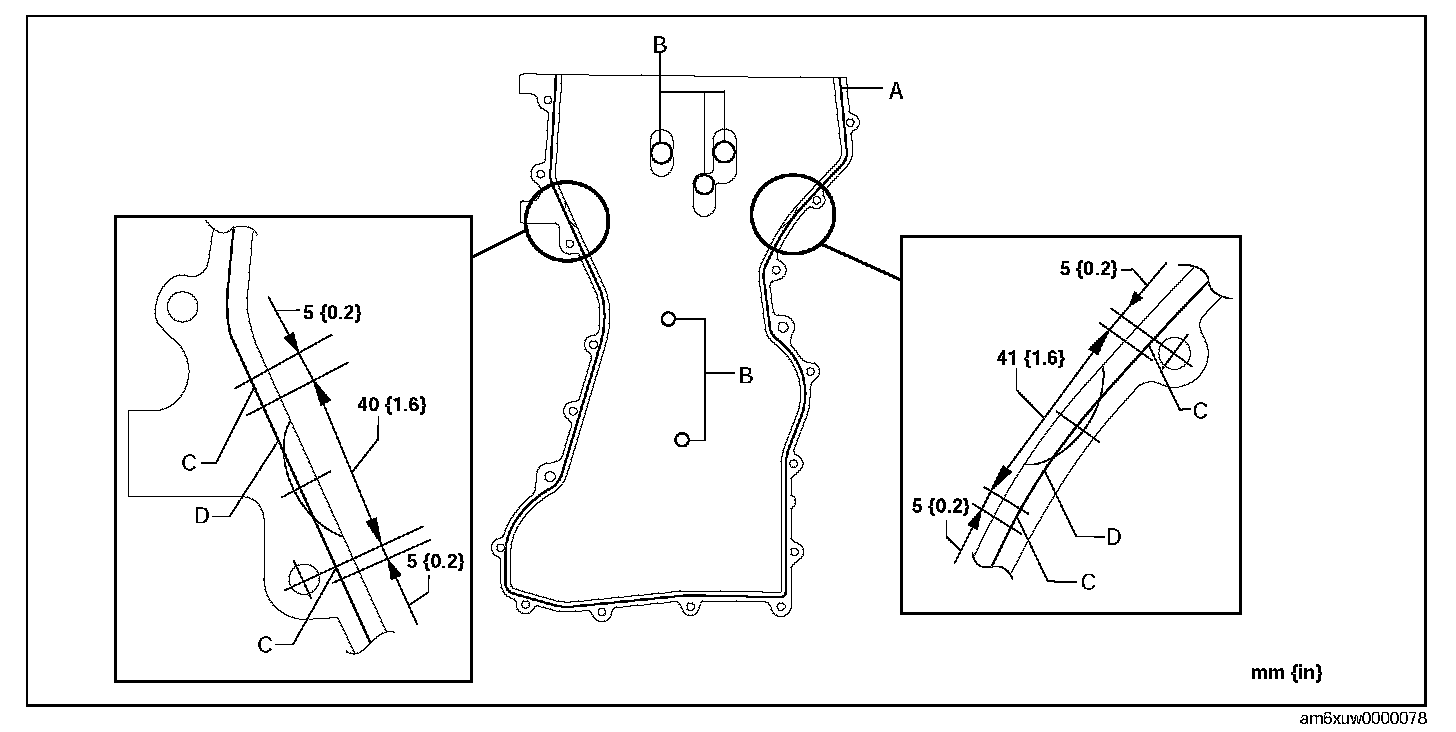

1. Apply silicone sealant to the engine front cover as shown.
Thickness
A: 2.2-3.2 mm (0.09-0.12 in)
B: 1.5-2.5 mm (0.06-0.098 in)
C: 2.2-4.3 mm (0.09-0.16 in)
D: 3.3-4.3 mm (0.13-0.16 in)
2. Install the cylinder head cover bolts in the order as shown in the figure.
